Mid Performance & Power-saving (DI Series)｜Fanless PC
Cincoze DI Series “DIAMOND Intelligent” embedded systems pack the punch of a high-performance, low-power Intel® Core™ i7/i5/i3 CPU (TDP 15W) in a lightweight, compact, and fanless extruded aluminum package. The DI Series is ideal for harsh, space-limited applications that demand uncompromised performance, such as factory automation, machine vision, in-vehicle computing, and mobile surveillance. #Fanless PC| Product | Model Name | CPU | I/O | Expansion |
|---|---|---|---|---|

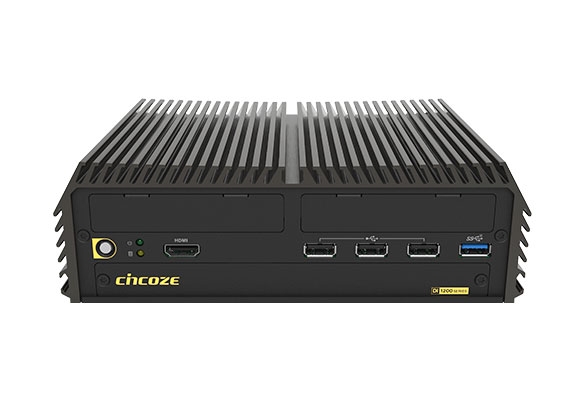

 | DI-1200 | Onboard Intel® Core™ i3-1215UE Processor Onboard Intel® Core™ i5-1245UE Processor Onboard Intel® Core™ i7-1265UE Processor | 2x 2.5 GbE LAN 1x USB 3.2 Gen2x1 (10Gbps) 2x USB 3.2 Gen1x1 (5Gbps) 3x USB 2.0 (480Mbps) 2x COM 1x HDMI 2x DisplayPort | 2x M.2 Sockets 2x SIM Socket 2x CMI Interface 1x CFM Interface |

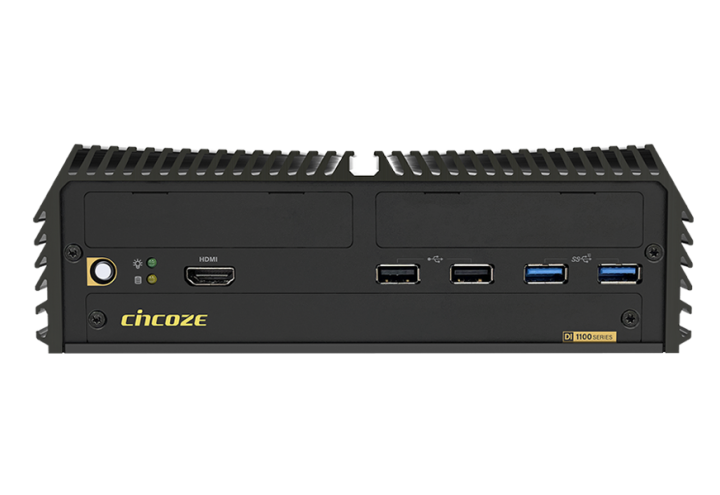

 | DI-1100 | Onboard Intel® Core™ i3-8145UE Processor Onboard Intel® Core™ i5-8365UE Processor Onboard Intel® Core™ i7-8665UE Processor | 2x LAN 2x USB 3.2 Gen2x1 (10Gbps) 2x USB 3.2 Gen1x1 (5Gbps) 2x USB 2.0 (480Mbps) 2x COM 1x PS/2 1x HDMI 1x DisplayPort 1x VGA | 2x Full-size Mini-PCIe Sockets 2x SIM Socket 2x CMI Interface 1x CFM Interface |
 | DI-1000 | Onboard Intel® Core™ i3-6100U Processor Onboard Intel® Core™ i5-6300U Processor Onboard Intel® Core™ i7-6600U Processor | 1x DVI-I 1x DisplayPort 2x GbE LAN 6x COM 4x USB 3.2 Gen1x1 (5Gbps) 2x USB 2.0 (480Mbps) 1x PS/2 8x Optical Isolated DIO | 1x CFM Interface 1x CMI Interface 2x Full-size Mini-PCIe Sockets 1x SIM Socket |
