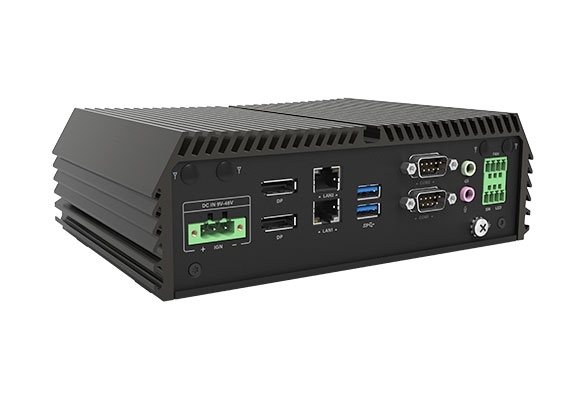

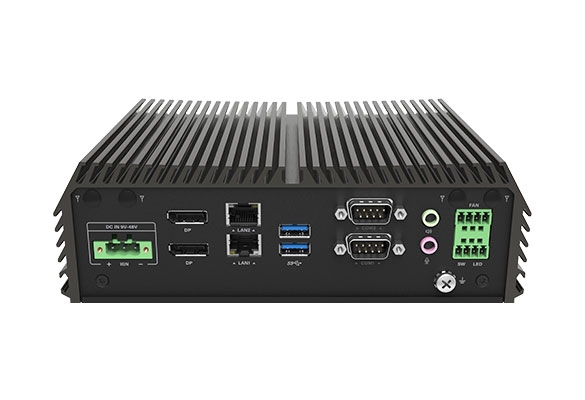

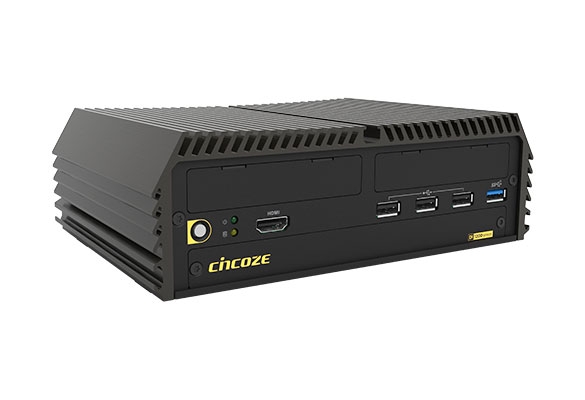

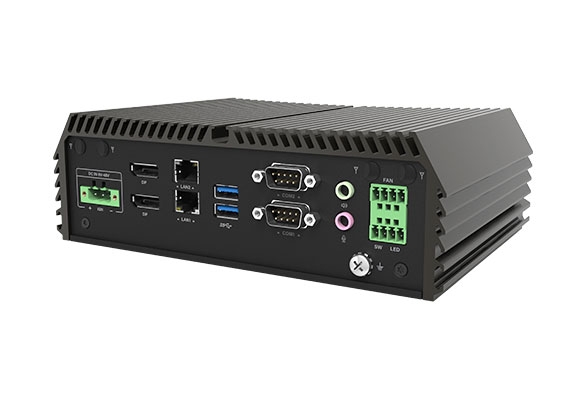

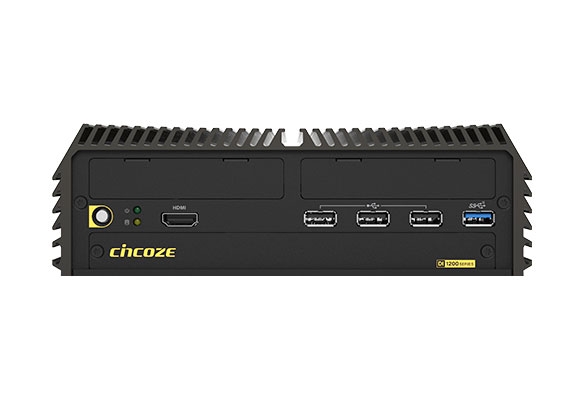

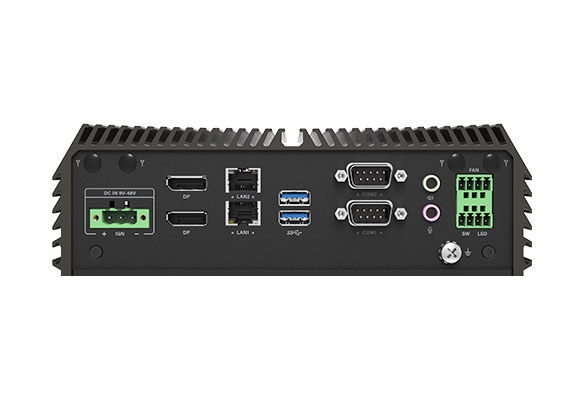

DI-1200
Intel® 12th Gen. Alder Lake-P Platform, High Performance and Power Saving Rugged Embedded Computer
- Onboard 12th Intel® Alder Lake-P U-Series Core™ i7/i5/i3 Processors
- 1 x DDR5 SO-DIMM Sockets, Supports up to 4800MHz 32GB Memory
- Quad Independent Display (2x DP/HDMI/CMI Display)
- 1x M.2 Key E Type 2230 Socket for Wireless / Intel CNVi Module Expansion
- 1x M.2 Key B Type 3042 / 3052 Socket for 5G / Storage / Add-on Card Expansion
- CMI Technology for Optional I/O Module Expansions
- CFM Technology for Power Ignition Sensing Function & PoE
- Wide Operating Temperature -40°C to 70°C
The DI-1200, with a 12th generation Intel® Core™ U-series (Alder Lake-P Platform) processor, provides outstanding performance and boasts a low power consumption of 15W. The compact DI-1200 offers rich I/O interfaces and expansion options, meeting the requirements for high-performance, rugged embedded computers used in confined spaces. It suits for industrial automation, warehousing and logistics, transportation, environmental monitoring, and IoT applications.
Product Category >>>> Rugged Embedded Fanless PC
High Performance and Power Saving
——
The DI-1200 supports the 12th generation Core™ i7/i5/i3 U-series (Alder Lake-P) processor based on the Intel® 7 process. Its exceptional processing performance and ultra-low power consumption of just 15W, make it highly suitable for mobile devices limited by battery capacity.
Smaller than A5
——
The DI-1200 has a footprint smaller than a sheet of A5 paper, with dimensions of only 203 x 142 x 66.8 mm. It is ideal for mobile devices such as AGVs and AMRs, tight spaces in vehicles, or small cabinets in factories.
High-speed I/O
——
The DI-1200 offers a range of high-speed I/O, including LAN (10GbE, 2.5GbE, 1GbE), USB 3.2 (10Gbps, 5Gbps), USB 2.0, and more, making data and image transmission faster and allowing easy connection to various high-speed devices.
Comprehensive Wireless Options
——
The DI-1200 has one M.2 Key E slot and one M.2 Key B slot, supporting a full range of wireless transmission options, including GSM, GNSS, Wi-Fi, and Bluetooth. It also supports the Intel CNVi module, meeting diverse transmission needs.
Quick Hard Drive Removal
——
Mobile devices must allow quick access to data. The DI-1200 features a hot-swappable 2.5-inch SATA HDD/SSD slot in the front panel of the chassis, making it easy to remove the hard drive and access the data on it.
Secure and Rugged
——
The DI-1200 showcases its ruggedness and industrial-grade protections through multiple industry certifications. It complies with industrial EMC standards (IEC 61000-6-2 and IEC 61000-6-4), ensuring reliable operation in external electromagnetic interference from surrounding devices. The DI-1200 also meets the U.S. military standard, MIL-STD-810H, ensuring stable operation under extreme shock and vibration conditions.
| Model Name | DI-1200 | |
|---|---|---|
| System | Processor | • Onboard 12th Intel® Alder Lake-P U-Series CPU: - Intel® Core™ i7-1265UE 10 Cores Up to 4.70 GHz, TDP 15W - Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W - Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 15W |
| Memory | • 1x DDR5 SO-DIMM Socket, Supports Un-buffered and non-ECC Type, Up to 32GB | |
| BIOS | • AMI BIOS | |
| Graphics | Graphics Engine | • Integrated Intel® Iris® Xe Graphics: Core™ i7-1265UE, i5-1245UE • Integrated Intel® UHD Graphics: Core™ i3-1215UE |
| Maximum Display Output | • Supports Quad Independent Display | |
| HDMI | • 1x HDMI Connector (3840 x 2160@60Hz) | |
| DP | • 2x DisplayPort Connector (3840 x 2160@60Hz) | |
| CMI Display | • 1x CMI Interface for Optional CMI-DP/CMI-HDMI/CMI-VGA Module Expansion | |
| Audio | Audio Codec | • Realtek® ALC888, High Definition Audio |
| Line-out | • 1 x Line-out, Phone Jack 3.5mm | |
| Mic-in | • 1 x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | • 2x 2.5 GbE LAN, RJ45 - GbE1: Intel® I225 - GbE2: Intel® I225 |
| COM | • 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
| USB | • 1 x USB 3.2 Gen2x1 (10Gbps), Type A • 2 x USB 3.2 Gen1x1 (5Gbps), Type A • 3 x USB 2.0 (480Mbps), Type A | |
| Storage | SSD/HDD | • 1x 2.5" SATA HDD/SSD Bay (SATA 3.0) |
| M.2 SSD | • 1 x M.2 SSD shared by M.2 Key B Type 3052 Socket | |
| RAID | • Support RAID 0/1 | |
| Expansion | M.2 Key E Socket | • 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Intel CNVi Module Expansion |
| M.2 Key B Socket | • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1 / USB3.2 Gen2 x1 / USB2.0 / SATA ), Support 5G/Storage/Add-on Card Expansion | |
| SIM Socket | • 2 x Front Accessible SIM Socket | |
| CMI (Combined Multiple I/O) Interface | • 1x CMI Interface for optional CMI-LAN Module Expansion • 1x CMI Interface for optional CMI-Display / CMI-COM / CMI-DIO Module Expansion | |
| CFM (Control Function Module) Interface | • 1x CFM IGN Interface for optional CFM-IGN Module Expansion | |
| Other Function | External FAN Connector | • 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) |
| Clear CMOS Switch | • 1x Clear CMOS Switch | |
| Reset Button | • 1x Reset Button | |
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |
| Power | Power Button | • 1 x ATX Power On/Off Button |
| Power Mode Switch | • 1 x AT/ATX Mode Switch | |
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | • 1 x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | • 1 x Remote Power LED, 2-pin Terminal Block | |
| Physical | Dimension ( W x D x H ) | • 203 x 142 x 66.8 mm |
| Weight Information | • 1.8 KG | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | |
| Mounting | • Wall / Side / DIN-RAIL / VESA Mount | |
| Physical Design | • Fanless Design • Cableless Design • Jumper-less Design • Unibody Design | |
| Reliability & Protection | Reverse Power Input | • Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | • 15A | |
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | • 486,235 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Operating System | Windows | • Windows®11, Windows®10 |
| Linux | • Ubuntu 22.04 | |
| Environment | Operating Temperature | • -40°C to 70°C - PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling) - With extended temperature peripherals; Ambient with air flow - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | • -40°C to 70°C | |
| Relative Humidity | • 95% RH @ 70°C (Non-condensing) | |
| Shock | • MIL-STD-810H | |
| Vibration | • MIL-STD-810H | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only) • EN 50155 (EN 50121-3-2 Only) • E-mark (Pending) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN 61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded cable.) • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Model No. | Product Description |
|---|---|
| DI-1200-i7-R10 | 12th Generation Intel Core i7-1265UE High Performance, Compact and Modular Rugged Embedded Computer |
| DI-1200-i5-R10 | 12th Generation Intel Core i5-1245UE High Performance, Compact and Modular Rugged Embedded Computer |
| DI-1200-i3-R10 | 12th Generation Intel Core i3-1215UE High Performance, Compact and Modular Rugged Embedded Computer |
| • DI-1200 Embedded Computer x1 | • Power Terminal Block Connector x1 |
| • CPU Thermal Pad x1 | • Remote Power On/Off + Remote Power LED Connector x 1 |
| • Screw Pack x 1 | • Fan Terminal Block Connector x 1 |
| • Wall Mounting Kit x1 | • M.2 Key B Type 3052 to 3042 Adapter Bracket x1 |
| Model No. | Description |
|---|---|
| CFM-IGN102 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable |
| CFM-PoE06-R10 | CFM Module with PoE Function, Individual Port 25.5W |
| CMI-LAN01-R12 | CMI Module with 4x RJ45 Intel I210 GbE LAN Ports |
| CMI-M12LAN01-R12 | CMI Module with 4 x M12 Intel I210 GbE LAN Ports |
| CMI-XM12LAN01-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports |
| CMI-10GLAN04-R10 | CMI Module with 2x Intel X550 10GbE LAN Ports |
| CMI-VGA02-R10 | CMI Module with 1x VGA Port |
| CMI-HD04-R10 | CMI Module with 1x HDMI Port |
| CMI-DP02-R10 | CMI Module with 1x DisplayPort |
| CMI-DIO05-R10 | CMI Module with 16DIO (8in 8out) |
| CMI-COM05-R10 | CMI Module with 2x RS232/422/485 (Support 5V/12V) |
| UB1503-R11 | Universal Bracket with 2x DB9 Cutout |
| UB1506-R10 | Universal Bracket with DisplayPort Cutout |
| UB1508-R10 | Universal Bracket with HDMI Cutout |
| UB1510-R11 | Universal Bracket with 4x M12 Cutout |
| UB1512-R11 | Universal Bracket with 4x RJ45 Cutout for CMI-LAN Expansion |
| UB1516-R10 | Universal Bracket with VGA Cutout |
| UB1518-R10 | Universal Bracket with DIO Cutout |
| UB1528-R11 | Universal Bracket with 2x RJ45 Cutout for CMI-10GLAN Expansion |
| DINRAIL-R10 | Diamond series DIN-RAIL Mount Kit |
| FAN-EX103 | External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan (*External fan must be installed when using CFM-PoE module) |
| SIDE01 | DI Series Side Mount Kit |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
