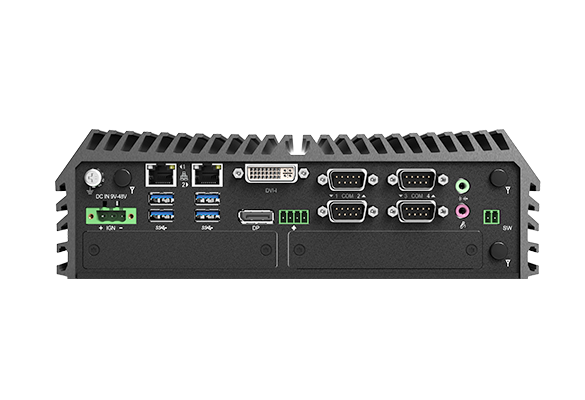

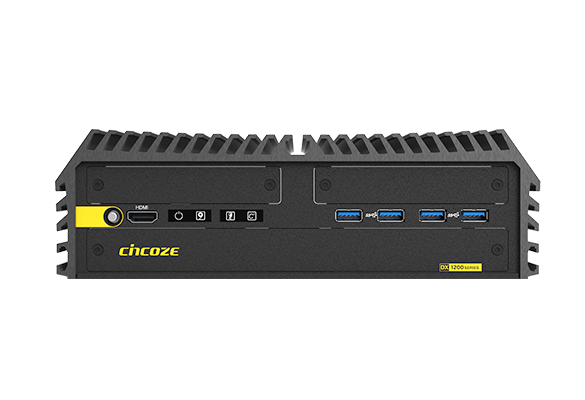

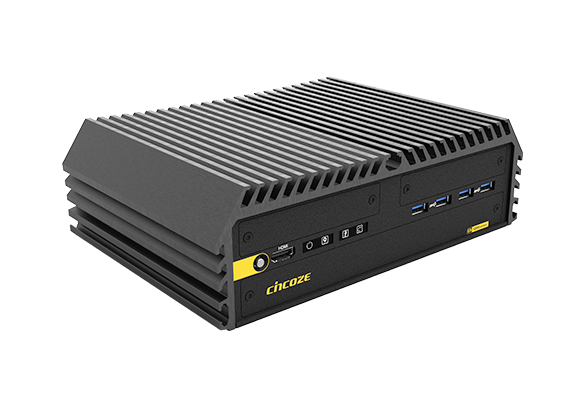

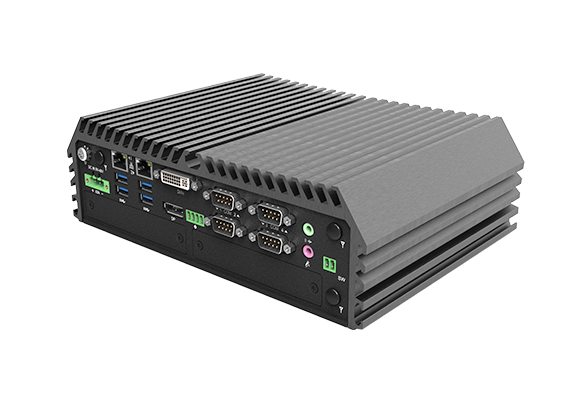

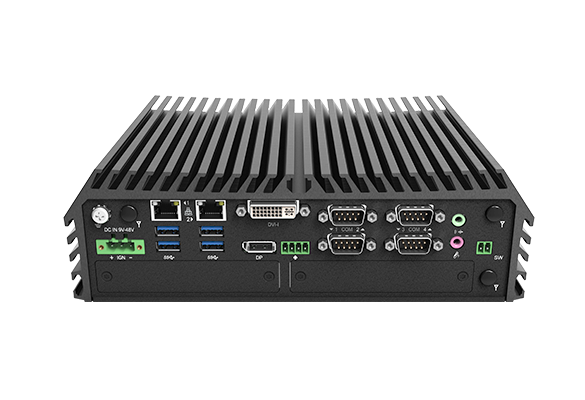

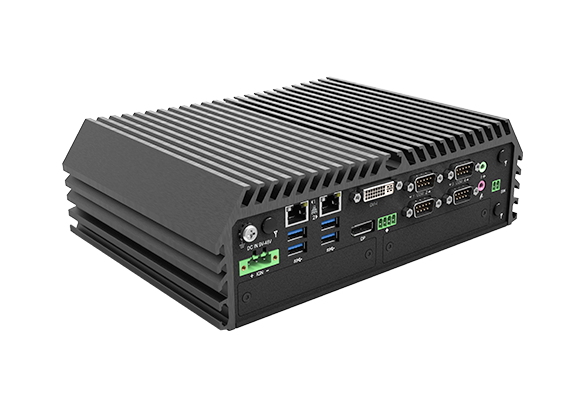

DX-1200

13/12th Gen. Intel® Core Series High Performance and Compact Rugged Embedded Computer

PRODUCTS FEATURES
  • Intel® 13/12th Gen Raptor Lake-S / Alder Lake-S Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
  • 2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHZ, 64GB
  • Quad Independent Display (HDMI / DP / DVI-I)
  • 1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
  • CMI Technology for Optional I/O Module Expansions
  • CFM Technology for Power Ignition Sensing & PoE Function
  • Wide Operating Temperature -40°C to 70°C
  • Safety Standard: UL, cUL, CB, IEC, EN 62368-1
OVERVIEW
Cincoze P1201, A Slim and Power Efficient Computer For Embedded and Panel-PC Application

The DX-1200 is a fanless embedded computer that packs extreme performance into a rugged, compact chassis, making it the ideal choice for smart manufacturing, machine vision, and edge AI applications. 13/12th gen Intel® Core™ (Raptor Lake-S / Alder Lake-S) processor (TDP up to 65W) and DDR5 4800 MHz memory provide high-speed computing performance, while additional functions, including rich native I/O and modular expansion design, meet the requirements for a wide range of applications.

Product Category >>>> Rugged Embedded Fanless PC




Rapid Processing and Inference

——

The DX-1200 supports 13/12th gen Intel® Core™ i9/i7/i5/i3 (Raptor Lake-S/Alder Lake-S) processors based on the Intel 7 process, with up to 24 cores (8P + 16E) and 32 threads, delivering more than 1.35x the speed of Comet Lake-S platform. The Intel® Xe architecture of the UHD 770 graphics chip boosts GPU image classification inference performance to 2.8× the speed of Comet Lake-S, providing the processing performance needed for AI and edge computing.

Rapid Processing and Inference

High-speed, Safe Memory

High-speed, Safe Memory

——

Two DDR5 SO-DIMM slots support up to 64GB of 4800MHz memory and include ECC (Error Correction Code) technology, giving the extra stability and reliability needed for industrial automation applications.




Rich and Diverse Expandability

——

To cater to the widest range of industrial applications, the DX-1200 provides one M.2 Key E slot and two Mini PCIe slots for the addition of WiFi, GNSS, 4G, and Bluetooth. The Mini PCIe slots also support I/O expansion cards, frame grabber cards, and more, to meet different application requirements.

Rich and Diverse Expandability

High-speed, Reliable Data Transmission


High-speed, Reliable Data Transmission

——

To improve the transfer rate of videos or large files, the DX-1200 supports up to four high-speed 10Gbps LAN ports. And for application environments that require multiple network connections, the DX-1200 supports up to 8× PoE, providing data and power through the same cable to reduce the difficulty of wiring.


Robust and Reliable

——

The DX-1200 is built tough, reflected in its industrial-grade protection design and industry certifications in different fields. In addition to features such as wide temperature (-40 - 70°C), wide voltage input (9 - 48 VDC), overvoltage, overcurrent, and ESD protection, it also complies with the US military shock vibration standard MIL-STD-810G. Product safety and reliability are further ensured with internationally recognized UL 62368-1 safety certification. For more secure railway computing, it also passes the EMC EN 50121-3-2 standard in EN 50155 and the EN 45545-2 fire protection standard.

Robust and Reliable

Video
SPECIFICATION
Model NameDX-1200
SystemProcessor

13th Generation Intel® Raptor Lake-S Series CPU:
- Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W
- Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W
- Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W
- Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 60W
- Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W
- Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W
- Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W
- Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W

12th Generation Intel® Alder Lake-S Series CPU:
- Intel® Core™ i9-12900E 16 Cores Up to 5 GHz, TDP 65W
- Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W
- Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W
- Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W
- Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W
- Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W
- Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W
- Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W
- Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W
- Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W
- Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W
- Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W

ChipsetIntel R680E Chipset
Memory2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64GB
BIOSAMI BIOS
GraphicsGraphics EngineIntegrated Intel® UHD Graphics 770: Core™ i9/i7/i5
Integrated Intel® UHD Graphics 730: Core™ i3
Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Maximum Display OutputSupports Quad Independent Display
DVI1x DVI-I Connector
- VGA: 1920 x 1080 @ 60 Hz
- DVI-D: 1920 x 1200 @ 60 Hz
DP1x DP Connector: 4096 x 2304 @ 60Hz
* Verified maximum resolution: 3840 x 2160 @ 60Hz
HDMI1 x HDMI Connector (3840x2160@30Hz)
AudioAudio CodecRealtek® ALC888, High Definition Audio
Line-out1x Line-out, Phone Jack 3.5mm
Mic-in1x Mic-in, Phone Jack 3.5mm
I/OLAN2x 1GbE LAN, RJ45(Supports Wake on LAN, PXE)
- GbE1: Intel® I219
- GbE2: Intel® I210
COM4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB4x 10Gbps USB 3.2 Gen2, Type A
4x 5Gbps USB 3.2 Gen1, Type A
StorageSSD/HDD2x 2.5" SATA HDD/SSD Bay (SATA 3.0)
mSATA2x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket )
RAIDSupport RAID 0/1/5/10
ExpansionMini PCI Express2x Full-size Mini-PCIe Socket
M.2 E Key Socket1x M.2 Key E Type 2230 Socket, Support Intel CNVi Module
SIM Socket1x SIM Socket
CMI (Combined Multiple I/O) Interface2x High Speed CMI Interface for optional CMI Module Expansion
1x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Interface1x CFM IGN Interface for optional CFM-IGN Module Expansion
Other FunctionExternal FAN Connector1x External FAN Connector, 4-pin Terminal Block
(Support Smart Fan by BIOS)
Clear CMOS Switch1x Clear CMOS Switch
Reset Button1x Reset Button
Instant RebootSupport 0.2sec Instant Reboot Technology
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
PowerPower Button1 x ATX Power On/Off Button
Power Mode Switch1 x AT/ATX Mode Switch
Power Input9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off1 x Remote Power On/Off, 2-pin Terminal Block
PhysicalDimension ( W x D x H )242 x 173 x 75 mm
Weight Information3.05 kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / DIN-RAIL / VESA / Side Mount
Physical Design• Fanless Design
• Cableless Design
• Jumper-less Design
• Unibody Design
Reliability & ProtectionReverse Power Input ProtectionYes
Over Voltage Protection• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection15A
CMOS Battery BackupSuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF394,488 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating SystemWindowsWindows®11, Windows®10
LinuxUbuntu 22.04
EnvironmentOperating Temperature• 35W TDP Processor: -40°C to 70°C
• 65W TDP Processor: -40°C to 50°C (With External Fan Kit)
- With extended temperature peripherals; Ambient with air flow
- According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature-40°C to 85°C
Relative Humidity95% RH @ 70°C (Non-condensing)
ShockMIL-STD-810G
VibrationMIL-STD-810G
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN 50155 (EN 50121-3-2 Only)
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyUL, cUL, CB, IEC, EN 62368-1
Fire ProtectionEN 45545-2
ORDERING INFORMATION
Available Models
Model No.Product Description
DX-1200-R1013/12th Gen. Intel® Core Series High Performance and Compact Rugged Embedded Computer

Package Checklist
√  DX-1200 Rugged Computer x1√  Power Terminal Block Connector x1
√  CPU Heatsink Pack x1√  Remote Power On/Off Terminal Block Connector x 1
√  Screw Pack x 1√  Fan Terminal Block Connector x 1
√  Wall Mounting Kit x1 √  DVI-I to VGA Adaptor x 1

Optional Modules and Accessories
Model No.Description
CFM-PoE01CFM Module with PoE Control Function, Individual Port 25.5W
CFM-IGN01CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable
CMI-LAN01-R12CMI Module with 4x RJ45 Intel I210 1GbE LAN Ports
CMI-10GLAN05-R10CMI Module with 2x Intel 10GbE LAN, RJ45 Port
CMI-M12LAN01-R12CMI Module with 4 x M12 Intel I210 1GbE LAN Ports
CMI-XM12LAN01-R10CMI Module with M12 X-Coded Connector, 4x Intel I210 1GbE LAN Ports
CMI-DIO01CMI Module with 16DIO (8in 8out)
CMI-COM01CMI Module with 2x RS232/422/485 (Support 5V/12V)
MEC-COM-M212-TDB9Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Thin DB9 Cable
MEC-COM-M334-TDB9Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable
MEC-LAN-M102-30Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable
UB0930-R10Universal Bracket with 4x M12 X-Coded Cutout
UB1303Universal Bracket with 2x DB9 Cutout
UB1311Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion
UB1318Universal Bracket with DIO Cutout
UB1710-R10Universal Bracket with 4x M12 A-Coded Cutout
UB1712-R10Universal Bracket with 4x RJ45 Cutout
UB1728-R10Universal Bracket with 2x RJ45 Cutout for CMI-10GLAN Expansion
SIDE-DXDX Series side mount kit
DIN01DIN-RAIL Mount Kit, KMRH-K175
GST120A24-CINAdapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI
FAN-EX101External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support smart fan
