Entry Performance Sunlight Readable Panel PC (CS-100/P1000 Series)

PRODUCTS

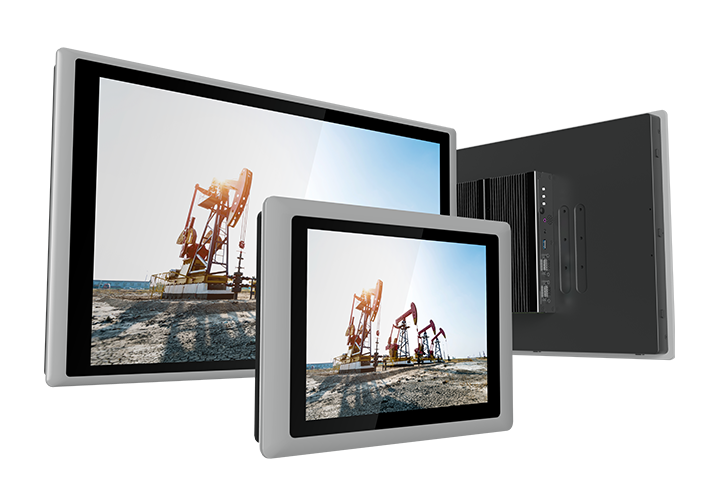

This all-in-one Sunlight Readable Panel PC series is available from 8.4"~24" displays with projected capacitive touch screen, powered by Intel® Atom™ Quad Core Processor. It is a rugged and reliable panel PC solution with brightness up to 1800 nits dedication to outdoor industrial applications.

Product	Model Name	Display	CPU	I/O	Expansion
	CS-108 / P1301 Series	8.4" TFT 800 x 600 (4:3) 1600 nits	Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E	1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO	2x M.2 Socket 1x SIM Socket 2x CFM Interface
	CS-108 / P1201 Series	8.4" TFT 800 x 600 (4:3) 1600 nits	Intel® Atom® x6000E	1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO	1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
	CS-108 / P1101 Series	8.4" TFT 800 x 600 (4:3) 1600 nits	Intel® Atom® x7-E3950 Intel® Pentium® N4200	1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO	2x Mini-PCIe and Support CFM (PoE, IGN)
	CS-108 / P1001 Series	8.4" TFT 800 x 600 (4:3) 1600 nits	Intel® Atom™ E3845	1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO	1x Mini-PCIe
	CS-110H / P1301 Series	10.4" TFT 1024 x 768 (4:3) 1500 nits	Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E	1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO	2x M.2 Socket 1x SIM Socket 2x CFM Interface
	CS-110H / P1201 Series	10.4" TFT 1024 x 768 (4:3) 1500 nits	Intel® Atom® x6000E	1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO	1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
	CS-110H / P1101 Series	10.4" TFT 1024 x 768 (4:3) 1500 nits	Intel® Atom® x7-E3950 Intel® Pentium® N4200	1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO	2x Mini-PCIe and Support CFM (PoE, IGN)
	CS-110H / P1001 Series	10.4" TFT 1024 x 768 (4:3) 1500 nits	Intel® Atom™ E3845	1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO	1x Mini-PCIe
	CS-112H / P1301 Series	12.1" TFT 1024 x 768 (4:3) 1500 nits	Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E	1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO	2x M.2 Socket 1x SIM Socket 2x CFM Interface
	CS-112H / P1201 Series	12.1" TFT 1024 x 768 (4:3) 1500 nits	Intel® Atom® x6000E	1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO	1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
	CS-112H / P1101 Series	12.1" TFT 1024 x 768 (4:3) 1500 nits	Intel® Atom® x7-E3950 Intel® Pentium® N4200	1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO	2x Mini-PCIe and Support CFM (PoE, IGN)
	CS-112H / P1001 Series	12.1" TFT 1024 x 768 (4:3) 1500 nits	Intel® Atom™ E3845	1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO	1x Mini-PCIe
	CS-115 / P1301 Series	15" TFT 1024 x 768 (4:3) 1800 nits	Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E	1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO	2x M.2 Socket 1x SIM Socket 2x CFM Interface
	CS-115 / P1201 Series	15" TFT 1024x768 (4:3) 1800 nits	Intel® Atom® x6000E	1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO	1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
	CS-115 / P1101 Series	15" TFT 1024x768 (4:3) 1800 nits	Intel® Atom® x7-E3950 Intel® Pentium® N4200	1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO	2x Mini-PCIe and Support CFM (PoE, IGN)
	CS-115 / P1001 Series	15" TFT 1024x768 (4:3) 1800 nits	Intel® Atom™ E3845	1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO	1x Mini-PCIe
	CS-117 / P1301 Series	17" TFT 1280 x 1024 (5:4) 1500 nits	Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E	1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO	2x M.2 Socket 1x SIM Socket 2x CFM Interface
	CS-117 / P1201 Series	17" TFT 1280x1024 (5:4) 1500 nits	Intel® Atom® x6000E	1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO	1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
	CS-117 / P1101 Series	17" TFT 1280x1024 (5:4) 1500 nits	Intel® Atom® x7-E3950 Intel® Pentium® N4200	1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO	2x Mini-PCIe and Support CFM (PoE, IGN)
	CS-117 / P1001 Series	17" TFT 1280x1024 (5:4) 1500 nits	Intel® Atom™ E3845	1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO	1x Mini-PCIe
	CS-119 / P1301 Series	19" TFT 1280 x 1024 (5:4) 1600 nits	Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E	1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO	2x M.2 Socket 1x SIM Socket 2x CFM Interface
	CS-119 / P1201 Series	19" TFT 1280x1024 (5:4) 1600 nits	Intel® Atom® x6000E	1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO	1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
	CS-119 / P1101 Series	19" TFT 1280x1024 (5:4) 1600 nits	Intel® Atom® x7-E3950 Intel® Pentium® N4200	1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO	2x Mini-PCIe and Support CFM (PoE, IGN)
	CS-119 / P1001 Series	19" TFT 1280x1024 (5:4) 1600 nits	Intel® Atom™ E3845	1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO	1x Mini-PCIe

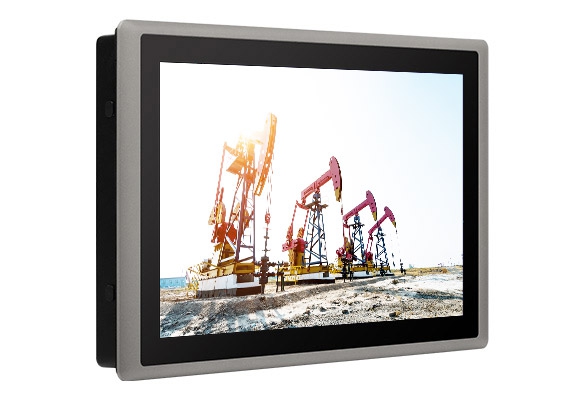

NEW	CS-W115FH / P1301 Series	15.6" TFT 1920x1080 (16:9) 1200 nits	Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E	1x VGA 1x DisplayPort 2x 2.5GbE LAN 3x 10Gbps USB3.2 Gen2x1 1x 480Mbps USB 2.0 2x COM 8x DIO	2x M.2 Socket 1x SIM Socket 2x CFM Interface
NEW	CS-W115FH / P1201 Series	15.6" TFT 1920x1080 (16:9) 1200 nits	Intel® Atom® x6000E	1x VGA 1x DisplayPort 2x 1GbE LAN 3x 10Gbps USB3.2 Gen2x1 1x 480Mbps USB 2.0 3x COM 8x DIO	1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
NEW	CS-W115FH / P1101 Series	15.6" TFT 1920x1080 (16:9) 1200 nits	Intel® Atom® x7-E3950 Intel® Pentium® N4200	1x VGA 1x DisplayPort 2x GbE LAN 4x 5Gbps USB3.2 Gen1 4x COM 8x DIO	2x Mini-PCIe and Support CFM (PoE, IGN)
NEW	CS-W115FH / P1001 Series	15.6" TFT 1920x1080 (16:9) 1200 nits	Intel® Atom™ E3845	1x VGA 1x DisplayPort 2x LAN 1x 5Gbps USB3.2 Gen1 3x 480Mbps USB 2.0 2x COM 8x DIO	1x Mini-PCIe
	CS-W121 / P1301 Series	21.5" TFT 1920 x 1080 (16:9) 1000 nits	Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E	1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO	2x M.2 Socket 1x SIM Socket 2x CFM Interface
	CS-W121 / P1201 Series	21.5" TFT 1920x1080 (16:9) 1000 nits	Intel® Atom® x6000E	1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO	1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
	CS-W121 / P1101 Series	21.5" TFT 1920x1080 (16:9) 1000 nits	Intel® Atom® x7-E3950 Intel® Pentium® N4200	1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO	2x Mini-PCIe and Support CFM (PoE, IGN)
	CS-W121 / P1001 Series	21.5" TFT 1920x1080 (16:9) 1000 nits	Intel® Atom™ E3845	1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO	1x Mini-PCIe
	CS-W124 / P1301 Series	24" TFT 1920 x 1080 (16:9) 1500 nits	Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E	1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO	2x M.2 Socket 1x SIM Socket 2x CFM Interface
	CS-W124 / P1201 Series	24" TFT 1920x1080 (16:9) 1500 nits	Intel® Atom® x6000E	1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO	1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
	CS-W124 / P1101 Series	24" TFT 1920x1080 (16:9) 1500 nits	Intel® Atom® x7-E3950 Intel® Pentium® N4200	1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO	2x Mini-PCIe and Support CFM (PoE, IGN)
	CS-W124 / P1001 Series	24" TFT 1920x1080 (16:9) 1500 nits	Intel® Atom™ E3845	1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO	1x Mini-PCIe
