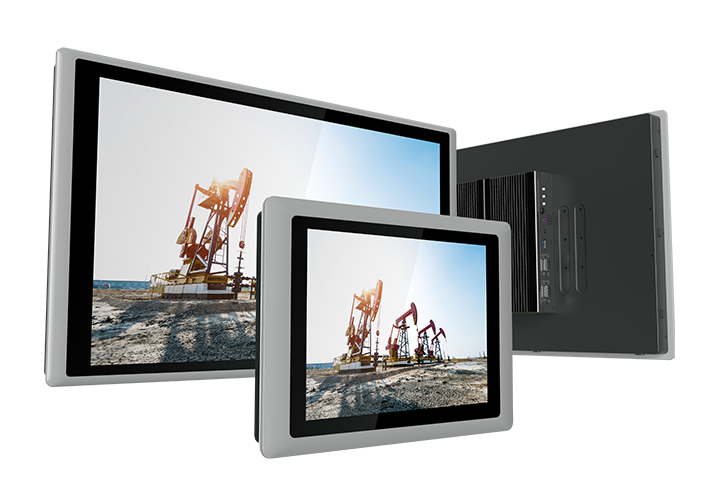

High-Performance Sunlight Readable Panel PC (CS-100/P2000 Series)

High-Performance Sunlight Readable Panel PC (CS-100/P2000 Series)

This all-in-one Sunlight Readable Panel PC series is available from 12"~24" displays, projected capacitive touch screen, powered by Intel ® Core™ U series processor with only 15 watt power consumption. It is a rugged and reliable panel PC solution with brightness up to 1800 nits dedicating to sunlight industrial applications.
ProductModel NameDisplayCPUI/OExpansion
CS-112H / P2202 SeriesCS-112H / P2202 Series12.1" TFT
1024x768 (4:3)
1,500 nits
Intel® Core™ i5-1245UE
Intel® Core™ i3-1215UE
1x VGA
1x DisplayPort
1x HDMI
2x GbE LAN
4x USB
4x COM
16x DIO
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module
CS-112H / P2102 SeriesCS-112H / P2102 Series12.1" TFT
1024x768 (4:3)
1,500 nits
Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE
1x VGA
1x DisplayPort
2x GbE LAN
5x USB
4x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CS-112H / P2002 SeriesCS-112H / P2002 Series12.1" TFT
1024x768 (4:3)
1500 nits
Intel® Core™ i5-6300U
Intel® Core™ i3-6100U
1x VGA
1x DVI-D
2x GbE LAN
5x USB
6x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CS-115 / P2202 SeriesCS-115 / P2202 Series15" TFT
1024x768 (4:3)
1,800 nits
Intel® Core™ i5-1245UE
Intel® Core™ i3-1215UE
1x VGA
1x DisplayPort
1x HDMI
2x GbE LAN
4x USB
4x COM
16x DIO
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module
CS-115 / P2102 SeriesCS-115 / P2102 Series15" TFT
1024x768 (4:3)
1,800 nits
Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE
1x VGA
1x DisplayPort
2x GbE LAN
5x USB
4x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CS-115 / P2002 SeriesCS-115 / P2002 Series15" TFT
1024x768 (4:3)
1800 nits
Intel® Core™ i5-6300U
Intel® Core™ i3-6100U
1x VGA
1x DVI-D
2x GbE LAN
5x USB
6x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CS-117 / P2202 SeriesCS-117 / P2202 Series17" TFT
1280x1024 (5:4)
1500 nits
Intel® Core™ i5-1245UE
Intel® Core™ i3-1215UE
1x VGA
1x DisplayPort
1x HDMI
2x GbE LAN
4x USB
4x COM
16x DIO
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module
CS-117 / P2102 SeriesCS-117 / P2102 Series17" TFT
1280x1024 (5:4)
1500 nits
Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE
1x VGA
1x DisplayPort
2x GbE LAN
5x USB
4x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CS-117 / P2002 SeriesCS-117 / P2002 Series17" TFT
1280x1024 (5:4)
1500 nits
Intel® Core™ i5-6300U
Intel® Core™ i3-6100U
1x VGA
1x DVI-D
2x GbE LAN
5x USB
6x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CS-119 / P2202 SeriesCS-119 / P2202 Series19" TFT
1280x1024 (5:4)
1600 nits
Intel® Core™ i5-1245UE
Intel® Core™ i3-1215UE
1x VGA
1x DisplayPort
1x HDMI
2x GbE LAN
4x USB
4x COM
16x DIO
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module
CS-119 / P2102 SeriesCS-119 / P2102 Series19" TFT
1280x1024 (5:4)
1600 nits
Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE
1x VGA
1x DisplayPort
2x GbE LAN
5x USB
4x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CS-119 / P2002 SeriesCS-119 / P2002 Series19" TFT
1280x1024 (5:4)
1600 nits
Intel® Core™ i5-6300U
Intel® Core™ i3-6100U
1x VGA
1x DVI-D
2x GbE LAN
5x USB
6x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CS-W121 / P2202 SeriesCS-W121 / P2202 Series21.5" TFT
1920x1080 (16:9)
1000 nits
Intel® Core™ i5-1245UE
Intel® Core™ i3-1215UE
1x VGA
1x DisplayPort
1x HDMI
2x GbE LAN
4x USB
4x COM
16x DIO
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module
CS-W121 / P2102 SeriesCS-W121 / P2102 Series21.5" TFT
1920x1080 (16:9)
1000 nits
Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE
1x VGA
1x DisplayPort
2x GbE LAN
5x USB
4x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CS-W121 / P2002 SeriesCS-W121 / P2002 Series21.5" TFT
1920x1080 (16:9)
1000 nits
Intel® Core™ i5-6300U
Intel® Core™ i3-6100U
1x VGA
1x DVI-D
2x GbE LAN
5x USB
6x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CS-W124 / P2202 SeriesCS-W124 / P2202 Series24" TFT
1920x1080 (16:9)
1500 nits
Intel® Core™ i5-1245UE
Intel® Core™ i3-1215UE
1x VGA
1x DisplayPort
1x HDMI
2x GbE LAN
4x USB
4x COM
16x DIO
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module
CS-W124 / P2102 SeriesCS-W124 / P2102 Series24" TFT
1920x1080 (16:9)
1500 nits
Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE
1x VGA
1x DisplayPort
2x GbE LAN
5x USB
4x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CS-W124 / P2002 SeriesCS-W124 / P2002 Series24" TFT
1920x1080 (16:9)
1500 nits
Intel® Core™ i5-6300U
Intel® Core™ i3-6100U
1x VGA
1x DVI-D
2x GbE LAN
5x USB
6x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
