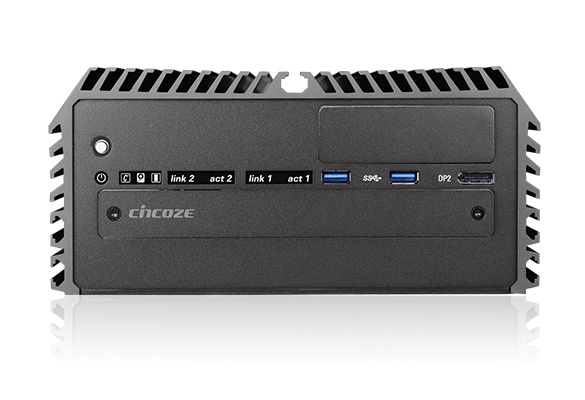

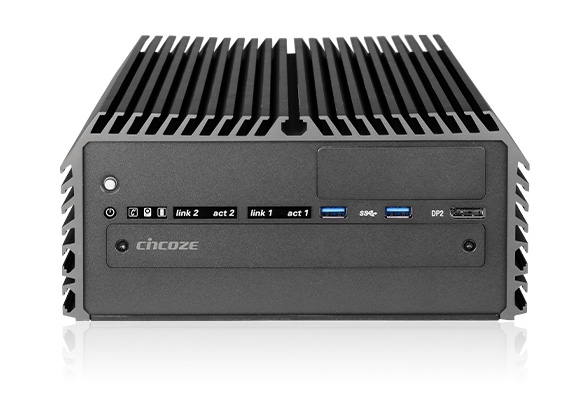

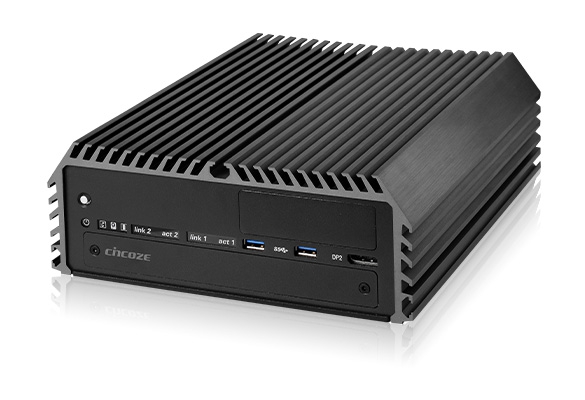

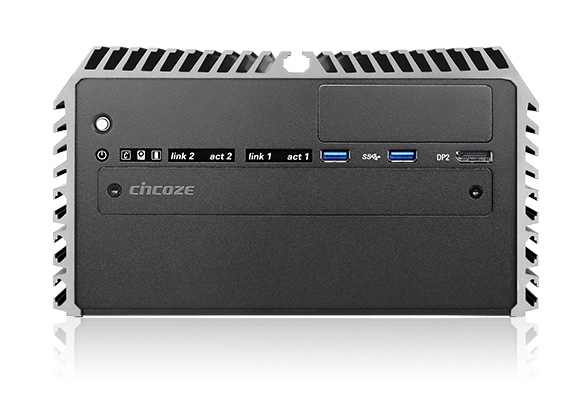

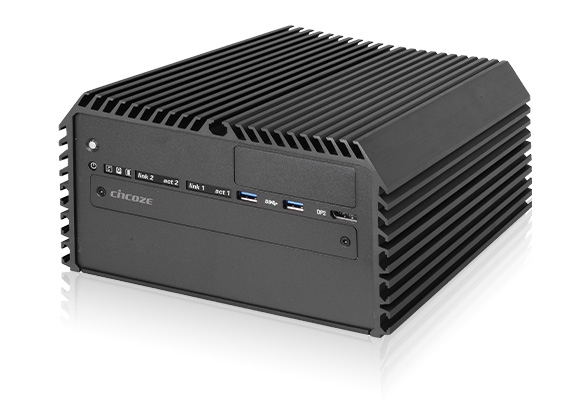

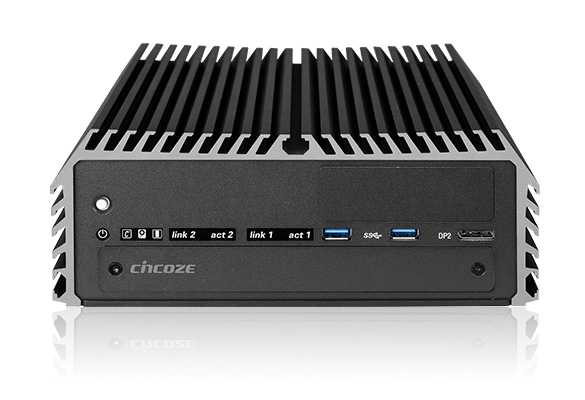

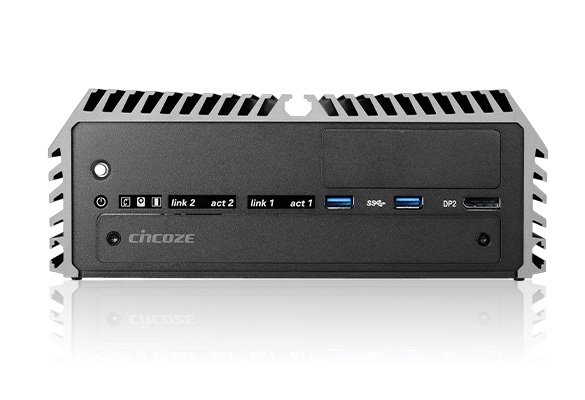

DS-1102

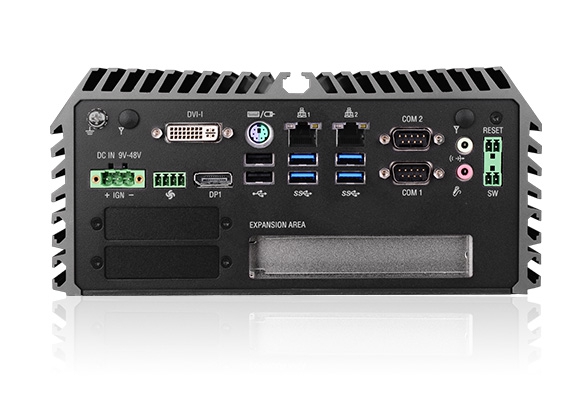

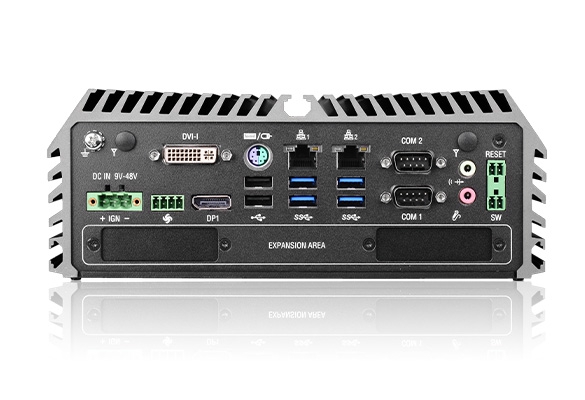

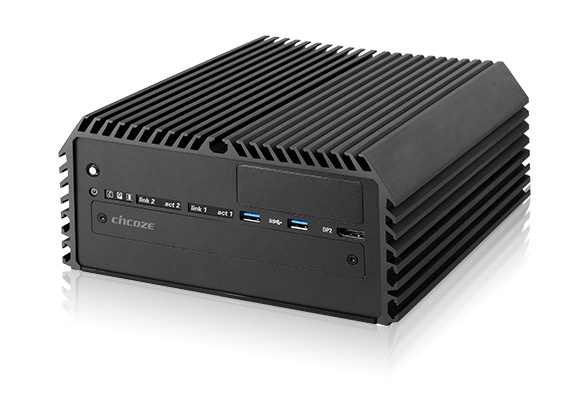

7/6th Generation Intel® Core™ i3 / i5 / i7 High Performance, Modular and Expandable Rugged Embedded Computer with Two PCI/PCIe Expansion Slots

PRODUCTS FEATURES
  • Supports 7/6th-Gen Intel® Core™ i3 / i5 / i7 Socket-type CPU (LGA1151)
  • 2x DDR4 SO-DIMM Socket, 2,133 / 2,400 MHz, Supports Up to 64 GB
  • Triple Independent Display (1x DVI-I, 2x DP)
  • 2x 2.5" SATA HDD/SSD bay (Gen3), Supports RAID 0/1
  • 2x PCI/PCIe Slots with Different Combination of Interfaces
  • 2x CMI Interfaces with 6 Types of Optional Modules for I/O Expansion
  • 1x CFM Interface for Adding Optional Power Ignition Sensing (IGN) Module
  • Supports 3x Full-size Mini-PCIe Slot for Wireless & I/O Expansion
  • Wide Operating Temperature (-40°C to 70°C)
  • EN50121-3-2 Certified/ LVD EN62368-1
  • E-Mark (E13, No.10R-0514229) Certified
OVERVIEW
Cincoze DS-1100 Series is a high-performance fanless embedded computer powered by 7/6th generation Intel® Core™ platform supporting a wide range of desktop CPUs (socket-type, LGA1151), and accommodates two DDR4 sockets up to 64 GB which allows DS-1100 Series to fulfill all kinds of high-end computing requirements. DS-1100 Series provides powerful functionalities such as rich I/Os, Power over Serial, Electrical Isolated Serial Ports, Optical Isolated Digital I/O, multiple LAN, Power over Ethernet, M12 connectors, RAID 0/1, Power Ignition Sensing and Instant Reboot. Thanks toCincoze’s CMI & CFM Technology, it allows you to configure DS-1100 Series according to your specific needs with ready-to-use modules. DS-1100 Series also supports maximum 2 PCI/PCIe expansion slots with different combination of interfaces for expanding all kinds of application add-on cards. DS-1100 Series is truly a rugged computing system with features of wide operating temperature (-40°C to 70°C), wide range DC power input (from 9V to 48V), high tolerance of shock and vibration, high-standard industrial protections and the integrated SuperCap for battery maintenance-free operation. DS-1100 Series is suitable to deploy in a harsh environment and for critical applications, and it is totally maintenance-free.

Product Category >>>> Rugged Embedded Fanless PC
SPECIFICATION
Model NameDS-1102
SystemProcessor• 7th Generation Intel® CPU (Kaby Lake-S)
- Intel® Core™ i7-7700T Processor (8M Cache, up to 3.8 GHz, 35W TDP)
- Intel® Core™ i5-7500T Processor (6M Cache, up to 3.30 GHz, 35W TDP)
- Intel® Core™ i3-7101TE Processor (3M Cache, 3.40 GHz, 35W TDP)
- Intel® Celeron® G3930TE Processor (2M Cache, 2.70 GHz, 35W TDP)
- Intel® Core™ i7-7700 Processor (8M Cache, up to 4.20 GHz, 65W TDP)
- Intel® Core™ i5-7500 Processor (6M Cache, up to 3.80 GHz, 65W TDP)
- Intel® Celeron® G3930E Processor (2M Cache, 2.90 GHz, 54W TDP)
• 6th Generation Intel® CPU (Skylake-S)
- Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz, 35W TDP)
- Intel® Core™ i5-6500TE Processor (6M Cache, up to 3.30 GHz, 35W TDP)
- Intel® Core™ i3-6100TE Processor (4M Cache, 2.70 GHz, 35W TDP)
- Intel® Pentium® Processor G4400TE (3M Cache, 2.40 GHz, 35W TDP)
- Intel® Celeron® Processor G3900TE (2M Cache, 2.30 GHz, 35W TDP)
- Intel® Core™ i7-6700 Processor (8M Cache, up to 4.00 GHz, 65W TDP)
- Intel® Core™ i5-6500 Processor (6M Cache, up to 3.60 GHz, 65W TDP)
- Intel® Core™ i3-6100 Processor (3M Cache, 3.70 GHz, 51W TDP)
- Intel® Pentium® Processor G4400 (3M Cache, 3.30 GHz, 54W TDP)
- Intel® Celeron® Processor G3900 (2M Cache, 2.80 GHz, 51W TDP)
ChipsetIntel Q170
Memory2x DDR4 2133/2400 MHz SO-DIMM Sockets
* Core I 7th Generation / Celeron Processor Supports Up to 2400MHz
* Core I 6th Generation / Pentium / Celeron Processor Supports Up to 2133MHz
Supports Un-buffered and Non-ECC Type Up to 64 GB
Graphics.Integrated Intel® HD Graphics
.Three Independent Display
AudioRealtek ALC888-GR, High Definition Audio
BIOSAMI 16 Mbit SPI BIOS

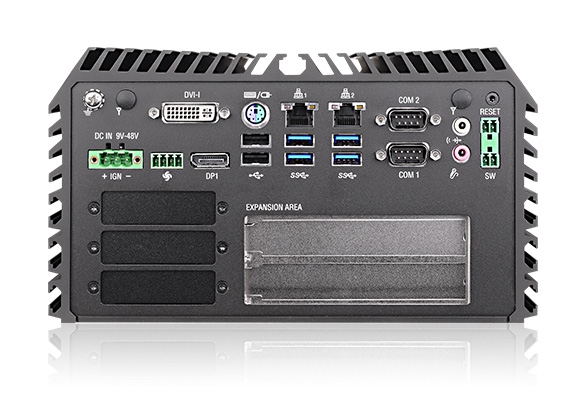

I/O InterfaceDVI1x DVI-I connector, Up to 1920x1080@60Hz
DP2x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications)
* Verified maximum resolution: 3840x2160
LAN2x 10/100/1000 Mbps, RJ45
GbE1: Intel I219-LM
GbE2: Intel I210
Support Wake On Lan, Teaming, Jumbo frame, IEEE 1588v2, PXE
Optional Module
.4x 10/100/1000 Mbps, RJ45 Port
.4x 10/100/1000 Mbps, M12 Port
PoE+Optional Module
.4x PoE+, Individual port 25.5W, RJ45 Port
.4x PoE+, Individual port 25.5W, M12 Port
Serial Port2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
Optional Module
.4x RS-232/422/485, DB9 Connector
.4x Electrical Isolated RS-232/422/485, DB9 Connector
USB.6x USB 3.2 Gen1, Type-A
.2x USB 2.0, Type-A
PS/2 Port1x PS/2, 6-pin mini-DIN Female Connector
Isolated DIOOptional Module
.8x Optical Isolated DIO(4DI, 4DO), 10 pin Terminal Block
Line-Out1x Line-Out, Phone Jack 3.5mm
Mic-In1x Mic-In, Phone Jack 3.5mm
Power Button1x ATX Power On/Off Button
AT/ATX Switch1x AT/ATX Mode Switch
Clear CMOS Switch1x Clear CMOS Switch
Remote Power On/Off Connector1x Remote Power On/Off Connector, 2-pin Terminal Block
Remote Reset Connector1x Remote Reset Connector, 2-pin Terminal Block
External FAN Connector1x External FAN Connector, 4-pin Terminal Block
StorageSSD/HDD2x 2.5" SATA HDD/SSD bay (Gen3)
One Internal, One Front Accessable
Support RAID 0/1, Hot Swap
mSATA3x mSATA (Shared by Mini-PCIe Socket) (Gen3)
ExpansionPCI/ PCIe2x PCI/PCIe Expansion slots
Optional Riser Card
.1x PCIex16, 1x PCIex1
.2x PCIex8
.1x PCIex16, 1x PCI
.2x PCI
CFM (Control Function Module) Interface1x CFM Interface for CFM Modules
CMI (Combine Multiple I/O) Interface2x CMI Interface for CMI Modules
Mini PCI Express3x Full-size Mini PCIe
Supports Wireless &  I/O Expansion
Universal I/O Bracket3x Universal I/O Bracket
SIM Socket1x SIM Socket
Antenna Holes2x Antenna Holes
OtherInstant RebootSupport 0.2sec
Power Ignition SensingOptional Module
.CFM with Delay Time Management and Selectable 12V/24V, Dip Switch
SuperCapSuperCap integrated for CMOS Battery Maintenance-free Operation
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
Power RequirementPower TypeAT/ATX
Power Input Voltage9~48VDC
Connector3-pin Terminal Block
Power AdapterOptional AC/DC Adapter
.AC/DC 24V/5A, 120W
.AC/DC 24V/9.2A, 220W
PhysicalDimension (WxDxH)227 x 261 x 128 mm
Weight Information5.7 kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall
Unibody DesignYes
Fanless DesignYes
Jumper-less DesignYes
ProtectionReverse Power Input ProtectionYes
Over Voltage ProtectionProtection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection15A
Operating SystemWindows- 7th Generation Intel® CPU (Kaby Lake-S): Windows® 10
- 6th Generation Intel® CPU (Skylake-S): Windows® 10/ 8.1/ 7
LinuxSupports by project
EnvironmentOperating Temperature7th Generation Intel® CPU (Kaby Lake-S)
- 35W TDP CPU: -40°C to 50°C
- 51W~65W TDP CPU: -40°C to 45°C
6th Generation Intel® CPU (Skylake-S)
- 35W TDP CPU: -40°C to 70°C
- 51~65W TDP CPU: -40°C to 50°C
(With extended temperature peripherals; Ambient with air flow; According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage Temperature-40°C to 85°C
Relative Humidity70°C @ 95% RH (non-Condensing)
ShockOperating, 50 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN 50155 (EN 50121-3-2 Only)
• E-mark
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyLVD IEC/EN 62368-1
ORDERING INFORMATION
Available Models
Model No.Product Description
DS-1102-R207/6th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 2x PCI/PCIe Expansion Slots

Package Checklist
√ DS-1100 Embedded System x1√ DVI-I to VGA Adaptor
√ Power Terminal Block Connector x1√ Screw Pack x 1
√ Remote Power On/Off Terminal Block Connector x2√ Wall Mounting Kit x1
√ FAN Terminal Block Connector x1√ Heat Sink Pack x 1

Optional Modules & Accessories
Model No.Description
CFM-IGN101CFM Module with Power Ignition Sensing Control Function, Selectable 12V/24V (43 x 36 mm)
CFM-PoE03CFM Module with PoE Control Function for DS series, Individual Port 25.5W
CMI-CD100/FB22CMI Module with 4x RS-232/422/485 Serial Ports, 8x Optical Isolated DIO (4 in/4 out), 1x DS-1102 Front Bezel
CMI-ICD100/FB22CMI Module with 4x Electrical Isolated RS-232/422/485 Serial Ports, 8x Optical Isolated DIO (4 in/4 out), 1x DS-1102 Front Bezel
CMI-LAN01-R12/UB0612CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for DS-1100 Series
CMI-M12LAN01-R12/UB0610CMI Module with M12 Connector, 4x Intel I210 GbE LAN / 1x Universal Bracket with 4x M12 Cutout for DS-1100 Series
CMI-XM12LAN01-R10/UB0630-R10CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports / Universal Bracket with 4x M12 X-Coded Cutout
FAN-EX101External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan
FAN-UB100Exhaling Fan with 4pin Connector, Universal Bracket
FAN-UB101Inhaling Fan with 4pin Connector, Universal Bracket
MEC-LAN-M102-30/UB0311Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout
MEC-USB-M102-30/UB0314Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable, 1xUniversal Bracket with 2x USB Cutout
MEC-COM-M212-DB9/UB0303Mini-PCIe Module with 2x COM Ports, 1x Standard DB9 Cable, 2x Universal Bracket each with 1x DB9 Cutout
PAH-101Power Adapter Holder for GST120A24 (200 x 78 x 46 mm)
PAH-201Power Adapter Holder for GST220A24 (243 x 95 x 57 mm)
GST120A24-CINAdapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI
RC-E16E1-01Riser Card with 1x PCIex16 and 1x PCIex1 Slots (PCIe x16 Slot Supports Dual Deck Add-on Card)
RC-E8E8-R10Riser Card with 2x PCIex8 Slots
RC-E16PI-01Riser Card with 1x PCIex16 and 1x PCI Slots (PCIe x16 Slot Supports Single Deck Add-on Card)
RC-PIPI-01Riser Card with 2x PCI Slots
