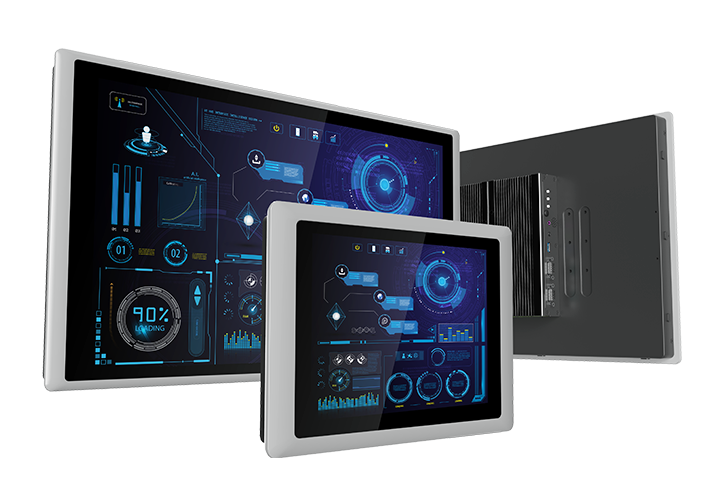

Power Efficient Industrial Panel PC (CV-100/P1000 Series)

Power Efficient Industrial Panel PC (CV-100/P1000 Series)

The Cincoze Convertible Panel PC includes all-in-one devices that integrate a high-resolution screen, a touch screen and a computer. A wide selection of display sizes are available from 8.4” to 24” with a format aspect of 4:3 and 16:9, and selected computer performance.
ProductModel NameDisplayCPUI/OExpansion
CV-108 / P1301 SeriesCV-108 / P1301 Series8.4" TFT
800x600 (4:3)
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
4x USB
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CV-108 / P1201 SeriesCV-108 / P1201 Series8.4" TFT
800x600 (4:3)
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
4x USB
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CV-108 / P1101 SeriesCV-108 / P1101 Series8.4" TFT
800x600 (4:3)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.0
4x COM
8x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CV-108 / P1001 SeriesCV-108 / P1001 Series8.4" TFT
800x600 (4:3)
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
4x USB
2x COM
8x DIO
1x Mini-PCIe
CV-110 / P1301 SeriesCV-110 / P1301 Series10.4" TFT
800x600 (4:3)
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
4x USB
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CV-110 / P1201 SeriesCV-110 / P1201 Series10.4" TFT
800x600 (4:3)
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
4x USB
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CV-110 / P1101 SeriesCV-110 / P1101 Series10.4" TFT
800x600 (4:3)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.0
4x COM
8x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CV-110 / P1001 SeriesCV-110 / P1001 Series10.4" TFT
800x600 (4:3)
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
4x USB
2x COM
8x DIO
1x Mini-PCIe
CV-110H / P1301 SeriesCV-110H / P1301 Series10.4" TFT
1024x768 (4:3)
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
4x USB
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CV-110H / P1201 SeriesCV-110H / P1201 Series10.4" TFT
1024x768 (4:3)
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
4x USB
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CV-110H / P1101 SeriesCV-110H / P1101 Series10.4" TFT
1024x768 (4:3)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.0
4x COM
8x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CV-110H / P1001 SeriesCV-110H / P1001 Series10.4" TFT
1024x768 (4:3)
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
4x USB
2x COM
8x DIO
1x Mini-PCIe
CV-112H / P1301 SeriesCV-112H / P1301 Series12.1" TFT
1024x768 (4:3)
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
4x USB
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CV-112H / P1201 SeriesCV-112H / P1201 Series12.1" TFT
1024x768 (4:3)
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
4x USB
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CV-112H / P1101 SeriesCV-112H / P1101 Series12.1" TFT
1024x768 (4:3)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.0
4x COM
8x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CV-112H / P1001 SeriesCV-112H / P1001 Series12.1" TFT
1024x768 (4:3)
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
4x USB
2x COM
8x DIO
1x Mini-PCIe
CV-115 / P1301 SeriesCV-115 / P1301 Series15" TFT
1024x768 (4:3)
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
4x USB
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CV-115 / P1201 SeriesCV-115 / P1201 Series15" TFT
1024x768 (4:3)
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
4x USB
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CV-115 / P1101 SeriesCV-115 / P1101 Series15" TFT
1024x768 (4:3)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.0
4x COM
8x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CV-115 / P1001 SeriesCV-115 / P1001 Series15" TFT
1024x768 (4:3)
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
4x USB
2x COM
8x DIO
1x Mini-PCIe
CV-117 / P1301 SeriesCV-117 / P1301 Series17" TFT
1280x1024 (5:4)
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
4x USB
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CV-117 / P1201 SeriesCV-117 / P1201 Series17" TFT
1280x1024 (5:4)
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
4x USB
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CV-117 / P1101 SeriesCV-117 / P1101 Series17" TFT
1280x1024 (5:4)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.0
4x COM
8x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CV-117 / P1001 SeriesCV-117 / P1001 Series17" TFT
1280x1024 (5:4)
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
4x USB
2x COM
8x DIO
1x Mini-PCIe
CV-119 / P1301 SeriesCV-119 / P1301 Series19" TFT
1280x1024 (5:4)
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
4x USB
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CV-119 / P1201 SeriesCV-119 / P1201 Series19" TFT
1280x1024 (5:4)
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
4x USB
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CV-119 / P1101 SeriesCV-119 / P1101 Series19" TFT
1280x1024 (5:4)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.0
4x COM
8x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CV-119 / P1001 SeriesCV-119 / P1001 Series19" TFT
1280x1024 (5:4)
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
4x USB
2x COM
8x DIO
1x Mini-PCIe
CV-W115 / P1301 SeriesCV-W115 / P1301 Series15.6" TFT
1366x768 (16:9)
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
4x USB
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CV-W115 / P1201 SeriesCV-W115 / P1201 Series15.6" TFT
1366x768 (16:9)
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
4x USB
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CV-W115 / P1101 SeriesCV-W115 / P1101 Series15.6" TFT
1366x768 (16:9)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.0
4x COM
8x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)

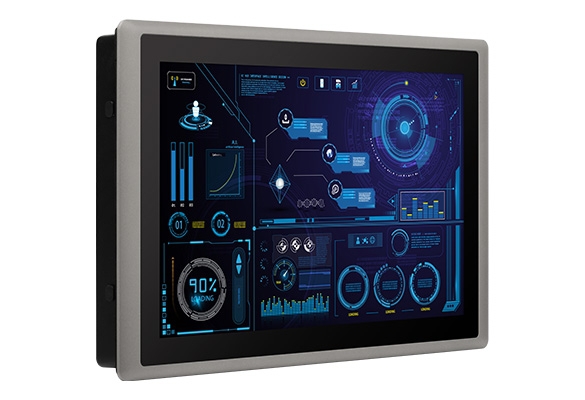

CV-W115 / P1001 SeriesCV-W115 / P1001 Series15.6" TFT
1366x768 (16:9)
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
4x USB
2x COM
8x DIO
1x Mini-PCIe
CV-W121 / P1301 SeriesCV-W121 / P1301 Series21.5" TFT
1920x1080 (16:9)
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
4x USB
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CV-W121 / P1201 SeriesCV-W121 / P1201 Series21.5" TFT
1920x1080 (16:9)
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
4x USB
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CV-W121 / P1101 SeriesCV-W121 / P1101 Series21.5" TFT
1920x1080 (16:9)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.0
4x COM
8x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CV-W121 / P1001 SeriesCV-W121 / P1001 Series21.5" TFT
1920x1080 (16:9)
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
4x USB
2x COM
8x DIO
1x Mini-PCIe
CV-W124 / P1301 SeriesCV-W124 / P1301 Series24" TFT
1920x1080 (16:9)
Intel® Processor N97
Intel® Atom® x7425E
1x VGA
1x DisplayPort
2x 2.5GbE LAN
4x USB
2x COM
8x DIO
2x M.2 Socket
1x SIM Socket
2x CFM Interface
CV-W124 / P1201 SeriesCV-W124 / P1201 Series24" TFT
1920x1080 (16:9)
Intel® Atom® x6000E1x VGA
1x DisplayPort
2x 1GbE LAN
4x USB
3x COM
8x DIO
1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module
CV-W124 / P1101 SeriesCV-W124 / P1101 Series24" TFT
1920x1080 (16:9)
Intel® Atom® x7-E3950
Intel® Pentium® N4200
1x VGA
1x DisplayPort
2x GbE LAN
4x USB 3.0
4x COM
8x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
CV-W124 / P1001 SeriesCV-W124 / P1001 Series24" TFT
1920x1080 (16:9)
Intel® Atom™ E38451x VGA
1x DisplayPort
2x LAN
4x USB
2x COM
8x DIO
1x Mini-PCIe
