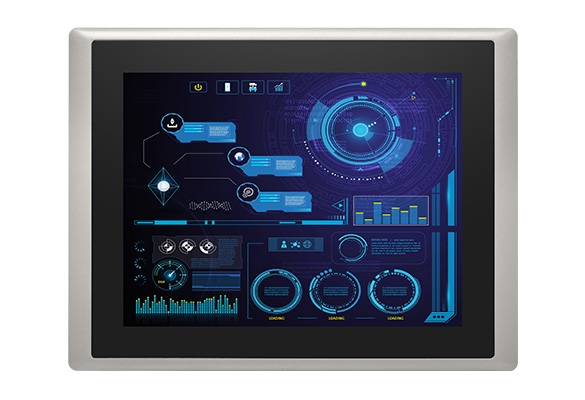

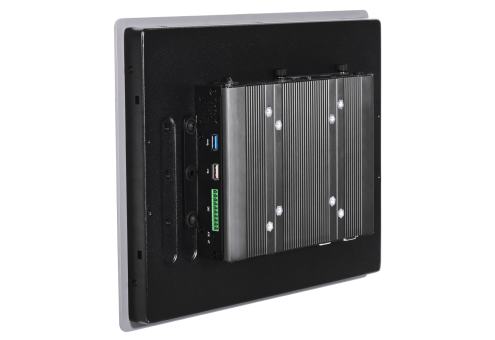

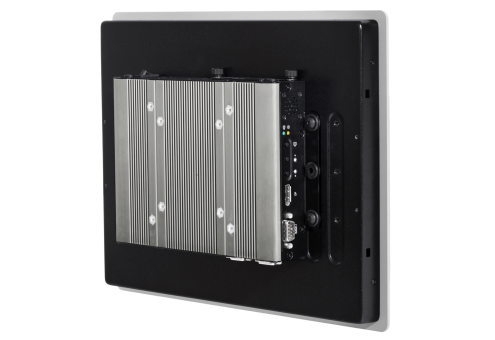

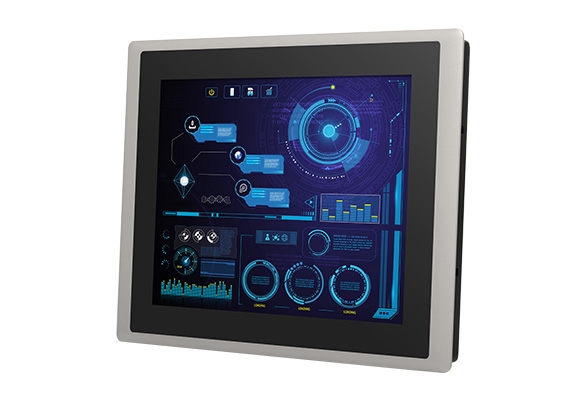

CV-112H / P1001 Series

12.1" TFT XGA 4:3 Touch Panel PC, with Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA, 1x DisplayPort

PRODUCTS FEATURES
  • 12.1" TFT XGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
  • Designed with Aluminum Die-Casting Front Frame
  • Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
  • 1x DDR3L SO-DIMM max. up to 8GB
  • 1x 2.5” SATA HDD Bay, 1x CFast Card and 1x SIM Card Socket
  • 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
  • 1x Mini-PCIe Expansion Socket
  • IP 65 Compliant Front Panel
  • Supports Panel / VESA / Rack Mounting
  • Convertible Display System (CDS) Supported
  • Built-in Two 2W Internal Speakers
  • 2x Universal I/O Brackets (For P1001E only)
OVERVIEW
The 12.1" all-in-one panel PC offers LED backlight LCD with resolution up to 1024x768 (XGA) and 500 nits brightness. CV-112H/P1001 Series features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-casting front frame with rugged body structure that can be able to apply in industrial applications. CV-112H/P1001 Series supports Convertible Display System (CDS) technology which makes it more flexible in system maintaining and upgrading. CV-112H/P1001 Series carries single touch function with resistive 5-wire touch screen or multi-touch function with projected capacitive touch screen. By incorporating with Intel® Atom™ E3845 processor and DDR3L memory, CV-112H/P1001 Series offers extensive I/O including 4x USB, 2x RS-232/422/485, 1x VGA, 1x DisplayPort, 4x DI / 4x DO. Besides, the panel PC also includes 2x Universal I/O Bracket. (For P1001E only)

CV-112H/P1001 Series supports 3G and WLAN via 2x GbE and 1x Mini-PCIe slot. Furthermore, there are 3 types of storage devices including 2.5" SATA HDD, CFast and SIM card. The accessible design of these storage devices allow quick data access and easy maintenance. Supporting wide range power DC input from 9 ~ 48VDC, CV-112H/P1001 Series can be deployed and powered for various industrial applications.

Product Category >>>> Modular Panel PC & Industrial Monitor
SPECIFICATION

CV-112H Series

Model NameCV-112HRCV-112HC
DisplayLCD Size12.1" (4:3)
Max. Resolution1024 x 768
Brightness (cd/m2)500
Contract Ratio700 : 1
LCD Color16.7M
Pixel Pitch (mm)0.24 (H) x 0.24 (V)
Viewing Angle (H-V)160 / 140
Backlight MTBF50,000 hrs (LED Backlight)
Touch ScreenTouchscreen TypeResistive 5-wireProjected Capacitive
PhysicalDimension (W x D x H)345 x 265.3 x 57 mm
Weight Information3.16 kg
Mechanical ConstructionDie-Casting Flat Surface
EnvironmentFront Panel ProtectionIP 65 Compliant
Operating Temperature-20°C to 75°C (with Industrial Grade peripherals; Ambient with air flow)-20°C to 80°C (with Industrial Grade peripherals; Ambient with air flow)
Storage Temperature-30°C to 80°C
Relative Humidity90% RH @ 40°C (Non-Condensing)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyUL, cUL, CB, IEC, EN 62368-1

P1001 Series

Model NameP1001P1001E
SystemProcessorOnboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz
Memory1x DDR3L 1066/1333 MHz SO-DIMM Socket (un-buffered and non-ECC)
Support up to 8 GB
BIOSAMI 64Mbit SPI BIOS
GraphicsCDS (Convertible Display System) Technology1x Convertible Display System (CDS) Interface
VGA1x VGA Connector (1920x1080@60Hz)
DP1x DisplayPort Connector (1920x1080@60Hz)
AudioLine-out1x Line-out, Phone Jack 3.5mm
Mic-in1x Mic-in, Phone Jack 3.5mm
I/OLAN2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
- GbE1: Intel® I210
- GbE2: Intel® I210
USB1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A)
Serial Port2x RS-232/422/485 with Auto Flow Control Support, DB9
DIO8x Isolated Digital I/O (4in/4out)
StorageSSD/HDD1x 2.5” HDD/SSD Drive
SIM Socket1 x Front Accessible SIM Socket
CFast1 x Front Accessible CFast Socket
ExpansionMini PCI Express1x Full-size Mini PCIe Socket for Wi-Fi/GSM/Expansion Module
Universal Bracket 2x Universal I/O Brackets
Other FunctionWatchdog TimerSoftware Programmable Supports 256 Levels System Reset
Internal SpeakerAMP 2W + 2W
OSD FunctionLCD On/Off, Brightness Up, Brightness Down
Reset Button1x Reset Button
PowerPower Button1x ATX Power On/Off Switch
Power Mode Switch1x AT/ATX Mode Switch
Power Input1x 3-pin Terminal Block Connector with Power Input 9~48VDC
Power Adapter (Optional)1x Optional AC/DC 12V/5A, 60W
PhysicalDimension ( W x D x H )204.5 x 149 x 37.5 mm204.5 x 150 x 60 mm
Weight Information1.34kg1.54kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / VESA / CDS Mounting
Physical DesignFanless Design
Jumper-less Design
Reliability & ProtectionReverse Power InputYes
Over Voltage ProtectionProtection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the present level to recover
Over Current Protection20A
Operating StystemMicrosoft® Windows®Windows® 10, Windows® 8, Windows® 7
Windows® Embedded 8 Standard, Windows® Embedded Standard 7
LinuxSupports by project
EnvironmentOperating TemperatureAmbient with Air Flow: -20°C to 70°C (with Industrial Grade Peripherals)
StorageTemperature-30°C to 85°C
Relative Humidity10%~95% (non-condensing)
ShockOperating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
VibrationOperating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
ORDERING INFORMATION
Available Models
Model No.Product Description
CV-112HR-R10/P1001-R1012.1" TFT XGA 4:3 Panel PC with Resistive 5-wire Touch, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort
CV-112HC-R11/P1001-R1012.1" TFT XGA 4:3 Panel PC with Projected Capacitive Touch, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort
CV-112HR-R10/P1001E-R1012.1" TFT XGA 4:3 Panel PC with Resistive 5-wire Touch, with Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA, 1x DisplayPort and 2x Universal I/O Bracket
CV-112HC-R11/P1001E-R1012.1" TFT XGA 4:3 Panel PC with Projected Capacitive Touch, with Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA, 1x DisplayPort and 2x Universal I/O Bracket

Model Configuration
 CV-112HRCV-112HCP1001P1001E
CV-112HR/P1001V--V--
CV-112HC/P1001--VV--
CV-112HR/P1001EV----V
CV-112HC/P1001E--V--V

Package Checklist
√ CV-112H/P1001 Series Panel PC x 1√ Power Terminal Block Connector (Female)x 1
√ Panel Mounting Kit x 1√ HDD Screw Pack x 1
√ DIO Terminal Block Connector (Female)x 1√ Mini PCIe Screw Pack x 1

Optional Modules and Accessories
Model No.Description
MEC-COM-M212-DB9Mini-PCIe Module with 2x COM Ports, 1x Standard DB9 Cable (For P1001E only)
MEC-LAN-M102-30Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P1001E only)
MEC-USB-M102-30Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable (For P1001E only)
UB03032x Universal Bracket each with 1x DB9 Cutout (For P1001E only)
UB03111x Universal Bracket with 2x RJ45 Cutout (For P1001E only)
UB03141x Universal Bracket with 2x USB Cutout (For P1001E only)
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
