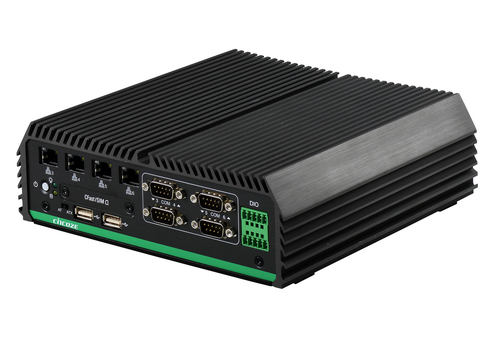

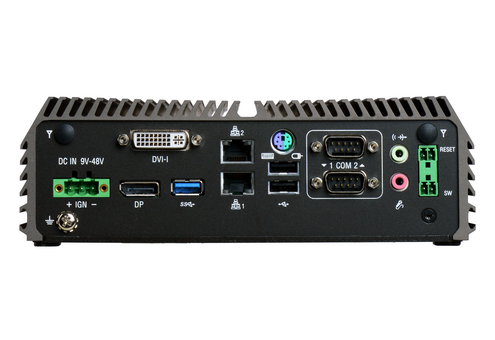

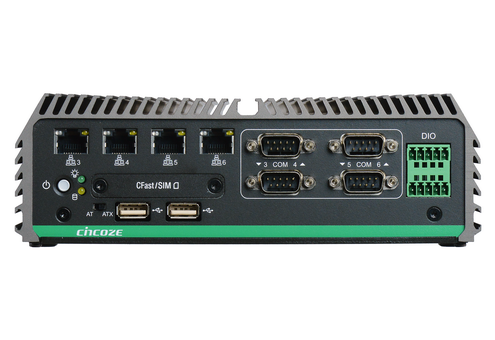

DE-1000L

Intel® Atom™ E3845 Quad Core Power Efficient Fanless Computer and 6x LANs

PRODUCTS FEATURES
  • Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
  • 2x DDR3L SO-DIMM Max. up to 8GB
  • Dual Independent Display from 1x DVI-I and 1x DisplayPort
  • 2x Intel® GbE Port, Support Wake-on-LAN and PXE
  • 1x USB 3.0, 4x USB 2.0
  • 6x RS232/422/485 Port with 5V/12V Power
  • 4x Isolated DI, 4x Isolated DO
  • 2x 2.5” SATA SSD/HDD Bay, 1x mSATA (Shared by Mini-PCIe Socket)
  • 1x CFast Card and 1x SIM Card Socket
  • 9~48VDC Power Input, Support AT/ATX Mode
  • 2x Mini-PCIe Slot for Wi-Fi, GSM, or I/O Expansion
  • Power Ignition Control
  • Compliant with EN50155 for Rail Transportation Applications
ADD TO INQUIRY DATASHEET
OVERVIEW
DE-1000 Series Fanless Embedded PC supports Intel® Bay Trail platform, integrated with Intel® Atom™ E3845 Quad Core 1.91 GHz processor. Delivering the excellent quad-core processing power at only 10 watts power consumption, DE-1000 series is definitely an ideal solution for ultimate computing performance, energy efficiency, and superior reliability.

Designed with rich I/O, high flexibility and easy expansion capabilities, DE-1000 series is ideal for diverse industrial applications. It offers multiple I/O extension modules, including up to 2x PCI or 2x PCIe x1 slot for flexible integration of a variety of add-on cards; 2x mini-PCIe slot for GSM and WLAN wireless communication; it also supports three storage expansions: 2.5” SATA HDD, CFast and SIM card.

Supporting up to 6x LAN or 4x PoE versions, and power ignition function, DE-1000 series can meet various applications, such as: surveillance, in-vehicle, and industrial automation applications, etc.

DE-1000 series supports wide temperature range from -25°C to 70°C, wide range (9~48V) DC power input, power protection, cable free and one-piece housing design, as well as compliant with EN50155 certification for rail transportation applications; it is designed to ensure stable operation in robust and harsh environments.

Product Category >>>> Rugged Embedded Fanless PC
SPECIFICATION
Model NameDE-1000L
Processor SystemCPUIntel® Atom™ E3845
Frequency1.91 GHz
Core Number4
BIOSAMI 64Mbit SPI
Chipset-
MemoryTechnologyDDR3L 1066 / 1333MHz (un-buffered and non-ECC)
Max. Capacity8 GB
Socket2x 204-Pin SO-DIMM
DisplayVGAYes (with optional split cable)
DDI (HDMI/DVI/DisplayPort)1x DVI-I
1x DisplayPort
Multiple DisplaySupport Dual Display
ExpansionPCI-
PCIe-
Mini PCIe2x Full-size Mini PCIe
EthernetControllerGbE1: Intel® i210-IT,
GbE2: Intel® i210-IT,
Support Wake-on-LAN and PXE
GbE3: Intel® 82583V,
GbE4: Intel® 82583V,
GbE5: Intel® 82583V,
GbE6: Intel® 82583V,
Support Wake-on-LAN
PoE-
Speed10/100/1000 Mbps
AudioCodecRealtek ALC888S
Connector1x Mic-in, 1x Line-out
WatchDog TimerSoftware Programmable Supports 256 Levels System Reset
StorageSSD / HDD2x 2.5" SATA HDD Bay
mSATA1x mSATA (shared by Mini-PCIe socket)
CompactFlash/CFast1x CFast
SIM Socket1
I/O PortsUSB 3.01
USB 2.04
DIO4 in/4 out
COM Port6x RS-232/422/485
PS/21x KB/MS
Antenna Hole2
Power Switch1
AT/ATX Switch1
External Fan Connector-
Remote Power On/Off and
Remote Power Reset		Yes
Universal I/O Bracket-
PowerPower TypeAT, ATX
Power Supply Voltage9~48VDC
Connector3-pin Terminal Block
Power AdaptorOptional AC/DC 12V/5A, 60W
EnvironmentOperating TemperatureAmbient with air flow: -25°C to 70°C (with Industrial Grade Peripherals)
Storage Temperature-30°C to 85°C
Relative Humidity10%~95% (non-condensing)
PhysicalDimension (WxDxH)203 x 200 x 65 mm
Weight2.84 kg
ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall Mounting (Optional Side / VESA / DIN-Rail Mounting)
Operating SystemMicrosoft® Windows®• Windows® 10
• Windows® 8             • Windows® Embedded 8 Standard
• Windows® 7             • Windows® Embedded Standard 7
Linux®Supports By Project
RegulationsSafety Certifications• CE                            • FCC Class A
• EN 50155                 • EN 50121-3-2
ORDERING INFORMATION
Available Models
Model No.Product Description
DE-1000LIntel® Atom™ E3845 Quad Core Power Efficient Fanless Computer with 6x LAN

Package Checklist
DE-1000L
√ DE-1000L Embedded System x 1
√ Utility DVD Driver x 1
√ DIO Terminal Block Connector x 2
√ Power Terminal Block Connector x 1
√ Remote Power Terminal Block Connector x 2
√ DVI-I to VGA Adapter x 1
√ Screw Pack x 1
√ Wall Mount Kit x 1

Optional Accessories
Model No.Description
GST60A12-CIN1Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, Level VI
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M
QP026-SL3UK 2 heads power cord, UK I type to IEC C13 ,H05VV-F 0.75mm2/3G Black 1.8M
VESA-DEDE series VESA Mount Kit
SIDE-DEDE series SIDE Mount Kit
DINRAILDiamond series DIN-RAIL Mount Kit
