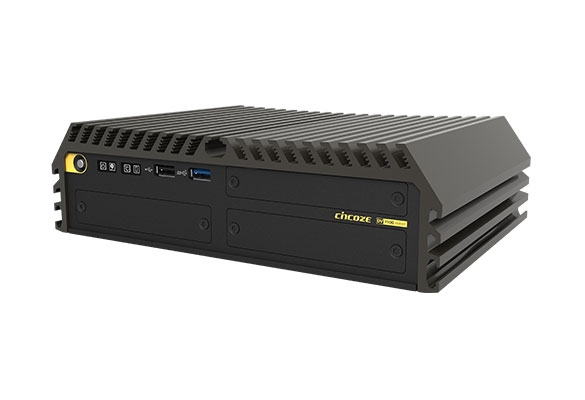

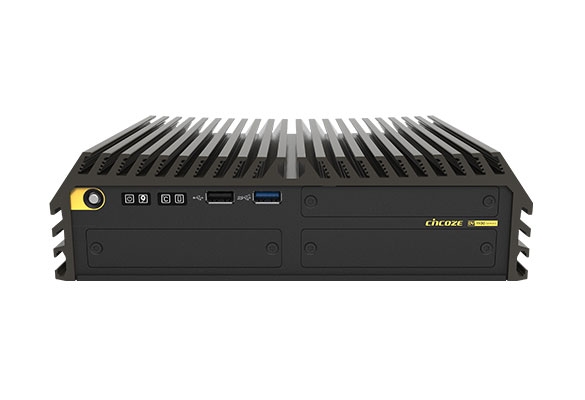

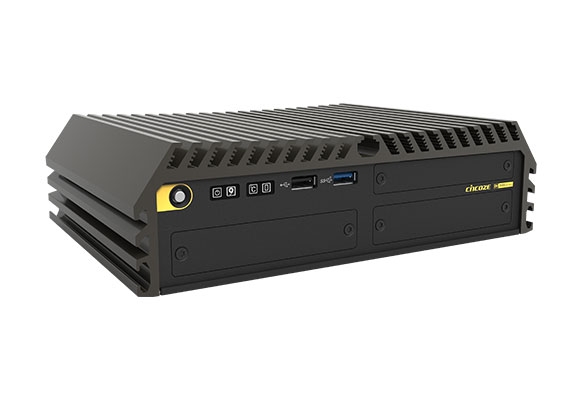

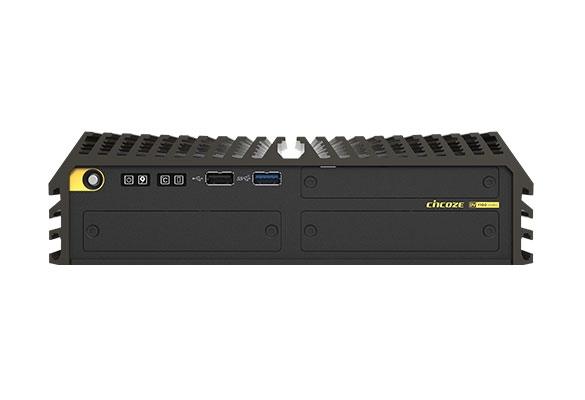

DV-1100

14/13/12th Gen. Intel® Core™ Series High Performance and Basic Function Rugged Embedded Computer

PRODUKTEIGENSCHAFTEN

Intel® 14/13/12th Gen. Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
1x M.2 Key M Type 2280 Socket for PCIe Gen 4x4 NVMe Storage
1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion
1x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
1x M.2 Key B Type 2242 Socket for Storage/Add-on Card Expansion
Optional CMI & CFM Modules for I/O Expansion & Power Ignition Sensing Function
Wide operating temperature -40°C to 70°C
Safety Standard: UL, cUL, CB, IEC, EN 62368-1

CERTIFICATIONS

ZUR ANFRAGE HINZUFÜGEN DATENBLATT

ÜBERBLICK
SPEZIFIKATION
BESTELLINFORMATIONEN
DOWNLOADS

ÜBERBLICK

High-performance, Cost-effective - DV-1100, a 14/13/12th Gen Intel Core Series Rugged Computer

Der DV-1100 ist ein kompakter, leistungsstarker Embedded Edge-Computer, der die 14/13/12 Generation Intel® Prozessoren unterstützt. Das ausgewogene Verhältnis zwischen den Anforderungen an leistungsstarkes Computing und der Kosteneiffizienz ermöglicht es Unternehmen, Edge-Daten schnell zu analysieren und zu verarbeiten, um bessere Entscheidungen zu treffen und die Produktivität sowie die Genauigkeit zu verbessern. Der DV-1100 ist ideal für intelligente Fertigung, Machine Vision, Bahncomputing und Anwendungen mit begrenztem Platzangebot, bei denen Stabilität und Zuverlässigkeit oberste Priorität haben.

Ausgewogenes Verhältnis zwischen Leistung und Kosten

——

Der DV-1100 verfügt über ein kompaktes Gehäuse und unterstützt einen Intel® Core™ Prozessor der 14/13/12 Generation. Er bietet ausreichende Rechenleistung für Multitasking und vielfältige Anwendungen und sorgt dabei für ein ausgewogenes Verhältnis zwischen Leistung und Kosten.

Kompakte Größe

——

Der DV-1100 misst nur 224,1 x 162 x 62 mm, was es einfach macht, ihn überall zu installieren, auch in Anwendungen mit begrenztem Platz.

Beeindruckende Transfer- und Zugriffsgeschwindigkeiten

——

Der DV-1100 verfügt über Hochgeschwindigkeits-I/O-Schnittstellen, darunter 2,5G LAN und 10 Gbps USB 3.2 Gen2x1. Die Speicherunterstützung umfasst 2,5-Zoll-HDD/SSD und Hochgeschwindigkeits-NVMe-SSD.

Ausgezeichnetes Erweiterungsdesign

——

Der DV-1100 verfügt über integrierte M.2 Key B, M.2 Key E und M.2 Key M Steckplätze für eine flexible Auswahl an drahtlosen Verbindungen (5G, Wi-Fi, GNSS) und Speicherlösungen entsprechend den Anforderungen der Anwendung.

Verschiedene Branchenzertifizierungen

——

Das robuste Design des DV-1100 erfüllt verschiedene industrielle Zertifizierungen, wie z.B. EMV-Standards in industriellen Umgebungen (EN 61000-6-2/4), US-militärische Schockvibrationsstandards (MIL-STD-810H), Bahncomputing EN50155 (nur EN 50121-3-2) und mehr.

Video

BRAUCHEN SIE HILFE?

KONTAKT

info@cincoze.com

SPEZIFIKATION

Model Name		DV-1100
System	Processor	14th Generation Intel® Raptor Lake-S Refresh Series CPU: • Intel® Core™ i9-14900 24 Cores Up to 5.8 GHz, TDP 65W • Intel® Core™ i7-14700 20 Cores Up to 5.4 GHz, TDP 65W • Intel® Core™ i5-14500 14 Cores Up to 5.0 GHz, TDP 65W • Intel® Core™ i5-14400 10 Cores Up to 4.7 GHz, TDP 65W • Intel® Core™ i3-14100 4 Cores Up to 4.7 GHz, TDP 60W • Intel® Core™ i9-14901E 8 Cores Up to 5.6 GHz, TDP 65W • Intel® Core™ i7-14701E 8 Cores Up to 5.4 GHz, TDP 65W • Intel® Core™ i5-14501E 6 Cores Up to 5.2 GHz, TDP 65W • Intel® Core™ i5-14401E 6 Cores Up to 4.7 GHz, TDP 65W • Intel® Core™ i9-14900T 24 Cores Up to 5.5 GHz, TDP 35W • Intel® Core™ i7-14700T 20 Cores Up to 5.2 GHz, TDP 35W • Intel® Core™ i5-14500T 14 Cores Up to 4.8 GHz, TDP 35W • Intel® Core™ i5-14400T 10 Cores Up to 4.5 GHz, TDP 35W • Intel® Core™ i3-14100T 4 Cores Up to 4.4 GHz, TDP 35W • Intel® Core™ i9-14901TE 8 Cores Up to 5.5 GHz, TDP 45W • Intel® Core™ i7-14701TE 8 Cores Up to 5.2 GHz, TDP 45W • Intel® Core™ i5-14501TE 6 Cores Up to 5.1 GHz, TDP 45W • Intel® Core™ i5-14401TE 6 Cores Up to 4.5 GHz, TDP 45W • Intel® Processor 300 2 Cores Up to 3.9 GHz, TDP 46W • Intel® Processor 300T 2 Cores Up to 3.4 GHz, TDP 35W 13th Generation Intel® Raptor Lake-S Series CPU: • Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W • Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W • Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W • Intel® Core™ i5-13400E 10 Cores Up to 4.6 GHz, TDP 65W • Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 60W • Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W • Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W • Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W • Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W 12th Generation Intel® Alder Lake-S Series CPU: • Intel® Core™ i9-12900E 16 Cores Up to 5.0 GHz, TDP 65W • Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W • Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W • Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W • Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W • Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W • Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W • Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W • Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W • Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W • Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W • Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W
	Chipset	• Intel H610E Chipset
	Memory	• 1x DDR5 SO-DIMM sockets, support Un-buffered and ECC Type memory, up to 32GB. - Core™ i9/i7: Support 5600/4800 MHz with Single Rank memory and 5200/4800 MHz with Dual Rank memory. - Core™ i5/i3/Pentium®/Celeron®/Intel® Processor: Support 4800 MHz.
	BIOS	• AMI BIOS
Graphics	Graphics Engine	• Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 • Integrated Intel® UHD Graphics 730: Core™ i3 • Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
	Maximum Display Output	• Supports Triple Independent Display
	DP	• 1x DisplayPort Connector: 3840 x 2160 @60Hz
	VGA	• 1x VGA Connector: 1920 x 1200 @60Hz
	CMI Display	• 1x CMI Interface for Optional CMI-DP/CMI-HDMI Module Expansion
Audio	Audio Codec	• Realtek® ALC888, High Definition Audio
	Line-out	• 1 x Line-out, Phone Jack 3.5mm
	Mic-in	• 1 x Mic-in, Phone Jack 3.5mm

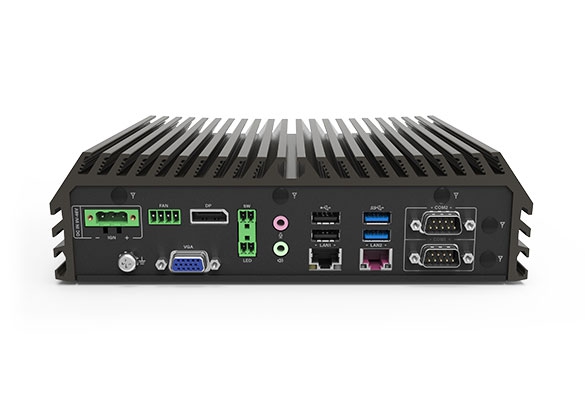

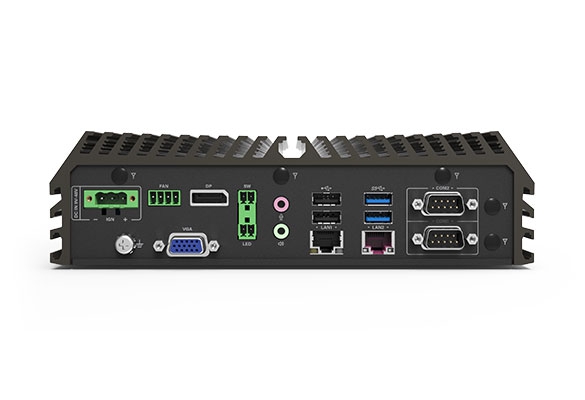

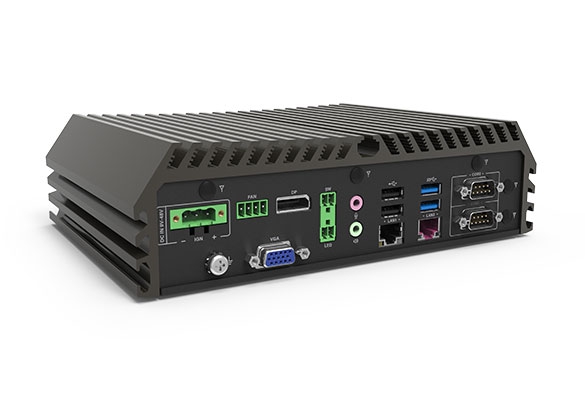

I/O	LAN	• 1x 2.5GbE LAN, RJ45 - Intel® I225 • 1x 1GbE LAN, RJ45 - Intel® I219
	COM	• 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
	USB	• 1x 10Gbps USB3.2 Gen 2x1, Type A • 2x 5Gbps USB3.2 Gen 1x1, Type A • 3x 480Mbps USB2.0, Type A
Storage	SSD/HDD	• 1x 2.5" SATA HDD/SSD Bay (SATA 3.0)
Storage	M.2 SSD	• 1x M.2 SSD Shared by M.2 Key M Type 2280 Socket, Support PCIe Gen 4x4 NVMe SSD or SATA 3.0 SSD • 2x M.2 SSD Shared by M.2 Key B Socket, Support PCIe Gen 3x2 NVMe SSD or SATA 3.0 SSD
Expansion	M.2 Key E Socket	• 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0), Support Wireless/Intel CNVi Module Expansion
	M.2 Key B Socket	• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen2 x1 / USB2.0 / SATA), Support 5G/Storage/Add-on Card Expansion • 1x M.2 Key B Type 2242 Socket (PCIe Gen 3x2 / USB2.0 / SATA ), Support Storage/Add-on Card Expansion
	SIM Socket	• 1x Front Accessible Dual Nano SIM Socket
	CMI (Combined Multiple I/O) Interface	• 1x CMI Interface for optional CMI-Display Module Expansion • 2x CMI Interface for optional CMI-COM/DIO Module Expansion
	CFM (Control Function Module) Interface	• 1x CFM IGN Interface for optional CFM-IGN Module Expansion
Other Function	External FAN Connector	• 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
	Clear CMOS Switch	• 1x Clear CMOS Switch
	Reset Button	• 1x Reset Button
	Instant Reboot	• Support 0.2sec Instant Reboot Technology
	Watchdog Timer	• Software Programmable Supports 256 Levels System Reset
	Antenna Hole	• 5x Antenna Holes
Power	Power Button	• 1 x ATX Power On/Off Button
	Power Mode Switch	• 1 x AT/ATX Mode Switch
	Power Input	• 9 - 48VDC, 3-pin Terminal Block
	Remote Power On/Off	• 1 x Remote Power On/Off, 2-pin Terminal Block
	Remote Power LED	• 1 x Remote Power LED, 2-pin Terminal Block
	Max. Power Consumption	• 35W CPU: 204.46W • 65W CPU: 307.92W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing
	Inrush Current (Peak)	• 35W CPU: 4.362 A@24V • 65W CPU: 4.516 A@24V
Physical	Dimension ( W x D x H )	• 224.1 x 162 x 62 mm
	Weight Information	• 2.52 KG
	Mechanical Construction	• Extruded Aluminum with Heavy Duty Metal
	Mounting	• Wall / DIN-RAIL / VESA Mount
	Physical Design	• Fanless Design • Cableess Design • Jumper-less Design • Unibody Design
Reliability & Protection	Reverse Power Input Protection	• Yes
	Over Voltage Protection	• Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover
	Over Current Protection	• 15A
	CMOS Battery Backup	• SuperCap Integrated for CMOS Battery Maintenance-free Operation
	MTBF	• 413,236 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating System	Windows	• Windows®11, Windows®10
Operating System	Linux	• Ubuntu Desktop 22.04 LTS
Environment	Operating Temperature	• 35W TDP Processor: -40°C to 70°C • 65W TDP Processor: -40°C to 55°C (With External Fan Kit) * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
	Storage Temperature	• -40°C to 70°C
	Relative Humidity	• 95% RH @ 70°C (Non-condensing)
	Shock	• MIL-STD-810H
	Vibration	• MIL-STD-810H
	EMC	• CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only) • EN 50155 (EN 50121-3-2 Only) • E-mark
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN 61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded cable.) • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
	Safety	UL, cUL, CB, IEC, EN 62368-1

BESTELLINFORMATIONEN

Available Model
Model No.	Description
DV-1100-R10	14/13/12th Gen. Intel® Core™ Series High Performance and Basic Function Rugged Embedded Computer

Package Checklist
DV-1100 Embedded Computer x1	Wall Mounting Kit x1
CPU Installation Kit x1	Power Terminal Block Connector x1
External Fan Terminal Block Connector x1	Remote Function Terminal Block Connector x 2
Screw Pack x1	M.2 Key B Type 3052 to Type 3042 Adapter Bracket x1

Optional Modules and Accessories
Model No.	Description
CMI-DP01-R10	CMI Module with 1x DisplayPort
CMI-HD03-R10	CMI Module with 1x HDMI Port
CMI-COM06-R10	CMI Module with 2x RS232/422/485 Ports (Support 5V/12V)
CMI-DIO06-R10	CMI Module with 16DIO (8in/8out)
CFM-IGN04-R10	CFM Module with Power Ignition Sensing Function, 12V/24V Selectable
UB1603-R10	Universal Bracket with 2x DB9 Cutout
UB1606-R10	Universal Bracket with DP Cutout
UB1608-R10	Universal Bracket with HDMI Cutout
UB1618-R10	Universal Bracket with DIO Cutout
DINRAIL-R10	Diamond series DIN-RAIL Mount Kit
FAN-EX104	External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan
GST120A24-CIN	Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CIN	Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI
GST360A24-CIN	Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug and TUBES, Level VI
RSD-200D-24	Railway Single Output DC-DC Converter 200W / DC 24V
