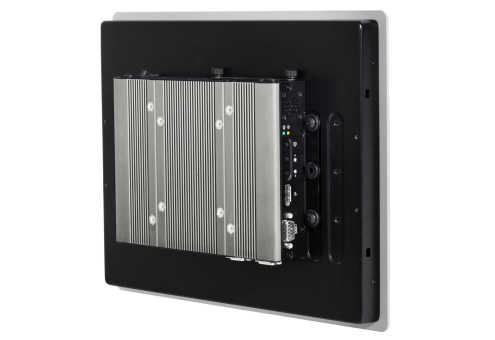

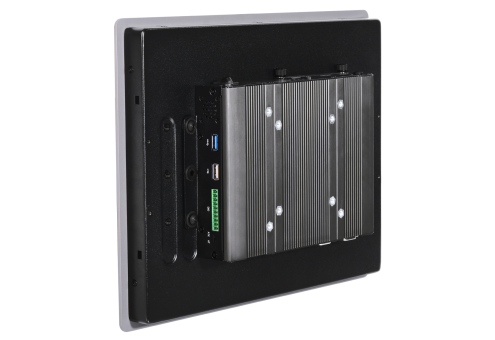

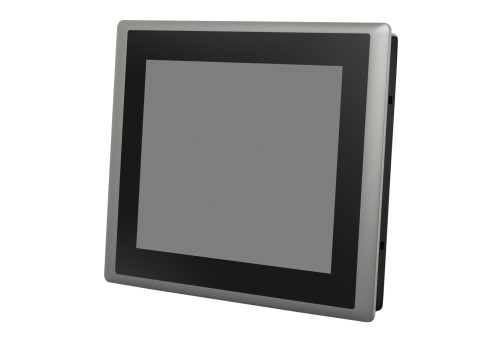

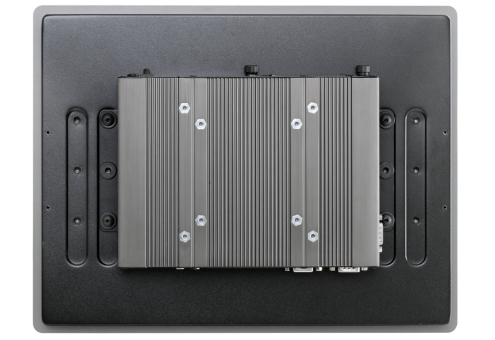

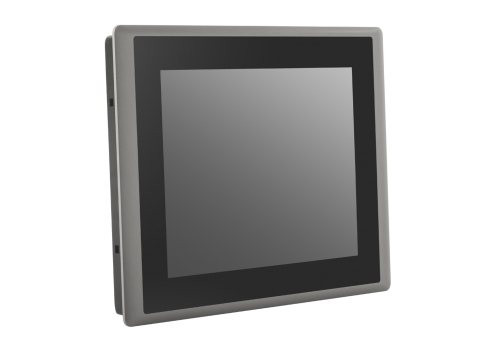

CV-112 / P1001

EOL Model
12.1" TFT SVGA 4:3 Panel PC with Resistive 5-wire / Projected Capacitive Touch, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort
PRODUKTEIGENSCHAFTEN
  • 12.1" TFT SVGA 4:3 LCD with Resistive 5-wire / Projected CapacitiveTouch
  • Designed with Aluminum Die-Casting Front Frame
  • Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
  • 1x DDR3L SO-DIMM max. up to 8GB
  • 1x 2.5” SATA HDD Bay, 1x CFast Card and 1x SIM Card Socket
  • 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
  • 1x Mini-PCIe Expansion Socket
  • IP 65 Compliant Front Panel
  • Supports Panel / VESA / Rack Mounting
  • Convertible Display System (CDS) Supported
  • Built-in Two 2W Internal Speakers
ZUR ANFRAGE HINZUFÜGEN DATENBLATT
ÜBERBLICK
The 12.1" all-in-one panel PC offers LED backlight LCD with resolution up to 800x600 (SVGA) and 450 nits brightness. CV-112/P1001 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-casting front frame with rugged body structure that can be able to apply in industrial applications. CV-112/P1001 supports Convertible Display System (CDS) technology which makes it more flexible in system maintaining and upgrading. CV-112/P1001 carries single touch function with resistive 5-wire touch screen or multi-touch function with projected capacitive touch screen. By incorporating with Intel® Atom™ E3845 processor and DDR3L memory, CV-112/P1001 offers extensive I/O including 4x USB, 2x RS232/422/485, 1x VGA, 1x DisplayPort and 4 DI / 4DO.

CV-112/P1001 supports 3G and WLAN via 2x GbE and 1x Mini-PCIe slot. Furthermore, they are 3 types of storage devices including 2.5" SATA HDD, CFast and SIM card. The accessible design of these storage devices allow quick data access
and easy maintenance. Supporting wide range power DC input from 9 ~ 48VDC, CV-112/P1001 can be deployed and powered for various industrial applications.
RESOURCES
Cincoze Sunlight-Readable Industrial Panel PCs — Building More Comfortable and Convenient Smart Cities
2021-04-28
Cincoze Sunlight-Readable Industrial Panel PCs — Building More Comfortable and Convenient Smart Cities
More Fun, Less Wait - A Water Park Eliminated Lines with Cincoze Powered Virtual Queue Kiosks
2020-11-27
More Fun, Less Wait - A Water Park Eliminated Lines with Cincoze Powered Virtual Queue Kiosks
Cincoze Industrial Panel PCs: Powering Smart Factories
2020-11-11
Cincoze Industrial Panel PCs: Powering Smart Factories
Cincoze CV-117/P1001 Enhanced Productivity for Stone Processing Machine
2020-03-27
Cincoze CV-117/P1001 Enhanced Productivity for Stone Processing Machine
Modular Panel PC Deployed in Manufacturing of Rubber Air Springs
2019-09-20
Modular Panel PC Deployed in Manufacturing of Rubber Air Springs
Cincoze Panel PC & Touch Monitor Satisfy All Your Needs of Industrial Operation
2019-07-18
Cincoze Panel PC & Touch Monitor Satisfy All Your Needs of Industrial Operation
The Benefits of Optical Bonding
2018-04-03
The Benefits of Optical Bonding
SPEZIFIKATION
Model NameCV-112/P1001
Model No.CV-112R/P1001CV-112C/P1001
DisplayLCD Size12.1" (4:3)
Max. Resolution800 x 600
Brightness (cd/m2)450
Contrast Ratio800 : 1
LCD Color262K
Pixel Pitch (mm)0.3075 (H) x 0.3075 (V)
Viewing Angle (H-V)160 / 140
Backlight MTBF50000 hrs (LED Backlignt)
TouchResistive 5-wireV-
Projected Capacitive-V
Processor SystemCPUIntel Atom E3845
Core Number4
Frequency1.91 GHz
Cache2 MB
Watts10W
MemoryTransfer RateDDR3L 1066/ 1333MHz (un-buffered and non-ECC)
Max. Capacity8 GB
Socket1x 204-Pin SODIMM
GraphicsChipsetIntel® HD Graphics
Dual DisplayVGA + DP
VGA + CDS
DP + CDS
AudioInterfaceRealtek ALC888-GR, High Definition Audio
I/O InterfaceVGA1x DB-15 connector, CH7517, Up to 1920x1080@60Hz
DP1x DP connector, Up to 1920x1080@60Hz
LAN2x 10/100/1000 Mbps, RJ45
- GbE1: Intel I210IT
- GbE2: Intel I210IT
Support Wake On Lan, Teaming, Jumbo frame, IEEE 1588v2, PXE
POE+-
Serial Port2x RS-232/422/485, DB9
Support 5V/12V
USB 3.01x USB 3.0, Type-A
USB 2.03x USB 2.0, Type-A
DIO4 in/4 out
Line-Out1x Phone Jack 3.5mm
Mic-In1x Phone Jack 3.5mm
Power on/off switchV
Reset ButtonV
AT/ATX SwitchV
Remote Power On/Off Connector-
External FAN Connector-
StorageSSD/HDD1x Internal SATA port for 2.5” HDD/SSD
mSATA-
CFast1
ExpansionPCI-
PCIe-
CFM Interface
(Control Function Module)		-
Mini PCI Express1x Full-size Mini PCIe
Universal I/O Bracket　
SIM Socket1(internal)
Antenna Holes2
Other FunctionCDS FunctionV
OSD FunctionLCD On/Off, Brightness Up/Down
(With Display Module)
Power Ignition Sensing-
Internal SpeakerAMP 2W + 2W
Super Cap-
Instant RebootV
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
Power RequirementPower TypeAT/ATX
Power Input Voltage9~48VDC
Connector3-pin Terminal Block
Power AdaptorOptional AC/DC 12V/5A, 60W
PhysicalDimension (WxHxD)345 x 265.3 x 65.5 mm
Weight Information4.5 kg
Construction Front PanelDie-cast Flat Surface
MountingPanel / VESA / *Rack Mounting (*with optional mounting kit)
Fanless DesignV
Cable-less Design-
Jumper-less Design-
ProtectionReverse Power Input ProtectionV
Over Voltage ProtectionProtection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection20A
ESD Protection+/-8kV (air), +/-4kV (contact)
Operating StystemWindowsWindows® 10
Windows® 8.1
Windows® 7
LinuxLinux® Kernel 3.X
EnvironmentOperating TemperatureAmbient with air flow: -20°C to 70°C
(with Industrial Grade Peripherals)
StorageTemperature-30°C to 80°C
Relative Humidity80% RH @ 40°C (Non-Condensing)
IP LevelIP 65 Compliant Front Panel
EMCCE/ FCC Class A
BESTELLINFORMATIONEN
Available Models
Model No.Product Description
CV-112R/P100112.1" TFT SVGA 4:3 Panel PC with Resistive 5-wire Touch, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort
CV-112C/P100112.1" TFT SVGA 4:3 Panel PC with Projected Capacitive Touch, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort

Package Checklist
CV-112/P1001
√ CV-112/P1001 Panel PC x 1
√ Panel Mounting Kit x 1
√ Utility DVD Driver x 1
√ DIO Terminal Block Connector x 1
√ Power Terminal Block Connector x 1
√ HDD Screw Pack x 1
√ Screw Pack x 1

Optional Accessories
Model No.Description
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)
SL2-SL3US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M
SL6-SL3EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M
QP026-SL3UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
