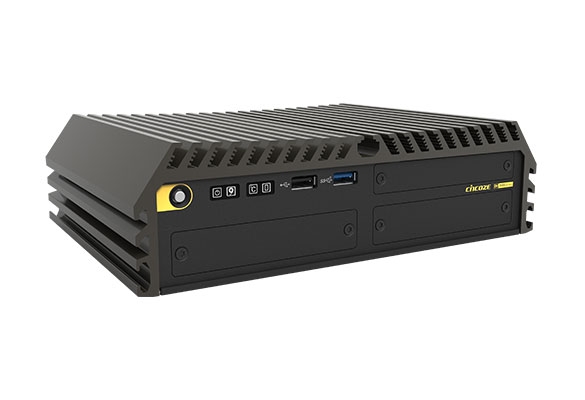

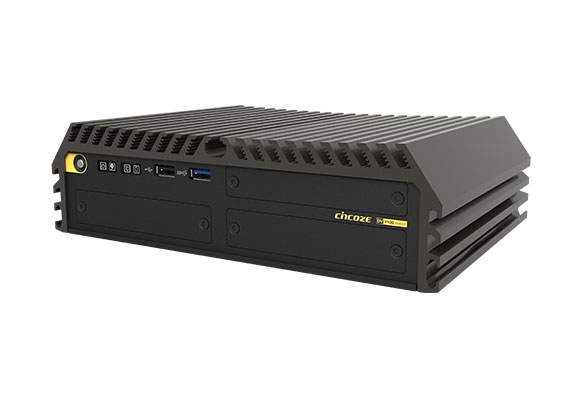

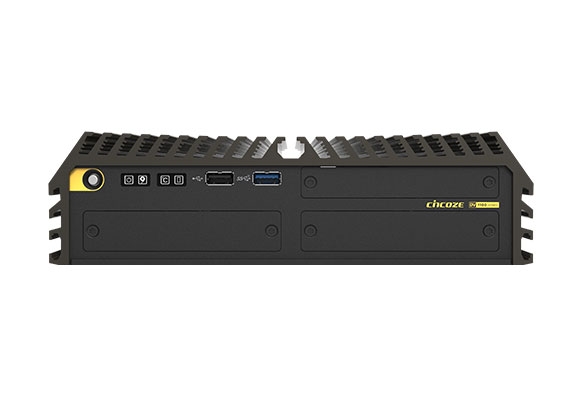

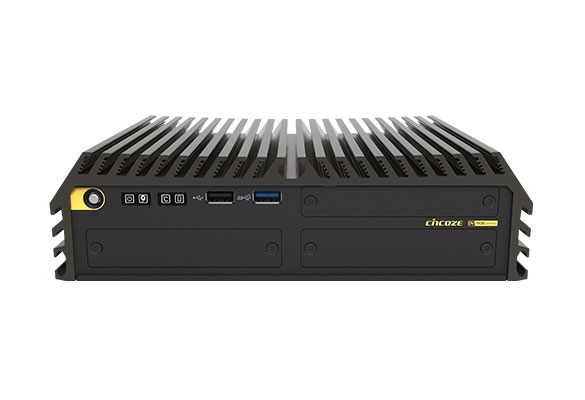

DV-1100
- Intel® 13/12th Gen. Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
- 1x M.2 Key M Type 2280 Socket for PCIe Gen 4x4 NVMe Storage
- 1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion
- 1x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
- 1x M.2 Key B Type 2242 Socket for Storage/Add-on Card Expansion
- Optional CMI & CFM Modules for I/O Expansion & Power Ignition Sensing Function
- Wide operating temperature -40°C to 70°C
DV-1100 搭載 Intel® 第十三代/第十二代處理器，是一款在高效能運算需求與成本效益之間達成最佳平衡的邊緣運算嵌入式電腦。透過 DV-1100 高效能的運算能力可迅速在邊緣端，進行數據分析處理，做出判斷，協助企業提高生產效率與正確性。將高效能運算和工業耐用性整合於緊湊體積的 DV-1100，推薦使用在智慧製造、機器視覺、軌道交通或智慧城市等領域中，為受限於狹小空間的關鍵應用，提供必要的穩定性與可靠度。
效能、成本的 平衡
——
DV-1100 可搭載 Intel® 第 13/12 代 Core™ 處理器，可滿足多工處理及多元應用所需要的運算效能，搭配緊湊的機體設計，在效能與成本間達成完美平衡。
緊湊 體積
——
體積僅 224.1 x 162 x 62 mm，可以輕鬆安裝在任何地方，推薦給受空間限制的場域使用。
驚艷的傳輸與 存取速度
——

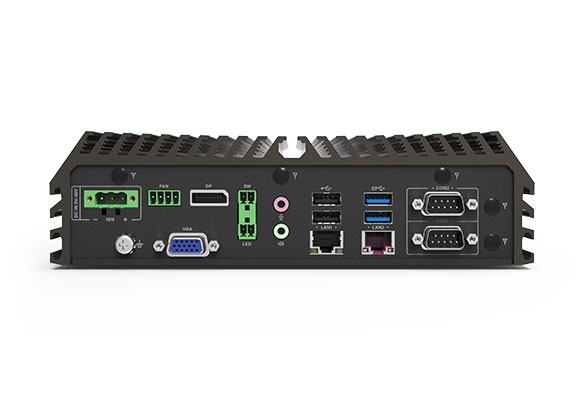

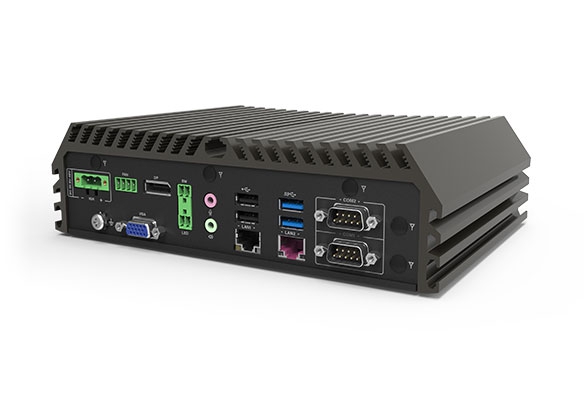

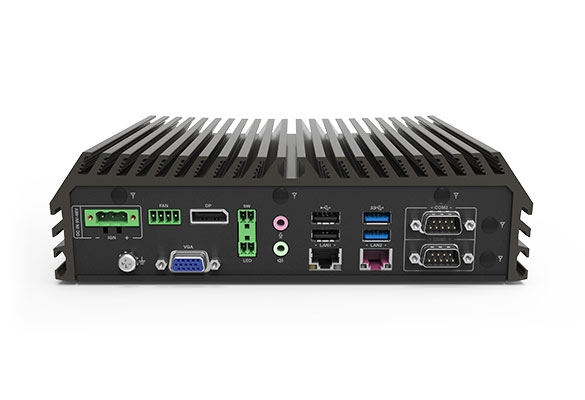

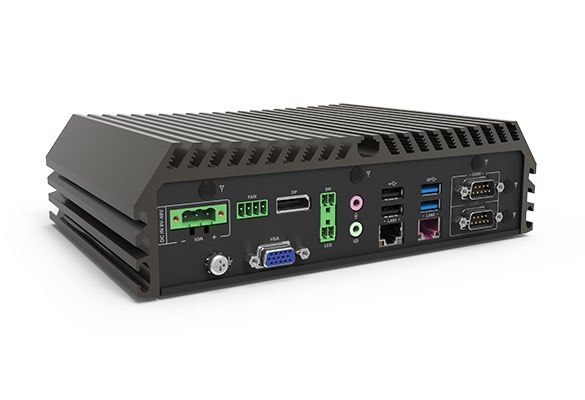

DV-1100 配備高速 I/O 接口，包括 2.5G LAN 和 10Gbps USB 3.2 Gen2x1。在儲存解決方案上，除了支持 2.5" HDD/SSD 外，還提供 NVMe SSD 的高速儲存選項。
卓越的 擴充設計
——
內建 M.2 Key B、M.2 Key E、M.2 Key M 插槽，能夠依據不同的應用增添無線通訊 (5G、WIFI、GNSS) 以及儲存功能。
多款 行業認證
——
DV-1100 的強固設計通過或符合多款工業級及行業特殊認證，如工業環境下的 EMC 標準 (EN61000-6-2/4)、美國軍規衝擊震動標準 (MIL-STD-810H) 、軌道交通 EN50155（EN 50121-3-2 only）等。
| Model Name | DV-1100 | |
|---|---|---|
| System | Processor | 13th Generation Intel® Raptor Lake-S Series CPU: 12th Generation Intel® Alder Lake-S Series CPU: |
| Chipset | • Intel H610E Chipset | |
| Memory | • 1x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and non-ECC Type, Up to 32GB | |
| BIOS | • AMI BIOS | |
| Graphics | Graphics Engine | • Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 • Integrated Intel® UHD Graphics 730: Core™ i3 • Integrated Intel® UHD Graphics 710: Pentium®/Celeron® |
| Maximum Display Output | • Supports Triple Independent Display | |
| DP | • 1x DisplayPort Connector: 3840 x 2160 @60Hz | |
| VGA | • 1x VGA Connector: 1920 x 1200 @60Hz | |
| CMI Display | • 1x CMI Interface for Optional CMI-DP/CMI-HDMI Module Expansion | |
| Audio | Audio Codec | • Realtek® ALC888, High Definition Audio |
| Line-out | • 1 x Line-out, Phone Jack 3.5mm | |
| Mic-in | • 1 x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | • 1x 2.5GbE LAN, RJ45 - Intel® I225 • 1x 1GbE LAN, RJ45 - Intel® I219 |
| COM | • 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
| USB | • 1x 10Gbps USB3.2 Gen 2x1, Type A • 2x 5Gbps USB3.2 Gen 1x2, Type A • 3x 480Mbps USB2.0, Type A | |
| Storage | SSD/HDD | • 1x 2.5" SATA HDD/SSD Bay (SATA 3.0) |
| M.2 SSD | • 1x M.2 SSD Shared by M.2 Key M Type 2280 Socket, Support PCIe Gen 4x4 NVMe SSD or SATA 3.0 SSD • 2x M.2 SSD Shared by M.2 Key B Socket, Support PCIe Gen 3x2 NVMe SSD or SATA 3.0 SSD | |
| Expansion | M.2 Key E Socket | • 1x M.2 Key E Type 2230 Socket, Support Wireless/Intel CNVi Module Expansion |
| M.2 Key B Socket | • 1x M.2 Key B Type 3042/3052 Socket, Support 5G/Storage/Add-on Card Expansion • 1x M.2 Key B Type 2242 Socket, Support Storage/Add-on Card Expansion | |
| SIM Socket | • 1x Front Accessible Dual Nano SIM Socket | |
| CMI (Combined Multiple I/O) Interface | • 1x CMI Interface for optional CMI-Display Module Expansion • 2x CMI Interface for optional CMI-COM/DIO Module Expansion | |
| CFM (Control Function Module) Interface | • 1x CFM IGN Interface for optional CFM-IGN Module Expansion | |
| Other Function | External FAN Connector | • 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) |
| Clear CMOS Switch | • 1x Clear CMOS Switch | |
| Reset Button | • 1x Reset Button | |
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |
| Antenna Hole | • 5x Antenna Holes | |
| Power | Power Button | • 1 x ATX Power On/Off Button |
| Power Mode Switch | • 1 x AT/ATX Mode Switch | |
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | • 1 x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | • 1 x Remote Power LED, 2-pin Terminal Block | |
| Physical | Dimension ( W x D x H ) | • 224.1 x 162 x 62 mm |
| Weight Information | • 2.52 KG | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | |
| Mounting | • Wall / DIN-RAIL / VESA Mount | |
| Physical Design | • Fanless Design • Cableess Design • Jumper-less Design • Unibody Design | |
| Reliability & Protection | Reverse Power Input Protection | • Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | • 15A | |
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | • TBC Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Operating System | Windows | • Windows® 10 |
| Linux | • Supports by project | |
| Environment | Operating Temperature | • 35W TDP Processor: -40°C to 70°C • 65W TDP Processor: TBC (With External Fan Kit) * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | • TBC | |
| Relative Humidity | • TBC | |
| Shock | • MIL-STD-810H | |
| Vibration | • MIL-STD-810H | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only) • EN 50155 (EN 50121-3-2 Only) • E-mark (Pending) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN 61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded cable.) • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Model No. | Description |
|---|---|
| DV-1100-R10 | 13/12th Gen. Intel® Core™ Series High Performance and Basic Function Rugged Embedded Computer |
| DV-1100 Embedded Computer x1 | Wall Mounting Kit x1 |
| CPU Installation Kit x1 | Power Terminal Block Connector x1 |
| External Fan Terminal Block Connector x1 | Remote Function Terminal Block Connector x 2 |
| Screw Pack x1 | M.2 Key B Type 3052 to Type 3042 Adapter Bracket x1 |
| Model No. | Description |
|---|---|
| CMI-DP01-R10 | CMI Module with 1x DisplayPort |
| CMI-HD03-R10 | CMI Module with 1x HDMI Port |
| CMI-COM06-R10 | CMI Module with 2x RS232/422/485 Ports (Support 5V/12V) |
| CMI-DIO06-R10 | CMI Module with 16DIO (8in/8out) |
| CFM-IGN04-R10 | CFM Module with Power Ignition Sensing Function, 12V/24V Selectable |
| UB1603-R10 | Universal Bracket with 2x DB9 Cutout |
| UB1606-R10 | Universal Bracket with DP Cutout |
| UB1608-R10 | Universal Bracket with HDMI Cutout |
| UB1618-R10 | Universal Bracket with DIO Cutout |
| DINRAIL-R10 | Diamond series DIN-RAIL Mount Kit |
| FAN-EX104 | External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
