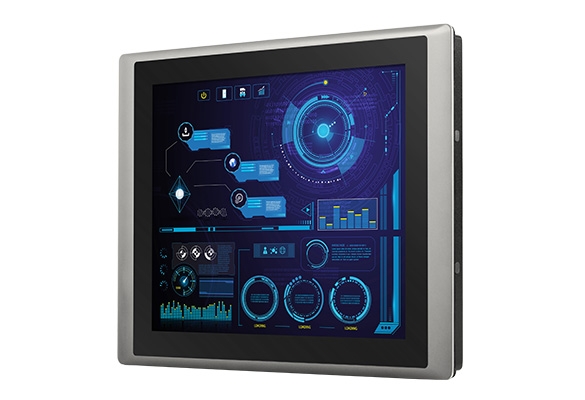

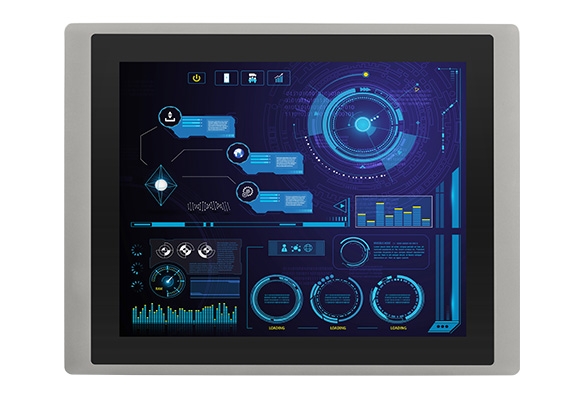

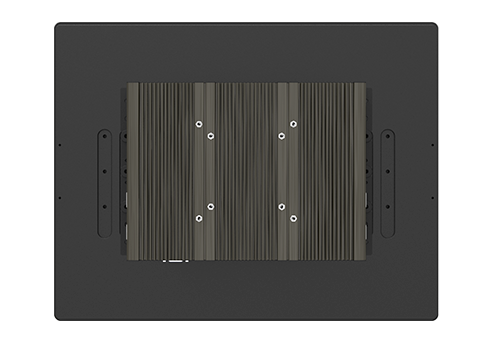

CV-117 / P2202 Series
17 吋 TFT SXGA 5:4 顯示模組平板電腦，搭載第 12 代 Intel® Core™ 處理器
產品特點
- 17 吋 TFT SXGA 5:4 LCD，配備電阻式 5 線觸控 / 投射式電容觸控 / 僅玻璃面板
- 內建 Intel® Alder Lake-P U 系列 Core™ 處理器
- 2 個 DDR5 SO-DIMM 插槽，最高支援 4800MHz 64GB 記憶體
- 四獨立顯示（CDS / HDMI / DP / VGA）
- 1 個 M.2 Key E Type 2230 插槽，適用於 Intel CNVi / 無線模組
- 鋁合金壓鑄前面板設計
- 前面板符合 IP65 防護等級
產品介紹
CV-100/P2202 系列是一款高效能模組化工業平板電腦，搭載 Intel® Alder Lake-P U Series Core® 處理器。齊全完整的螢幕尺寸選擇與靈活的擴充性是特色之一，除原生豐富的 I/O 接口 (1GbE LAN、USB3.2 Gen 2x1、COM 和 DIO) 外，也具備 Mini PCIe、M.2 Key E Type 2230 擴充槽，還可利用獨家 CFM 擴充模組增添 PoE/IGN 等功能。透過德承獨家的 CDS 專利技術，對於未來電腦效能升級或是更換螢幕更加具有彈性。強固的 CV-100/P2202 系列可滿足設備機台的 HMI 與生產流程可視化的多元應用。
Product Category >>>> Modular Panel PC & Industrial Monitor
優異運算效能
——
CV-100/P2202 系列搭載 Intel® 7 製程的第 12 代 Core™ i5/i3 U 系列（Alder Lake-P）處理器，除了 15W 低功耗的優勢外，還具有最高 10 核心 (2P+8E) 的出色效能。內建的 Intel Iris Xe 顯示晶片，可輕鬆駕馭 AI 深度學習中所需的圖像推論效能 (Image Classification Inference Performance)。
CDS 專利技術
——
透過 CDS (Convertible Display System) 專利技術，不僅在現場端具有易於維護優勢外，也可保留未來升級需求，無論是更換螢幕或是系統效能提升，只需換置單一組件即可達成，大幅節省升級成本。
Patent No. M482908尺寸齊全完整
——
CV-100/P2202 系列擁有多樣化的產品組合，從螢幕尺寸 (12 - 24 吋)、顯示比例 (4:3 / 5:4 / 16:9) 到觸控方式 (多點電容式及單點電阻式)，可針對應用需求進行選擇。
強固、安全、更可靠
——
面對嚴苛險峻的使用環境，CV-100/P2202 系列具備一系列的工業級防護，包括寬工作溫度範圍（-20°C 至 70°C）、寬範圍直流電源輸入（9 至 48VDC）、IP65 前面板防塵/防水等，有利於現場端 HMI 或生產流程可視化等應用。
影片
詳細規格
CV-117 Series
| Model Name | CV-117R | CV-117C | CV-117G | |
|---|---|---|---|---|
| Display | LCD Size | 17" (5:4) | ||
| Max. Resolution | 1280 x 1024 | |||
| Brightness (cd/m2) | 350 | |||
| Contract Ratio | 800 : 1 | |||
| LCD Color | 16.7M | |||
| Pixel Pitch (mm) | 0.264 (H) x 0.264 (V) | |||
| Viewing Angle (H-V) | 160 / 140 | |||
| Backlight MTBF | 50,000 hrs (LED Backlight) | |||
| Touch Screen | Touchscreen Type | Resistive 5-wire | Projected Capacitive | Glass Screen |
| Physical | Dimension (W x D x H) | 450 x 350 x 63.2mm | ||
| Weight Information | 5.64kg | |||
| Mechanical Construction | Die-Casting Flat Surface | |||
| Environment | Front Panel Protection | IP 65 Compliant | ||
| Operating Temperature | -20°C to 70°C (with Industrial Grade peripherals; Ambient with air flow) | -20°C to 80°C (with Industrial Grade peripherals; Ambient with air flow) | -30°C to 85°C (with Industrial Grade peripherals; Ambient with air flow) | |
| Storage Temperature | -30°C to 80°C | -30°C to 85°C | ||
| Relative Humidity | 80% RH @ 50°C (Non-Condensing) | 80% RH @ 50°C (non-Condensing) | ||
| EMC | CE, UKCA, FCC, ICES-003 Class A | |||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |||
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |||
P2202 Series
| Model Name | P2202 | P2202E | |
|---|---|---|---|
| System | Processor | • Onboard 12th Generation Intel® Alder Lake-P U-Series CPU: - Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W - Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 15W | |
| Memory | • 2x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and non-ECC Type, Up to 64GB | ||
| BIOS | • AMI BIOS | ||
| Graphics | Graphics Engine | • Integrated Intel® Iris® Xe Graphics: Core™ i5-1245UE • Integrated Intel® UHD Graphics: Core™ i3-1215UE | |
| Maximum Display Output | • Supports Quad Independent Display | ||
| CDS | • 1x CDS Connector (1920 x 1080 @60Hz) | ||
| DP | • 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz | ||
| HDMI | • 1x HDMI Connector (3840 x 2160 @30Hz) | ||
| VGA | • 1x VGA Connector (1920 x 1200 @60Hz) | ||
| Audio | Audio Codec | Realtek® ALC888, High Definition Audio | |
| Line-out | 1x Line-out, Phone Jack 3.5mm | ||
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | ||
| I/O | LAN | • 2x 1GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2: Intel® I210 | |
| COM | • 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | ||
| USB | • 3 x USB 3.2 Gen2x1 (10Gbps), Type A • 1 x USB 2.0 (480Mbps), Type A | ||
| DIO | • 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block | ||
| Storage | SSD/HDD | 2x 2.5” SATA HDD/SSD Bay (SATA3.0) | |
| RAID | Support RAID 0/1 | ||
| Expansion | Mini PCI Express | 2x Full-size Mini-PCIe Socket | |
| PCI Express | -- | 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) * Supports maximum dimensions of add-on card (H x L) : 111 x 169mm | |
| SIM Socket | • 1x SIM Socket | ||
| M.2 | • 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module | ||
| CFM (Control Function Module) Interface | • 1x CFM Interface for optional IGN Module Expansion • 1x CFM Interface for optional PoE Module Expansion | ||
| CDS (Convertible Display System) Interface | • 1x CDS Interface for Convertible Display Module | ||
| Other Function | Clear CMOS Switch | • 1x Clear CMOS Switch | |
| Reset Button | • 1x Reset Button | ||
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | ||
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | ||
| OSD Button | • LCD On/Off, Brightness Up, Brightness Down | ||
| Internal Speaker | • AMP 2W + 2W | ||
| Status LED Indicator | • Power LED, HDD LED | ||
| Power | Power Button | • 1x ATX Power On/Off Button | |
| Power Mode Switch | • 1x AT/ATX Mode Switch | ||
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | ||
| Remote Power On/Off | • 1x Remote Power On/Off, 2-pin Terminal Block | ||
| Operating Stystem | Windows | Windows®11, Windows®10 | |
| Linux | Ubuntu 22.04 | ||
| Physical | Dimension ( W x D x H ) | • 254.5 x 190 x 41.5 mm | • 254.5 x 190 x 61 mm |
| Weight Information | • 2.22 kg | • 2.74 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | ||
| Mounting | Wall / VESA / CDS / DIN Rail | ||
| Physical Design | Fanless Design Jumper-less Design | ||
| Reliability & Protection | Reverse Power Input Protection | • Yes | |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | ||
| Over Current Protection | • 15A | ||
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | ||
| MTBF | • 216,747 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | ||
| Environment | Operating Temperature | • -40°C to 70°C | |
| Storage Temperature | • -40°C to 70°C | ||
| Relative Humidity | • 95%RH @ 70°C (non-Condensing) | ||
| Shock | • Operating, 50 Grms (w/ SSD, according to IEC60068-2-27) | ||
| Vibration | • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | ||
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only) | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV | ||
| Safety | UL, cUL, CB, IEC/EN 62368-1 | ||
訂購資訊
| Model No. | Product Description |
|---|---|
| CV-117R-R10/P2202-i5-R10 | 17" TFT SXGA 5:4 Display Modular Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Resistive 5-wire Touch |
| CV-117R-R10/P2202E-i5-R10 | 17" TFT SXGA 5:4 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Resistive 5-wire Touch |
| CV-117C-R11/P2202-i5-R10 | 17" TFT SXGA 5:4 Display Modular Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Projected Capacitive Touch |
| CV-117C-R11/P2202E-i5-R10 | 17" TFT SXGA 5:4 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Projected Capacitive Touch |
| CV-117G-R10/P2202-i5-R10 | 17" TFT SXGA 5:4 Display Modular Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and without Touch |
| CV-117G-R10/P2202E-i5-R10 | 17" TFT SXGA 5:4 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and without Touch |
| CV-117R-R10/P2202-i3-R10 | 17" TFT SXGA 5:4 Display Modular Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Resistive 5-wire Touch |
| CV-117R-R10/P2202E-i3-R10 | 17" TFT SXGA 5:4 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Resistive 5-wire Touch |
| CV-117C-R11/P2202-i3-R10 | 17" TFT SXGA 5:4 Display Modular Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Projected Capacitive Touch |
| CV-117C-R11/P2202E-i3-R10 | 17" TFT SXGA 5:4 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Projected Capacitive Touch |
| CV-117G-R10/P2202-i3-R10 | 17" TFT SXGA 5:4 Display Modular Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and without Touch |
| CV-117G-R10/P2202E-i3-R10 | 17" TFT SXGA 5:4 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and without Touch |
| CV-117R | CV-117C | CV-117G | P2202 (i3/i5) | P2202E (i3/i5) | |
|---|---|---|---|---|---|
| CV-117R/P2202 | V | -- | -- | V | -- |
| CV-117C/P2202 | -- | V | -- | V | -- |
| CV-117G/P2202 | -- | -- | V | V | -- |
| CV-117R/P2202E | V | -- | -- | -- | V |
| CV-117C/P2202E | -- | V | -- | -- | V |
| CV-117G/P2202E | -- | -- | V | -- | V |
| • CV-117/P2202 Series Panel PC x1 | • Thermal Pad x1 |
| • Power Terminal Block x1 | • Screws Pack x5 |
| • Remote Power On/Off Terminal Block Connector x1 | • Panel Mounting Kit x1 |
| • DIO Terminal Block Connector x2 | • DIN Rail Mounting Kit x1 |
| • PCI / PCIe Card Installation Kit x 1 (For P2202E Only) |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable |
| CFM-PoE04 | CFM Module with PoE Control Function, Individual Port 25.5W (For P2202 Only) |
| CFM-PoE05 | CFM Module with PoE Control Function, Individual Port 25.5W (For P2202E Only) |
| RC-E4-02 | Riser Card with 1x PCIe x4 Slot (For P2202E Only) |
| RC-PI-02 | Riser Card with 1x PCI Slot (For P2202E Only) |
| MEC-COM-M212-TDB9 | Mini-PCIe Module with 2x RS-232 Ports, 1x Thin DB9 Cable (For P2202E Only) |
| MEC-COM-M334-TDB9 | Mini-PCIe Module with 4x RS-232/422/485 Ports, 2x Thin DB9 Cable (For P2202E Only) |
| MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.0 Ports, 1x 30cm cable (For P2202E Only) |
| MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P2202E Only) |
| UB1203 | 1x Universal Bracket with 2x DB9 Cutout (For P2202E Only) |
| UB1211 | 1x Universal Bracket with 2x RJ45 Cutout (For P2202E Only) |
| UB1214 | 1x Universal Bracket with 2x USB Cutout (For P2202E Only) |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN, wide temp (-30°C ~ +70°C), level VI |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI (For P2202E Only) |
