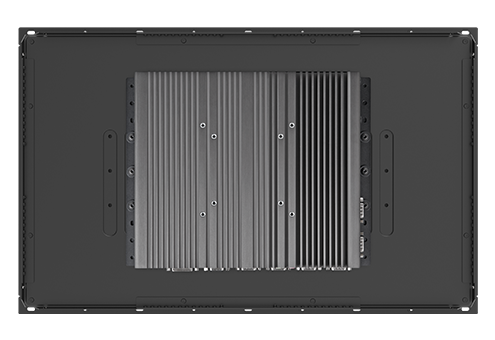

CO-W121C / P2002 Series
21.5" 6th Gen. Intel® Core™ Processor U Series Fanless Touch Panel PC with CFM & CDS Technology
產品特點
- 21.5" TFT-LCD with Projected Capacitive Touch
- Onboard Intel® 6th Generation Core™ Processor U Series (15W)
- 2x DDR4 SO-DIMM Socket, Support Up to 32 GB
- Designed with Adjustable Mounting Bracket
- Support Flat / Standard / VESA / Rack Mount
- Front Panel IP65 Compliant
- Wide Operating Temperature
- Cincoze Patent CDS Technology Support
產品介紹
德承高效能開放式架構平板電腦(CO-W121C/P2002 Series)，採用Intel® Core U系列處理器，除了擁有高效能的數據處理與圖形運算能力外，僅15 W低功耗也是特色亮點。全系列支持CFM技術，能依據需求擴展所需功能，如Power Ignition Sensing (IGN) 以及乙太網供電功能(PoE)。其一體式設計、獨家可調式安裝支架以及支援多款安裝模式，能完美結合於不同材質、厚度的機櫃外殼，其強固設計也兼顧工業嚴苛環境現場端的應用需求。
Product Category >>>> Modular Panel PC & Industrial Monitor
高效能 低功耗
——
Intel® Core U系列處理器，除了擁有高效能的數據處理與圖形運算能力外，僅15 W低功耗也是特色亮點 ; 支援最高64G記憶體與2 x 2.5”HDD/SSD。
CDS
專利技術
——
透過CDS (Convertible Display System)專利技術，不僅在現場端具有易於維護優勢外，也可保留未來升級需求，無論是更換面板尺寸或是系統效能提升，只需換置單一組件即可達成，大幅節省升級成本。
Patent No. M482908靈活彈性 應用更廣
——
提供了Mini-PCIe以及PCI/PCIe擴充插槽，滿足使用者安裝資料採集卡、運動控制卡、以及I/O擴充等各種應用。
[ PCI/PCIe 擴充插槽適用機型 : CO-W121C/P2002E ]
可調式設計
安裝簡易
——
獨家可調式安裝支架，擁有厚度調整的選擇以及支援多款鎖固方式 (Panel Type/Boss Type)，對於使用全平面安裝與標準安裝的工業機台，提供更簡易、便捷的整合關鍵。
Patent No.: D224544, D224545, I802427一體式 設計
——
彈性與可靠兼具，除了是開放式架構的平板電腦，可佈署於設備機台中。其一體式的設計，在卸除安裝支架後，可直接透過VESA安裝作為單機使用，或是安裝於19”機架中提供顯示功能。
強固可靠兼具
耐用度提升
——
前框IP65防水防塵、無風扇、9-48V寬壓電力輸入及0℃~60℃寬溫設計，在嚴峻的工業環境中，均能穩定持續運作，高度滿足工業現場端HMI的應用需求。
影片
詳細規格
CO-W121C
| Model Name | CO-W121C | |
|---|---|---|
| Display | LCD Size | 21.5” (16:9) |
| Resolution | 1920 x 1080 | |
| Brightness | 300 cd/m2 | |
| Contract Ratio | 5000 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch | 0.24825 (H) x 0.24825 (V) mm | |
| Viewing Angle | 178 (H) / 178 (V) | |
| Backlight MTBF | 50,000 hrs | |
| Touch Screen | Touchscreen Type | Projected Capacitive Touch |
| Physical | Dimension (W x D x H) | 550 x 343.7 x 63.3 |
| Weight | 7.16 kg | |
| Construction | One-piece and Slim Bezel Design | |
| Mounting Type | Flat / Standard / VESA / Rack Mount | |
| Mounting Bracket | Pre-installed Mounting Bracket with Adjustable Design ( Support 11 different stages of adjustment ) | |
| Protection | Ingress Protection | Front Panel IP65 Compliant * According to IEC60529 |
| Environment | Operating Temperature | Ambient with Air flow: 0°C to 60°C (with Industrial Grade Peripherals) |
| Storage Temperature | -20°C to 60°C | |
| Humidity | 80% RH @ 50°C (Non-condensing) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
P2002 Series
| Model Name | P2002 | P2002E | |
|---|---|---|---|
| System | Processor | Onboard 6th Intel® Core™ U processors (Skylake) • Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) • Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) • TDP: 15 W | |
| Memory | 2x DDR4 2133 MHz 260-Pin SO-DIMM Socket Support Un-buffered and Non-ECC Type up to 32 GB | ||
| BIOS | AMI 64Mbit SPI BIOS | ||
| Graphics | Graphics Engine | Integrated Intel® UHD Graphics 520 | |
| Maximum Display Output | Supports Triple Independent Display | ||
| CDS | 1x CDS Connector for Cincoze Display Module | ||
| VGA | 1x VGA Connector(1920 x 1080 @60Hz), DB-15 | ||
| DVI-D | 1x DVI-D Connector (1920 x 1080 @ 60Hz) | ||
| Audio | Audio Codec | Realtek® ALC888, High-Definition Audio | |
| Speaker-out | 1x Speaker-out, Phone Jack 3.5mm | ||
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | ||
| I/O | LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I219LM - GbE2: Intel® I210 | |
| USB | 4x USB 3.2 Gen1 (Type A), 1x USB 2.0(Type-A) | ||
| Serial Port | 6x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 | ||
| DIO | 16x Isolated Digital I/O (8in/8out), 10-Pin Terminal Block | ||
| Storage | SSD/HDD | 2x 2.5" SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) | |
| mSATA | 2x mSATA (One Shared by Mini-PCIe Socket) (Gen2) | ||
| CFast | 1x CFast Socket (Gen3) | ||
| Expansion | Mini PCI Express | 2x Full-size Mini-PCIe Socket | |
| PCI Express | • 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) • maximum dimension of add-on card: 100mm x 200mm (H x L) | ||
| SIM Socket | 1 x Front Accessible SIM Socket | ||
| Universal Bracket | 1x Universal I/O Bracket | ||
| CFM (Control Function Module) Interface | 2x CFM Interface for optional CFM-IGN or CFM-PoE (max 25.5W) Module Expansion | ||
| CDS (Convertible Display System) Technology | 1x Convertible Display System (CDS) Interface, Compact PCI Connector | ||
| Other Function | Instant Reboot | Support 0.2sec Instant Reboot technology | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | ||
| Internal Speaker | AMP 2W + 2W | ||
| OSD Function | LCD On/Off, Brightness Up, Brightness Down | ||
| Reset Button | 1x Reset Button | ||
| External Fan Connector | 1x External Fan Connector, 4-pin Terminal Block | ||
| Power | Power Button | 1x ATX Power On/Off Switch | |
| Power Mode Switch | 1x AT/ATX Mode Switch | ||
| Power Input | 1x 3-pin Terminal Block Connector with Power Input 9~48VDC | ||
| Power Adapter (Optional) | 1x Optional AC/DC 12V/5A 60W or 24V/5A 120W 1x Optional AC/DC 24V/9.2A 220W (For P2002E only) | ||
| Remote Power On/Off | 1x Remote Power On/Off Connector, 2-pin Terminal Block | ||
| Physical | Dimension ( W x D x H ) | 254.5 x 220 x 54mm | 254.5 x 220 x 72 mm |
| Weight Information | 2.92 kg | 3.18 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | ||
| Mounting | Wall / VESA / CDS | ||
| Physical Design | Fanless Design Jumper-less Design | ||
| Reliability & Protection | Reverse Power Input | Yes | |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover | ||
| Over Current Protection | 15A | ||
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | ||
| Operating Stystem | Microsoft® Windows® | Windows®10, Windows® 8.1, Windows® 7 | |
| Linux | Linux® Kernel 4.4 | ||
| Environment | Operating Temperature | Ambient with Air Flow: -25°C to 70°C (with Extended Temperature Peripherals) | |
| Storage Temperature | -40°C to 85C | ||
| Relative Humidity | 95% RH @ 40˚C (Non-condensing) | ||
| Shock | Operating, 50 Grms, Half-sine 11ms Duration (w/ SSD, according to IEC60068-2-27) | ||
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | ||
| EMC | CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
訂購資訊
| Model No. | Product Description |
|---|---|
| CO-W121C-R10/P2002-i5-R10 | 21.5" TFT-LCD Full HD 16:9 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Fanless Computer, CFM Interface, CDS Interface |
| CO-W121C-R10/P2002E-i5-R10 | 21.5" TFT-LCD Full HD 16:9 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface |
| CO-W121C-R10/P2002E-i5-E4-R10 | 21.5" TFT-LCD Full HD 16:9 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion |
| CO-W121C-R10/P2002E-i5-PI-R10 | 21.5" TFT-LCD Full HD 16:9 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCI Expansion |
| CO-W121C-R10/P2002-i3-R10 | 21.5" TFT-LCD Full HD 16:9 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Fanless Computer |
| CO-W121C-R10/P2002E-i3-R10 | 21.5" TFT-LCD Full HD 16:9 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface |
| CO-W121C-R10/P2002E-i3-E4-R10 | 21.5" TFT-LCD Full HD 16:9 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion |
| CO-W121C-R10/P2002E-i3-PI-R10 | 21.5" TFT-LCD Full HD 16:9 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCI Expansion |
| CO-W121C | P2002 (i3/i5) | P2002E (i3/i5/E4/PI) | |
|---|---|---|---|
| CO-W121C/P2002 | V | V | -- |
| CO-W121C/P2002E | V | -- | V |
| √ CO-W121C/P2002 Series Panel PC x 1 | √ Power Terminal Block Connector (Female) x 1 |
| √ DIO Terminal Block Connector (Female) x 1 | √ Screw Pack x 1 |
| √ Power On/Off Terminal Block Connector x 1 | √ Fan Terminal Block Connector x 1 |
| Model No. | Description |
|---|---|
| MEC-COM-M212-DB9 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable |
| MEC-COM-M334-TDB9 | Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable |
| MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm |
| MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports |
| CFM-IGN100 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (41 x 35 mm) |
| CFM-PoE100 | PoE Control Function Module, Individual Port 25.5W (50 x 44 x 15 mm) (For P2002 only) |
| CFM-PoE101 | PoE Control Function Module, Individual Port 25.5W (50 x 44 x 15 mm) (For P2002E only) |
| RC-E4-01 | Riser Card with 1x PCIex4 Slot(For P2002E only) |
| RC-PI-01 | Riser Card with 1x PCI Slot(For P2002E only) |
| UB0503 | Universal Bracket with 2x DB9 Cutout |
| UB0504 | Universal Bracket with 4x DB9 Cutout |
| UB0511 | Universal Bracket with 2x RJ45 Cutout |
| UB0514 | Universal Bracket with 2x USB Cutout |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, GST220A24-CIN |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp(-30°C ~ +70°C), level VI |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
