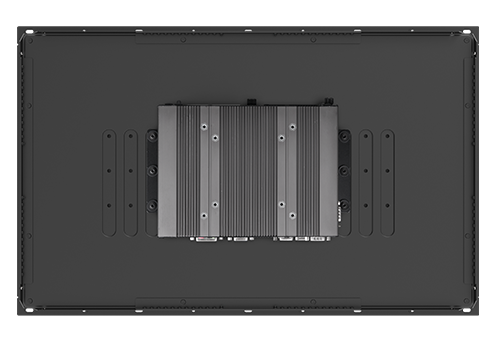

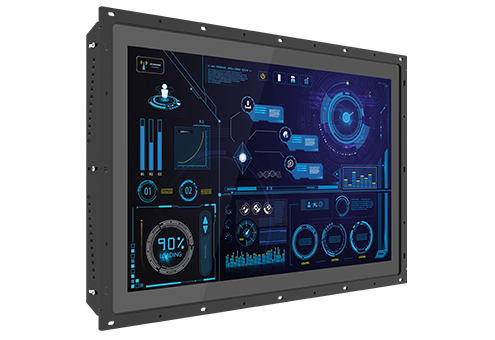

CO-W121C / P1001 Series
21.5" TFT Full HD 16:9 Panel PC w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort
產品特點
- 21.5" TFT-LCD with Projected Capacitive Touch
- Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
- 1x DDR3L SO-DIMM max. up to 8GB
- Designed with Adjustable Mounting Bracket
- Support Flat / Standard / VESA / Rack Mount
- Front Panel IP65 Compliant
- Wide Operating Temperature
- Cincoze Patent CDS Technology Support
產品介紹
德承節能開放式架構平板電腦(CO-W121C /P1001 Series)，採用Intel® Atom®系列處理器，支援多顯功能。具備豐富的原生I/O如LAN, USB, COM, DIO，能依據需求擴展應用功能。此外，一體式設計、獨家可調式安裝支架以及支援多款安裝模式，除了能完美結合於不同材質、厚度的機櫃外殼，呈現整體一致性外，其強固設計也兼顧工業嚴苛環境現場端的應用需求。
Product Category >>>> Modular Panel PC & Industrial Monitor
節能與 多顯
——
Intel® Atom®系列處理器，支援多顯功能。
豐富I/O 靈活擴展
——
原生I/O包含了LAN、USB、 COM、DIO與Mini-PCIe、SIM 插槽提供擴展應用功能。
CDS
專利技術
——
透過CDS (Convertible Display System)專利技術，不僅在現場端具有易於維護優勢外，也可保留未來升級需求，無論是更換面板尺寸或是系統效能提升，只需換置單一組件即可達成，大幅節省升級成本。
Patent No. M482908
可調式設計
安裝簡易
——
獨家可調式安裝支架，擁有厚度調整的選擇以及支援多款鎖固方式 (Panel Type/Boss Type)，對於使用全平面安裝與標準安裝的工業機台，提供更簡易、便捷的整合關鍵。
Patent No.: D224544, D224545, I802427一體式 設計
——
彈性與可靠兼具，除了是開放式架構的平板電腦，可佈署於設備機台中。其一體式的設計，在卸除安裝支架後，可直接透過VESA安裝作為單機使用，或是安裝於19”機架中提供顯示功能。
強固可靠兼具
耐用度提升
——
前框IP65防水防塵、無風扇、9-48V寬壓電力輸入及0℃~60℃寬溫設計，在嚴峻的工業環境中，均能穩定持續運作，高度滿足工業現場端HMI的應用需求。
影片
詳細規格
CO-W121C
| Model Name | CO-W121C | |
|---|---|---|
| Display | LCD Size | 21.5” (16:9) |
| Resolution | 1920 x 1080 | |
| Brightness | 300 cd/m2 | |
| Contract Ratio | 5000 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch | 0.24825 (H) x 0.24825 (V) mm | |
| Viewing Angle | 178 (H) / 178 (V) | |
| Backlight MTBF | 50,000 hrs | |
| Touch Screen | Touchscreen Type | Projected Capacitive Touch |
| Physical | Dimension (W x D x H) | 550 x 343.7 x 63.3 |
| Weight | 7.16 kg | |
| Construction | One-piece and Slim Bezel Design | |
| Mounting Type | Flat / Standard / VESA / Rack Mount | |
| Mounting Bracket | Pre-installed Mounting Bracket with Adjustable Design ( Support 11 different stages of adjustment ) | |
| Protection | Ingress Protection | Front Panel IP65 Compliant * According to IEC60529 |
| Environment | Operating Temperature | Ambient with Air flow: 0°C to 60°C (with Industrial Grade Peripherals) |
| Storage Temperature | -20°C to 60°C | |
| Humidity | 80% RH @ 50°C (Non-condensing) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
P1001 Series
| Model Name | P1001 | P1001E | |
|---|---|---|---|
| System | Processor | Onboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz | |
| Memory | 1x DDR3L 1066/1333 MHz SO-DIMM Socket (un-buffered and non-ECC) Support up to 8 GB | ||
| BIOS | AMI 64Mbit SPI BIOS | ||
| Graphics | CDS (Convertible Display System) Technology | 1x Convertible Display System (CDS) Interface | |
| VGA | 1x VGA Connector (1920x1080@60Hz) | ||
| DP | 1x DisplayPort Connector (1920x1080@60Hz) | ||
| Audio | Line-out | 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | ||
| I/O | LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 | |
| USB | 1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A) | ||
| Serial Port | 2x RS-232/422/485 with Auto Flow Control Support, DB9 | ||
| DIO | 8x Isolated Digital I/O (4in/4out) | ||
| Storage | SSD/HDD | 1x 2.5” HDD/SSD Drive | |
| SIM Socket | 1 x Front Accessible SIM Socket | ||
| CFast | 1 x Front Accessible CFast Socket | ||
| Expansion | Mini PCI Express | 1x Full-size Mini PCIe Socket for Wi-Fi/GSM/Expansion Module | |
| Universal Bracket | 2x Universal I/O Brackets | ||
| Other Function | Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| Internal Speaker | AMP 2W + 2W | ||
| OSD Function | LCD On/Off, Brightness Up, Brightness Down | ||
| Reset Button | 1x Reset Button | ||
| Power | Power Button | 1x ATX Power On/Off Switch | |
| Power Mode Switch | 1x AT/ATX Mode Switch | ||
| Power Input | 1x 3-pin Terminal Block Connector with Power Input 9~48VDC | ||
| Power Adapter (Optional) | 1x Optional AC/DC 12V/5A, 60W | ||
| Physical | Dimension ( W x D x H ) | 204.5 x 149 x 37.5 mm | 204.5 x 150 x 60 mm |
| Weight Information | 1.34kg | 1.54kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | ||
| Mounting | Wall / VESA / CDS Mounting | ||
| Physical Design | Fanless Design Jumper-less Design | ||
| Reliability & Protection | Reverse Power Input | Yes | |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover | ||
| Over Current Protection | 20A | ||
| Operating Stystem | Microsoft® Windows® | Windows® 10, Windows® 8, Windows® 7 Windows® Embedded 8 Standard, Windows® Embedded Standard 7 | |
| Linux | Supports by project | ||
| Environment | Operating Temperature | Ambient with Air Flow: -20°C to 70°C (with Industrial Grade Peripherals) | |
| StorageTemperature | -30°C to 85°C | ||
| Relative Humidity | 10%~95% (non-condensing) | ||
| Shock | Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | ||
| Vibration | Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | ||
| EMC | CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
訂購資訊
| Model No. | Product Description |
|---|---|
| CO-W121C-R10/P1001-R10 | 21.5" TFT-LCD Full HD 16:9 Open Frame Display Modular Panel PC with Intel Atom E3845 Quad Core Processor and P-Cap. Touch |
| CO-W121C-R10/P1001E-R10 | 21.5" TFT-LCD Full HD 16:9 Open Frame Display Modular and Expandable Panel PC with Intel Atom E3845 Quad Core Processor and P-Cap. Touch |
| CO-W121C | P1001 | P1001E | |
|---|---|---|---|
| CO-W121C/P1001 | V | V | -- |
| CO-W121C/P1001E | V | -- | V |
| √ CO-W121C/P1001 Series Panel PC x 1 | √ Power Terminal Block Connector (Female) x 1 |
| √ Mini PCIe Screw Pack x 1 | √ HDD Screw Pack x 1 |
| √ DIO Terminal Block Connector (Female) x 1 |
| Model No. | Description |
|---|---|
| MEC-COM-M212-DB9 | Mini-PCIe Module with 2x COM Ports, 1x Standard DB9 Cable (For P1001E only) |
| MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P1001E only) |
| MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable (For P1001E only) |
| UB0303 | 2x Universal Bracket each with 1x DB9 Cutout (For P1001E only) |
| UB0311 | 1x Universal Bracket with 2x RJ45 Cutout (For P1001E only) |
| UB0314 | 1x Universal Bracket with 2x USB Cutout (For P1001E only) |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
