產品介紹

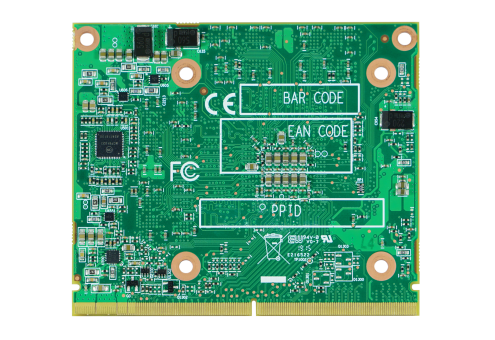

The MXM-E9174 is an Embedded MXM GPU module that features advanced AMD Embedded Radeon™ GPU with AMD Polaris Architecture technology in MXM 3.0 Type A form factor. With 512 Stream Processors and 4GB GDDR5 memory, MXM-E9174 offers high performance in image processing and analytics for edge applications.
詳細規格
GPU | AMD Embedded Radeon™ E9174 | |
---|---|---|
Memory | 4GB GDDR5 memory, 128-bit | |
Shader Processing Units | 512 Stream Processors | |
DirectX® Capability | DirectX® 12 | |
OpenGL™ | OpenGL™ 4.5 | |
OpenCL™ 1.2 | OpenCL™ 2.0 | |
VULKAN™ | VULKAN™ Support | |
Display Outputs | 4x DisplayPort Digital Video Outputs, 4K at 60Hz | |
Interface | PCI Express Gen3 x8 support | |
Dimensions | 82 (W) x 70 (D) mm | |
Form Factor | Standard MXM 3.0 Type A | |
Power Consumption | 50W | |
OS Support | Windows 10, Linux support by project |
訂購資訊
Model No. | Product Description |
---|---|
MXM-E9174-01 | AMD Embedded Radeon™ E9174 MXM Kit with Heatsink and Thermal Pad |
√ AMD Embedded Radeon™ E9174 GPU card x 1 |
√ GPU Heatsink x 1 |
√ GPU Thermal Pad x 2 |
√ Screw Pack x 1 |
√ Utility DVD Driver x 1 |
