產品介紹

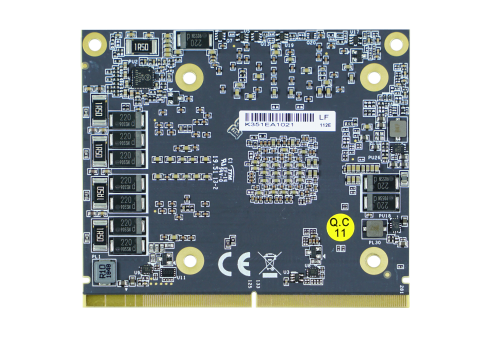

The MXM-P2000 is an Embedded MXM GPU module that features advanced NVIDIA Quadro GPU with NVIDIA Pascal™ Architecture technology in MXM 3.1 Type A form factor. With 768 CUDA® cores, 2.3 TFLOPS SP Peak, and 4GB GDDR5 memory, MXM-P2000 offers high performance in image processing and analytics for edge applications.
詳細規格
GPU | NVIDIA® Quadro® P2000 | |
---|---|---|
Memory | 4GB GDDR5 memory, 128-bit (Bandwidth: 96 GB/s) | |
CUDA Cores | 768 CUDA® cores, 2.3 TFLOPS SP Peak | |
Compute API | Compute API CUDA Toolkit 8.0, CUDA Compute version 6.1, OpenCL™ 1.2 | |
Graphics API | DirectX® 12, OpenGL 4.5, Vulcan 1.0 | |
Display Outputs | 4x DisplayPort 1.4 digital video outputs, 4K at 120Hz or 5K at 60Hz | |
Interface | MXM 3.1, PCI Express Gen3 x16 support | |
Dimensions | 82 (W) x 70 (D) x 4.8 (H) mm | |
Form Factor | Standard MXM 3.1 Type A | |
Power Consumption | 58W | |
OS Support | Windows 10, Linux support by project |
訂購資訊
Model No. | Product Description |
---|---|
MXM-P2000-01 | Nvidia Quadro Embedded P2000 MXM Kit with Heatsink and Thermal Pad |
√ NVIDIA® Quadro® Embedded P2000 GPU card x 1 |
√ GPU Heatsink x 1 |
√ GPU Thermal Pad x 2 |
√ Screw Pack x 1 |
