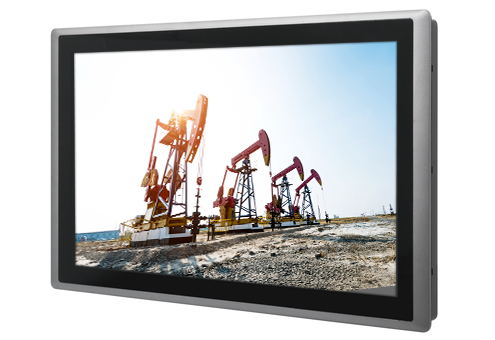

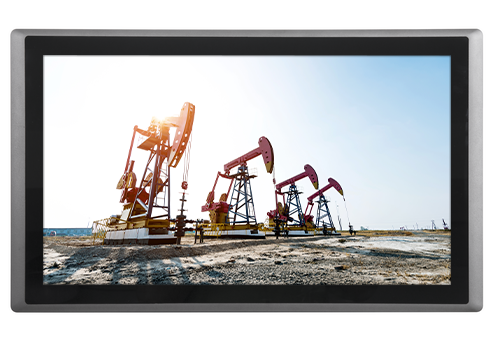

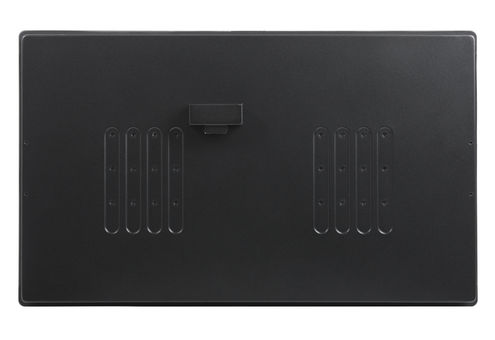

CS-W124

24" TFT-LCD Sunlight Readable Display Module with Projected Capacitive Touch

PRODUCTS FEATURES
  • 24" TFT-LCD with Projected Capacitive Touch
  • Ultra High Brightness up to 1,500 nits
  • Resolution up to 1920 X 1080 (Full HD)
  • 50,000 hrs LED Backlight Life
  • Wide Range Operating Temperature -20°C to 70°C
  • IP 65 Compliant Front Panel
  • Flat Rugged Aluminum Die-casting Bezel
  • Convertible Display System (CDS) Technology Supported
  • Safety: UL, cUL, CB, IEC, EN 62368-1
OVERVIEW
CS-W124 is 24" wide screen TFT-LCD display module with projected capacitive touch screen. It offers resolution up to 1920x1080 (Full HD) and 1,500 nits brightness. CS-W124 features flat surface and IP65 dust/waterproof front panel. In addition, designed with Rugged Aluminum Die-casting Front Bezel, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, CS-W124 allows you to configure, upgrade and maintain your Convertible Display System easily.

>>>> Embedded Computers Technology
SPECIFICATION

CS-W124

Model NameCS-W124
DisplayLCD Size24” (16:9)
Max. Resolution1920 x 1080 (Full HD)
Brightness (cd/m2)1500
Contract Ratio5000 : 1
LCD Color16.7M
Pixel Pitch (mm)0.27675 (H) x 0.27675 (V)
Viewing Angle (H-V)178 / 178
Backlight MTBF50,000 hrs (LED Backlight)
Touch ScreenTouchscreen TypeProjected Capacitive
PhysicalDimension (W x D x H)605 x 373 x 63.2 mm
Weight Information6.64 kg
Mechanical ConstructionFlat Rugged Aluminum Die-casting Front Bezel
EnvironmentFront Panel ProtectionIP 65 Compliant
Operating Temperature-20°C to 70°C (With Industrial Grade Peripherals; Ambient with air flow)
Storage Temperature-30°C to 80°C
Relative Humidity80% RH @ 40°C (Non-condensing)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyUL, cUL, CB, IEC, EN 62368-1
ORDERING INFORMATION
Available Models
Model No.Product Description
CS-W124C-R1024" TFT-LCD 1500 nits Full HD 16:9 Display Module with Projected Capacitive Touch

Package Checklist
√ CS-W124C Display Module x 1√ Panel Mounting Kit x 1

DOWNLOADS
Datasheet
SubjectRelease DateDownload
CS-W124 Datasheet2023/07/24Download
Manual
SubjectRelease DateDownload
CS-100 Series Manual2024/02/22Download
