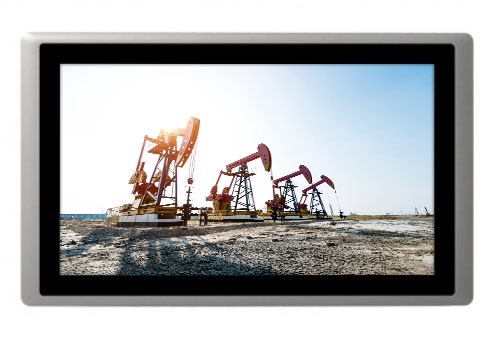

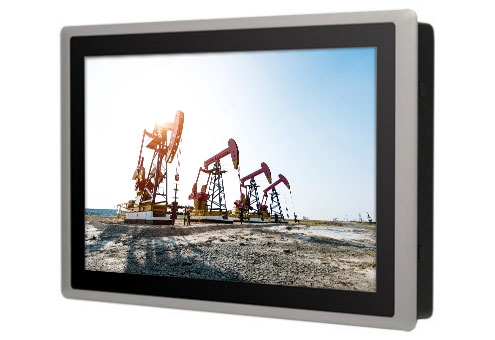

CS-W115FHC / P1001E

15.6" TFT-LCD Sunlight Readable Touch Panel PC with Intel® Atom™ E3845 Quad Core Processor

PRODUCTS FEATURES
  • 15.6” TFT-LCD with Ultra High Brightness up to 1,500 nits and 1920 x 1080 Resolution
  • Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
  • Supports 1x DDR3L SO-DIMM Socket, up to 8 GB
  • 1x 2.5” SATA Drive Bay, 1x CFast Card and 1x SIM Card Socket
  • 2x GbE LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI / 4x DO
  • 1x Mini-PCIe Expansion Socket for Wireless and I/O Expansion
  • Wide Range Operating Temperature -10°C to 70°C
  • Designed with Aluminum Die-casting Front Frame
  • True Flat IP65 Front Panel Protection
  • Supports Panel / VESA / Rack Mounting
  • Convertible Display System (CDS) Technology Supported
OVERVIEW
CS-W115FHC/P1000 Series is a 15.6" TFT-LCD sunlight readable touch panel PC offering 1,500 nits ultra high brightness and 1920 x 1080 resolution. The system is equipped with Intel® Atom® E3845 processor and provides extensive I/O including 2x GbE, 4x USB, 2x RS232/422/485, 4x DI/4x DO, 1x VGA and 1x DisplayPort. It also supports 1x Mini-PCIe slot and 1x SIM socket for a variety of wireless connections, such as BT/WiFi and 3G/LTE. In addition, there are 2 types of storage devices including 2.5" SATA HDD and CFast. The accessible design of these storage devices allows quick data access and easy maintenance.

CS-W115FHC/P1000 Series supports Convertible Display System (CDS) technology. Comparing to regular standalone panel PCs, it can lower maintenance cost and reduce unplanned downtime.

Furthermore, CS-W115FHC/P1000 Series is a truly rugged display system supporting wide range operating temperature (-10°C to 70°C), IP65 dust/water proof front panel, wide range DC power input (9 to 48VDC) and rigorous industrial protections.
SPECIFICATION
Model NameCS-W115FHC / P1001E
DisplayLCD Size15.6” (16:9)
Max. Resolution1920x1080 (Full HD)
Brightness (cd/m2)1500
Contrast Ratio700 : 1
LCD Color16.7M
Pixel Pitch (mm)0.17925 (H) x 0.17925 (V)
Viewing Angle (H-V)160 / 140
Backlight MTBF50000 hrs (LED Backlignt)
TouchResistive 5-wire-
Projected CapacitiveV
SystemProcessorOnboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz with AMI 64Mbit SPI BIOS
Memory1x 204-Pin SO-DIMM DDR3L 1066/ 1333MHz (un-buffered and non-ECC), max. up to 8GB
GraphicsGraphics EngineIntegrated Intel® HD Graphics
Maximum Display OutputSupports Dual Display
- VGA + DP
- VGA + CDS
- DP + CDS
AudioAudio CodecRealtek ALC888-GR
Line-out1x Speaker-out Phone Jack 3.5mm
Mic-in1x Mic-in, Phone Jack 3.5mm
External I/O InterfaceVGA1x DB-15 connector, CH7517, Up to 1920x1080@60Hz
DP1x DP connector, Up to 1920x1080@60Hz
LAN2x 10/100/1000 Mbps, RJ45
- GbE1: Intel I210
- GbE2: Intel I210
Support Wake On Lan, Teaming, Jumbo frame, IEEE 1588v2, PXE
USB• 1x USB 3.0, Type-A
• 3x USB 2.0, Type-A
COM2x RS-232/422/485, DB9 Support 5V/12V
CDSSupports Convertible Display System (CDS) Technology
DIODIO• 4x Digital Input (Source Type)
- Input Voltage (Dry Contact):
Logic 0: Close to GND
Logic 1: Open
- Input Voltage:
Logic 0: 3V max.
Logic 1: 5V min. (DI to COM-)
• 4x Digital Output
- Supply Voltage: 9~30VDC
- Sink Current: 1A Max.
StorageSSD/HDD1x Internal SATA port for 2.5” HDD/SSD
cFast1x CFast Socket
ExpansionMini PCI Express1x Full-size Mini PCIe Socket for Wi-Fi / GSM / Expansion Module
SIM Socket1x SIM Socket
UB1x Universal I/O Bracket
Other FunctionInternal SpeakerAMP 2W + 2W
Rest Button1x Reset Button
Instant RebootSupports Instant Reboot Technology (0.2 sec)
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
OSD FunctionLCD On/Off, Brightness Up, Brightness Down (With Display Module)
PowerPower Button1x ATX Power On/Off Button
Power Mode Switch1x AT/ATX Mode Switch
Power Input9 - 48VDC, 3-pin Terminal Block
Power Adapter (Optional)Optional AC/DC 12V/5A, 60W
PhysicalDimension (WxHxD)420 x 254 x 97.85mm
Weight Information5.54 Kg
Front Panel ConstructionDie-Casting Flat Surface
MountingPanel / VESA / *Rack Mounting (*with optional mounting kit)
Physical DesignFanless Design
Reliability & ProtectionReverse Power Input ProtectionYes
Over Voltage Protection• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection20A
ESD Protection+/-8kV (air), +/-4kV (contact)
Operating SystemWindows• Windows® 10
• Windows® 8.1
• Windows® 7
LinuxSupport by Project
EnvironmentOperating TemperatureAmbient with air flow: -10°C to 70°C
(with Industrial Grade Peripherals)
Storage Temperature-20°C to 70°C
Relative Humidity95% RH @ 39°C (Non-Condensing)
EMCCE, FCC, ICES-003 Class A
IP LevelIP65 Compliant Front Panel
ORDERING INFORMATION
Available Models
Model No.Product Description
CS-W115FHC-R10/P1001E-R1015.6" TFT-LCD 16:9 Panel PC with Projected Capacitive Touch, with Intel® Atom™ E3845 Quad Core,
4x USB, 2x COM, 1x VGA, 1x DisplayPort and 2x Universal I/O Bracket

Package Checklist
√ CS-W115FHC/P1001E Panel PC x 1√ Power Terminal Block Connector x 1
√ Panel Mounting Kit x 4√ HDD Screw Pack x 1
√ Utility DVD Driver x 1√ Mini PCIe Screw Pack x 1
√ DIO Terminal Block Connector x 1

Optional Module Configuration
Model No.Description
MEC-COM-M212-DB9 /UB0303Mini-PCIe Module with 2x RS-232 Ports, 1x Standard DB9 Cable / 2x Universal Bracket each with 1x DB9 Cutout
MEC-USB-M102-30 /UB0314Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 15cm cable / 1xUniversal Bracket with 2x USB Cutout
MEC-LAN-M102-30 /UB0311Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout

Optional Module
Model No.Description
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor

Optional Accessories
Model No.Description
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
