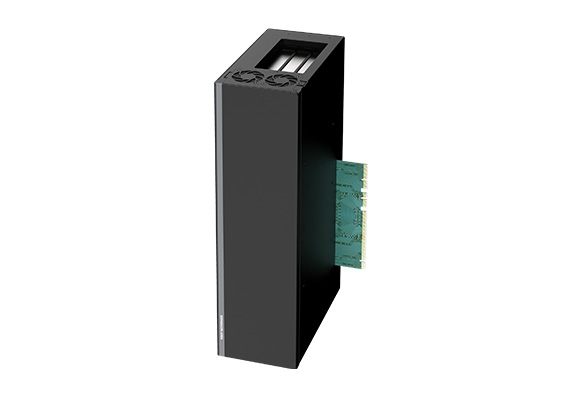

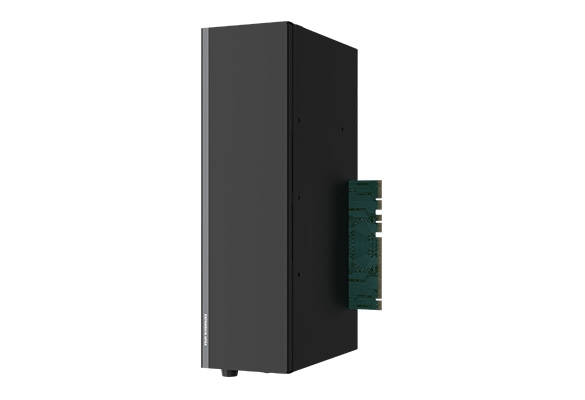

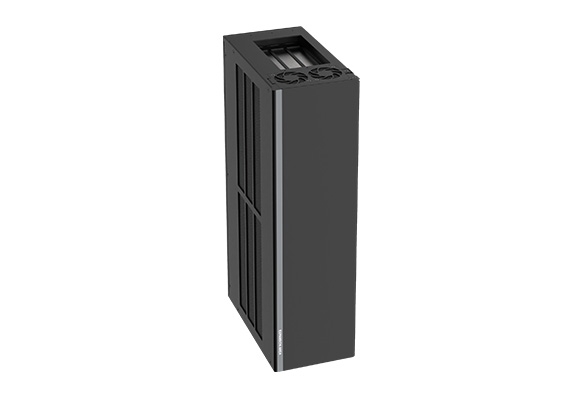

GEB-3301

GPU Expansion Box with 1 x PCIe x16 and 1 x PCIe x4 Slots for GP-3000 Series

PRODUCTS FEATURES
  • Supports NVIDIA RTX 30 Series GPU Card
  • Support 1 x PCIe x16 Slot for full-length GPU card Expansion
  • Support 1 x PCIe x4 Slot for Add-on card Expansion
  • Intelligent Cooling Design for High Performance GPU Card
  • Military Standard Shock & Vibration Proof
  • Designed with adjustable GPU card retainer
    (TW Patent Certificate No: I763318)
    (US Patent Certificate No: US 11,470,738 B2)
OVERVIEW
The GEB-3301 is a selectable expansion box that is compatible with GP-3000 series. It comprises 1x PCIe x 16 for GPU graphics card installation and 1x PCIe x 4 slot for add-on card expansion such as high speed I/O, data collection and frame grabber card. GEB-3301 supports a maximum of one 350 W 328 mm full-length NVIDIA®/AMD® graphics card expansion.

Product Category >>>> Embedded GPU Computer
SPECIFICATION
Expansion Slot• 1 x PCIe x 16 Slot for GPU Card
• 1 x PCIe x 4 Slot
GPU Card Dimension• Card Length : 328mm
• Card Height : 64mm ( Standard Triple-Deck )
• Card Width : 138mm
Internal USB1 x USB 2.0, Type A
Internal Power Connector2 x 8-Pin Connector for GPU Card
Total Power Budget350W
Weight Information3.2kg
Dimension ( W x D x H )104 x 195 x 360 mm
MTBF2,713,254 hr
ORDERING INFORMATION
Available Models
Model No.Product Description
GEB-3301-R10GPU Expansion Box with 1 x PCIe x 16 and 1 x PCIe x 4 Slots for GP-3000 Series

Package Checklist
√  Wall Mount Bracket
√  8 Pin to 6+2 Pin GPU Power Cable x 2
√  Screw Pack x 2
√  GPU Card Retainer Screw Pack x 1
√  Rubber Foot Kit x 1
√  Sponge x 2
DOWNLOADS
Datasheet
SubjectRelease DateDownload
GEB-3301 Datasheet2021/05/13Download
