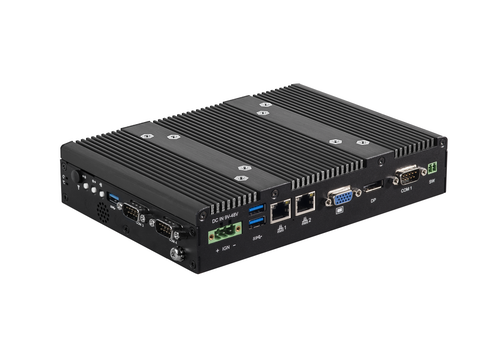

P1101

Intel® Atom® / Pentium® Processor Slim Embedded Computer with CDS Technology

PRODUCTS FEATURES
  • Onboard Intel® Atom® / Pentium® Processor
  • 1x DDR3L SO-DIMM max. up to 8GB
  • Triple Independent Display (1x CDS, 1x VGA, 1x DisplayPort)
  • 1x 2.5” SATA Drive Bay, 1x mSATA Socket

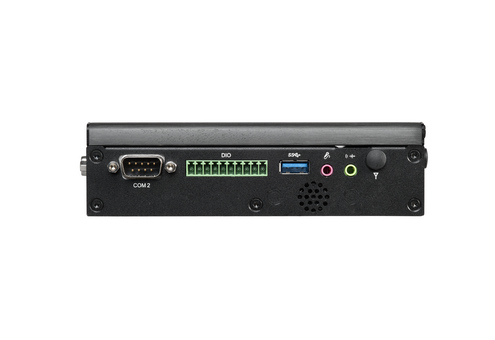

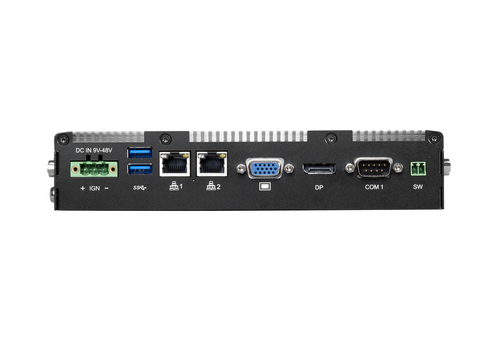

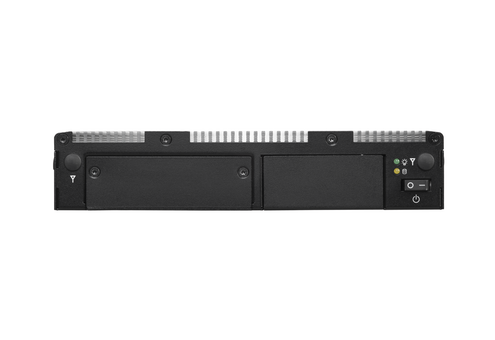

  • Rich I/O (2x LAN, 4x USB, 4x COM, 8x Isolated DIO)
  • 2x Full Size Mini-PCIe Expansion Socket
  • Supports 2x PoE+ Function (with optional CFM module)
  • Supports Ignition Sensing Function (IGN) (with optional CFM module)
  • Supports CDS Technology for Convertible Panel PC
  • Built-in Two 2W Internal Speakers
OVERVIEW
Powered by Intel® Atom® / Pentium® processor, P1101 Series is a slim embedded computer supporting Convertible Display System (CDS) technology. The system is designed to be positioned as “One Computer, Two Appliances”, it can be used as both an embedded computer or a panel PC. Integrated with Intel® high-performance graphics, the system supports triple independent displays (CDS/VGA/DisplayPort) and enables smooth 4K2K (@60Hz) playback via DisplayPort.

P1101 Series offers extensive connectivity including 2x GbE, 4x USB 3.0, 4x COM, 4x DI/4x DO, 2x full-size Mini-PCIe slot and 1x SIM socket. For storage requirements, the system provides 1x 2.5" SATA drive bay and 1x mSATA socket. Through the ready-to-use CFM modules, users can easily add power ignition sensing and Power over Ethernet (PoE) functions for a variety of applications. Featuring with rigorous industrial protections, wide temperature range, and wide range DC power input, P1101 Series is appropriate for harsh environments and critical applications.

>>>> Panel PC Technology
SPECIFICATION

P1101

Model NameP1101
SystemProcessorOnboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz
Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz
Memory1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket
Supports up to 8GB (un-buffered and non-ECC)
GraphicsGraphics EngineIntegrated Intel® HD Graphics 505
Maximum Display OutputSupports Triple Independent Display
CDS (Convertible Display System) Technology1x Convertible Display System (CDS) Interface
VGA1x VGA (1920 x 1200 @60Hz)
DP1x DisplayPort (4K x 2K @60Hz)
AudioAudio CodecRealtek® ALC888, High Definition Audio
Line-out1x Line-out, Phone Jack 3.5mm
Mic-in1x Mic-in, Phone Jack 3.5mm
I/OLAN2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
- GbE1: Intel® I210
- GbE2: Intel® I210
USB4x USB 3.2 Gen1 (Type A)
Serial Port4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
DIO8x Isolated Digital I/O (4in/4out), 10-Pin Terminal Block
StorageSSD/HDD1x 2.5” HDD Drive Bay (SATA 3.0)
SIM Socket1 x SIM Socket
mSATA1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket)
ExpansionMini PCI Express2x Full-size Mini-PCIe Sockets
CFM (Control Function Module) InterfaceOptional CFM IGN Module for Power Ignition Function
Optional CFM PoE Module for Power over Ethernet Function
CDS (Convertible Display System) Technology1x Convertible Display System (CDS) Interface
Antenna Holes4x Antenna Holes
Other FunctionInstant RebootSupport 0.2sec
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
Internal SpeakerAMP 2W + 2W
OSD FunctionLCD On/Off, Brightness Up, Brightness Down
Clear CMOS Switch1x Clear CMOS Switch
Reset Button1x Reset Button
PowerPower Switch1x Power Switch
Power Mode Switch1x AT/ATX Mode Switch
Power Input1x 3-pin Terminal Block Connector with Power Input 9~48VDC
Power Adapter (Optional)1x Optional AC/DC 12V/5A 60W or 24V/5A 120W
Remote Power On/Off1x Remote Power On/Off Connector, 2-pin Terminal Block
PhysicalDimension ( W x D x H )204.5 x 149 x 41.5 mm
Weight Information1.49kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
Physical DesignFanless Design
Jumper-less Design
MountingWall / VESA / CDS / DIN Mounting
Reliability & ProtectionReverse Power InputYes
Over Voltage ProtectionProtection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the present level to recover
Over Current Protection15A
CMOS Battery BackupSuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBFTime: 294,617 hours
Operating StystemMicrosoft® Windows®Windows®10
LinuxSupports by project
EnvironmentOperating TemperatureAmbient with Air Flow: -40°C to 70°C (with Extended Temperature Peripherals)
Storage Temperature-40°C to 85°C
Relative humidity95% RH @ 75˚C (Non-condensing)
ShockOperating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyLVD IEC/EN 62368-1
ORDERING INFORMATION
Available Models
Model No.Product Description
P1101-E50-R10Intel® Atom® E3950 Quad Core Slim Embedded Computer with CDS Technology
P1101-N42-R10Intel® Pentium® N4200 Quad Core Slim Embedded Computer with CDS Technology

Package Checklist
√ P1101 Slim Embedded Computer x1√ Power Terminal Block Connector x1
√ Screw Pack x 1√ Remote Power On/Off Terminal Block Connector x1
√ Wall/CDS Mounting Kit x 1√ DIO Terminal Block Connector x1
√ DIN Rail Mounting Kit x 1√ Thermal Pad (for CPU Thermal Block) x1

Optional Accessories
Model No.Description
CFM-IGN101CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm)
CFM-PoE02CFM Module with PoE Control Function, Individual Port 25.5W
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
GST120A24-CINAdapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
