CV-221C / P1001 Series
21,5" FHD 16:9 Slim-Bezel Panel-PC mit Intel® Atom™ E3845 Quad-Core Embedded Computer, projiziert-kapazitivem Touch und Anti-Glare-Beschichtung
PRODUKTEIGENSCHAFTEN
- 21,5" Full-HD-LCD (1920 x 1080) mit 16:9 Seitenverhältnis
- Projiziert-kapazitiver Touch mit Anti-Glare-(AG)-Beschichtung
- Weiter Betrachtungswinkel von 178° / 178°
- Onboard Intel® Atom™ E3845 Quad-Core-Prozessor mit 1,91 GHz
- 1x Full-Size Mini-PCIe-Erweiterungssockel
- Robustes Frontbezel aus Aluminium-Druckguss
- Frontseitiger IP66-konformer Schutz

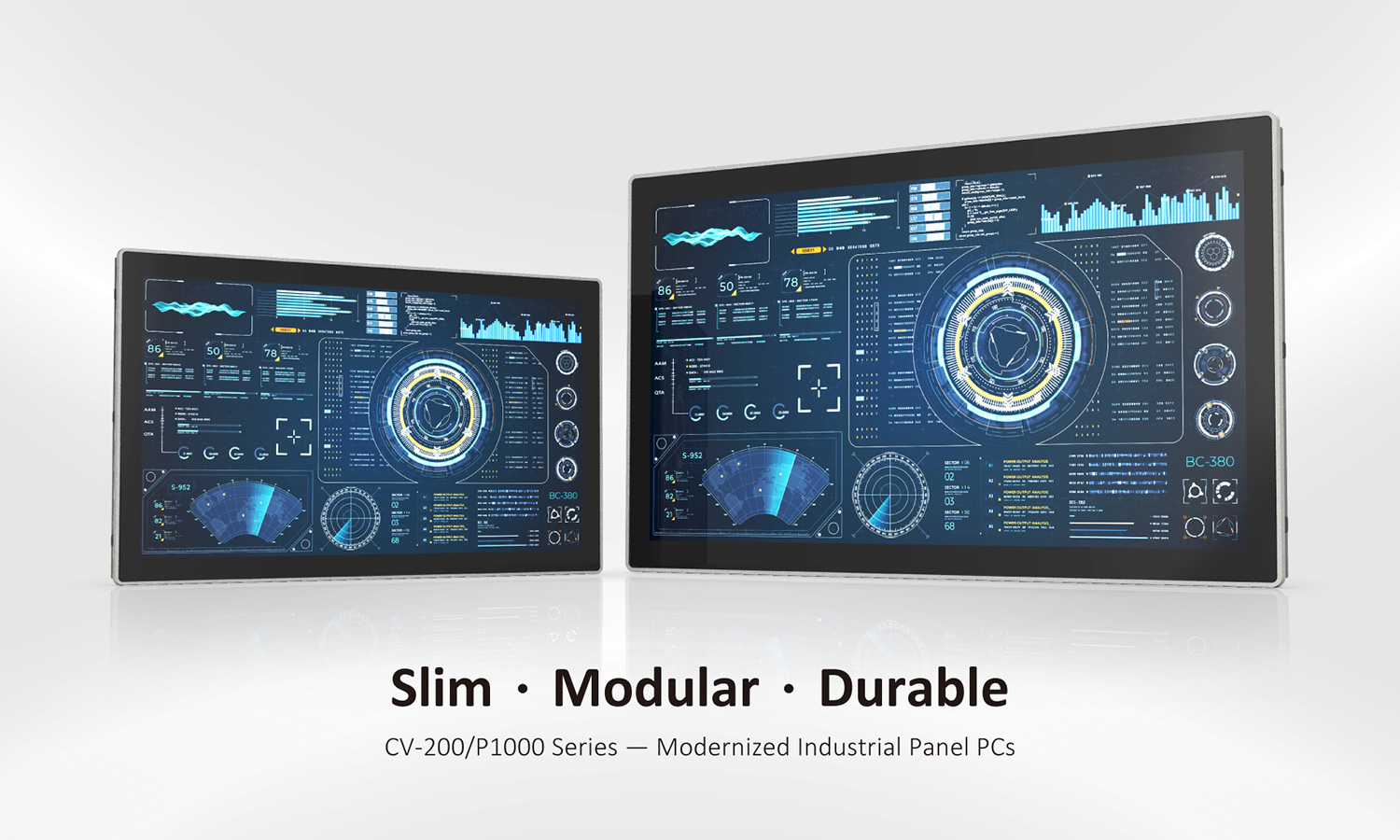

ÜBERBLICK
Die CV-200 / P1001 Serie ist ein modularer Einstiegs-Panel-PC für den Industrieeinsatz, ausgestattet mit Intel® Atom®- bzw. Pentium®-Prozessoren und DDR3L-Speicher. Er bietet stabile, energieeffiziente Leistung und ist damit ideal für industrielle Automatisierung und grundlegende HMI-Anwendungen. Mit Full-HD-Auflösung und verfügbar in Größen von 10 bis 21,5 Zoll eignet sich das robuste, industrielle Design hervorragend für den Einsatz als HMI in anspruchsvollen Industrieumgebungen.
Product Category >>>> Modular Panel PC & Industrial Monitor
Einstiegsniveau Industrielle Computertechnik
——
Ausgestattet mit Intel® Atom®-/Pentium®-Prozessoren, die ausreichende Leistung für grundlegende HMI- und Steuerungsanwendungen bieten.

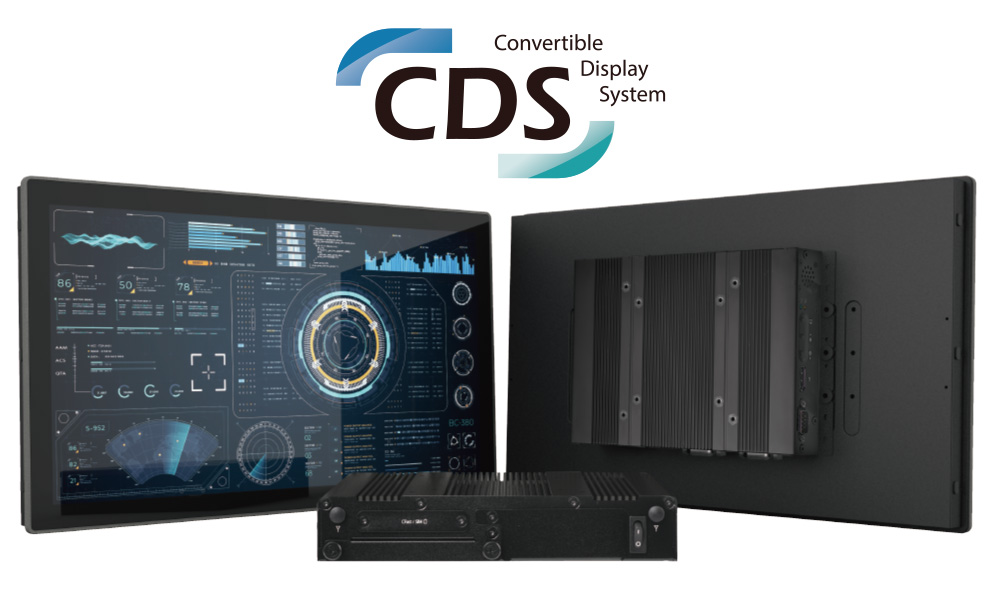

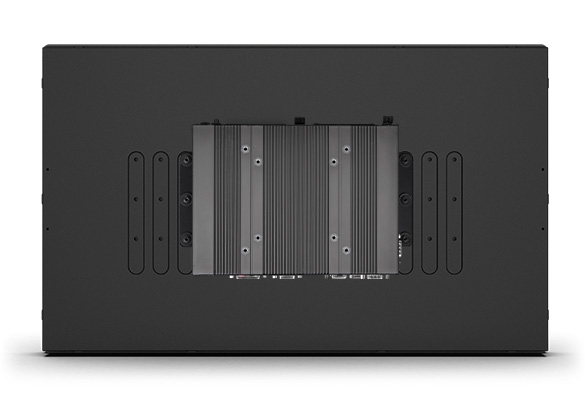

CDS-Technologie
——
Unsere exklusive CDS (Convertible Display System)-Technologie ermöglicht eine einfache Wartung vor Ort und vereinfacht zukünftige Upgrades. Der Austausch des Displays oder eine Leistungssteigerung des Systems erfordert lediglich den Wechsel eines einzelnen Komponentenmoduls, was die Upgrade-Kosten erheblich reduziert.
Ultraschmaler Rahmen
——
Mit einem ultraschmalen Rahmen von ≤ 3 mm (je nach Displaygröße unterschiedlich) reduziert die CV-200 physische Einschränkungen bei kompakten Installationen. Sie ist ideal für platzbegrenzte Gehäuse und Anwendungen, die eine effiziente Integration bei schlankem Design erfordern.
Zuverlässige Touch-Leistung
——
Alle Modelle unterstützen P-Cap-Touch, eine entspiegelte (AG) Beschichtung und Wet-Tracking-Technologie, wodurch ein stabiler Betrieb und klare Sichtbarkeit selbst in feuchten Umgebungen oder bei heller Innenbeleuchtung gewährleistet werden.
Robust, sicher und besonders zuverlässig
——
Die CV-200/P1001-Serie verfügt über mehrere industrielle Schutzmechanismen für den Einsatz in anspruchsvollen Industrieumgebungen, beispielsweise als HMI-Systeme an Maschinen oder zur Visualisierung von Produktionsprozessen. Industrielle Schutzfunktionen umfassen ein erweitertes Temperatur- und Spannungsdesign sowie eine wasser- und staubdichte Frontblende mit IP66-Schutzklasse.
SPEZIFIKATION
CV-221C
| Model Name | CV-221C | |
|---|---|---|
| Display | LCD Size | • 21.5” (16:9) |
| Max. Resolution | • 1920x1080 | |
| Brightness (cd/m2) | • 300 | |
| Contrast Ratio | • 5000 : 1 | |
| LCD Color | • 16.7M | |
| Pixel Pitch (mm) | • 0.24825 (H) x 0.24825 (V) | |
| Viewing Angle (H-V) | • 178 / 178 | |
| Backlight LED Life Time | • 50,000 hrs (LED Backlight) | |
| Touch Screen | Touch Type | • Projected Capacitive |
| Anti-Glare | • V | |
| Wet Touch Tracking | • V | |
| Physical | Dimension ( W x D x H ) | • 522.4 x 318.3 x 63.4 mm |
| Weight Information | • 5.28 kg | |
| Mechanical Construction | • Die-Casting Flat Surface | |
| Power | Power Consumption | • 24.8 W (Max.) |
| Environment | Front Panel Protection | • IP 66 Compliant |
| Operating Temperature | • 0°C - 60°C (32°F to 140°F) - With Industrial Grade peripherals; Ambient with air flow | |
| Storage Temperature | • -20°C - 60°C (-4°F to 140°F) | |
| Relative Humidity | • 90% RH @ 40°C (non-condensing) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN 61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded cable.) • EN/IEC 61000-4-8 PFMF: 50/60 Hz, 30A/m • EN/IEC 61000-4-11 (50/60 Hz): Voltage dips duration up to 25/30 cycles; interruptions up to 250/300 cycles. | |
| Industrial Environment | • EMC: - EN/BS/IEC 61000-6-4: 2019 Class A - EN/BS/IEC 61000-6-2: 2019 | |
| Railway | • EMC: EN 50155: 2021 Clause 4.4.6, 13.4.9 (w/ M1101 only) - EN 50121-1 : 2017 - EN 50121-3-2: 2016 + A1: 2019 | |
P1001 Series
| Model Name | P1001 | P1001E | |
|---|---|---|---|
| System | Processor | Onboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz | |
| Memory | 1x DDR3L 1066/1333 MHz SO-DIMM Socket (un-buffered and non-ECC) Support up to 8 GB | ||
| BIOS | AMI 64Mbit SPI BIOS | ||
| Graphics | CDS (Convertible Display System) Technology | 1x Convertible Display System (CDS) Interface | |
| VGA | 1x VGA Connector (1920x1080@60Hz) | ||
| DP | 1x DisplayPort Connector (1920x1080@60Hz) | ||
| Audio | Line-out | 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | ||
| I/O | LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 | |
| USB | 1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A) | ||
| Serial Port | 2x RS-232/422/485 with Auto Flow Control Support, DB9 | ||
| DIO | 8x Isolated Digital I/O (4in/4out) | ||
| Storage | SSD/HDD | 1x 2.5” HDD/SSD Drive | |
| SIM Socket | 1 x Front Accessible SIM Socket | ||
| CFast | 1 x Front Accessible CFast Socket | ||
| Expansion | Mini PCI Express | 1x Full-size Mini PCIe Socket for Wi-Fi/GSM/Expansion Module | |
| Universal Bracket | 2x Universal I/O Brackets | ||
| Other Function | Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| Internal Speaker | AMP 2W + 2W | ||
| OSD Function | LCD On/Off, Brightness Up, Brightness Down | ||
| Reset Button | 1x Reset Button | ||
| Power | Power Button | 1x ATX Power On/Off Switch | |
| Power Mode Switch | 1x AT/ATX Mode Switch | ||
| Power Input | 1x 3-pin Terminal Block Connector with Power Input 9~48VDC | ||
| Power Adapter (Optional) | 1x Optional AC/DC 12V/5A, 60W | ||
| Physical | Dimension ( W x D x H ) | 204.5 x 149 x 37.5 mm | 204.5 x 150 x 60 mm |
| Weight Information | 1.34kg | 1.54kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | ||
| Mounting | Wall / VESA / CDS Mounting | ||
| Physical Design | Fanless Design Jumper-less Design | ||
| Reliability & Protection | Reverse Power Input | Yes | |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover | ||
| Over Current Protection | 20A | ||
| Operating Stystem | Microsoft® Windows® | Windows® 10, Windows® 8, Windows® 7 Windows® Embedded 8 Standard, Windows® Embedded Standard 7 | |
| Linux | Supports by project | ||
| Environment | Operating Temperature | Ambient with Air Flow: -20°C to 70°C (with Industrial Grade Peripherals) | |
| StorageTemperature | -30°C to 85°C | ||
| Relative Humidity | 10%~95% (non-condensing) | ||
| Shock | Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | ||
| Vibration | Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | ||
| EMC | CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
BESTELLINFORMATIONEN
| Model No. | Product Description |
|---|---|
| CV-221C-R10/P1001-R10 | 21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Atom™ E3845 Quad-Core Embedded Computer, Projected Capacitive Touch, and AG Coating |
| CV-221C-R10/P1001E-R10 | 21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Atom™ E3845 Quad-Core Expandable Embedded Computer, Projected Capacitive Touch, and AG Coating |
| CV-221C | P1001 | P1001E | |
|---|---|---|---|
| CV-221C/P1001 | V | V | -- |
| CV-221C/P1001E | V | -- | V |
| CV-221C/P1001 Series Panel PC x1 | Power Terminal Block Connector x 1 |
| Panel Mounting Kit x 14 | HDD Screw Pack x 1 |
| DIO Terminal Block Connector x 1 | Mini PCIe Screw Pack x 1 |
| Model No. | Description |
|---|---|
| MEC-COM-M212-DB9 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x DB9 Cable (for P1001E only) |
| MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P1001E only) |
| MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.0 Ports, 2x 30cm cable (for P1001E only) |
| UB0303 | 2x Universal Bracket each with 1x DB9 Cutout (for P1001E only) |
| UB0311 | Universal Bracket with 2x RJ45 Cutout (for P1001E only) |
| UB0314 | Universal Bracket with 2x USB Cutout (for P1001E only) |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13 ,H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
