CV-221C / P2102 Series
21,5" FHD 16:9 Slim-Bezel Panel-PC mit Intel® Core™ Embedded Computer, projiziert-kapazitivem Touch und Anti-Glare-Beschichtung
PRODUKTEIGENSCHAFTEN
- 21,5" Full-HD-LCD (1920 x 1080) mit 16:9 Seitenverhältnis
- Projiziert-kapazitiver Touch mit Anti-Glare-(AG)-Beschichtung
- Weiter Betrachtungswinkel von 178° / 178°
- Onboard Intel® Core™ U-Serie Prozessor der 8. Generation
- Unterstützung für drei unabhängige Displays
- Integriertes USB 3.2 Gen 2 mit Datenraten bis zu 10 Gbit/s
- M.2 Key E Sockel für Wireless-Module oder Intel-CRF-Module
- Frontseitiger IP66-konformer Schutz
ÜBERBLICK
Die CV-200 / P2102 Serie umfasst leistungsstarke modulare Industrie-Panel-PCs mit schlankem Rahmen-Design. Intel® Core™ U-Serie Prozessoren der 8. Generation sorgen für stabile Rechenleistung und flexible Systemintegration.
Neben ultra-schmalen Displayrahmen verfügen die Systeme über umfangreiche I/O-Schnittstellen, zwei Mini-PCIe-Steckplätze, einen M.2 Key-E-2230-Steckplatz sowie einen SIM-Karten-Slot zur drahtlosen Erweiterung. Die CDS-Technologie von Cincoze ermöglicht einfache zukünftige Upgrades.
Erhältlich in Displaygrößen von 10″ bis 21,5″ mit Full-HD-Auflösung und robustem Industrie-Design eignet sich die Serie optimal für HMI-Anwendungen und die Visualisierung von Produktionsprozessen.
Product Category >>>> Modular Panel PC & Industrial Monitor
Hervorragende Rechenleistung
——
Die CV-200 / P2102 Serie unterstützt Intel® Core™ U-Serie Prozessoren der 8. Generation und bietet hohe Rechenleistung bei einer Leistungsaufnahme von lediglich 15 W. Damit erfüllen die Systeme industrielle Anforderungen an Performance und Energieeffizienz.

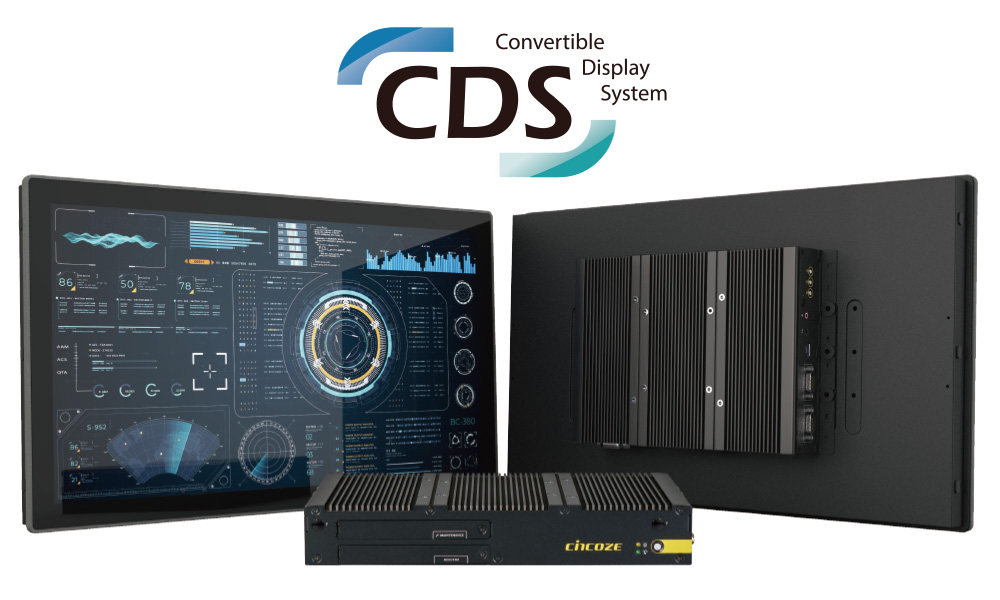

CDS-Technologie
——
Unsere exklusive CDS (Convertible Display System)-Technologie ermöglicht eine einfache Wartung vor Ort und vereinfacht zukünftige Upgrades. Der Austausch des Displays oder eine Leistungssteigerung des Systems erfordert lediglich den Wechsel eines einzelnen Komponentenmoduls, was die Upgrade-Kosten erheblich reduziert.
Ultraschmaler Rahmen
——
Mit einem ultraschmalen Rahmen von ≤ 3 mm (je nach Displaygröße unterschiedlich) reduziert die CV-200 physische Einschränkungen bei kompakten Installationen. Sie ist ideal für platzbegrenzte Gehäuse und Anwendungen, die eine effiziente Integration bei schlankem Design erfordern.
Zuverlässige Touch-Leistung
——
Alle Modelle unterstützen P-Cap-Touch, eine entspiegelte (AG) Beschichtung und Wet-Tracking-Technologie, wodurch ein stabiler Betrieb und klare Sichtbarkeit selbst in feuchten Umgebungen oder bei heller Innenbeleuchtung gewährleistet werden.
Robust, sicher und besonders zuverlässig
——
Die CV-200/P2102-Serie verfügt über mehrere industrielle Schutzmechanismen für den Einsatz in anspruchsvollen Industrieumgebungen, beispielsweise als HMI-Systeme an Maschinen oder zur Visualisierung von Produktionsprozessen. Industrielle Schutzfunktionen umfassen ein erweitertes Temperatur- und Spannungsdesign sowie eine wasser- und staubdichte Frontblende mit IP66-Schutzklasse.
SPEZIFIKATION
CV-221C
| Model Name | CV-221C | |
|---|---|---|
| Display | LCD Size | • 21.5” (16:9) |
| Max. Resolution | • 1920x1080 | |
| Brightness (cd/m2) | • 300 | |
| Contrast Ratio | • 5000 : 1 | |
| LCD Color | • 16.7M | |
| Pixel Pitch (mm) | • 0.24825 (H) x 0.24825 (V) | |
| Viewing Angle (H-V) | • 178 / 178 | |
| Backlight LED Life Time | • 50,000 hrs (LED Backlight) | |
| Touch Screen | Touch Type | • Projected Capacitive |
| Anti-Glare | • V | |
| Wet Touch Tracking | • V | |
| Physical | Dimension ( W x D x H ) | • 522.4 x 318.3 x 63.4 mm |
| Weight Information | • 5.28 kg | |
| Mechanical Construction | • Die-Casting Flat Surface | |
| Power | Power Consumption | • 24.8 W (Max.) |
| Environment | Front Panel Protection | • IP 66 Compliant |
| Operating Temperature | • 0°C - 60°C (32°F to 140°F) - With Industrial Grade peripherals; Ambient with air flow | |
| Storage Temperature | • -20°C - 60°C (-4°F to 140°F) | |
| Relative Humidity | • 90% RH @ 40°C (non-condensing) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN 61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded cable.) • EN/IEC 61000-4-8 PFMF: 50/60 Hz, 30A/m • EN/IEC 61000-4-11 (50/60 Hz): Voltage dips duration up to 25/30 cycles; interruptions up to 250/300 cycles. | |
| Industrial Environment | • EMC: - EN/BS/IEC 61000-6-4: 2019 Class A - EN/BS/IEC 61000-6-2: 2019 | |
| Railway | • EMC: EN 50155: 2021 Clause 4.4.6, 13.4.9 (w/ M1101 only) - EN 50121-1 : 2017 - EN 50121-3-2: 2016 + A1: 2019 | |
P2102 Series
| Model Name | P2102 | P2102E | |
|---|---|---|---|
| System | Processor | Onboard 8th Intel® Core™ U Processors (Whiskey Lake) • Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) • Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) • TDP: 15 W | |
| Memory | 2x DDR4 2400 MHz 260-Pin SO-DIMM Socket Support Un-buffered and Non-ECC Type up to 64 GB | ||
| Graphics | Graphics Engine | Integrated Intel® UHD Graphics 620 | |
| Maximum Display Output | Supports Triple Independent Display | ||
| CDS | 1x CDS Connector for Cincoze Display Module | ||
| VGA | 1x VGA Connector(1920 x 1200 @60Hz) | ||
| DP | 1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840 x2160 @ 60Hz | ||
| Audio | Audio Codec | Realtek® ALC888, High Definition Audio | |
| Line-out | 1x Line-out, Phone Jack 3.5mm | ||
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | ||
| I/O | LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I219LM - GbE2: Intel® I210 | |
| USB | 3x USB 3.2 Gen2 (Type A), 2x USB 2.0 (Type A) | ||
| Serial Port | 4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 | ||
| DIO | 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block | ||
| Storage | SSD/HDD | 2x 2.5” HDD/SSD Drive Bay (SATA 3.0), Supports RAID 0/1 | |
| Expansion | Mini PCI Express | 2x Full-size Mini-PCIe Sockets | |
| PCI Express | 1x PCI or 1x PCIe x4 Expansion slot with Optional Riser Card * Supports maximum dimensions of add-on card (H x L) : 111 x 169mm | ||
| M.2 E Key Socket | 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module | ||
| SIM Socket | 1 x Front Accessible SIM Socket | ||
| Universal Bracket | 2x Universal I/O Bracket | ||
| CFM (Control Function Module) Interface | 2x CFM Interface for optional IGN or PoE Module Expansion | ||
| CDS (Convertible Display System) Technology | 1x Convertible Display System (CDS) Interface | ||
| Other Function | Clear CMOS Switch | 1 x Clear CMOS Switch | |
| Instant Reboot | Support 0.2sec Instant Reboot technology | ||
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | ||
| Internal Speaker | AMP 2W + 2W | ||
| OSD Function | LCD On/Off, Brightness Up, Brightness Down | ||
| Reset Button | 1x Reset Button | ||
| Power | Power Button | 1x ATX Power On/Off Switch | |
| Power Mode Switch | 1x AT/ATX Mode Switch | ||
| Power Input | 1x 3-pin Terminal Block Connector with Power Input 9~48VDC | ||
| Power Adapter (Optional) | 1x Optional AC/DC 12V/5A, 60W or 24V/5A 120W | ||
| Remote Power On/Off | 1x Remote Power On/Off Connector, 2-pin Terminal Block | ||
| Physical | Dimension ( W x D x H ) | 254.5 x 190 x 41.5 mm | 254.5 x 190 x 61 mm |
| Weight Information | 2.2 kg | 2.7 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | ||
| Mounting | Wall / VESA / CDS / DIN Rail | ||
| Physical Design | Fanless Design Jumper-less Design | ||
| Reliability & Protection | Reverse Power Input | Yes | |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover | ||
| Over Current Protection | 15A | ||
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | ||
| MTBF | 231,243 hours | ||
| Operating Stystem | Microsoft® Windows® | Windows®10 | |
| Linux | Supports by project | ||
| Environment | Operating Temperature | Ambient with Air Flow: -40°C to 70°C (with Extended Temperature Peripherals) | |
| Storage Temperature | -40°C to 70°C | ||
| Relative humidity | 95% RH @ 70˚C (Non-condensing) | ||
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | ||
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ CV-W124 only, according to IEC60068-2-6) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
| Safety | UL, cUL, CB, IEC, EN62368-1 | ||
| Fire Protection | EN 45545-2 | ||
BESTELLINFORMATIONEN
| Model No. | Product Description |
|---|---|
| CV-221C-R10/P2102-i5-R10 | 21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i5-8365UE Quad-Core Embedded Computer, Projected Capacitive Touch, and AG Coating |
| CV-221C-R10/P2102E-i5-R10 | 21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i5-8365UE Quad-Core Expandable Embedded Computer, Projected Capacitive Touch, and AG Coating |
| CV-221C-R10/P2102-i3-R10 | 21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i3-8145UE Dual-Core Embedded Computer, Projected Capacitive Touch, and AG Coating |
| CV-221C-R10/P2102E-i3-R10 | 21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i3-8145UE Dual-Core Expandable Embedded Computer, Projected Capacitive Touch, and AG Coating |
| CV-221C | P2102 (i3/i5) | P2102E (i3/i5) | |
|---|---|---|---|
| CV-221C/P2102 | V | V | -- |
| CV-221C/P2102E | V | -- | V |
| CV-221C/P2102 Series Panel PC x 1 | Power Terminal Block Connector (Female) x 1 |
| Panel Mounting Kit x 14 | Screw Pack x 5 |
| Thermal Pad (for CPU Thermal Block) x 1 | Remote Power On/Off Terminal Block Connector x 1 |
| DIO Terminal Block Connector (Female) x 2 | PCI / PCIe Card Installation Kit x 1(For P2102E only) |
| Model No. | Description |
|---|---|
| MEC-COM-M212-TDB9 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable (For P2102E Only) |
| MEC-COM-M334-TDB9 | Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable (For P2102E Only) |
| MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P2102E only) |
| MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable (For P2102E only) |
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm) |
| CFM-PoE04 | CFM Module with PoE Control Function, Individual Port 25.5W (For P2102 only) |
| CFM-PoE05 | CFM Module with PoE Control Function, Individual Port 25.5W (For P2102E only) |
| RC-E4-02 | Riser Card with 1x PCIe x4 Slot (For P2102E only) |
| RC-PI-02 | Riser Card with 1x PCI Slot (For P2102E only) |
| UB1203 | Universal Bracket with 2x DB9 Cutout (For P2102E only) |
| UB1211 | Universal Bracket with 2x RJ45 Cutout (For P2102E only) |
| UB1214 | Universal Bracket with 2x USB Cutout (For P2102E only) |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST360A24-CIN | Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
