M1001
EOL Model
CDS Monitor Module with 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort
PRODUKTEIGENSCHAFTEN

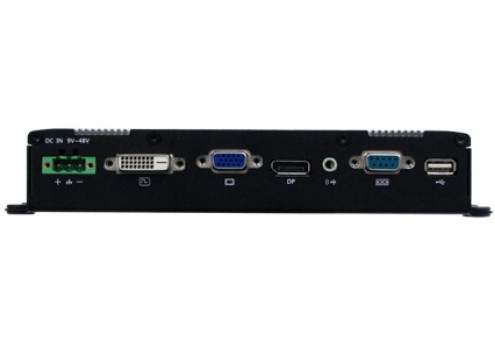

- 1x VGA, 1x DVI-D, 1x DisplayPort Input Interface
- 1x USB, 1x COM, 1x Audio Input

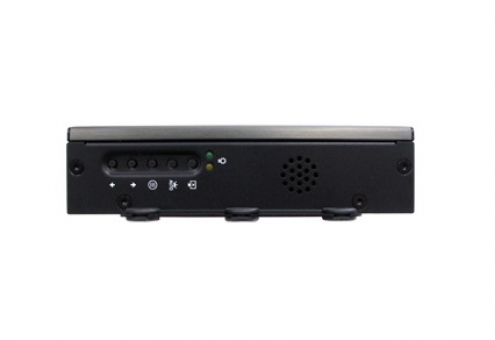

- OSD Control Pad: LCD On/Off, Auto, Menu, Up and Down
- Multi-language OSD Function
- Wide Range Power Input 9~48VDC

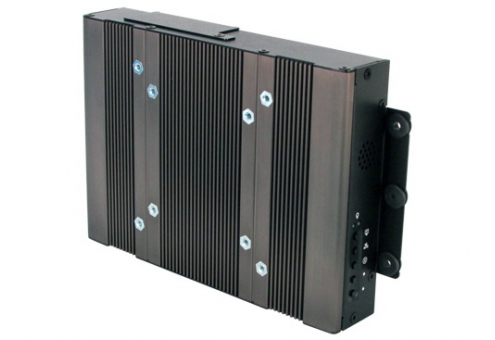

- Support Wall / VESA / CDS Mounting
- Convertible Display System (CDS) Supported

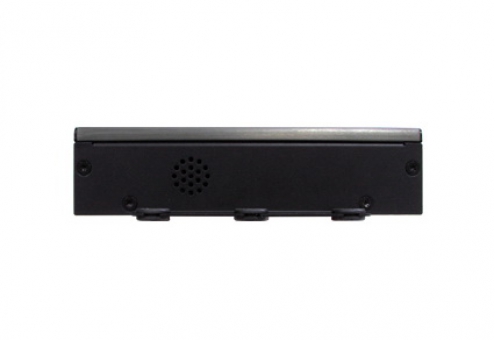

- Built-in Two 5W Internal Speakers
ÜBERBLICK
M1001 is a monitor module which supports Convertible Display Systems (CDS) technology; it is compatible with Cincoze Display Modules for different display sizes and touchscreens. M1001 offers both digital and analog signal input via three types of display interface: VGA, DVI-D and DisplayPort.
In addition, it has OSD function for adjusting the viewing options of display and supports 1x USB and 1x COM ports for connecting with the touch screen.
Moreover, M1001 supports wide range power DC input from 9 to 48VDC and offers panel mount, wall mounted VESA mount. It can be powered and deployed for various applications.
>>>> Embedded Computers Technology
In addition, it has OSD function for adjusting the viewing options of display and supports 1x USB and 1x COM ports for connecting with the touch screen.
Moreover, M1001 supports wide range power DC input from 9 to 48VDC and offers panel mount, wall mounted VESA mount. It can be powered and deployed for various applications.
>>>> Embedded Computers Technology
SPEZIFIKATION
| Model Name | M1001 | |
|---|---|---|
| System | VGA Input | 1 |
| DVI-D Input | 1 | |
| DisplayPort Input | 1 | |
| USB 2.0 Input | 1 | |
| COM Input | 1 | |
| Audio Input | ||
| 1 | ||
| Other Features | Audio | AMP 5W + 5W (Internal Speaker) |
| OSD Function | LCD On/Off, Auto, Menu, Up and Down Multi-language OSD | |
| Power | Power Requirement | 9~48VDC |
| Connector | 3-pin Terminal Block | |
| Power Adaptor | Optional AC/DC 12V/5A, 60W | |
| Environment | Operating Temperature | Ambient with air flow: -5°C to 60°C (with Industrial Grade Peripherals) |
| Storage Temperature | -20°C to 75°C | |
| Relative Humidity | 10%~95% (non-condensing) | |
| Physical | Dimension (WxDxH) | 204.5x149x38.5mm |
| Weight | 1.12 kg | |
| Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / VESA / CDS Mounting | |
| Certification | Safety Certifications | • CE • FCC Class A |
BESTELLINFORMATIONEN
| Model No. | Product Description |
|---|---|
| M1001 | Monitor Module with 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort |
| M1001 |
| √ M1001 Monitor Module x 1 |
| √ Utility DVD Driver x 1 |
| √ USB Cable x 1 |
| √ VGA Cable x 1 |
| √ Power Terminal Block Connector (Female) x 1 |
| √ Screw Pack x 1 |
| Model No. | Description |
|---|---|
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| DVI-D Cable | DVI-D male to DVI-D male Cable 1.8M |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
