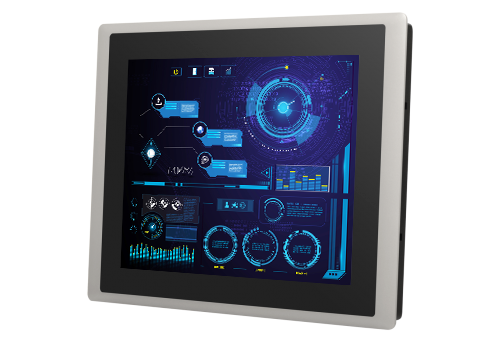

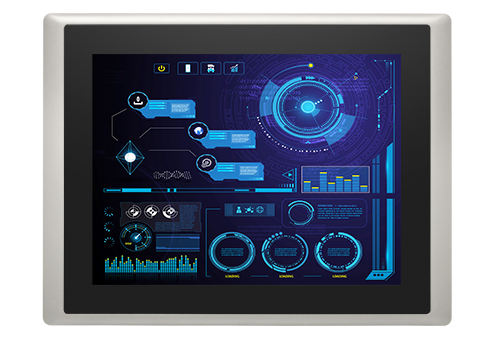

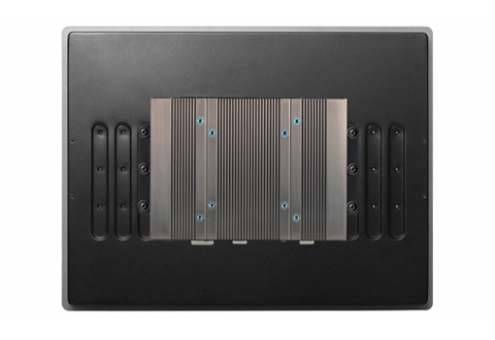

CV-115 / M1001
EOL Model
15" TFT XGA 4:3 Monitor with Touch (Projected Capacitive / Resistive 5-wire), 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort
PRODUKTEIGENSCHAFTEN
- 15" TFT XGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
- Designed with Aluminum Die-Cast Front Frame
- 1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
- IP 65 Compliant Front Panel
- Supports Panel / VESA / Rack Mounting
- Convertible Display System (CDS) Supported
- Built-in Two 5W Internal Speakers
ÜBERBLICK
The 15" touch monitor with resistive 5-wire / projected capacitive touch screen offers resolution up to 1024x768 (XGA) and 350 nits brightness. CV-115/M1001 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. CV-115/M1001 supports Convertible Display System (CDS) which allows to configure, upgrade and maintain your touch monitor easily.
CV-115/M1001 supports both digital and analog signal input via three types of display interface: VGA, DVI-D and Display-Port. Touch screen can be connected with USB port and COM port. It has OSD function for adjusting the viewing options of display.
With support to wide range power input from 9~48VDC, CV-115/M1001 is designed as an ideal solution for industrial application.
CV-115/M1001 supports both digital and analog signal input via three types of display interface: VGA, DVI-D and Display-Port. Touch screen can be connected with USB port and COM port. It has OSD function for adjusting the viewing options of display.
With support to wide range power input from 9~48VDC, CV-115/M1001 is designed as an ideal solution for industrial application.
SPEZIFIKATION
| Model Name | CV-115/M1001 | |||
| Model No. | CV-115R/M1001 | CV-115C/M1001 | ||
| Display | LCD Size | 15" (4:3) | ||
| Max. Resolution | 1024 x 768 | |||
| Brightness (cd/m2) | 350 | |||
| Contrast Ratio | 800 : 1 | |||
| LCD Color | 16.2M | |||
| Pixel Pitch (mm) | 0.297 (H) x 0.297 (V) | |||
| Viewing Angle (H-V) | 160 / 150 | |||
| Backlight MTBF | 50000 hrs (LED Backlignt) | |||
| Touch | Resistive 5-wire | V | - | |
| Projected Capacitive | - | V | ||
| System | A/D Board | Novatek NT68856UFG | ||
| VGA Input | 1 | |||
| DVI-D Input | 1 | |||
| DisplayPort Input | 1 | |||
| COM Input | 1 | |||
| USB 2.0 Input | 1 | |||
| 1 | ||||
| Audio Input | ||||
| Power Switch | 1 | |||
| Other Features | Audio | AMP 5W + 5W (Internal Speaker) | ||
| OSD Function | LCD On/Off, Auto, Menu, Up and Down Multi-language OSD | |||
| Power | Power Requirement | 9~48VDC | ||
| Connector | 3-pin Terminal Block | |||
| Power Adaptor | Optional AC/DC 12V/5A, 60W | |||
| Physical | Dimension (WxHxD) | 408 x 312.4 x 69 mm | ||
| Weight Information | 5.48 kg | |||
| Construction Front Panel | Die-cast Flat Surface | |||
| Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | |||
| Fanless Design | V | |||
| Operating System | Windows | Windows 10 Windows 8.1 Windows 7 | ||
| Liunx | Kernel 3.x | |||
| Environment | Operating Temperature | Ambient with air flow: 0°C to 60°C (with Industrial Grade Peripherals) | ||
| Storage Temperature | -20°C to 65°C | |||
| Relative humidity | 80% RH @ 40°C (non-condensing) | |||
| IP Level | IP 65 Compliant Front Panel | |||
| EMC | CE/ FCC Class A | |||
BESTELLINFORMATIONEN
Available Models
Package Checklist
Optional Accessories
| Model No. | Product Description |
| CV-115R/M1001 | 15" TFT XGA 4:3 Monitor with Resistive 5-wire Touch, 1x USB,1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort |
| CV-115C/M1001 | 15" TFT XGA 4:3 Monitor with Projected Capacitive Touch, 1x USB,1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort |
Package Checklist
| CV-115/M1001 |
| √ CV-115/M1001 Touch Monitor x 1 |
| √ Panel Mounting Kit x 1 |
| √ Utility DVD Driver x 1 |
| √ Power Terminal Block Connector x 1 |
| √ USB Cable x 1 |
| √ VGA Cable x 1 |
| √ Screw Pack x 1 |
Optional Accessories
| Model No. | Description |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| DVI-D Cable | DVI-D male to DVI-D male Cable 1.8M |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
