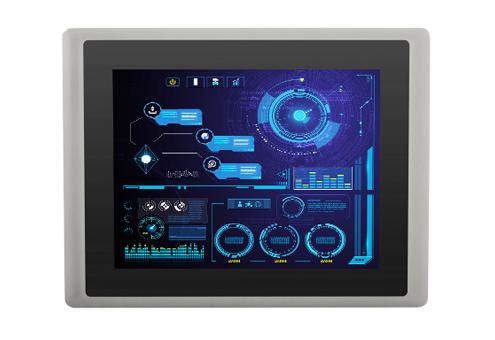

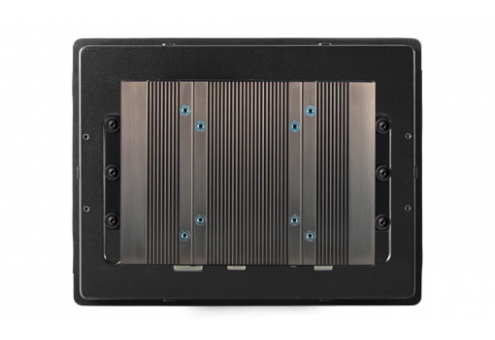

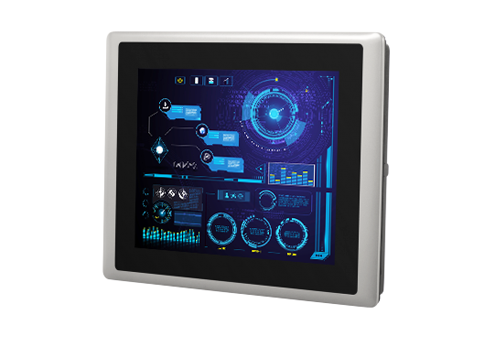

CV-110 / M1001
EOL Model
10.4" TFT SVGA 4:3 Monitor with Touch (Projected Capacitive / Resistive 5-wire), 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort
PRODUKTEIGENSCHAFTEN
- 10.4" TFT SVGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
- Designed with Aluminum Die-Cast Front Frame
- 1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
- IP 65 Compliant Front Panel
- Supports Panel / VESA / Rack Mounting
- Convertible Display System (CDS) Supported
- Built-in Two 5W Internal Speakers
ÜBERBLICK
The 10.4" touch monitor with resistive 5-wire / projected capacitive touch screen offers resolution up to 800x600 (SVGA) and 400 nits brightness. CV-110/M1001 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. CV-110/M1001 supports Convertible Display System (CDS) which allows to configure, upgrade and maintain your touch monitor easily.
CV-110/M1001 supports both digital and analog signal input via three types of display interface: VGA, DVI-D and Display-Port. Touch screen can be connected with USB port and COM port. It has OSD function for adjusting the viewing options of display. With support to wide range power input from 9~48VDC, CV-110/M1001 is designed as an ideal solution for industrial application.
CV-110/M1001 supports both digital and analog signal input via three types of display interface: VGA, DVI-D and Display-Port. Touch screen can be connected with USB port and COM port. It has OSD function for adjusting the viewing options of display. With support to wide range power input from 9~48VDC, CV-110/M1001 is designed as an ideal solution for industrial application.
SPEZIFIKATION
| Model Name | CV-110/M1001 | ||
| Model No. | CV-110R/M1001 | CV-110C/M1001 | |
| Display | LCD Size | 10.4" (4:3) | |
| Max. Resolution | 800 x 600 | ||
| Brightness (cd/m2) | 400 | ||
| Contrast Ratio | 700 : 1 | ||
| LCD Color | 16.2M | ||
| Pixel Pitch (mm) | 0.264 (H) x 0.264 (V) | ||
| Viewing Angle (H-V) | 160 / 130 | ||
| Backlight MTBF | 70000 hrs (LED Backlignt) | ||
| Touch | Resistive 5-wire | V | - |
| Projected Capacitive | - | V | |
| System | A/D Board | Novatek NT68856UFG | |
| VGA Input | 1 | ||
| DVI-D Input | 1 | ||
| DisplayPort Input | 1 | ||
| COM Input | 1 | ||
| USB 2.0 Input | 1 | ||
| 1 | |||
| Audio Input | |||
| Power Switch | 1 | ||
| Other Features | Audio | AMP 5W + 5W (Internal Speaker) | |
| OSD Function | LCD On/Off, Auto, Menu, Up and Down Multi-language OSD | ||
| Power | Power Requirement | 9~48VDC | |
| Connector | 3-pin Terminal Block | ||
| Power Adaptor | Optional AC/DC 12V/5A, 60W | ||
| Physical | Dimension (WxHxD) | 295 x 227.3 x 66 mm | |
| Weight Information | 3.36 kg | ||
| Construction Front Panel | Die-cast Flat Surface | ||
| Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | ||
| Fanless Design | V | ||
| Operating System | Windows | Windows 10 Windows 8.1 Windows 7 | |
| Liunx | Kernel 3.x | ||
| Environment | Operating Temperature | Ambient with air flow: -5°C to 60°C (with Industrial Grade Peripherals) | |
| Storage Temperature | -20°C to 75°C | ||
| Relative humidity | 80% RH @ 40°C (non-condensing) | ||
| IP Level | IP 65 Compliant Front Panel | ||
| EMC | CE/ FCC Class A | ||
BESTELLINFORMATIONEN
Available Models
Package Checklist
Optional Accessories
| Model No. | Product Description |
| CV-110R/M1001 | 10.4" TFT SVGA 4:3 Monitor with Resistive 5-wire Touch, 1x USB,1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort |
| CV-110C/M1001 | 10.4" TFT SVGA 4:3 Monitor with Projected Capacitive Touch, 1x USB,1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort |
Package Checklist
| CV-110/M1001 |
| √ CV-110/M1001 Touch Monitor x 1 |
| √ Panel Mounting Kit x 1 |
| √ Utility DVD Driver x 1 |
| √ Power Terminal Block Connector x 1 |
| √ USB Cable x 1 |
| √ VGA Cable x 1 |
| √ Screw Pack x 1 |
Optional Accessories
| Model No. | Description |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| DVI-D Cable | DVI-D male to DVI-D male Cable 1.8M |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
