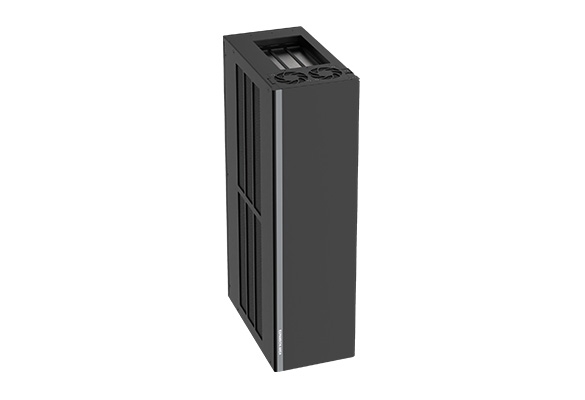

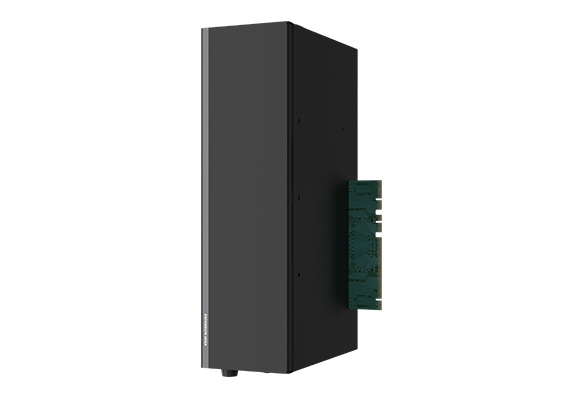

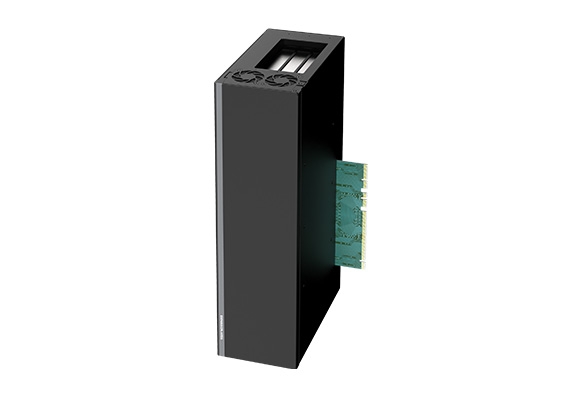

GEB-3301

GPU Expansion Box with 1 x PCIe x16 and 1 x PCIe x4 Slots
PRODUKTEIGENSCHAFTEN
  • Supports NVIDIA RTX 30 Series GPU Card
  • Support 1 x PCIe x16 Slot for full-length GPU card Expansion
  • Support 1 x PCIe x4 Slot for Add-on card Expansion
  • Intelligent Cooling Design for High Performance GPU Card
  • Military Standard Shock & Vibration Proof
  • Designed with adjustable GPU card retainer
    (TW Patent Certificate No: I763318)
    (US Patent Certificate No: US 11,470,738 B2)
ZUR ANFRAGE HINZUFÜGEN DATENBLATT
ÜBERBLICK
The GEB-3301 is a selectable expansion box that is compatible with GP-3000 series. It comprises 1x PCIe x 16 for GPU graphics card installation and 1x PCIe x 4 slot for add-on card expansion such as high speed I/O, data collection and frame grabber card. GEB-3301 supports a maximum of one 350 W 328 mm full-length NVIDIA®/AMD® graphics card expansion.

Product Category >>>> Embedded GPU Computer
RESOURCES
Industrie-PC: Entwicklungsverlauf, Eigenschaften und Lösungen
2024-09-10
Industrie-PC: Entwicklungsverlauf, Eigenschaften und Lösungen
Cincoze GP-3000 Powers High-precision AOI for PCBA Testing
2022-12-12
Cincoze GP-3000 Powers High-precision AOI for PCBA Testing
Cincoze GP-3000 Improves Railroad Track Inspection Efficiency for Railway Companies
2021-08-13
Cincoze GP-3000 Improves Railroad Track Inspection Efficiency for Railway Companies
SPEZIFIKATION
Expansion Slot• 1 x PCIe x 16 Slot ( PCIe x 16 Signal ) for GPU Card
  * 1 x GPU: Max 300W
• 1 x PCIe x 4 Slot (Max. 25W)
GPU Card Dimension• Card Length : 328mm
• Card Height : 64mm ( Standard Triple-Deck )
• Card Width : 138mm
Internal USB1 x USB 2.0, Type A
Internal Power Connector2 x 8-Pin Connector for GPU Card
Weight Information3.2kg
Dimension ( W x D x H )104 x 195 x 360 mm
MTBF2,713,254 hr
BESTELLINFORMATIONEN
Available Models
Model No.Product Description
GEB-3301-R10GPU Expansion Box with 1 x PCIe x 16 and 1 x PCIe x 4 Slots

Package Checklist
√  Wall Mount Bracket
√  8 Pin to 6+2 Pin GPU Power Cable x 2
√  Screw Pack x 2
√  GPU Card Retainer Screw Pack x 1
√  Rubber Foot Kit x 1
√  Sponge x 2

Compatible GPU List
ModelArchitectureDimesion (D x W mm)SlotPower Consumption
RTX PRO 6000 Blackwell Max-Q Workstation EditionBlackwell266.7 x 111.8dual slot300W
RTX PRO 5000 BlackwellBlackwell266.7 x 111.8dual slot300W
RTX PRO 4500 BlackwellBlackwell241.3 x 111.8dual slot200W
RTX PRO 4000 BlackwellBlackwell266.7 x 111.8single slot140W
RTX 6000Ada Lovelace266.7 x 111.8dual slot300W
RTX 5000Ada Lovelace266.7 x 111.8dual slot250W
RTX 4500Ada Lovelace266.7 x 111.8dual slot210W
RTX 4000Ada Lovelace241.3 x 111.8single slot130W
RTX 4000 SFFAda Lovelace167.6 x 68.6dual slot70W
RTX 2000Ada Lovelace167.6 x 68.6dual slot70W
A800 40GB ActiveAmpere266.7 x 111.8dual slot240W
RTX A6000Ampere266.7 x 111.8dual slot300W
RTX A5500Ampere266.7 x 111.8dual slot230W
RTX A5000Ampere266.7 x 111.8dual slot230W
RTX A4500Ampere266.7 x 111.8dual slot200W
RTX A4000Ampere241.3 x 111.8single slot140W
RTX A2000 | RTX A2000 12GBAmpere167.6 x 68.6dual slot70W

DOWNLOADS
Datenblatt
BetreffVeröffentlichungsdatumDownload
GEB-3301 Datasheet2025/06/20Download
