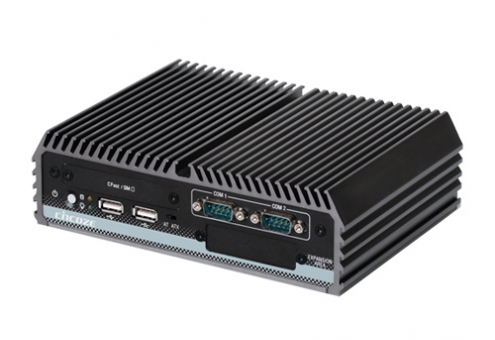

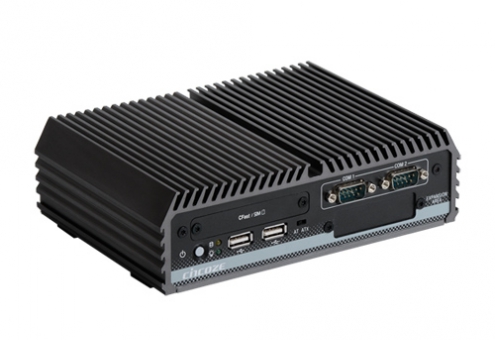

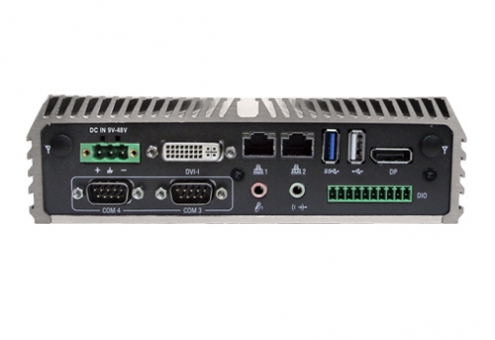

DC-1100

Intel® Atom™ E3845 Quad Core Compact Size Fanless Computer and 2x Mini-PCIe Expansion
PRODUKTEIGENSCHAFTEN
  • Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
  • 1x DDR3L SO-DIMM Max. up to 8 GB
  • Dual Independent Display from 1x DVI-I and 1x DisplayPort
  • 2x Intel® GbE port support Wake-on-LAN and PXE
  • 1x USB 3.0, 3x USB 2.0
  • 4x RS232/422/485 port with 5V/12V power
  • 4x Isolated DI, 4x Isolated DO
  • 1x 2.5” SATA SSD/HDD bay
  • 1x CFast card and 1x SIM card socket
  • 9~48VDC power input, support AT/ATX mode
  • 2x Mini-PCIe slot for Wi-Fi / GSM / I/O expansion
  • Universal I/O bracket for Mini-PCIe expansion
  • E-Mark (E13, No.10R-0514062) Certified
ZUR ANFRAGE HINZUFÜGEN DATENBLATT
ÜBERBLICK
DC-1100 is a high performance compact size 185mm (W) x 131mm (D) x 54mm (H) system designed with onboard Intel® Atom™ E3845 Quad Core 1.91GHz processor, rich I/O, an unique expansion capability, and supports wide range (9~48V) DC power input.

It supports the latest USB 3.0 technology. With features including completely cable-less designed, special heat dissipation, anti-vibration, and industrial components selection, DC-1100 is a ruggedized system that can operate in a harsh environment.

A build in voltage protection, reliable DC power input, and reverse power protection make DC-1100 a safety system for industrial applications.

Product Category >>>> Rugged Embedded Fanless PC
RESOURCES
Intelligente Kommunikation auf See: Cincoze Industriecomputer ermöglichen hocheffiziente Lösungen
2024-12-19
Intelligente Kommunikation auf See: Cincoze Industriecomputer ermöglichen hocheffiziente Lösungen
Schneller und komfortabler unterwegs: Cincoze Embedded-PC steuert intelligente U-Bahn-Ticketautomaten
2024-11-26
Schneller und komfortabler unterwegs: Cincoze Embedded-PC steuert intelligente U-Bahn-Ticketautomaten
Industrie-PC: Entwicklungsverlauf, Eigenschaften und Lösungen
2024-09-10
Industrie-PC: Entwicklungsverlauf, Eigenschaften und Lösungen
Was ist ein robuster Computer? Entdecken Sie die wesentlichen Merkmale eines robusten Computers.
2024-06-27
Was ist ein robuster Computer? Entdecken Sie die wesentlichen Merkmale eines robusten Computers.
DC-1200 Powered AGVs Enhance Automotive Smart Factory
2022-04-28
DC-1200 Powered AGVs Enhance Automotive Smart Factory
SPEZIFIKATION
Model NameDC-1100
Processor SystemCPUIntel® Atom™ E3845
Frequency1.91 GHz
Core Number4
BIOSAMI 64Mbit SPI
Chipset-
MemoryTechnologyDDR3L 1066 / 1333MHz (un-buffered and non-ECC)
Max. Capacity8 GB
Socket1x 204-Pin SO-DIMM
DisplayVGAYes (with optional split cable)
DDI (HDMI/DVI/DisplayPort)1x DVI
1x DisplayPort Connector (2560 x 1600)
Multiple DisplayDual
ExpansionPCI-
PCIe-
Mini PCIe2x Full-size Mini PCIe
EthernetControllerGbE1: Intel® I210
GbE2: Intel® I210
Support Wake-on-LAN and PXE
PoE-
Speed10/100/1000 Mbps
AudioCodecRealtek ALC888S
Connector1x Mic-in
1x Speak-out
WatchDog TimerSoftware Programmable Supports 256 Levles System Reset
StorageSSD / HDD1x 2.5" SATA HDD Bay
mSATA-
CompactFlash/CFast1x CFast
SIM Socket1
I/O PortsUSB1x 5Gbps USB 3.2 Gen1, Type A
3x 480Mbps USB 2.0, Type A
DIO4 in/4 out
COM Port4x RS-232/422/485
PS/2-
Antenna Hole2
Power Switch1
AT/ATX Switch1
External Fan Connector-
Remote Power On/Off and Remote Power Reset-
Universal I/O Bracket1
PowerPower TypeAT, ATX
Power Supply Voltage9~48VDC
Connector3-pin Terminal Block
Power AdaptorOptional AC/DC 12V/5A, 60W
EnvironmentOperating Temperature-25°C to 70°C
(With extended temperature peripherals; Ambient with Air Flow by IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage Temperature-30°C to 85°C
Relative Humidity10%~95% (Non-Condensing)
Shock50 Grms
(With SSD According to IEC 60068-2-27, Half Sine, 11ms Duration)
Vibration: Random5 Grms
(With SSD According to IEC 60068-2-64, 5~500Hz, 1 hr/axis)
EMC• CE, UKCA, FCC, ICES-003 Class A
• E-mark
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
PhysicalDimension (WxDxH)185 x 131 x 56.15 mm
Weight1.58 kg
ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall
Optional Side / VESA / DIN-Rail Mounting
Operating SystemMicrosoft®• Windows® 10
• Windows® 8.1
• Windows® 7
Linux®• Supports By Project
BESTELLINFORMATIONEN
Available Models
Model No.Product Description
DC-1100-R10Intel® Atom™ E3845 Quad Core™ Compact Size Fanless Computer and 2x Mini-PCIe Expansion

Package Checklist
√ DC-1100 Embedded System x 1√ DVI-I to VGA Adapter x 1
√ DIO Terminal Block Connector x 1√ Screw Pack x 1
√ Power Terminal Block Connector x 1√ Wall Mount Kit x 1

Optional I/O Modules
Model No.Description
MEC-LAN-M102-15 / UB0111Mini-PCIe Module with 2x LAN Ports, 2x 15cm cable, 1x Universal Bracket with 2x RJ45 Cutout for DC-1100

Optional Accessories
Model No.Description
GSM60A12-CIN1Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, GSM60A12-P1J, Level VI
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3UK 2 heads power cord, UK I type to IEC C13 ,H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
VESA-DCDC series VESA Mount Kit
SIDE-DCDC series SIDE Mount Kit
DINRAILDiamond series DIN-RAIL Mount Kit
