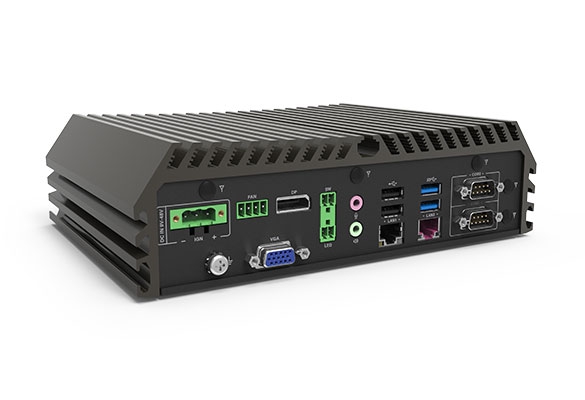

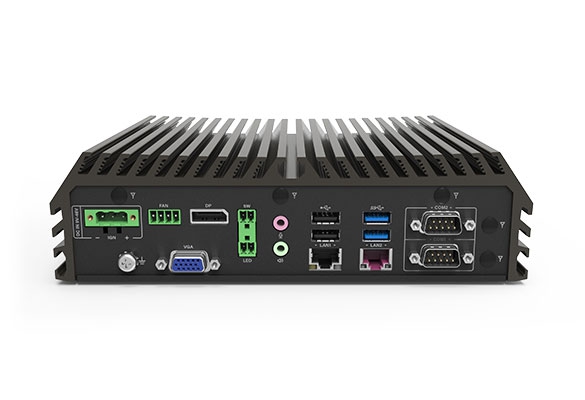

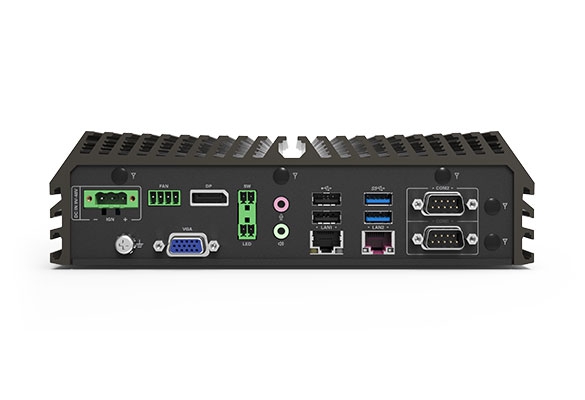

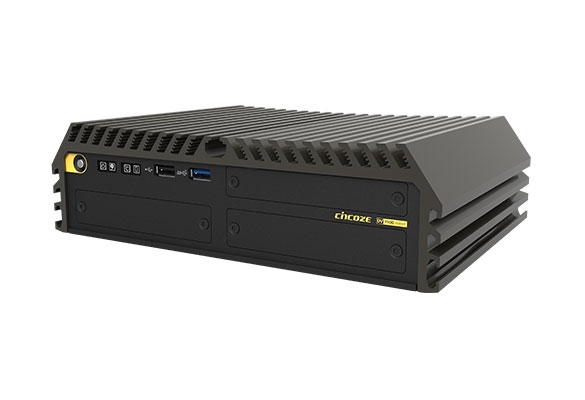

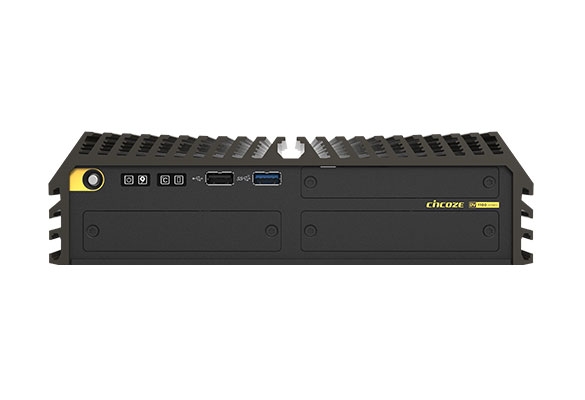

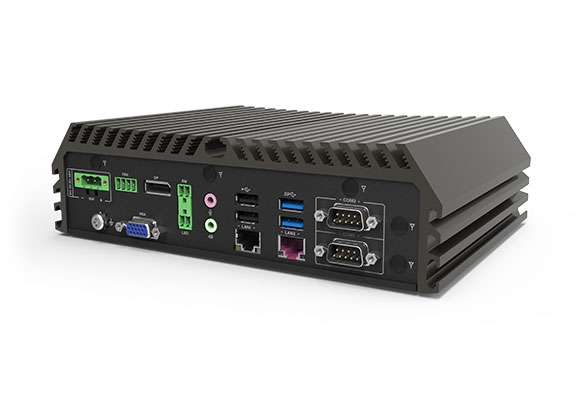

DV-1100

13/12th Gen. Intel® Core™ Series High Performance and Basic Function Rugged Embedded Computer

PRODUCTS FEATURES
  • Intel® 13/12th Gen. Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
  • 1x M.2 Key M Type 2280 Socket for PCIe Gen 4x4 NVMe Storage
  • 1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion
  • 1x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
  • 1x M.2 Key B Type 2242 Socket for Storage/Add-on Card Expansion
  • Optional CMI & CFM Modules for I/O Expansion & Power Ignition Sensing Function
  • Wide operating temperature -40°C to 70°C
  • Safety Standard: UL, cUL, CB, IEC, EN 62368-1
CERTIFICATIONS
  • EN 50121-3-2
  • EN 61000-6-2
  • EN 61000-6-4
  • MIL-STD-810H
  • EN 62368-1
  • CB
  • UL
OVERVIEW
High-performance, Cost-effective - DV-1100, a 13/12th Gen Intel Core Series Rugged Computer

The DV-1100 is a compact, high-performance, embedded edge computer that supports 13th/12th generation Intel® processors. Its balance between high-performance computing needs and cost-effectiveness enables enterprises to quickly analyze and process edge data for better decision-making and improved production efficiency and accuracy. The DV-1100 is ideal for smart manufacturing, machine vision, railway computing, and space-constrained applications where stability and reliability are paramount.




Balancing Performance and Cost

——

The DV-1100 has a compact body and supports a 13th/12th generation Intel® Core™ processor. It provides sufficient computing performance for multitasking and diverse applications while balancing performance and cost.

Balancing Performance and Cost

Compact Size


Compact Size

——

The DV-1100 measures only 224.1 x 162 x 62mm, making it easy to install anywhere, including in space-constrained applications.




Stunning Transfer and Access Speeds

——

The DV-1100 has high-speed I/O interfaces, including 2.5G LAN and 10Gbps USB 3.2 Gen2x1. Storage support includes 2.5″ HDD/SSD and high-speed NVMe SSD.

Stunning Transfer and Access Speeds

Excellent Extension Design


Excellent Extension Design

——

The DV-1100 has built-in M.2 Key B, M.2 Key E, and M.2 Key M slots for flexible wireless (5G, Wi-Fi, GNSS) and storage selection according to application requirements.




Various Industry Certifications

——

The DV-1100's rugged design meets various industrial-grade and industrial certifications, such as EMC standards in industrial environments (EN 61000-6-2/4), US military shock vibration standards (MIL-STD-810H), railway computing EN50155 (EN 50121-3-2 only), and more.

Various Industry Certifications

Video
SPECIFICATION
Model NameDV-1100
SystemProcessor

13th Generation Intel® Raptor Lake-S Series CPU:
• Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W
• Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W
• Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W
• Intel® Core™ i5-13400E 10 Cores Up to 4.6 GHz, TDP 65W
• Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 60W
• Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W
• Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W
• Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W
• Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W

12th Generation Intel® Alder Lake-S Series CPU:
• Intel® Core™ i9-12900E 16 Cores Up to 5.0 GHz, TDP 65W
• Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W
• Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W
• Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W
• Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W
• Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W
• Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W
• Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W
• Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W
• Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W
• Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W
• Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W

Chipset• Intel H610E Chipset
Memory• 1x DDR5 4800MHz SO-DIMM Socket
Supports Un-buffered and non-ECC Type, Up to 32GB
BIOS• AMI BIOS
GraphicsGraphics Engine• Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
• Integrated Intel® UHD Graphics 730: Core™ i3
• Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Maximum Display Output• Supports Triple Independent Display
DP• 1x DisplayPort Connector: 3840 x 2160 @60Hz
VGA• 1x VGA Connector: 1920 x 1200 @60Hz
CMI Display• 1x CMI Interface for Optional CMI-DP/CMI-HDMI Module Expansion
AudioAudio Codec• Realtek® ALC888, High Definition Audio
Line-out• 1 x Line-out, Phone Jack 3.5mm
Mic-in• 1 x Mic-in, Phone Jack 3.5mm
I/OLAN• 1x 2.5GbE LAN, RJ45
- Intel® I225
• 1x 1GbE LAN, RJ45
- Intel® I219
COM• 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB• 1x 10Gbps USB3.2 Gen 2x1, Type A
• 2x 5Gbps USB3.2 Gen 1x1, Type A
• 3x 480Mbps USB2.0, Type A
StorageSSD/HDD• 1x 2.5" SATA HDD/SSD Bay (SATA 3.0)
M.2 SSD• 1x M.2 SSD Shared by M.2 Key M Type 2280 Socket, Support PCIe Gen 4x4 NVMe SSD or SATA 3.0 SSD
• 2x M.2 SSD Shared by M.2 Key B Socket, Support PCIe Gen 3x2 NVMe SSD or SATA 3.0 SSD
ExpansionM.2 Key E Socket• 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0), Support Wireless/Intel CNVi Module Expansion
M.2 Key B Socket• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen2 x1 / USB2.0 / SATA), Support 5G/Storage/Add-on Card Expansion
• 1x M.2 Key B Type 2242 Socket (PCIe Gen 3x2 / USB2.0 / SATA ), Support Storage/Add-on Card Expansion
SIM Socket• 1x Front Accessible Dual Nano SIM Socket
CMI (Combined Multiple I/O) Interface• 1x CMI Interface for optional CMI-Display Module Expansion
• 2x CMI Interface for optional CMI-COM/DIO Module Expansion
CFM (Control Function Module) Interface• 1x CFM IGN Interface for optional CFM-IGN Module Expansion
Other FunctionExternal FAN Connector• 1x External FAN Connector, 4-pin Terminal Block
(Support Smart Fan by BIOS)
Clear CMOS Switch• 1x Clear CMOS Switch
Reset Button• 1x Reset Button
Instant Reboot• Support 0.2sec Instant Reboot Technology
Watchdog Timer• Software Programmable Supports 256 Levels System Reset
Antenna Hole• 5x Antenna Holes
PowerPower Button• 1 x ATX Power On/Off Button
Power Mode Switch• 1 x AT/ATX Mode Switch
Power Input• 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off• 1 x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED• 1 x Remote Power LED, 2-pin Terminal Block
PhysicalDimension ( W x D x H )• 224.1 x 162 x 62 mm
Weight Information• 2.52 KG
Mechanical Construction• Extruded Aluminum with Heavy Duty Metal
Mounting• Wall / DIN-RAIL / VESA Mount
Physical Design• Fanless Design
• Cableess Design
• Jumper-less Design
• Unibody Design
Reliability & ProtectionReverse Power Input Protection• Yes
Over Voltage Protection• Protection Range: 51~58V
•​ Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection• 15A
CMOS Battery Backup• SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF• 413,236 Hours
- Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating SystemWindows• Windows®11, Windows®10
Linux• Ubuntu 22.04
EnvironmentOperating Temperature• 35W TDP Processor: -40°C to 70°C
• 65W TDP Processor: -40°C to 55°C (With External Fan Kit)
* PassMark BurnInTest: 100% CPU, 2D/3D Graphics
(without thermal throttling)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature• -40°C to 70°C
Relative Humidity• 95% RH @ 70°C (Non-condensing)
Shock• MIL-STD-810H
Vibration• MIL-STD-810H
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only)
• EN 50155 (EN 50121-3-2 Only)
• E-mark (Pending)
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN 61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
  (**Compliant with the standard when utilizing shielded cable.)
• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
SafetyUL, cUL, CB, IEC, EN 62368-1
ORDERING INFORMATION
Available Model
Model No.Description
DV-1100-R1013/12th Gen. Intel® Core™ Series High Performance and Basic Function Rugged Embedded Computer

Package Checklist
DV-1100 Embedded Computer x1Wall Mounting Kit x1
CPU Installation Kit x1Power Terminal Block Connector x1
External Fan Terminal Block Connector x1Remote Function Terminal Block Connector x 2
Screw Pack x1M.2 Key B Type 3052 to Type 3042 Adapter Bracket x1

Optional Modules and Accessories
Model No.Description
CMI-DP01-R10CMI Module with 1x DisplayPort
CMI-HD03-R10CMI Module with 1x HDMI Port
CMI-COM06-R10CMI Module with 2x RS232/422/485 Ports (Support 5V/12V)
CMI-DIO06-R10CMI Module with 16DIO (8in/8out)
CFM-IGN04-R10CFM Module with Power Ignition Sensing Function, 12V/24V Selectable
UB1603-R10Universal Bracket with 2x DB9 Cutout
UB1606-R10Universal Bracket with DP Cutout
UB1608-R10Universal Bracket with HDMI Cutout
UB1618-R10Universal Bracket with DIO Cutout
DINRAIL-R10Diamond series DIN-RAIL Mount Kit
FAN-EX104External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan
GST120A24-CINAdapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI
