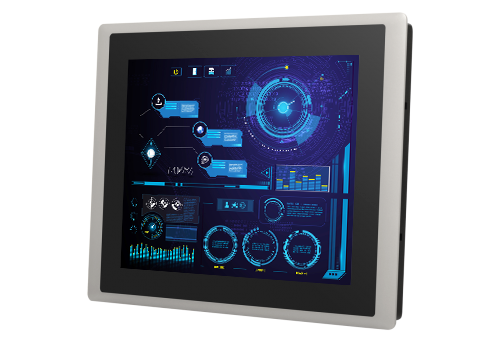

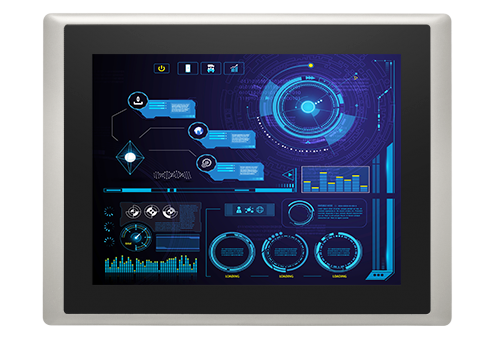

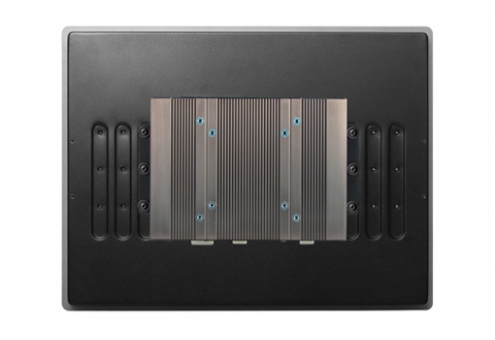

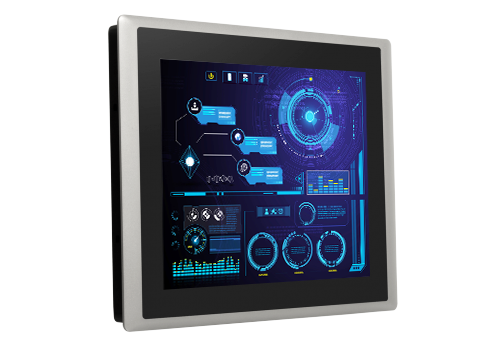

CV-115 / M1001

15" TFT XGA 4:3 Monitor with Touch (Projected Capacitive / Resistive 5-wire), 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort

PRODUCTS FEATURES
  • 15" TFT XGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
  • Designed with Aluminum Die-Cast Front Frame
  • 1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
  • IP 65 Compliant Front Panel
  • Supports Panel / VESA / Rack Mounting
  • Convertible Display System (CDS) Supported
  • Built-in Two 5W Internal Speakers
OVERVIEW
The 15" touch monitor with resistive 5-wire / projected capacitive touch screen offers resolution up to 1024x768 (XGA) and 350 nits brightness. CV-115/M1001 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. CV-115/M1001 supports Convertible Display System (CDS) which allows to configure, upgrade and maintain your touch monitor easily.

CV-115/M1001 supports both digital and analog signal input via three types of
display interface: VGA, DVI-D and Display-Port. Touch screen can be connected with USB port and COM port. It has OSD function for adjusting the viewing options of display.
With support to wide range power input from 9~48VDC, CV-115/M1001 is designed as an ideal solution for industrial application.
SPECIFICATION
Model NameCV-115/M1001
Model No.CV-115R/M1001CV-115C/M1001
DisplayLCD Size15" (4:3)
Max. Resolution1024 x 768
Brightness (cd/m2)350
Contrast Ratio800 : 1
LCD Color16.2M
Pixel Pitch (mm)0.297 (H) x 0.297 (V)
Viewing Angle (H-V)160 / 150
Backlight MTBF50000 hrs (LED Backlignt)
TouchResistive 5-wireV-
Projected Capacitive-V
SystemA/D BoardNovatek NT68856UFG
VGA Input1
DVI-D Input1
DisplayPort Input1
COM Input1
USB 2.0 Input1
1
Audio Input
Power Switch1
Other FeaturesAudio AMP 5W + 5W (Internal Speaker)
OSD FunctionLCD On/Off, Auto, Menu, Up and Down
Multi-language OSD
PowerPower Requirement9~48VDC
Connector3-pin Terminal Block
Power AdaptorOptional AC/DC 12V/5A, 60W
PhysicalDimension (WxHxD)408 x 312.4 x 69 mm
Weight Information5.48 kg
Construction Front PanelDie-cast Flat Surface
MountingPanel / VESA / *Rack Mounting (*with optional mounting kit)
Fanless DesignV
Operating SystemWindowsWindows 10
Windows 8.1
Windows 7
LiunxKernel 3.x
EnvironmentOperating TemperatureAmbient with air flow: 0°C to 60°C
(with Industrial Grade Peripherals)
Storage Temperature-20°C to 65°C
Relative humidity80% RH @ 40°C (non-condensing)
IP LevelIP 65 Compliant Front Panel
EMCCE/ FCC Class A
ORDERING INFORMATION
Available Models
Model No.Product Description
CV-115R/M100115" TFT XGA 4:3 Monitor with Resistive 5-wire Touch, 1x USB,1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort
CV-115C/M100115" TFT XGA 4:3 Monitor with Projected Capacitive Touch, 1x USB,1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort

Package Checklist
CV-115/M1001
√ CV-115/M1001 Touch Monitor x 1
√ Panel Mounting Kit x 1
√ Utility DVD Driver x 1
√ Power Terminal Block Connector x 1
√ USB Cable x 1
√ VGA Cable x 1
√ Screw Pack x 1

Optional Accessories
Model No.Description
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
DVI-D CableDVI-D male to DVI-D male Cable 1.8M
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
DOWNLOADS
Datasheet
SubjectRelease DateDownload
CV-115/M1001 Datasheet2018/08/29Download
Manual
SubjectRelease DateDownload
CV-100 / M1000 Series Manual2020/11/06Download
Driver
SubjectRelease DateDownload
M1001 Resistive Touch Driver (Windows Version)2016/01/07Download
