P1201

Intel® Elkhart Lake Atom® x6000E Series Processor Slim Embedded Computer with CDS Technology

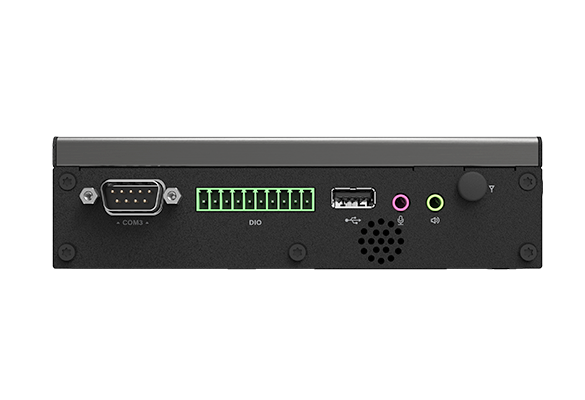

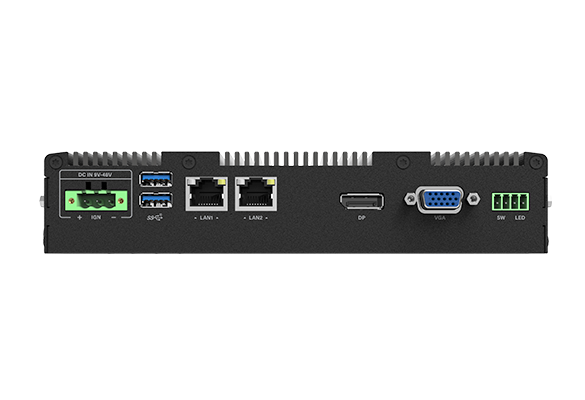

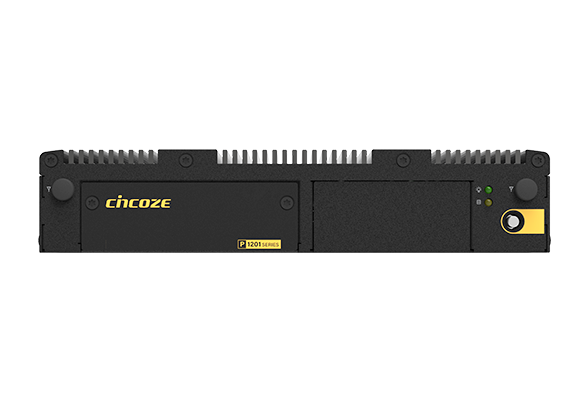

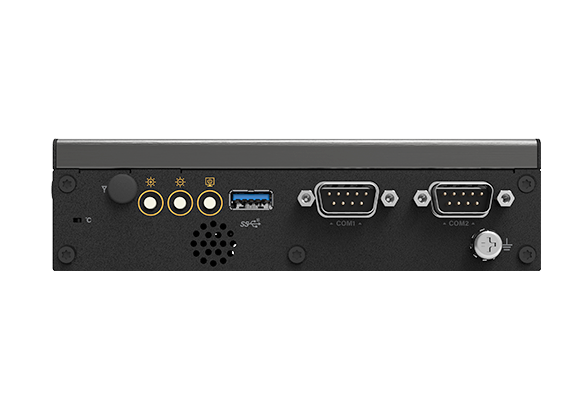

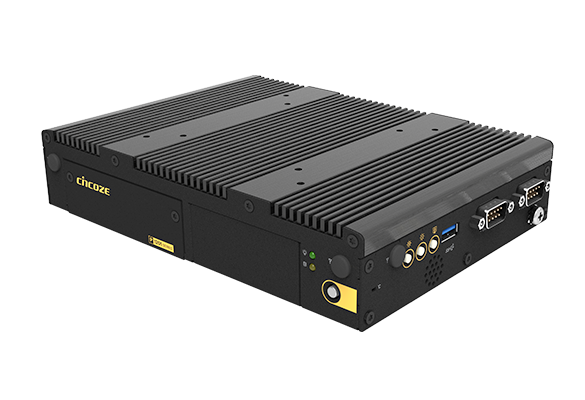

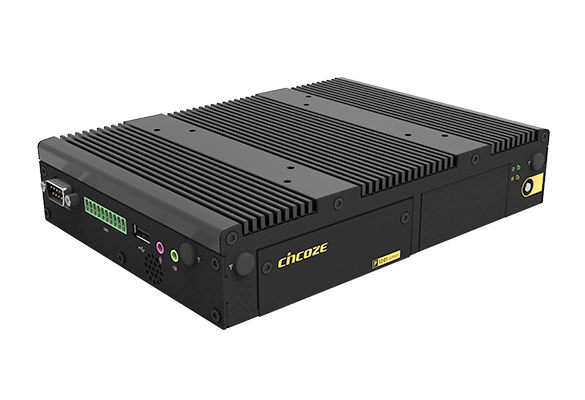

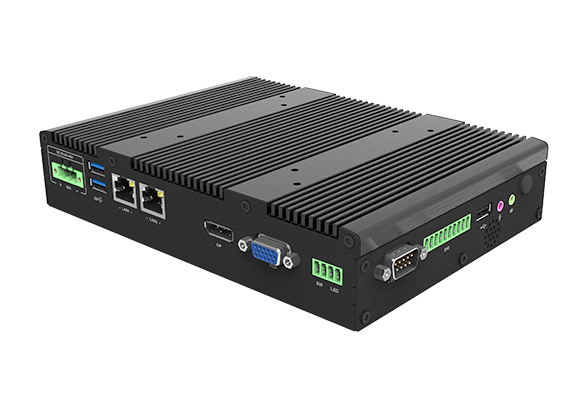

PRODUCTS FEATURES
  • Intel® Elkhart Lake Atom® x6425E/x6211E Processor
  • 1x DDR4 SO-DIMM
  • 1x M.2 Key E Type 2230 Socket for Wireless Module
  • CFM Technology for Power Ignition Sensing Function and PoE Function
  • Cincoze Patent CDS Technology Support (Patent No. M482908)
  • EMC Emission / Immunity Standard for Industrial Environment : EN61000-6-4, EN61000-6-2
  • Safety Certification: UL, cUL, CB 62368-1
OVERVIEW
Cincoze P1201, A Slim and Power Efficient Computer For Embedded and Panel-PC Application

The P1201 is an Intel® Elkhart Lake Atom® processor-equipped, ultra-thin, fanless embedded computer for IoT edge computing. It offers flexible expansion with a rich assortment of native I/O ports, Mini PCIe and M.2 Key E Type 2230 slots, and an exclusive CFM slot to add functions such as PoE or IGN. The chassis measures only 41.5 mm, making it suitable for installation in narrow space-limited applications.

“One computer / Two purposes” is the P1201’s crowning feature. The patented Convertible Display System (CDS) enables the addition of one of a selection of display modules to convert the P1201 from an embedded computer to an industrial panel PC, sunlight-readable panel PC, or open-frame panel PC, satisfying diverse display computing needs.

Product Category >>>> Modular Panel PC & Industrial Monitor




Next-gen Performance

——

The P1201 supports up to an Intel® Atom® x6425E (Elkhart Lake) 4-core processor, with 1.7 times the single-thread performance, 1.5 times the multi-thread performance, and double the graphics performance of the previous-generation Apollo Lake processor. Up to 32 GB of 3200 MHz DDR4 is supported.

Next-gen Performance

Ultra-thin Chassis and Easy Installation

Ultra-thin Chassis and Easy Installation

——

The P1201 has an ultra-thin and compact design, only 204.5 × 149 × 41.5 (mm), enabling smart factories to collect and process data in space-limited applications such as equipment machines, control cabinets, AGVs, and more.




One Computer / Two Purposes

——

The P1201 is an embedded computer that can become a panel PC using Cincoze’s patented Convertible Display System (CDS) interface to attach an industrial display module (CV-100 series), sunlight-readable display module (CS-100 series), or open-frame display module (CO-100 series) to create a panel PC with specific characteristics.

Patent No. M482908
One Computer / Two Purposes

Full Wireless Connectivity

Full Wireless Connectivity

——

The P1201 supports all the wireless transmission methods, including an M.2 Key E module with high-speed WiFi 6 for fast data transfer and Bluetooth for peripheral connections, and a GPS and 4G Mini PCIe module. These options cover most wireless transmission needs.


Vibration Resistance and Industrial EMC Protection

——

The P1201 is vibration resistant and incorporates EMC protections to ensure stable and continuous operation in equipment, control cabinets, and mobile equipment. The P1201 passes various vibration and shock reliability tests, including random vibration (5G), sinusoidal vibration (1G), and shock resistance (50G), meeting the harsh industrial EMC testing standards (EN 61000-6-2 and EN 61000-6-4), UL certification product safety standard, and high-standard industrial-grade protections.

Vibration Resistance and Industrial EMC Protection

Video
SPECIFICATION

P1201

Model NameP1201
SystemProcessor• Intel® Atom® x6425E Processor (1.5M Cache, up to 3.00 GHz, 12W)
• Intel® Atom® x6211E Processor (1.5M Cache, up to 3.00 GHz, 6W)
Memory• 1x DDR4 SO-DIMM Socket
• Supports DDR4 3200MHz Memory Up to 32GB (un-buffered and non-ECC)
BIOSAMI BIOS
GraphicsGraphics EngineIntegrated Intel® UHD Graphics
Maximum Display OutputSupports Triple Independent Display
CDS1x CDS Connector (1920 x 1080 @60Hz)
DP1x DisplayPort Connector (4096 x 2304 @ 60Hz,According to CPU Specifications)
* Verified maximum resolution: 3840 x 2160 @60Hz
VGA1x VGA Connector (1920 x 1200 @60Hz)
AudioAudio CodecRealtek® ALC888, High Definition Audio
Line-out1x Line-out, Phone Jack 3.5mm
Mic-in1x Mic-in, Phone Jack 3.5mm
I/OLAN2x 1GbE LAN, RJ45
- GbE1: Intel® I210
- GbE2: Intel® I210
COM3x RS-232/422/485 with Auto Flow Control, DB9
USB• 3x 10Gbps USB 3.2 Gen2, Type A
• 1x 480Mbps USB 2.0, Type A
DIO8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block
StorageSSD/HDD1x 2.5” Front Accessible SATA HDD/SSD Drive Bay (SATA3.0)
mSATA1x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket)
ExpansionMini PCI Express1x Full-size Mini-PCIe Socket
SIM Socket1 x SIM Socket
M.21x M.2 Key E Type 2230 Socket, Support Wireless Module
CFM (Control Function Module) Interface• 1x CFM IGN Interface for optional CFM-IGN Module Expansion
• 1x CFM PoE Interface for optional CFM-PoE Module Expansion
CDS (Convertible Display System) Interface1x CDS Interface for Convertible Display Module
Other FunctionClear CMOS Switch1x Clear CMOS Switch
Reset Button1x Reset Button
Instant RebootSupport 0.2sec Instant Reboot Technology
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
OSD ButtonLCD On/Off, Brightness Up, Brightness Down
Internal SpeakerAMP 2W + 2W
Status LED IndicatorPower LED, HDD LED, Temperature LED
PowerPower Button1x ATX Power On/Off Button
Power Mode Switch1x AT/ATX Mode Switch
Power Input9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off1x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED1x Remote Power LED, 2-pin Terminal Block
Operating StystemMicrosoft® Windows®Windows®10
LinuxSupports by project
PhysicalDimension ( W x D x H )204.5 x 149 x 41.5 mm
Weight Information1.54 kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / VESA / CDS / DIN Rail
Physical Design• Fanless Design
• Jumper-less Design
Reliability & ProtectionReverse Power Input ProtectionYes
Over Voltage Protection• Protection Range: 51~58V
•​ Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection15A
CMOS Battery BackupSuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF283,091 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
EnvironmentOperating Temperature-40°C to 70°C
* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature-40°C to 85°C
Relative Humidity95%RH @ 70°C (non-Condensing)
ShockOperating, 50 Grms (w/ SSD, according to IEC60068-2-27)
Vibration• Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
• Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6)
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
SafetyUL, cUL, CB, IEC/EN 62368-1
ORDERING INFORMATION
Available Models
Model No.Product Description
P1201-X6425E-R10Intel® Atom® x6425E Quad Core Slim Embedded Computer with CDS Technology
P1201-X6211E-R10Intel® Atom® x6211E Dual Core Slim Embedded Computer with CDS Technology

Package Checklist
√ P1201 Slim Embedded Computer x1√ Power Terminal Block Connector x1
√ Thermal Pad (for CPU Thermal Block) x 1√ Remote Function Terminal Block Connector x1
√ Wall Mounting Kit x1√ DIN Rail Mounting Kit x1
√ Screw Pack x1√ DIO Terminal Block Connector x 1

Optional Modules and Accessories
Model No.Description
CFM-PoE02CFM Module with PoE Control Function, Individual Port 25.5W
CFM-IGN101CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm)
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)
GST120A24-CINAdapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
