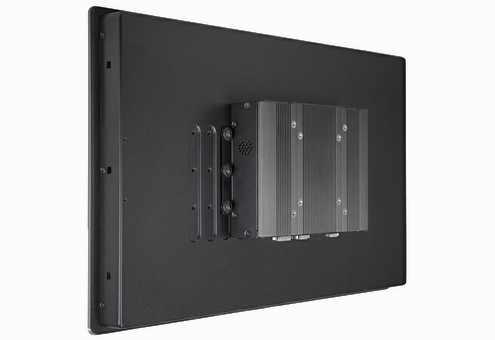

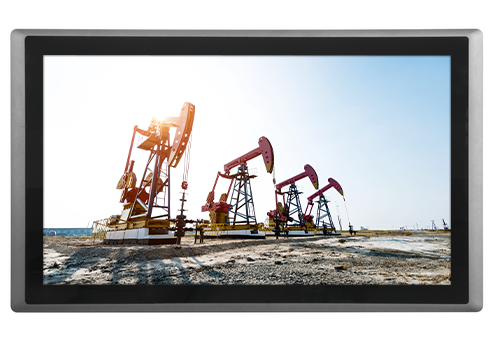

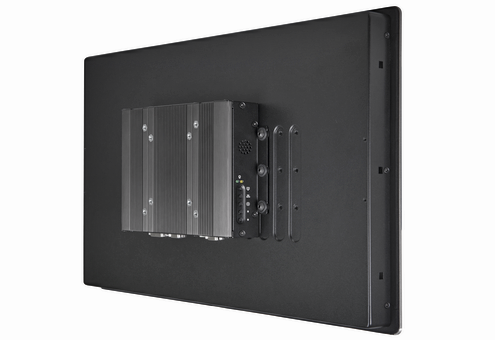

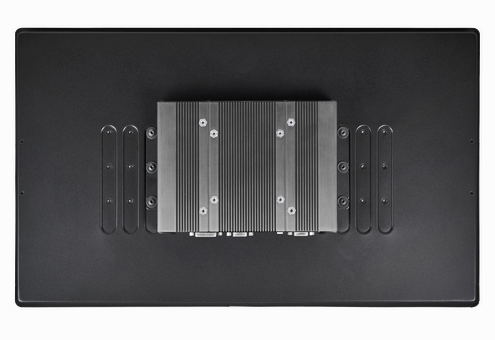

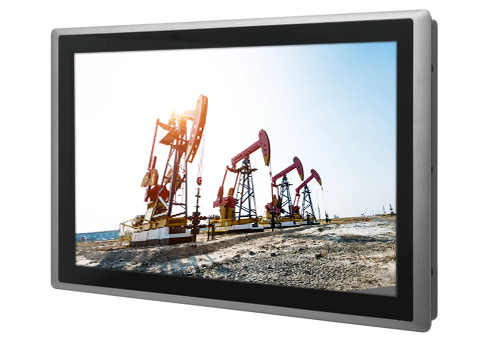

CS-W124C / M1001

24" TFT-LCD Sunlight Readable Touch Monitor

PRODUCTS FEATURES
  • 24” TFT-LCD with Ultra High Brightness up to 1,500 nits and 1920 x 1080 Resolution
  • Designed with Aluminum Die-casting Front Frame
  • True Flat IP65 Front Panel Protection
  • Supports Panel / VESA / Rack Mounting
  • Wide Range Power Input 9~48VDC
  • Convertible Display System (CDS) Technology Supported
OVERVIEW
CS-W124C/M1001 Series is a 24" TFT-LCD sunlight readable touch monitor offering 1,500 nits ultra high brightness and 1920 x 1080 resolution. It supports both digital and analog signal input via three types of display interface, including VGA, DVI-D and DisplayPort. CS-W124C/M1001 Series supports Convertible Display System (CDS) technology which allows you to configure, upgrade and maintain your display system according to your need. In addition, it has OSD function for adjusting the viewing options of display

Featuring wide range operating temperature (-5°C to 60°C), IP65 dust/water proof front panel and wide range DC power input (9 to 48VDC), CS-W124C/M1001 Series is a rugged and reliable display solution for outdoor applications, such as heavy-duty lifting & moving equipment, e-toll collection system, car-sharing system and outdoor kiosk.
SPECIFICATION
Model NameCS-W124C / M1001
DisplayLCD Size24” (16:9)
Max. Resolution1920x1080 (Full HD)
Brightness (cd/m2)1500
Contrast Ratio5000 : 1
LCD Color16.7M
Pixel Pitch (mm)0.27675 (H) x 0.27675 (V)
Viewing Angle (H-V)178 / 178
Backlight MTBF50000 hrs (LED Backlignt)
TouchProjected CapacitiveV
AudioAudio1x Audio Input
External I/O InterfaceVGA1x VGA Input
DP1x DisplayPort Input
DVI1x DVI-D Input
USB1x USB 2.0 (for Projected Capacitive Touch)
COM1x COM Port (reserved for Resistive Touch)
Other FunctionInternal SpeakerAMP 5W + 5W
OSD Function• LCD On/Off, Auto, Menu, Up and Down
• Multi-language OSD Function
PowerPower Input9 - 48VDC, 3-pin Terminal Block
Power Adapter (Optional)Optional AC/DC 12V/5A, 60W
PhysicalDimension (WxHxD)605 x 373 x 73 mm
Weight Information7.76 Kg
Front Panel ConstructionDie-Casting Flat Surface
MountingPanel / VESA / *Rack Mounting (*with optional mounting kit)
Physical DesignFanless Design
EnvironmentOperating TemperatureAmbient with air flow: -5°C to 60°C
(with Industrial Grade Peripherals)
Storage Temperature-20°C to 70°C
Relative Humidity80% RH @ 50°C (Non-Condensing)
EMCCE, FCC, ICES-003 Class A
IP LevelIP65 Compliant Front Panel
ORDERING INFORMATION
Available Models
Model No.Product Description
CS-W124C-R10/M1001-R1224" TFT-LCD Full HD 16:9 Display Module with Projected Capacitive Touch, 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort, 9V~48V

Package Checklist
√ CS-W124C/M1001 Touch Monitor x 1√ USB Cable x 1
√ Panel Mounting Kit x 1√ VGA Cable x 1
√ Utility DVD Driver x 1√ Screw Pack x 1
√ Power Terminal Block Connector x 1

Optional Module
Model No.Description
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor

Optional Accessories
Model No.Description
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
DOWNLOADS
Datasheet
SubjectRelease DateDownload
CS-W124C / M1001 Datasheet2022/02/15Download
Manual
SubjectRelease DateDownload
CS-100 / M1000 Series Manual2022/03/03Download
