MXM-T1000

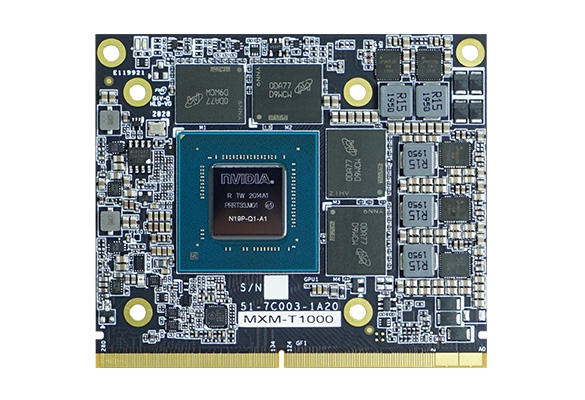

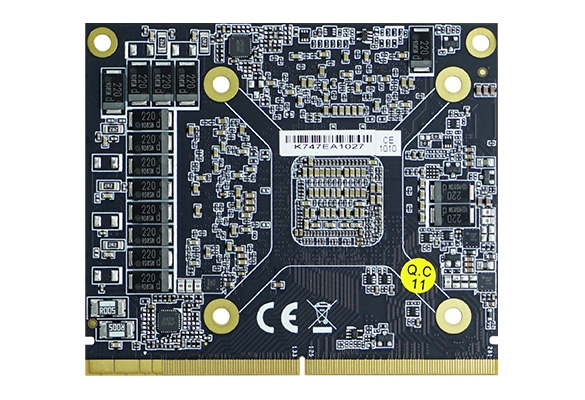

Nvidia Quadro Embedded T1000 MXM Kit with Heatsink and Thermal Pad

PRODUCTS FEATURES
  • NVIDIA® Quadro® T1000 Embedded Graphics
  • Standard MXM 3.1 Type A Form Factor (82 x 70 mm)
  • 896 NVIDIA® CUDA® Cores
  • 2.6 TFLOPS Peak FP32 Performance
  • 4GB GDDR6 Memory, 128-bit
  • 5-year Availability
OVERVIEW
The MXM-T1000 is an Embedded MXM GPU module that features advanced NVIDIA Quadro GPU with NVIDIA® Turing™ GPU technology  in MXM 3.1 Type A form factor. With 896 CUDA® cores, 2.6 TFLOPS Peak FP32, and 4GB GDDR6 memory, MXM-T1000 offers high performance in image processing and analytics for edge applications.

​Product Category >>>> Embedded GPU Computer
SPECIFICATION
GPUNVIDIA® Quadro® T1000
Memory4GB GDDR6 memory, 128-bit (Bandwidth: 192 GB/s)
CUDA Cores896 CUDA® cores, 2.6TFLOPS peak FP32 performance
Compute APICUDA Toolkit 8.0 and above, CUDA Compute version 6.1 and above, OpenCL™ 1.2
Graphics APIDirectX® 12, OpenGL 4.6, Vulkan 1.0 API
Display Outputs4x DisplayPort 1.4 digital video outputs, 4K at 120Hz or 8K at 60Hz
InterfaceMXM 3.1, PCI Express Gen3 x16 support
Dimensions82 (W) x 70 (D) x 4.8 (H) mm
InterfacePCI Express Gen3 x8 support
Dimensions82 (W) x 70 (D) mm
Form FactorStandard MXM 3.1 Type A
Power Consumption50W
OS SupportWindows 10, Linux support by project
ORDERING INFORMATION
Available Models
Model No.Product Description
MXM-T1000-R10Nvidia Quadro Embedded T1000 MXM Kit with Heatsink and Thermal Pad

Package Checklist
√ NVIDIA® Quadro® Embedded T1000 GPU card x 1
√ GPU Heatsink x 1
√ GPU Thermal Pad Kit x1
√ Screw Pack x 1
DOWNLOADS
Datasheet
SubjectRelease DateDownload
MXM-T1000 Datasheet2020/10/13Download
Quick Installation Guide
SubjectRelease DateDownload
MXM-T1000 Quick Installation Guide2023/05/03Download
Driver
SubjectRelease DateDownload
MXM-T1000 Driver (Windows 10 Version)2020/10/13Download
