MXM-E9174

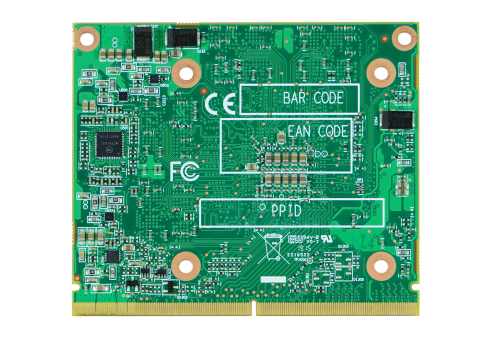

AMD Embedded Radeon™ E9174 MXM Kit with Heatsink and Thermal Pad
PRODUCTS FEATURES
- AMD Embedded Radeon™ Graphics
- Standard MXM 3.0 Type A Form Factor (82 x 70 mm)
- 512 Stream Processors
- 1.25 TFLOPS Floating Point Performance
- 4GB GDDR5 Memory, 128-bit
- 7-year Availability
OVERVIEW
The MXM-E9174 is an Embedded MXM GPU module that features advanced AMD Embedded Radeon™ GPU with AMD Polaris Architecture technology in MXM 3.0 Type A form factor. With 512 Stream Processors and 4GB GDDR5 memory, MXM-E9174 offers high performance in image processing and analytics for edge applications.
Product Category >>>> Embedded GPU Computer
Product Category >>>> Embedded GPU Computer
SPECIFICATION
| GPU | AMD Embedded Radeon™ E9174 | |
|---|---|---|
| Memory | 4GB GDDR5 memory, 128-bit | |
| Shader Processing Units | 512 Stream Processors | |
| DirectX® Capability | DirectX® 12 | |
| OpenGL™ | OpenGL™ 4.5 | |
| OpenCL™ 1.2 | OpenCL™ 2.0 | |
| VULKAN™ | VULKAN™ Support | |
| Display Outputs | 4x DisplayPort Digital Video Outputs, 4K at 60Hz | |
| Interface | PCI Express Gen3 x8 support | |
| Dimensions | 82 (W) x 70 (D) mm | |
| Form Factor | Standard MXM 3.0 Type A | |
| Power Consumption | 50W | |
| OS Support | Windows 10, Linux support by project | |
ORDERING INFORMATION
| Model No. | Product Description |
|---|---|
| MXM-E9174-01 | AMD Embedded Radeon™ E9174 MXM Kit with Heatsink and Thermal Pad |
| √ AMD Embedded Radeon™ E9174 GPU card x 1 |
| √ GPU Heatsink x 1 |
| √ GPU Thermal Pad x 2 |
| √ Screw Pack x 1 |
| √ Utility DVD Driver x 1 |
