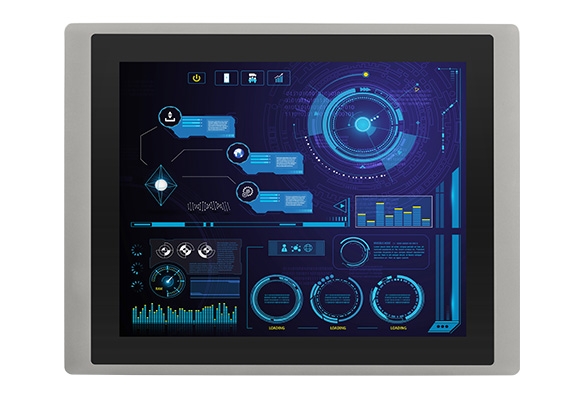

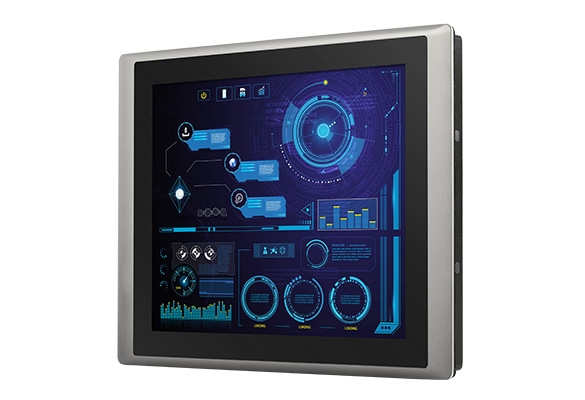

CV-117 / P2102 Series

17" TFT-LCD Modular Panel PC with 8th Gen. Intel® Core™ U Series Processor

PRODUCTS FEATURES
  • 17" 1280 x 1024 (SXGA) TFT-LCD with Resistive 5-wire Touch / Projected Capacitive Touch
  • Onboard 8th Generation Intel® Core™ U Series Processor
  • 2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
  • Supports Triple Independent Display
  • Integrated USB 3.2 Gen 2 supports up to 10Gbps
  • M.2 E Key Socket for Wireless Module or Intel CRF Module
  • Supports Ignition Sensing Function (IGN) (with optional CFM module)
  • Supports 2x PoE+ Function (with optional CFM module)
  • Designed with Rugged Aluminum Die-casting Front Bezel
  • True Flat IP65 Compliant Front Panel Protection
  • Supports Panel / VESA / Rack Mounting
OVERVIEW
The CV-117/P2102 Series is a 17" TFT-LCD panel PC with Intel® 8th generation Core™ U Series Processor and is suitable for the high-performance requirement in factory and machine automation applications. The processor brings outstanding computing performance boost up to 84% at a TDP of 15 watts, compared to 6th generation Intel® Core™ U series. To enable faster responsiveness and deal with multi tasks with ease, the panel PC is equipped with two DDR4 2400 SODIMM sockets for up to 64 GB memory.

With its slim design, the CV-117/P2102 Series offers extensive I/O to fulfill different connectivities and can easily fit into almost any space limited environment. For wireless connectivity, the CV-117/P2102 Series has 1x M.2 2230 E key and 2x full-size Mini-PCIe expansions which can be installed various add-on cards to enable Wi-Fi, 3G, and LTE communication. Besides, the CV-117/P2102 Series supports Control Function Module (CFM) Technology to install optional CFM modules for increasing power over ethernet and power ignition sensing functions according to user’s specific applications. Featuring rigorous industrial protections, wide range operating temperature, IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), the CV-117/P2102 Series is appropriate for harsh environments and critical industrial applications.

Furthermore, the CV-117/P2102 Series supports Cincoze patented Convertible Display System (CDS) technology, allowing users to replace display module or computer module on-site easily and thereby reducing maintenance costs and downtime.

Product Category >>>> Modular Panel PC & Industrial Monitor
SPECIFICATION

CV-117 Series

Model NameCV-117RCV-117CCV-117G
DisplayLCD Size17" (5:4)
Max. Resolution1280 x 1024
Brightness (cd/m2)350
Contract Ratio800 : 1
LCD Color16.7M
Pixel Pitch (mm)0.264 (H) x 0.264 (V)
Viewing Angle (H-V)160 / 140
Backlight MTBF50,000 hrs (LED Backlight)
Touch ScreenTouchscreen TypeResistive 5-wireProjected CapacitiveGlass Screen
PhysicalDimension (W x D x H)450 x 350 x 63.2mm
Weight Information5.64kg
Mechanical ConstructionDie-Casting Flat Surface
EnvironmentFront Panel ProtectionIP 65 Compliant
Operating Temperature-20°C to 70°C (with Industrial Grade peripherals; Ambient with air flow)-20°C to 80°C (with Industrial Grade peripherals; Ambient with air flow)-30°C to 85°C (with Industrial Grade peripherals; Ambient with air flow)
Storage Temperature-30°C to 80°C-30°C to 85°C
Relative Humidity80% RH @ 50°C (Non-Condensing)80% RH @ 50°C (non-Condensing)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyUL, cUL, CB, IEC, EN 62368-1

P2102 Series

Model NameP2102P2102E
SystemProcessorOnboard 8th Intel® Core™ U Processors (Whiskey Lake)
• Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz)
• Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz)
• TDP: 15 W
Memory2x DDR4 2400 MHz 260-Pin SO-DIMM Socket
Support Un-buffered and Non-ECC Type up to 64 GB
GraphicsGraphics EngineIntegrated Intel® UHD Graphics 620
Maximum Display OutputSupports Triple Independent Display
CDS1x CDS Connector for Cincoze Display Module
VGA1x VGA Connector(1920 x 1200 @60Hz)
DP1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications)
* Verified maximum resolution: 3840 x2160 @ 60Hz
AudioAudio CodecRealtek® ALC888, High Definition Audio
Line-out1x Line-out, Phone Jack 3.5mm
Mic-in1x Mic-in, Phone Jack 3.5mm
I/OLAN2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
- GbE1: Intel® I219LM
- GbE2: Intel® I210
USB3x USB 3.2 Gen2 (Type A), 2x USB 2.0 (Type A)
Serial Port4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
DIO16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block
StorageSSD/HDD2x 2.5” HDD/SSD Drive Bay (SATA 3.0), Supports RAID 0/1
ExpansionMini PCI Express2x Full-size Mini-PCIe Sockets
PCI Express 1x PCI or 1x PCIe x4 Expansion slot with Optional Riser Card
* Supports maximum dimensions of add-on card (H x L) : 111 x 169mm
M.2 E Key Socket1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
SIM Socket1 x Front Accessible SIM Socket
Universal Bracket 2x Universal I/O Bracket
CFM (Control Function Module) Interface2x CFM Interface for optional IGN or PoE Module Expansion
CDS (Convertible Display System) Technology1x Convertible Display System (CDS) Interface
Other FunctionClear CMOS Switch1 x Clear CMOS Switch
Instant RebootSupport 0.2sec Instant Reboot technology
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
Internal SpeakerAMP 2W + 2W
OSD FunctionLCD On/Off, Brightness Up, Brightness Down
Reset Button1x Reset Button
PowerPower Button1x ATX Power On/Off Switch
Power Mode Switch1x AT/ATX Mode Switch
Power Input1x 3-pin Terminal Block Connector with Power Input 9~48VDC
Power Adapter (Optional)1x Optional AC/DC 12V/5A, 60W or 24V/5A 120W
Remote Power On/Off1x Remote Power On/Off Connector, 2-pin Terminal Block
PhysicalDimension ( W x D x H )254.5 x 190 x 41.5 mm254.5 x 190 x 61 mm
Weight Information2.2 kg2.7 kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / VESA / CDS / DIN Rail
Physical DesignFanless Design
Jumper-less Design
Reliability & ProtectionReverse Power InputYes
Over Voltage ProtectionProtection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the present level to recover
Over Current Protection15A
CMOS Battery BackupSuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF231,243 hours
Operating StystemMicrosoft® Windows®Windows®10
LinuxSupports by project
EnvironmentOperating TemperatureAmbient with Air Flow: -40°C to 70°C (with Extended Temperature Peripherals)
Storage Temperature-40°C to 70°C
Relative humidity95% RH @ 70˚C (Non-condensing)
ShockOperating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
• Operating, 5 Grms, 5-500 Hz, 3 Axes
   (w/ SSD, according to IEC60068-2-64)
• Operating, 1 Grms, 10-500 Hz, 3 Axes
   (w/ CV-W124 only, according to IEC60068-2-6)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyUL, cUL, CB, IEC, EN62368-1
Fire ProtectionEN 45545-2
ORDERING INFORMATION
Available Models
Model No.Product Description
CV-117R-R10/P2102-i5-R1017" SXGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and Resistive Touch
CV-117R-R10/P2102E-i5-R1017" SXGA TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and Resistive Touch
CV-117C-R11/P2102-i5-R1017" SXGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and P-Cap. Touch
CV-117C-R11/P2102E-i5-R1017" SXGA TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and P-Cap. Touch
CV-117G-R10/P2102-i5-R1017" SXGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and Glass Only
CV-117G-R10/P2102E-i5-R1017" SXGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and Glass Only
CV-117R-R10/P2102-i3-R1017" SXGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and Resistive Touch
CV-117R-R10/P2102E-i3-R1017" SXGA TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and Resistive Touch
CV-117C-R11/P2102-i3-R1017" SXGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and P-Cap. Touch
CV-117C-R11/P2102E-i3-R1017" SXGA TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and P-Cap. Touch
CV-117G-R10/P2102-i3-R1017" SXGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and Glass Only
CV-117G-R10/P2102E-i3-R1017" SXGA TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and Glass Only

Model Configuration
 CV-117RCV-117CCV-117GP2102 (i3/i5)P2102E (i3/i5)
CV-117R/P2102V----V--
CV-117C/P2102--V--V--
CV-117G/P2102----VV--
CV-117R/P2102EV------V
CV-117C/P2102E--V----V
CV-117G/P2102E----V--V

Package Checklist
√ CV-117/P2102 Series Panel PC x 1√ Power Terminal Block Connector (Female) x 1
√ Panel Mounting Kit x 1√ Screw Pack x 5
√ DIO Terminal Block Connector (Female) x 2√ Remote Power On/Off Terminal Block Connector x 1
√ PCI / PCIe Card Installation Kit x 1(For P2102E only)√ Thermal Pad (for CPU Thermal Block) x 1

Optional Modules and Accessories
Model No.Description
MEC-COM-M212-DB9Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable (For P2102E Only)
MEC-COM-M334-TDB9Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable (For P2102E Only)
MEC-LAN-M102-30Mini-PCIe Module with 2x LAN Ports, 2x 30cm (For P2102E Only)
MEC-USB-M102-30Mini-PCIe Module with 2x USB 3.2 Gen1 Ports (For P2102E Only)
CFM-IGN101CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable
CFM-PoE04PoE Control Function Module, Individual Port 25.5W (For P2102 only)
CFM-PoE05PoE Control Function Module, Individual Port 25.5W (For P2102E only)
RC-E4-02Riser Card with 1x PCIex4 Slot (For P2102E only)
RC-PI-02Riser Card with 1x PCI Slot (For P2102E only)
UB1203Universal Bracket with 2x DB9 Cutout (For P2102E only)
UB1211Universal Bracket with 2x RJ45 Cutout (For P2102E only)
UB1214Universal Bracket with 2x USB Cutout (For P2102E only)
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST120A24-CIN Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp(-30°C ~ +70°C), level VI
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
SL2-SL3US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M
SL6-SL3EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M
QP026-SL3UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M
