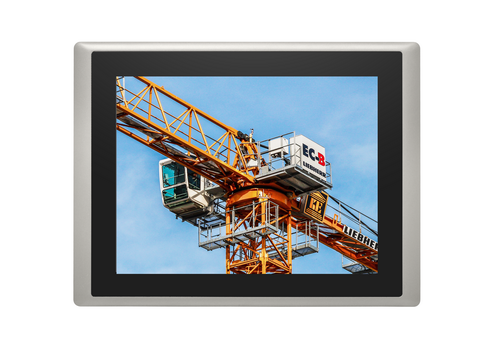

CS-112H

12.1" TFT-LCD Sunlight Readable Display Module with Projected Capacitive Touch

PRODUCTS FEATURES
  • 12.1” TFT-LCD with Projected Capacitive Touch
  • Ultra High Brightness up to 1,500 nits
  • Resolution up to 1024 x 768 (XGA)
  • 50,000 hrs LED Backlight Life
  • Wide Range Operating Temperature -20°C to 80°C
  • IP65 Front Panel Protection
  • Flat Rugged Aluminum Die-casting Bezel
  • Convertible Display System (CDS) Technology Supported
  • Safety: UL, cUL, CB, IEC, EN 62368-1
OVERVIEW
CS-112H is 12.1" TFT-LCD touch display module. It offers 1,500 nits ultra high brightness and 1024 x 768 (XGA) resolution, allowing viewers to see clear images even under any bright ambient light or direct sunlight environments. CS-112H is a rugged and reliable display solution featuring wide range operating temperature -20°C to 80°C, a solid aluminum die-casting front bezel and true flat IP65 front panel protection. Supporting Convertible Display System (CDS) technology, CS-112H allows you to configure, upgrade and maintain your display system according to your need.

>>>> Embedded Computers Technology
SPECIFICATION

CS-112H

Model NameCS-112HC
DisplayLCD Size12.1" (4:3)
Max. Resolution1024 x 768 (XGA)
Brightness (cd/m2)1500
Contract Ratio700 : 1
LCD Color16.7M
Pixel Pitch (mm)0.24 (H) x 0.24 (V)
Viewing Angle (H-V)160 / 140
Backlight MTBF50,000 hrs (LED Backlight)
Touch ScreenTouchscreen TypeProjected Capacitive
PhysicalDimension (W x D x H)345 x 265.3 x 57 mm
Weight Information3.16 kg
Mechanical ConstructionFlat Rugged Aluminum Die-casting Bezel
EnvironmentFront Panel ProtectionIP 65 Compliant
Operating Temperature-20°C to 80°C (With Industrial Grade Peripherals; Ambient with air flow)
Storage Temperature-30°C to 80°C
Relative Humidity90% RH @ 40°C (Non-condensing)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyUL, cUL, CB, IEC, EN 62368-1
ORDERING INFORMATION
Available Models
Model No.Product Description
CS-112HC-R1112.1" TFT-LCD 1500 nits XGA 4:3 Display Module with Projected Capacitive Touch

Package Checklist
√ CS-112H Display Module x 1√ Panel Mounting Kit x 1

DOWNLOADS
Datasheet
SubjectRelease DateDownload
CS-112H Datasheet2023/07/24Download
Manual
SubjectRelease DateDownload
CS-100 Series Manual2024/02/22Download
