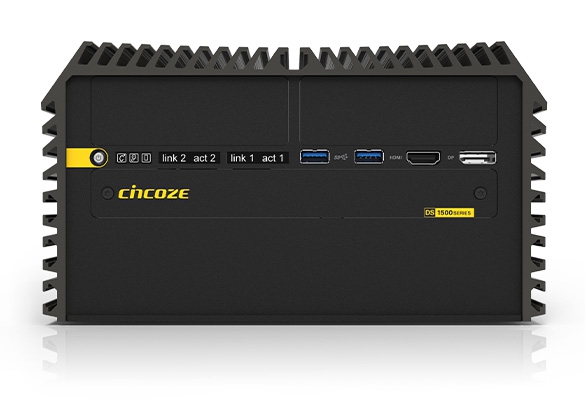

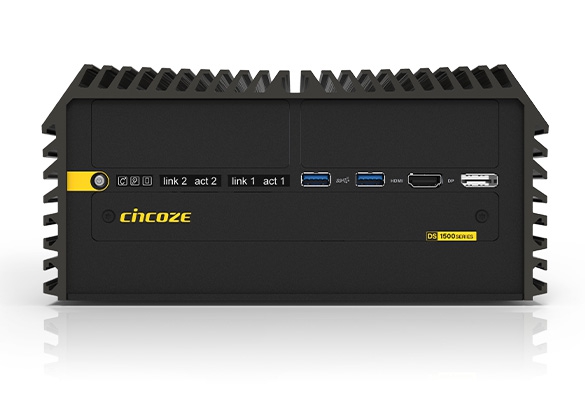

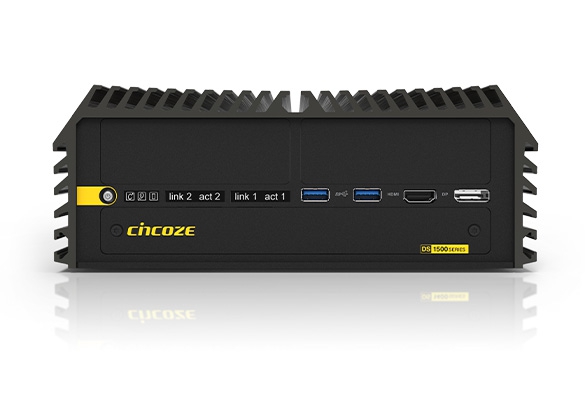

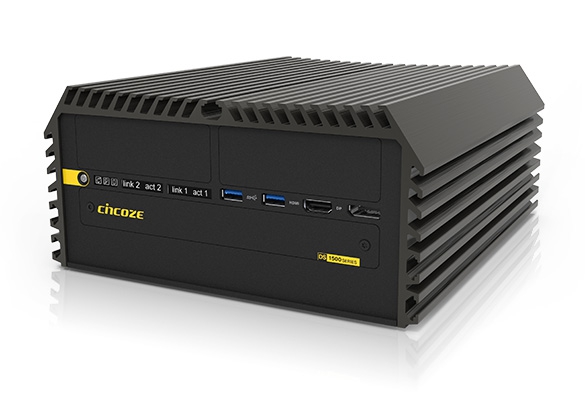

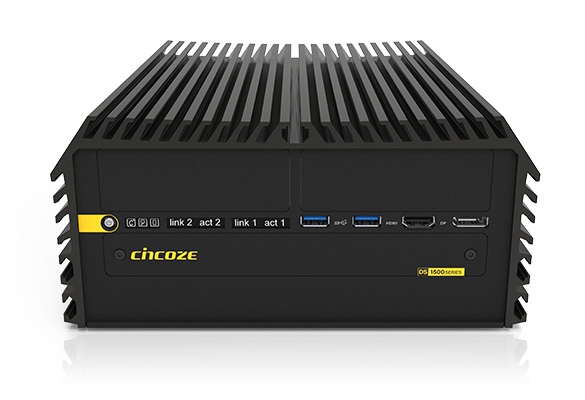

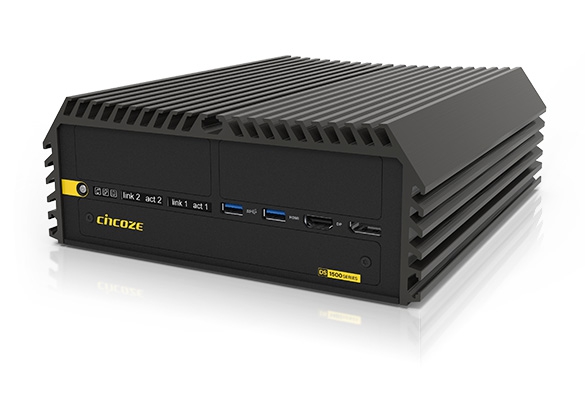

DS-1500 Series
Intel® Arrow Lake-S Core™ Ultra 200S Series Prozessoren, Hochleistungs- und PCIe-erweiterbarer robuster Embedded-Computer, unterstützt bis zu 2x PCI/PCIe-Erweiterungskarten
PRODUKTEIGENSCHAFTEN
- Intel® Arrow Lake-S Core™ Ultra 200S Series (Max. 65 W TDP)
- 2x DDR5 SODIMM/CSODIMM-Steckplätze, bis zu 6400MHz, 96GB
- 2x PCI/PCIe-Erweiterungssteckplätze, bis zu 130W Erweiterung
- Optionale CMI-Module zur I/O-Erweiterung
- Optionale CFM-Module für Hardware-TPM, Zündungserkennung und PoE
- Großer Betriebstemperaturbereich von -40°C bis 60°C
CERTIFICATIONS

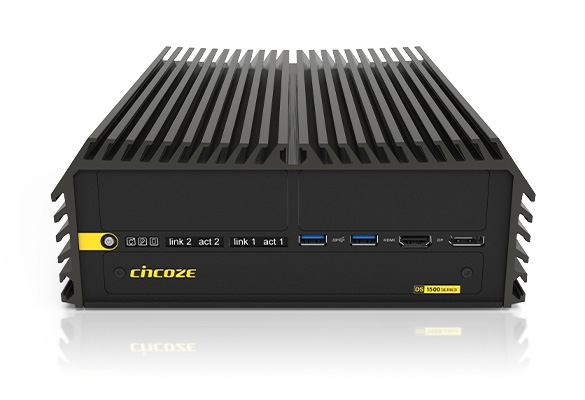

ÜBERBLICK
Die DS-1500 Serie umfasst leistungsstarkere, erweiterbare und robuste Embedded-Computer, die modulare I/O-Erweiterungen und bis zu zwei PCI/PCIe-Steckplätze unterstützen. Mit internationalen Zertifizierungen für stabile und zuverlässige Leistung in rauen Umgebungen eignet sich die Serie ideal für Smart-Manufacturing-Anwendungen, den Bahnbereich und viele weitere Einsatzgebiete.
Product Category >>>> Rugged Embedded Fanless PC
Beschleunigte KI-Fähigkeiten
——
Die Systeme der DS-1500-Serie unterstützen Intel® Core™ Ultra 200S Prozessoren mit integrierter CPU, GPU und NPU und erreichen bis zu 36 TOPS KI-Leistung, was 3,5-mal höher ist als bei der vorherigen Generation. Damit sind sie die ideale Wahl für Edge-AI-Anwendungen.
6400 MHz DDR5 CSODIMM
——
Zwei DDR5-CSODIMM-Steckplätze unterstützen bis zu 96 GB 6400-MHz-Speicher mit ECC-Technologie (Error Correction Code) und gewährleisten höchste Stabilität und Zuverlässigkeit in industriellen Anwendungen.

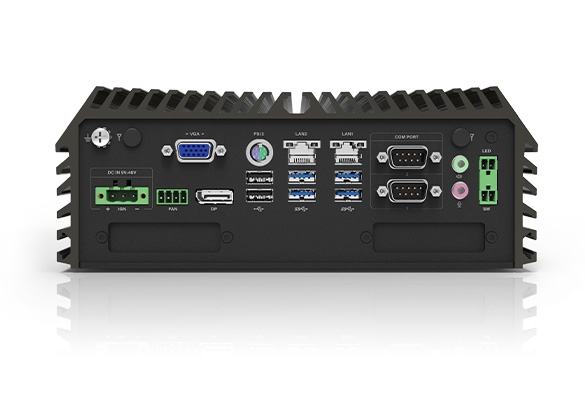

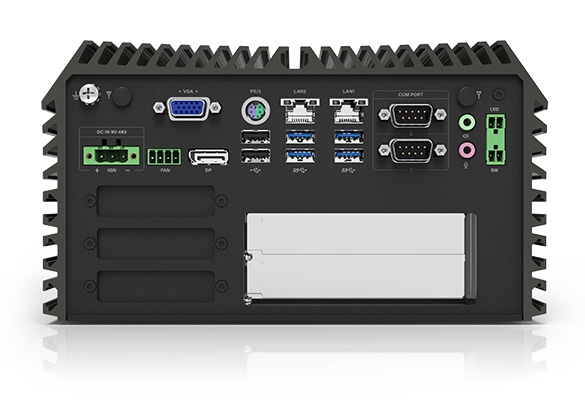

Vielfältige und erweiterbare I/O-Schnittstellen
——
Die DS-1500-Serie bietet umfangreiche native I/O-Schnittstellen sowie modulare I/O-Erweiterungen. Dazu gehören Hochgeschwindigkeitsübertragungen (10 GbE LAN, USB 3.2), industrielle I/O-Ports (COM, DIO, PS/2), Display-Ausgänge sowie M.2-Key-B/M/E-Steckplätze für Funkmodule oder NVMe-SSDs.

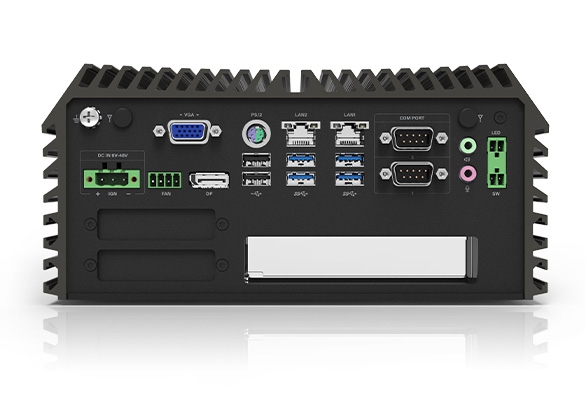

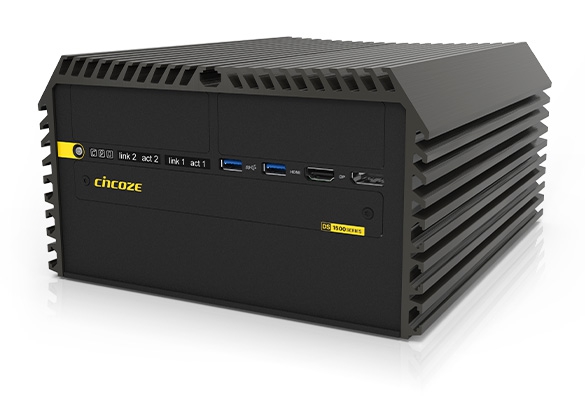

PCI/PCIe mit
patentierter PCIe-Kartenhalterung
——
Je nach Modell unterstützt die Serie bis zu 2× PCI/PCIe-Erweiterungssteckplätze (DS-1502) für I/O-, Bildverarbeitungs-, Datenerfassungs- und Motion-Control-Karten oder eine einzelne 130-W-GPU-Karte (111 × 235 mm). Die patentierte, verstellbare Kartenhalterung fixiert Erweiterungskarten selbst in hochvibrationsbelasteten Umgebungen und gewährleistet einen langfristig stabilen Betrieb.
Robust und zuverlässig
——
Die Embedded-Computer der DS-1500-Serie sind mit Schutzfunktionen in Industriequalität ausgestattet: erweiterter Temperaturbereich (-40 °C bis 60 °C), weiter Eingangsspannungsbereich (9–48 VDC), sowie Schutz vor Überspannung, Überstrom und ESD. Die Serie erfüllt den US-Militärstandard für Schock- und Vibrationsfestigkeit (MIL-STD-810H) sowie Bahnnormen für EMV (EN 50121-3-2) und Brandschutz (EN 45545-2).

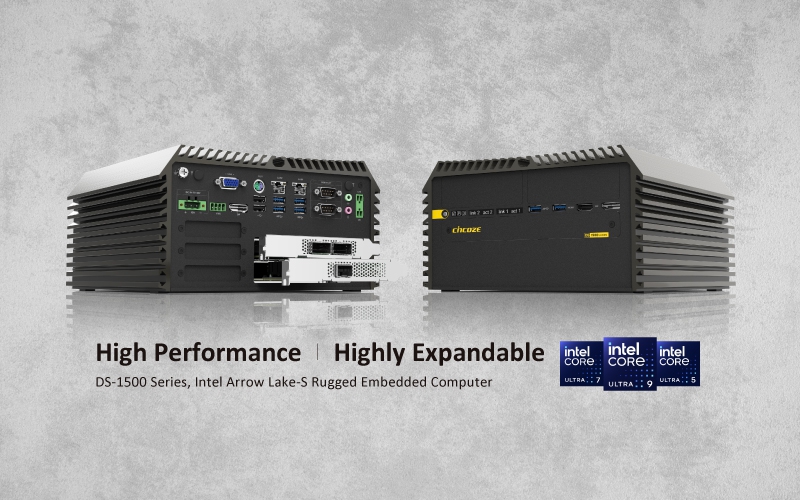

![[ Product Spotlight ] Cincoze Hochleistungs- und PCIe-erweiterbare Industrie-Computer (DS-1500 Serie)](data/images/202509/1757572114884629077.jpg)
![[ Product Spotlight ] Cincoze Hochleistungs- und PCIe-erweiterbare Industrie-Computer (DS-1500 Serie)](data/images/202509/1758173639767519943.jpg)
SPEZIFIKATION
| Model Name | DS-1500 | DS-1501 | DS-1502 | |
|---|---|---|---|---|
| System | Processor | • Arrow Lake-S Ultra 200S Series CPU: | ||
| Chipset | • Intel W880 Chipset | |||
| Memory | • 2x DDR5 SODIMM/CSODIMM Socket, Support Un-buffered and ECC Type - Ultra 9 / 7: Supports Up to 6400MHz, 96GB - Ultra 5: Supports Up to 5600MHz, 96GB | |||
| BIOS | • AMI BIOS | |||
| Graphics | Graphics Engine | • Integrated Intel® Xe LPG Graphics | ||
| Maximum Display Output | • Supports Quad Independent Display | |||
| VGA | • 1x VGA Connector : 1920 x 1200@60Hz | |||
| DP | • 2x DP Connector : 4096 x 2304@60Hz - Support cable switch HDMI 4096 x 2160@30Hz * Verified maximum resolution: 3840 x 2160@60Hz | |||
| HDMI | • 1x HDMI Connector : 4096 x 2160@30Hz * Verified maximum resolution: 3840 x 2160@30Hz | |||
| Audio | Audio Codec | • Realtek® ALC888, High Definition Audio | ||
| Line-out | • 1 x Line-out, Phone Jack 3.5mm | |||
| Mic-in | • 1 x Mic-in, Phone Jack 3.5mm | |||
| I/O | LAN | • 1x 2.5 GbE LAN, RJ45 - GbE1: Intel® I225 • 1x GbE LAN, RJ45 - GbE2: Intel® I219 | ||
| COM | • 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |||
| USB | • 2x 10Gbps USB 3.2 Gen2x1, Type A • 4x 5Gbps USB 3.2 Gen1x1, Type A • 2x 480Mbps USB 2.0, Type A | |||
| PS/2 | • 1 x PS/2, 6 Pin Mini-DIN Female Connector | |||
| Storage / Expansion | 2.5" SSD / HDD | • 1x 2.5" Front Accessible SATA HDD/SSD Bay ( SATA 3.0 ) • 1x 2.5" Internal SATA HDD/SSD Bay ( SATA 3.0 ) | ||
| M.2 Key B Socket | • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 4x2 / USB3.2 Gen2x1 / SATA), Support 5G / GNSS / Storage / Add-on Card Expansion • 2x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / SATA), Support GNSS / Storage / Add-on Card Expansion | |||
| M.2 Key M Socket | • 1x M.2 Key M Type 2280 Socket (PCIe Gen3 x4 / SATA), Support Storage / Add-on Card Expansion | |||
| PCI Express | • 1 x PCI/PCIe Expansion Slot with Optional Riser Card * Supports maximum dimensions of add-on card (H x L) : 111 x 235 mm * Supports GPU card up to 75W | • 2 x PCI/PCIe Expansion Slot with Optional Riser Card * Supports maximum dimensions of add-on card (H x L) : 111 x 235 mm * Supports GPU card up to 130W | ||
| SIM | • 2x SIM Socket | |||
| CMI (Combined Multiple I/O) Socket | • 2x High Speed CMI Interface for optional CMI Module Expansion • 2x Low Speed CMI Interface for optional CMI Module Expansion | |||
| CFM (Control Function Module) Socket | • 1x CFM IGN Interface for optional CFM-IGN Module Expansion • 1x CFM-TPM Interface for optional CFM-TPM Module Expansion | |||
| Other Function | RAID | • Support RAID 0/1/5/10 | ||
| External FAN Connector | • 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) | |||
| Power Ignition Sensing | • Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module) | |||
| TPM | • Support Discrete TPM2.0 (with Optional CFM Module) | |||
| Clear CMOS Switch | • 1x Clear CMOS Switch | |||
| Reset Button | • 1x Reset Button | |||
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | |||
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |||
| Antenna Holes | • 2 | |||
| Power | Power Button | • 1 x ATX Power On/Off Button | ||
| Power Mode Switch | • 1 x AT/ATX Mode Switch | |||
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | |||
| Remote Power On/Off | • 1 x Remote Power On/Off, 2-pin Terminal Block | |||
| Remote Power LED | • 1 x Remote Power LED, 2-pin Terminal Block | |||
| Max. Power Consumption | • 35W CPU: 163W • 65W CPU: 262.8W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing | |||
| Inrush Current (Peak) | • 35W CPU: 5.812 A@24V • 65W CPU: 5.983 A@24V | |||
| Physical | Dimension ( W x D x H ) | • 227x261x88 mm | • 227x261x108 mm | • 227x261x128 mm |
| Weight Information | • 4.9 KG | • 5.3 KG | • 5.7 KG | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | |||
| Mounting | • Wall Mount | |||
| Physical Design | • Fanless Design • Cableless Design • Jumper-less Design • Unibody Design | |||
| Reliability & Protection | Reverse Power Input Protection | • Yes | ||
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |||
| Over Current Protection | • 15A | |||
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | |||
| MTBF | • 307,224 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |||
| Operating System | Windows | • Windows®11, Windows®10 | ||
| Linux | • Ubuntu 24.04 | |||
| Environment | Operating Temperature | • 35W TDP Processor: -40°C to 60°C (-40℉ to 140℉) • 65W TDP Processor: -40°C to 50°C (-40℉ to 122℉) With External Fan Kit - With extended temperature peripherals; Ambient with air flow - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 | ||
| Storage Temperature | • -40°C to 85°C (-40℉ to 185℉) | |||
| Relative Humidity | • 95%@60°C (non-Condensing) | |||
| Shock | • MIL-STD-810H | |||
| Vibration | • MIL-STD-810H | |||
| EMC | • CE, UKCA, FCC, ICES-003 Class A | |||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |||
| Railway | • EMC: EN 50155: 2021 Clause 4.4.6, 13.4.9 - EN 50121-1 : 2017 - EN 50121-3-2: 2016 + A1: 2019 | |||
| Fire Protection | • EN 45545-2 | |||
BESTELLINFORMATIONEN
| Model No. | Description |
|---|---|
| DS-1500-R10 | Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer |
| DS-1501-R10 | Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer, Supporting 1x PCI/PCIe Expansion Card |
| DS-1502-R10 | Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer, Supporting 2x PCI/PCIe Expansion Cards |
| DS-1500 Series Embedded System x 1 | Heatsink Pack x 1 |
| Wall Mounting Kit x 1 | Screw Pack x 1 |
| Power Terminal Block Connector x 1 | Remote Function Terminal Block Connector x 2 |
| Fan Terminal Block Connector x 1 | M.2 Key B Type 3052 to 3042 Adapter Bracket x 3 |
| Model No. | Description |
|---|---|
| CMI-LAN01-R12 | CMI Module with 4x RJ45 Intel I210 GbE LAN Ports |
| CMI-M12LAN01-R12 | CMI Module with 4x M12 Intel I210 GbE LAN Ports |
| CMI-XM12LAN01-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports |
| CMI-10GLAN03-R10 | CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port |
| CMI-COM02 | CMI Module with 4x RS232/422/485 Serial Ports |
| CMI-ICOM01 | CMI Module with 4x Electrical Isolated RS232/422/485 Serial Ports |
| CMI-DIO02 | CMI Module with 16x Optical Isolated DIO (8 in/8 out) |
| CFM-PoE03 | CFM Module with PoE Control Function, Individual Port 25.5W |
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable |
| CFM-TPM01-R10 | CFM Module with Hardware TPM 2.0 |
| RC-E16-01 | Riser Card with 1 x PCIex16 Slot |
| RC-PI-01 | Riser Card with 1 x PCI Slot |
| RC-E8E8-R10 | Riser Card with 2 x PCIex8 Slots |
| RC-E16E1-01 | Riser Card with 1x PCIex16, 1x PCIex1 slots, supports GPU card up to 75W |
| RC-E16E1-02-R10 | Riser Card with 1x PCIex16, 1x PCIex1 slots, and auxiliary power connector, supports GPU card up to 130W |
| RC-E16PI-01 | Riser Card with 1x PCIex16 and 1x PCI Slots (PCIe x16 Slot Supports Single Deck Add-on Card) |
| RC-PIPI-01 | Riser Card with 2x PCI Slots |
| AC-BE01-R10 | M.2 Key B Type 2242 to M.2 Key E Type 2230 Adapter Card |
| UB1004 | Universal Bracket with 4x DB9 Cutout |
| UB1010 | Universal Bracket with 4x M12 Cutout |
| UB1012 | Universal Bracket with 4x RJ45 Cutout |
| UB1018 | Universal Bracket with DIO Cutout |
| UB1028 | Universal Bracket with 2x RJ45 Cutout |
| UB1030-R10 | Universal Bracket with 4x M12 X-Coded Cutout |
| UB0303 | 2x Universal Bracket each with 1x DB9 Cutout |
| UB0311 | Universal Bracket with 2x RJ45 Cutout |
| UB0331-R10 | Universal Bracket with 2x Antenna Hole |
| FAN-EX101 | External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan |
| FAN-UB100 | Internal Exhaust Fan with 4pin Connector |
| FAN-UB101 | Internal Intake Fan with 4pin Connector |
| MEC-LAN-2002i-S | M.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board (0℃~+70℃), 2x RJ45 Connector, Cervoz |
| MEC-LAN-2002i | M.2 2242/2260/2280 (B+M key) 2-port 10/100/1000 isolated Ethernet board (-40℃~+85℃), 2x RJ45 Connector, Cervoz |
| MEC-LAN-2602i | M.2 2280 (B+M key) 2-port 2.5GbE isolated Ethernet board(-40℃~+85℃), 2x RJ45 Connector, Cervoz |
| MEC-COM-2012 | M.2 2242/2260/2280 (B+M key) 2-port RS-232 serial board (-40℃~+85℃), 2x DB9 Connector, Cervoz |
| MEC-COM-2032i | M.2 2242/2260/2280 (B+M key) 2-port RS-232/422/485 isolated serial board (-40℃~+85℃), 2x DB9 Connector, Cervoz |
| MEC-CAN-2812i | M.2 2242/2260/2280 (B+M key) dual isolated CAN bus 2.0B board (-40℃~+85℃), 2x DB9 Connector, Cervoz |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST360A24-CIN | Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug and Tubes, Level VI |
| RSD-200D-24 | Railway Single Output DC-DC Converter 200W / DC 24V |
| Power Cable | 1M Power Cable with 3-Pin Terminal Block Plug, Stripped and Tinned End with Tube |
