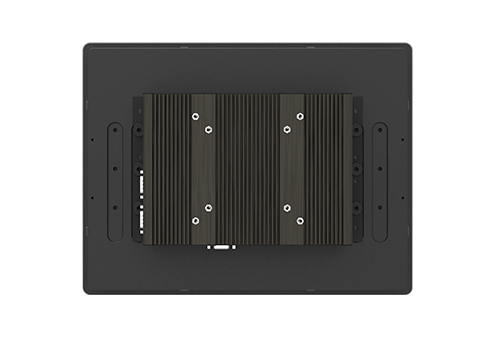

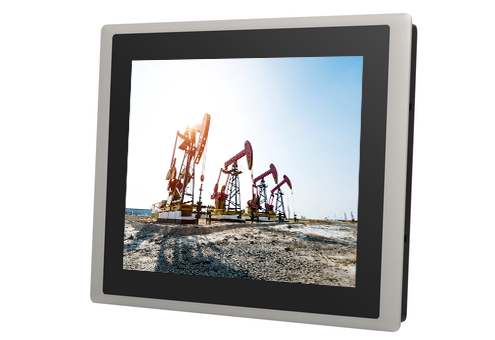

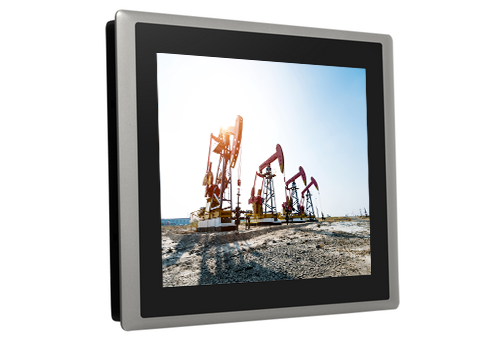

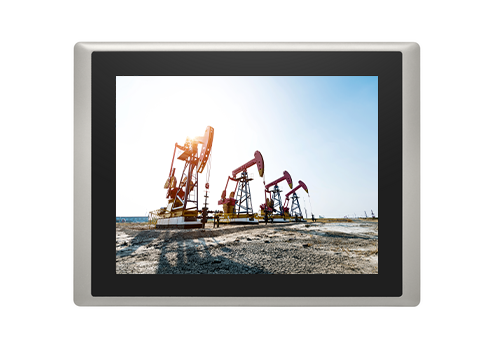

CS-112H / P1301 Series
12,1" TFT-LCD sonnenlichtlesbarer modularer Panel PC mit Intel® Alder Lake-N Serie Prozessor
PRODUKTEIGENSCHAFTEN
- 12,1" TFT-LCD XGA mit ultrahoher Helligkeit von bis zu 1.500 nits
- Intel® Alder Lake-N Core i3-N305, Prozessor N97 und Atom® x7425E-Prozessor onboard
- 1 x DDR5 SO-DIMM Sockel, unterstützt bis zu 4800MHz & 16GB Speicher
- 1x M.2 Key E Type 2230 Socket for Wireless/Bluetooth/Intel CNVi Module Expansion
- 1x M.2 Key B Type 3042/3052 Socket for 5G/GNSS/Storage/Add-on Card Expansion
- Frontplatte IP65-konform
- Robuste Frontblende aus Aluminiumdruckguss
- Unterstützt Panel / VESA / Rack-Montage
- Unterstützt die patentierte CDS-Technologie von Cincoze (Patent Nr. M482908)
ÜBERBLICK
Die CS-100/P1301-Serie ist ein sonnenlicht-lesbarer Panel-PC mit einer ultrahohen Helligkeit von bis zu 1.800 nits. Er ist mit einem Intel® Alder Lake-N Prozessor ausgestattet und bietet eine umfassende Auswahl an Bildschirmgrößen, -verhältnissen und -helligkeiten. Eine reiche I/O-Ausstattung, flexible Erweiterungsmöglichkeiten, Robustheit, einfache Wartung vor Ort und andere Funktionen machen die CS-100/P1301-Serie zur besten Wahl für Outdoor-Kiosk- oder HMI-Anwendungen.
Product Category >>>> Modular Panel PC & Industrial Monitor
KI und Multitasking-Leistung
——
Die CS-100/P1301 ist mit einem Intel Alder Lake-N Quad-Core-Prozessor auf Basis des Intel® 7-Prozesses ausgestattet. Im Vergleich zur vorherigen Elkhart Lake-Plattform wurde die CPU Single Thread Leistung um bis zu 130 % verbessert, und die Multi Thread Leistung wurde um 109 % verbessert. Der integrierte UHD-Grafikchip verbessert die KI-Inferenz mit einer 6,85-fachen Objekterkennungsleistung.
Bequeme Upgrades und Reparaturen
——
Die patentierte Cincoze Convertible Display System (CDS) - Technologie erleichtert Wartung und zukünftige Upgrades vor Ort. Das Austauschen eines Displays oder die Verbesserung der Systemleistung erfordert nur den Austausch eines einzigen Bauteils, was die Upgrade-Kosten erheblich senkt.
Patent No. M482908Umfassendes Produktsortiment
——
Die CS-100/P1301-Serie bietet eine Vielzahl von Displayoptionen mit Bildschirmgrößen von 8,4 bis 24 Zoll, Unterstützung für bis zu Full HD-Auflösung, hohe Helligkeit von bis zu 1.800 nits und Multi Point P-Cap-Touchscreen, die je nach Anwendungsbedarf ausgewählt werden können.
Weiter Temperaturbereich, sicher und zuverlässig
——
Um die anspruchsvolle Outdoor-Umgebung und das unvorhersehbare Wetter zu bewältigen, verfügt die CS-100/P1301-Serie über eine Reihe von industriellen Schutzvorrichtungen, einschließlich eines weiten Betriebstemperaturbereichs, der den Industriestandard übertrifft, und einem staubdichten/wasserdichten IP65-Frontpanel, um ein hohes Maß an Produktsicherheit zu gewährleisten.
Video
RESOURCES
![[ Product Spotlight ] Cincoze Panel-PC Lösungspalette](data/images/202407/1721110724495095645.jpg)
SPEZIFIKATION
CS-112H
| Model Name | CS-112HC | |
|---|---|---|
| Display | LCD Size | 12.1" (4:3) |
| Max. Resolution | 1024 x 768 (XGA) | |
| Brightness (cd/m2) | 1500 | |
| Contrast Ratio | 700 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch (mm) | 0.24 (H) x 0.24 (V) | |
| Viewing Angle (H-V) | 160 / 140 | |
| Backlight LED Life Time | 50,000 hrs (LED Backlight) | |
| Touch Screen | Touchscreen Type | Projected Capacitive |
| Wet Touch Tracking | V | |
| Physical | Dimension (W x D x H) | 345 x 265.3 x 57 mm |
| Weight Information | 3.16 kg | |
| Mechanical Construction | Flat Rugged Aluminum Die-casting Bezel | |
| Power | Power Consumption | 16.22W (Typ.) |
| Environment | Front Panel Protection | IP 65 Compliant |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) (With Industrial Grade Peripherals; Ambient with air flow) | |
| Storage Temperature | -30°C to 80°C (-22°F to 176°F) | |
| Relative Humidity | 90% RH @ 40°C (Non-condensing) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
P1301
| Model Name | P1301 | |
|---|---|---|
| System | Processor | • Onboard Intel® Alder Lake-N Series Processor: - Intel® Core™ i3-N305 8 Cores Up to 3.80 GHz, TDP 15W - Intel® Processor N97 4 Cores Up to 3.60 GHz, TDP 12W - Intel Atom® x7425E 4 Cores Up to 3.40 GHz, TDP 12W |
| Memory | • 1x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and Non-ECC Type, Up to 16GB | |
| BIOS | • AMI BIOS | |
| Graphics | Graphics Engine | • Integrated Intel® UHD Graphics |
| Maximum Display Output | • Supports Triple Independent Display | |
| CDS | • 1x CDS Connector (1920 x 1080 @60Hz) | |
| DP | • 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz | |
| VGA | • 1x VGA Connector (1920 x 1200 @60Hz) | |
| Audio | Audio Codec | • Realtek® ALC888, High Definition Audio |
| Line-out | • 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | • 1x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | • 2x 2.5GbE LAN, RJ45 - GbE1 / GbE2: Intel® I225 |
| COM | • 2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 | |
| USB | • 3 x USB 3.2 Gen2x1 (10Gbps), Type A • 1 x USB 2.0 (480Mbps), Type A | |
| DIO | • 8x Isolated Digital I/O (4in/4out), 10-Pin Terminal Block | |
| Storage / Expansion | 2.5” SSD/HDD | • 1x 2.5" Front Accessible SATA HDD/SSD Bay |
| M.2 Key E Socket | • 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Bluetooth/Intel CNVi Module Expansion | |
| M.2 Key B Socket | • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1 / USB3.2 Gen2 x1 / SATA ), Support 5G/GNSS/Storage/Add-on Card Expansion | |
| SIM Socket | • 1x Front Accessible SIM Socket | |
| CFM (Control Function Module) Interface | • 1x CFM Interface for optional IGN Module Expansion • 1x CFM Interface for optional PoE Module Expansion | |
| Other Function | Clear CMOS Switch | • 1 x Clear CMOS Switch |
| Reset Button | • 1x Reset Button | |
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |
| OSD Function | • LCD On/Off, Brightness Up, Brightness Down | |
| Internal Speaker | • AMP 2W + 2W | |
| Status LED Indicator | • Power LED, HDD LED | |
| Power | Power Button | • 1x ATX Power On/Off Button |
| Power Mode Switch | • 1x AT/ATX Mode Switch | |
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | • 1x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | • 1x Remote Power LED, 2-pin Terminal Block | |
| Max. Power Consumption | • i3-N305 CPU: 48.59W • N97 CPU: 34.04W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing | |
| Inrush Current (Peak) | • i3-N305 CPU: 5.538 A@12V • N97 CPU: 5.242 A@12V | |
| Operating Stystem | Microsoft® Windows® | • Windows®11, Windows®10 |
| Linux | • Ubuntu Desktop 22.04 LTS | |
| Physical | Dimension ( W x D x H ) | • 204.5 x 149 x 46.5mm |
| Weight | • 1.57 kg | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | |
| Mounting | • Wall / VESA / CDS / DIN Rail | |
| Physical Design | • Fanless Design • Jumper-less Design | |
| Reliability & Protection | Reverse Power Input | • Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the present level to recover | |
| Over Current Protection | • 15A | |
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | • 306,338 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Environment | Operating Temperature | • Intel® Processor N97 / Atom® x7425E: -40°C to 70°C (-40°F to 158°F) • Intel® Core™ i3-N305: -40°C to 60°C (-40°F to 140°F) * PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | • -40°C to 85°C (-40°F to 185°F) | |
| Relative Humidity | • Intel® Processor N97 / Atom® x7425E: 95%RH @ 70°C (non-Condensing) • Intel® Core™ i3-N305: 95%RH @ 60°C (non-Condensing) | |
| Shock | • Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |
| Vibration | • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN61000-6-4, EN61000-6-2 @ DC-input 24V | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded ethernet cable.) • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
BESTELLINFORMATIONEN
| Model No. | Product Description |
|---|---|
| CS-112HC-R11/P1301-N97-R10 | 12.1“ TFT-LCD 1500nits Sunlight Readable Touch Panel PC with Intel® Processor N97 Quad Core Slim Embedded Computer and P-Cap. Touch |
| CS-112HC-R11/P1301-X7425E-R10 | 12.1“ TFT-LCD 1500nits Sunlight Readable Touch Panel PC with Intel® Atom® x7425E Quad Core Slim Embedded Computer and P-Cap. Touch |
| CS-112HC-R11/P1301-i3-R10 | 12.1“ TFT-LCD 1500nits Sunlight Readable Touch Panel PC with Intel® Core i3-N305 Octa Core Slim Embedded Computer and P-Cap. Touch |
| CS-112HC | P1301-N97 | P1301-X7425E | P1301-i3 | |
|---|---|---|---|---|
| CS-112HC/P1301-N97 | V | V | -- | -- |
| CS-112HC/P1301-X7425E | V | -- | V | -- |
| CS-112HC/P1301-i3 | V | -- | -- | V |
| • CS-112H/P1301 Series Panel PC x 1 | • Power Terminal Block Connector x 1 |
| • Thermal Pad (for CPU Thermal Block) x 1 | • Remote Function Terminal Block Connector x 1 |
| • Screw Pack x 2 | • DIO Terminal Block Connector x 1 |
| • Panel Mounting Kit x 8 | • M.2 Key B Type 3052 to 3042 Adapter Bracket x 1 |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm) |
| CFM-PoE02 | CFM Module with PoE Control Function, Individual Port 25.5W |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
