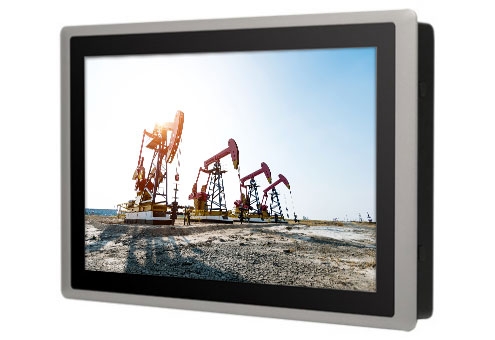

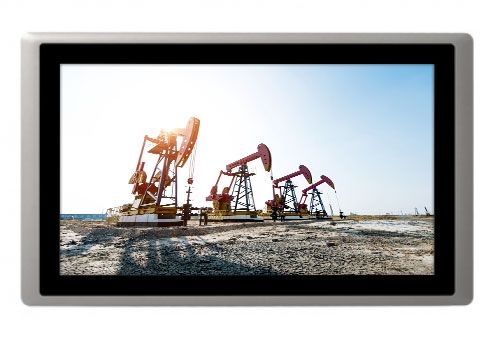

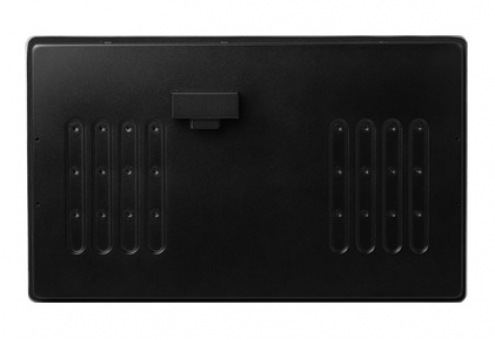

CS-W115FHC

EOL Model
15.6" TFT-LCD Sunlight Readable Display Module
PRODUKTEIGENSCHAFTEN
  • 15.6” TFT-LCD with Ultra High Brightness up to 1,500 nits and 1920x1080 (Full HD) Resolution
  • Wide Range Operating Temperature -10°C to 70°C
  • True Flat IP65 Front Panel Protection
  • Rugged Aluminum Die-casting Bezel
  • Convertible Display System (CDS) Technology Supported
ZUR ANFRAGE HINZUFÜGEN DATENBLATT
ÜBERBLICK
CS-W115FHC Series is 15.6" TFT-LCD touch display module. It offers 1,500 nits ultra high brightness and 1920 x 1080 (Full HD) resolution, allowing viewers to see clear images even under any bright ambient light or direct sunlight environments. CS-W115FHC Series is a rugged and reliable display solution featuring wide range operating temperature -10°C to 70°C, a solid aluminum die-casting front bezel and true flat IP65 front panel protection. Supporting Convertible Display System (CDS) technology, CS-W115FHC Series allows you to configure, upgrade and maintain your display system according to your need.

>>>> Embedded Computers Technology
RESOURCES
Cincoze’s Latest Sunlight Readable Display Modules — The Cornerstone of IoT’s Evolution
2022-03-16
Cincoze’s Latest Sunlight Readable Display Modules — The Cornerstone of IoT’s Evolution
Cincoze All-New Wide-Angle FHD Sunlight-Readable Display Modules
2021-12-15
Cincoze All-New Wide-Angle FHD Sunlight-Readable Display Modules
Cincoze CS-115 / P1101 Increases Working Efficiency for Highway Toll Collection Terminals
2021-09-17
Cincoze CS-115 / P1101 Increases Working Efficiency for Highway Toll Collection Terminals
Cincoze Sunlight-Readable Industrial Panel PCs — Building More Comfortable and Convenient Smart Cities
2021-04-28
Cincoze Sunlight-Readable Industrial Panel PCs — Building More Comfortable and Convenient Smart Cities
More Fun, Less Wait - A Water Park Eliminated Lines with Cincoze Powered Virtual Queue Kiosks
2020-11-27
More Fun, Less Wait - A Water Park Eliminated Lines with Cincoze Powered Virtual Queue Kiosks
Cincoze Industrial Panel PCs: Powering Smart Factories
2020-11-11
Cincoze Industrial Panel PCs: Powering Smart Factories
Cincoze Sunlight Readable Solution Meets Outdoor Readability Challenge
2019-08-05
Cincoze Sunlight Readable Solution Meets Outdoor Readability Challenge
SPEZIFIKATION
Model NameCS-W115FHC
DisplayLCD Size15.6" (16:9)
Max. Resolution1920 x 1080 (Full HD)
Brightness (cd/m2)1500
Contrast Ratio700 : 1
LCD Color16.7M
Pixel Pitch (mm)0.17925 (H) x 0.17925 (V)
Viewing Angle (H-V)160 / 140
Backlight MTBF50,000 hrs (LED Backlight)
TouchResistive 5-wire-
Projected CapacitiveV
PhysicalDimension (WxHxD)420 x 254 x 66.2 mm
Weight4.00kg
Front Panel Construction Rugged Aluminum Die-casting Front Bezel
Reliability & ProtectionFront Panel ProtectionIP65 Compliant
EnvironmentOperating Temperature-10°C to 70°C
Storage Temperature-20°C to 70°C
Relative Humidity95%RH @ 39°C (non-condensing)
EMCCE, FCC, ICES-003 Class A
BESTELLINFORMATIONEN
Available Models
Model No.Product Description
CS-W115FHC-R1015.6" TFT-LCD 1500 nits Full HD 16:9 Display Module with Projected Capacitive Touch

Package Checklist
√ CS-W115FHC Display Module x 1
√ Panel Mounting Kit x 1


DOWNLOADS
Datenblatt
BetreffVeröffentlichungsdatumDownload
CS-W115FHC Datasheet2021/12/02Download
Handbuch
BetreffVeröffentlichungsdatumDownload
CS-100 Series User Manual2025/04/30Download
