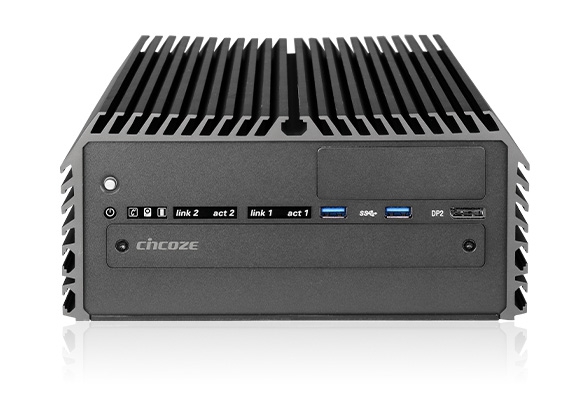

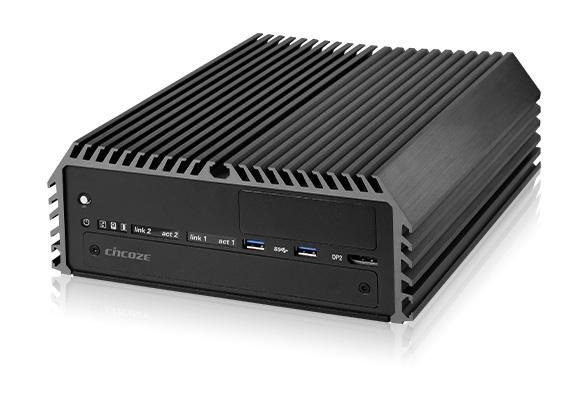

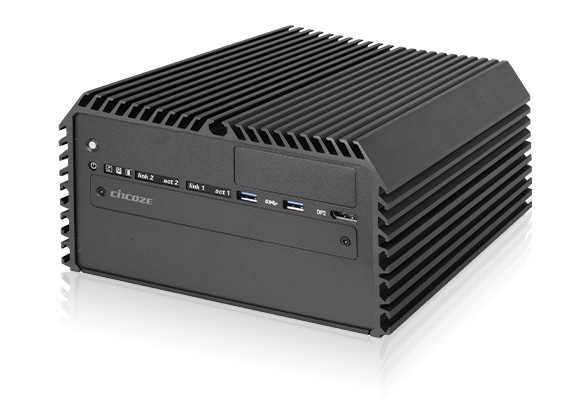

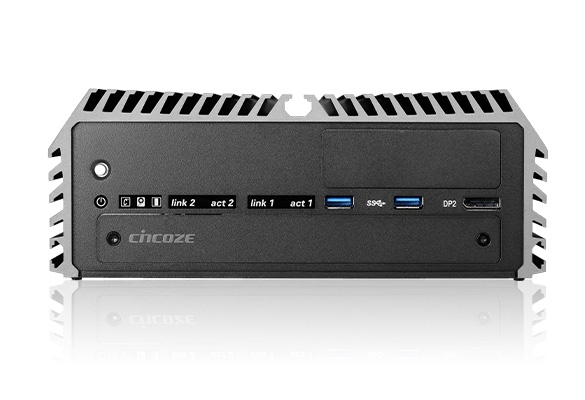

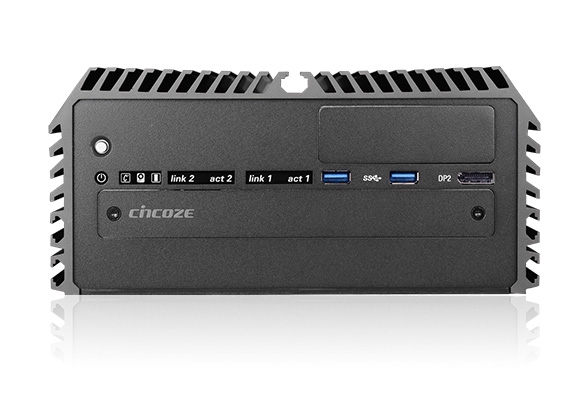

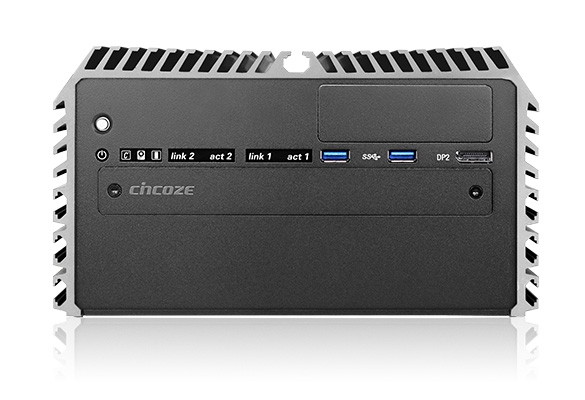

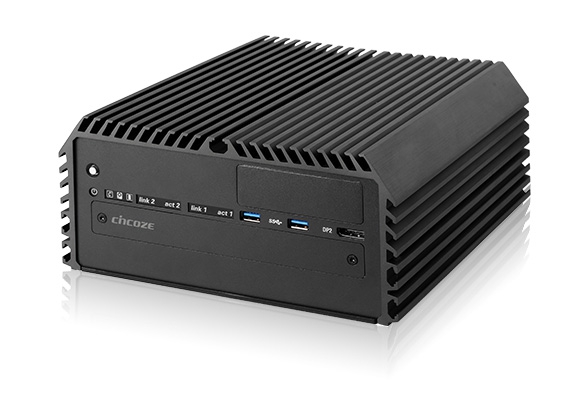

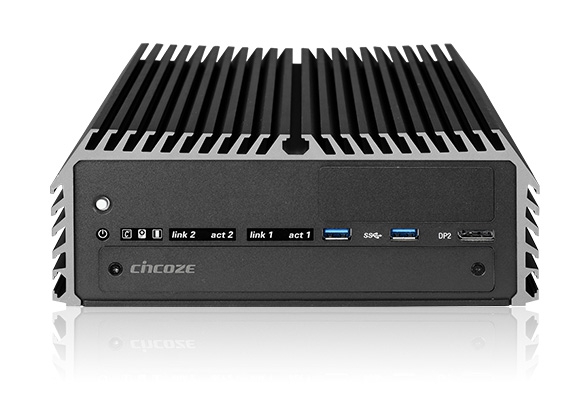

DS-1100 Series
7./6. Generation Intel Core Prozessoren, Hochleistungsfähiger, erweiterbarer und modularer robuster Embedded-Computer, unterstützt bis zu 2x PCI/PCIe Erweiterungssteckplätze.
PRODUKTEIGENSCHAFTEN
- Supports 7/6th-Gen Intel® Core™ i3 / i5 / i7 Socket-type CPU (LGA1151)
- 2x DDR4 SO-DIMM Socket, 2,133 / 2,400 MHz, Supports Up to 64 GB
- Triple Independent Display (1x DVI-I, 2x DP)
- 2x 2.5" SATA HDD/SSD bay (Gen3), Supports RAID 0/1
- Up to 2x PCI/PCIe expansion slots
- 2x CMI Interfaces with 6 Types of Optional Modules for I/O Expansion
- 1x CFM Interface for Adding Optional Power Ignition Sensing (IGN) Module
- Supports 3x Full-size Mini-PCIe Slot for Wireless & I/O Expansion
- Wide Operating Temperature (-40°C to 70°C)
- EN50121-3-2 Certified/ LVD EN62368-1
- E-Mark (E13, No.10R-0514229) Certified
ÜBERBLICK
Die Cincoze DS-1100 Serie ist ein hochleistungsfähiger, lüfterloser Embedded-Computer, der von der 7./6. Generation der Intel® Core™-Plattform angetrieben wird und eine breite Palette von Desktop-CPUs (Sockeltyp, LGA1151) unterstützt. Er verfügt über zwei DDR4-Sockel mit bis zu 64 GB, wodurch die DS-1100 Serie alle Arten von High-End-Computing-Anforderungen erfüllen kann. Die DS-1100 Serie bietet leistungsstarke Funktionen wie zahlreiche I/Os, Power over Serial, elektrisch isolierte serielle Ports, optisch isolierte digitale I/Os, mehrere LANs, Power over Ethernet, M12-Anschlüsse, RAID 0/1, Power Ignition Sensing und Instant Reboot. Dank der CMI- und CFM-Technologie von Cincoze können Sie die DS-1100 Serie mit einsatzbereiten Modulen an Ihre spezifischen Bedürfnisse anpassen. Die DS-1100 Serie unterstützt auch maximal 2 PCI/PCIe-Erweiterungssteckplätze mit unterschiedlichen Schnittstellenkombinationen zur Erweiterung von Anwendungs-Erweiterungskarten. Die DS-1100 Serie ist ein wirklich robustes Computersystem mit einem breiten Betriebstemperaturbereich (-40°C bis 70°C), einem breiten DC-Stromeingangsbereich (von 9V bis 48V), hoher Toleranz gegenüber Schock und Vibration, industriellem Hochschutzstandard und integriertem SuperCap für wartungsfreien Batteriebetrieb. Die DS-1100 Serie ist geeignet für den Einsatz in rauen Umgebungen und für kritische Anwendungen und ist völlig wartungsfrei.
RESOURCES
SPEZIFIKATION
| Model Name | DS-1100 | DS-1101 | DS-1102 | |
|---|---|---|---|---|
| System | Processor | • 7th Generation Intel® CPU (Kaby Lake-S) - Intel® Core™ i7-7700T Processor (8M Cache, up to 3.8 GHz, 35W TDP) - Intel® Core™ i5-7500T Processor (6M Cache, up to 3.30 GHz, 35W TDP) - Intel® Core™ i3-7101TE Processor (3M Cache, 3.40 GHz, 35W TDP) - Intel® Celeron® G3930TE Processor (2M Cache, 2.70 GHz, 35W TDP) - Intel® Core™ i7-7700 Processor (8M Cache, up to 4.20 GHz, 65W TDP) - Intel® Core™ i5-7500 Processor (6M Cache, up to 3.80 GHz, 65W TDP) - Intel® Celeron® G3930E Processor (2M Cache, 2.90 GHz, 54W TDP) • 6th Generation Intel® CPU (Skylake-S) - Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz, 35W TDP) - Intel® Core™ i5-6500TE Processor (6M Cache, up to 3.30 GHz, 35W TDP) - Intel® Core™ i3-6100TE Processor (4M Cache, 2.70 GHz, 35W TDP) - Intel® Pentium® Processor G4400TE (3M Cache, 2.40 GHz, 35W TDP) - Intel® Celeron® Processor G3900TE (2M Cache, 2.30 GHz, 35W TDP) - Intel® Core™ i7-6700 Processor (8M Cache, up to 4.00 GHz, 65W TDP) - Intel® Core™ i5-6500 Processor (6M Cache, up to 3.60 GHz, 65W TDP) - Intel® Core™ i3-6100 Processor (3M Cache, 3.70 GHz, 51W TDP) - Intel® Pentium® Processor G4400 (3M Cache, 3.30 GHz, 54W TDP) - Intel® Celeron® Processor G3900 (2M Cache, 2.80 GHz, 51W TDP) | ||
| Chipset | Intel Q170 | |||
| BIOS | AMI 16 Mbit SPI BIOS | |||
| Memory | 2x DDR4 2133/2400 MHz SO-DIMM Sockets * Core I 7th Generation / Celeron Processor Supports Up to 2400MHz * Core I 6th Generation / Pentium / Celeron Processor Supports Up to 2133MHz Supports Un-buffered and Non-ECC Type Up to 64 GB | |||
| Graphics | Graphics Engine | Intel® HD Graphics supports triple independent display (1x DVI-I, 2x DisplayPort) | ||
| Audio | Audio Codec | ．Realtek® ALC888-GR ．High Definition Audio | ||

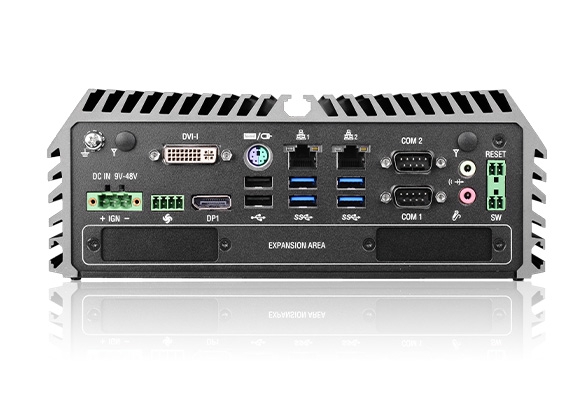

| I/O Interface | Connector | •1x DVI-I Connector, Resolution 1920 x 1080 | ||
| DisplayPort | •2x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840x2160 | |||
| LAN | •2x GbE LAN (Support WoL, Teaming, Jumbo Frame and PXE), RJ45 -GbE1: Intel I219-LM -GbE2: Intel I210 | |||
| COM | •2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 | |||
| USB | •6x USB 3.2 Gen1, Type-A •2x USB 2.0, Type-A | |||
| Mic-in | •1x Line-out & 1x Mic-in, Phone Jack 3.5mm | |||
| Power On/Off Switch Button | •1x ATX Power On/Off Switch | |||
| Mode Switch | •1x AT/ATX Mode Switch | |||
| CMOS Switch | •1x Clear CMOS Switch | |||
| Remote Power On/Off Connector | •1x Remote Power On/Off Connector, 2-Pin Terminal Block | |||
| Terminal Block | •1x Remote Reset Connector, 2-Pin Terminal Block •1x External FAN Connector, 4-Pin Terminal Block | |||
| Storage | SSD/HDD | 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) | ||
| mSATA | 3x mSATA (shared by Mini-PCIe socket) (Gen3) | |||
| Power Requirement | Power Type | •AT / ATX | ||
| Power Supply Voltage | •9~48VDC | |||
| Terminal | •One 3-Pin Terminal Block Connector | |||
| Power Adapter | •Power Adapter AC/DC 24V/5A 120W or 24V/9.2A 220W (Optional) | |||
| Expansion | CFM (Control Function Module) Interface | •Supports CFM (Control Function Module) Technology - CFM IGN Module | ||
| CMI (Combined Multiple I/O) Interface | •Supports CMI (Combined Multiple I/O) Technology -4x RJ45 GbE LAN Module -4x M12 GbE LAN Module -4x RJ45 GbE PoE+ Module -4x M12 GbE PoE+ Module -4x RS-232/422/485 + 8x Optical Isolated DIO Module -4x Isolated RS-232/422/485 + 8x Optical Isolated DIO Module | |||

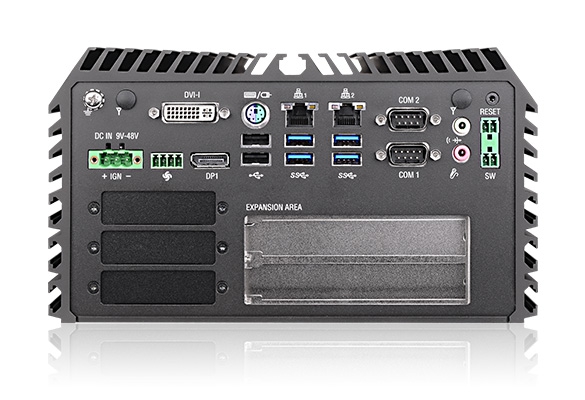

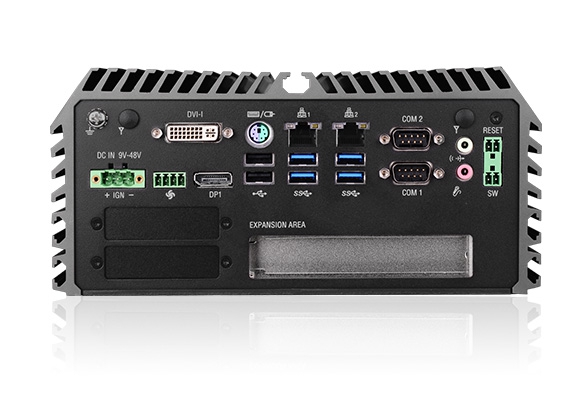

| PCI/PCIe Expansion | •1x PCI/PCIe Expansion slots Support maximum dimension of add-on card (H x L) : 110 x 237 mm | •2x PCI/PCIe Expansion slots Support maximum dimension of add-on card (H x L) : 110 x 237 mm | ||
| Mini PCIe | •3x Full-size Mini-PCIe Sockets | |||
| SIM Socket | •1x SIM Socket | |||
| Other Function | Instant Reboot | •Support Instant Reboot Technology (0.2 sec) | ||
| CMOS | •SuperCap Integrated for CMOS Battery Maintenance-free Operation | |||
| WatchDog Timer | •Software Programmable Supports 256 Levels System Reset | |||
| Power Ignition Sensing | •Power Ignition Sensing (IGN) Function (with Optional CFM module) 12V/24V Selectable | |||
| Physical | Dimension ( W x D x H ) | •227 x 261 x 88 mm | •227 x 261 x 108 mm | •227 x 261 x 128 mm |
| Weight | •4.7 kg | •5.22 kg | •5.7 kg | |
| Construction | •Extruded Aluminum with Heavy Duty Metal | |||
| Mounting | •Wall Mounting | |||
| Physical Design | •Unibody Design •Fanless Design •Jumper-less Design | |||
| Protection | Reverse Power Input Protection | Yes | ||
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover | |||
| Over Current Protection | 15A | |||
| Operating System | Windows | - 7th Generation Intel® CPU (Kaby Lake-S): Windows® 10 - 6th Generation Intel® CPU (Skylake-S): Windows® 10/ 8.1/ 7 | ||
| Linux | Supports by project | |||
| Environment | Operating Temperature | 7th Generation Intel® CPU (Kaby Lake-S) - 35W TDP CPU: -40°C to 50°C - 51W~65W TDP CPU: -40°C to 45°C 6th Generation Intel® CPU (Skylake-S) - 35W TDP CPU: -40°C to 70°C - 51~65W TDP CPU: -40°C to 50°C (With extended temperature peripherals; Ambient with air flow; According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) | ||
| Storage Temperature | -40°C to 85°C | |||
| Relative Humidity | 70°C @ 95% RH (non-Condensing) | |||
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) • E-mark | |||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |||
| Safety | LVD IEC/EN 62368-1 | |||
BESTELLINFORMATIONEN
| Model No. | Description |
|---|---|
| DS-1100-R20 | 7/6th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer |
| DS-1101-R20 | 7/6th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 1x PCI/PCIe Expansion Slot |
| DS-1102-R20 | 7/6th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 2x PCI/PCIe Expansion Slots |
| √ DS-1100 Series Embedded System x1 | √ Power Terminal Block Connector x 1 |
| √ Heat Sink Pack x 1 | √ Remote Power On/Off Terminal Block Connector x 2 |
| √ Screw Pack x 1 | √ Fan Terminal Block Connector x 1 |
| √ Wall Mounting Kit x 1 | √ DVI-I to VGA Adaptor |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, Selectable 12V/24V (43 x 36 mm) |
| CFM-PoE03 | CFM Module with PoE Control Function for DS series, Individual Port 25.5W |
| CMI-CD100 | CMI Module with 4x RS-232/422/485 Serial Ports, 8x Optical Isolated DIO (4 in/4 out) |
| CMI-ICD100 | CMI Module with 4x Electrical Isolated RS-232/422/485 Serial Ports, 8x Optical Isolated DIO (4 in/4 out) |
| CMI-LAN01-R12 | CMI Module with 4x Intel I210 GbE LAN, RJ45 Port |
| CMI-M12LAN01-R12 | CMI Module with M12 Connector, 4x Intel I210 GbE LAN |
| CMI-XM12LAN01-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports |
| FAN-EX101 | External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan |
| FAN-UB100 | Exhaling Fan with 4pin Connector, Universal Bracket (For DS-1102 Only) |
| FAN-UB101 | Inhaling Fan with 4pin Connector, Universal Bracket (For DS-1102 Only) |
| MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout |
| MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable, 1xUniversal Bracket with 2x USB Cutout |
| MEC-COM-M212-DB9 | Mini-PCIe Module with 2x COM Ports, 1x Standard DB9 Cable, 2x Universal Bracket each with 1x DB9 Cutout |
| PAH-101 | Power Adapter Holder for GST120A24 (200 x 78 x 46 mm) |
| PAH-201 | Power Adapter Holder for GST220A24 (243 x 95 x 57 mm) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI |
| GST360A24-CIN | Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug and TUBES, Level VI |
| RSD-200D-24 | Railway Single Output DC-DC Converter 200W / DC 24V |
| FB20 | DS-1100 Front Bezel with 4x DB9, DIO |
| FB21 | DS-1101 Front Bezel with 4x DB9, DIO |
| FB22 | DS-1102 Front Bezel with 4x DB9, DIO |
| UB0610 | Universal Bracket with 4x M12 Cutout |
| UB0612 | Universal Bracket with 4x RJ45 |
| UB0630 | Riser Card with 1x PCIex16 and 1x PCIex1 Slots (PCIe x16 Slot Supports Dual Deck Add-on Card) |
| UB0303 | 2x Universal Bracket each with 1x DB9 Cutout |
| UB0311 | Universal Bracket with 2x RJ45 Cutout |
| UB0314 | Universal Bracket with 2x USB Cutout |
| RC-E16-01 | Riser Card with 1 x PCIex16 Slot |
| RC-PI-01 | Riser Card with 1 x PCI Slot |
| RC-E8E8-R10 | Riser Card with 2 x PCIex8 Slots |
| RC-E16E1-01 | Riser Card with 1x PCIex16 and 1x PCIex1 Slots (PCIe x16 Slot Supports Dual Deck Add-on Card) |
| RC-E16PI-01 | Riser Card with 1x PCIex16 and 1x PCI Slots (PCIe x16 Slot Supports Single Deck Add-on Card) |
| RC-PIPI-01 | Riser Card with 2x PCI Slots |
