CV-W115

15.6" TFT WXGA 16:9 Display Module with Resistive 5-wire / Projected Capacitive Touch
PRODUCTS FEATURES
  • 15.6" TFT WXGA 16:9 LCD with Resistive 5-wire / Projected Capacitive Touch
  • 50,000 hrs LED Backlight Life
  • Resolution up to 1366 X 768 (WXGA)
  • 400 nits Brightness
  • Designed with Aluminum Die-cast Front Frame
  • IP 65 Compliant Front Panel
  • Convertible Display System (CDS) Supported
OVERVIEW

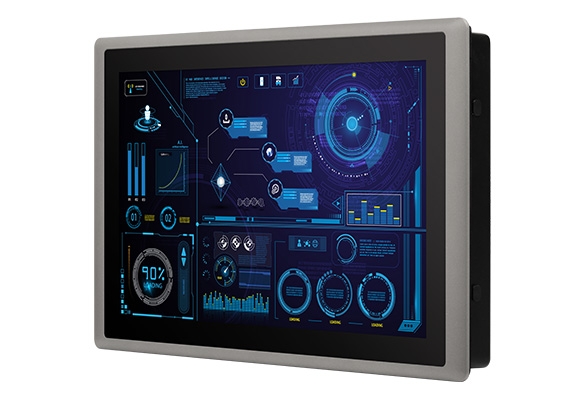

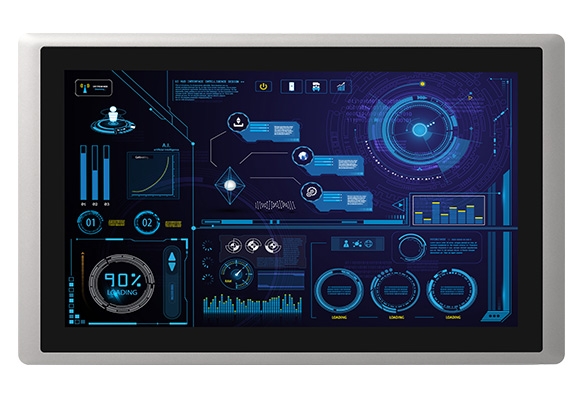

CV-W115 is 15.6" wide screen LCD display module with resistive 5-wire / projected capacitive touch screen. It offers resolution up to 1366x768 (WXGA) and 400 nits brightness. CV-W115 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, CV-W115 allows you to configure, upgrade and maintain your Convertible Display System easily.
SPECIFICATION
Model NameCV-W115
Model No.CV-W115RCV-W115C
DisplayLCD Size15.6" (16:9)
Max. Resolution1366 x 768 (WXGA)
Brightness (cd/m2)400
Contrast Ratio500 : 1
LCD Color16.2M
Pixel Pitch (mm)0.252 (H) x 0.252 (V)
Viewing Angle (H-V)170 / 160
Backlight MTBF50,000 hrs (LED Backlight)
TouchResistive 5-wireV-
Projected Capacitive-V
EnvironmentOperating TemperatureAmbient with Air flow: 0°C to 60°C (with Industrial Grade Peripherals)
Storage Temperature-20°C to 60°C
Relative Humidity8080% RH @ 50°C (non-condensing)
IP LevelIP 65 Compliant Front Panel
PhysicalDimension (WxHxD)420 x 254 x 66.2 mm
Weight4.25 kg
Construction Front PanelDie-cast Flat Surface
CertificationSafety Certifications• CE
• FCC Class A
ORDERING INFORMATION
Available Models
Model No.Product Description
CV-W115R15.6" TFT WXGA 16:9 Display Module with Resistive 5-wire Touch
CV-W115C15.6" TFT WXGA 16:9 Display Module with Projected Capacitive Touch

Package Checklist
CV-W115
√ CV-W115 Display Module x 1
√ Panel Mounting Kit x 1


DOWNLOADS
Datasheet
SubjectRelease DateDownload
CV-W115 Datasheet2015/12/22Download
