Rugged Embedded Computer

Rugged Embedded Computer

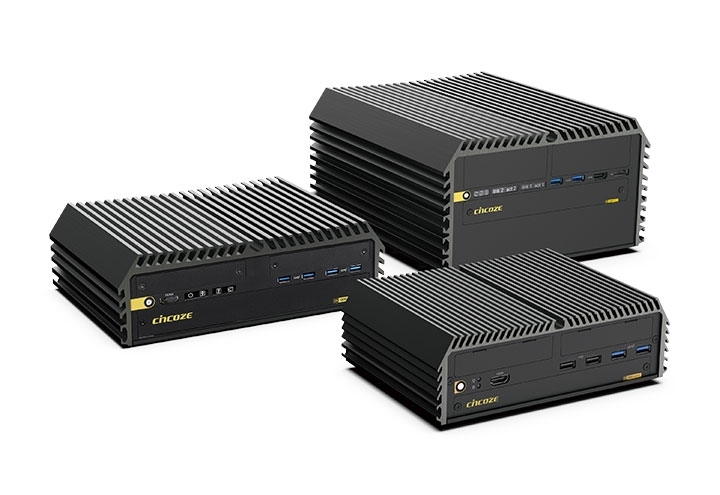

Cincoze is proud to offer our fanless embedded computers which are designed to be rugged, fanless and cable free and are subjected to rigorous testing for verification of their suitability to operate under harsh environmental conditions. They are extremely reliable and suitable for a wide range of industrial applications.
“Diamond” is our fanless computing system product line that includes six series; Extreme Performance (Diamond X), Superior Performance (Diamond S),
Intelligent (Diamond I), Power Efficient (Diamond E), Compact Size (Diamond C) and Affordable (Diamond A).
Diamond is a rugged, reliable and comprehensive solution for critical industrial environments.

Extreme Performance & Compact Size (DX Series)

Cincoze’s first rugged embedded workstation, DX-1000 Series, stands for ‘’Diamond Extreme’’ and it is an extreme performance and compact workstation powered by Intel 7/6th generation Xeon and core processors. This can bring outstanding system performance for high-end applications and a wide range of processors for selection. DX series is the most compact workstation with highly modular design, it supports flexible modular I/O expansion, 2x front accessible HDD trays, and unlimited combinations for space-limited requirements.

• Supports 7/6th Generation Intel® Xeon® / Core™ LGA1151 Socket Type Processors with Intel® C236 Chipset
• 2x DDR4-2133/2400 SO-DIMM Sockets, up to 32GB Memory
• Triple Independent Display (1x DVI-I, 2x DisplayPort)
• 2x 2.5" Hot Swap SATA III HDD/SSD bays, Supports RAID 0/1
• 3x CMI Interfaces for RJ45/M12 GbE LAN, COM & DIO Expansions
• 2x CFM Interfaces for Power Ignition Sensing and PoE Functions
• 4x Full-size Mini-PCIe Slots for Wireless & I/O Expansions
• EN50155 / EN50121-3-2 Certified for Railway Application
• E-Mark (E13, No.10R-0514546) Certification for In-vehicle Application

High Performance & Compact Size (DI Series)

Cincoze's new member, DI-1000 series, stands for “Diamond Intelligent” and it is the first series which is designed for “high performance and compact” within Cincoze’s product portfolio. The unique design of DI-1000 series makes it ideal for harsh, space-limited and performance required application such as factory automation, machine vision, in-vehicle computing and mobile surveillance.

  • Onboard 6th Generation Intel® Core™ Mobile Processor (BGA Type)
  • 1x DDR4 SO-DIMM Socket, 2133MHz, Supports Up to 16 GB
  • Triple Independent Display (DVI-I, DisplayPort)
  • Compact Size 203 x 142 x 66.8 mm with Light Weight 1.65 kg
  • 1x Hot-swappable 2.5” SATA HDD/SSD Bay and 1x Internal 2.5” SATA HDD/SSD Bay, Supports RAID 0/1
  • Rich I/O Including DVI, DP, 2x GbE LAN, 6x COM, 6x USB, 8x Optical Isolated DIO
  • Supports Cincoze CMI Technology for LAN, PoE & M12 Connector Expansion
  • Supports Cincoze CFM Technology for Power Ignition Sensing (IGN) Function Expansion
  • Cincoze MEC Module Kits for Various I/O Expansion
  • 2x Full-size Mini-PCIe Slots for Wireless and I/O Expansion
  • Wide Operating Temperature (-40°C to 70°C)
  • EN50155 Certified for Railway Application
  • E-Mark (E13, No. 10R-0514273) Certified for In-vehicle Application

High Performance & Expandable (DS Series)

Cincoze DS Series is a high-performance fanless embedded computer powered by Intel® Core™ platform supporting a wide range of socket-type desktop CPUs and accommodates two DDR4/DDR3 sockets up to 32 GB which allows DS Series to fulfill all kinds of high-end computing requirements. DS Series also supports maximum 2 PCI/PCIe expansion slots with the different combination of interfaces for expanding all kinds of application add-on cards. DS Series is truly a rugged computing system with features of wide operating temperature, wide range DC power input (from 9V to 48V), high tolerance of shock and vibration and high-standard industrial protections.

  • Supports Intel® Core™ i3 / i5 / i7 Socket-type CPUs
  • Maximum 2x DDR4/DDR3 SO-DIMM Socket, Supports Up to 32 GB
  • Triple Independent Display
  • 2x 2.5" SATA HDD/SSD bay, Supports RAID 0/1
  • Maximum 3x Full-size Mini-PCIe Slot for Wireless & I/O Expansion
  • Wide Operating Temperature
  • EN50155 / EN50121-3-2 Certified for Railway Application

Power Efficient & Expandable (DE Series)

DE-1000 Series Fanless Embedded PC supports Intel® Bay Trail platform, integrated with Intel® Atom™ E3845 Quad Core 1.91 GHz processor. Delivering the excellent quad-core processing power at only 10 watts power consumption, DE-1000 series is definitely an ideal solution for ultimate computing performance, energy efficiency, and superior reliability. Supporting up to 6x LAN or 4x PoE versions, and power ignition function, DE-1000 series meets various applications, such as surveillance, in-vehicle, factory automation and machine automation.

•  Onboard Intel® Atom™ E3845 Processor
•  Wide Operating Temperature (From -25°C to 70°C)
•  Various Expansion Interface: PCI / PCIe / Mini-PCIe Expansion Available
•  Support Dual Display
•  Multi LAN / PoE Version Available
•  IGN (Power Ignition Sensing) Supported
•  Power over Serial Functionalities
•  EN50155 Certified

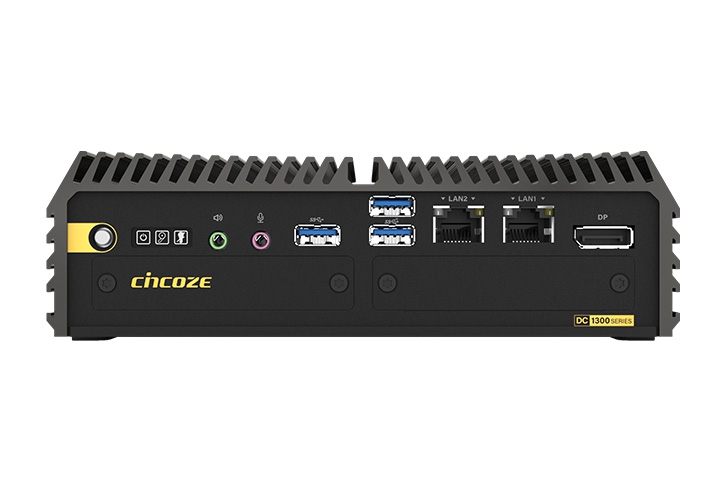

Power Efficient & Compact Size (DC Series)

Cincoze DC Series is a high-performance compact-size system designed with onboard Intel® Atom™ E3845 Quad Core 1.91GHz processor, rich I/O, a unique expansion capability, and supports wide range (9~48V) DC power input. DC Series is very small and efficient with low power consumption so that is ideal for embedded applications where space is limited.

•  Onboard Intel® Atom Quad Core Processor
•  Various Expansion Interface: Mini-PCIe Expansion Available
•  Ultra Compact Size Design
•  Completely Cable-Less Design
•  Special Heat Dissipation
•  Anti-vibration and Industrial Components Selection
•  Wide Operating Temperature (-25°C to 70°C)
•  Dual Independent Display
•  Power over Serial / DIO Functionalities
•  E-Mark Certified

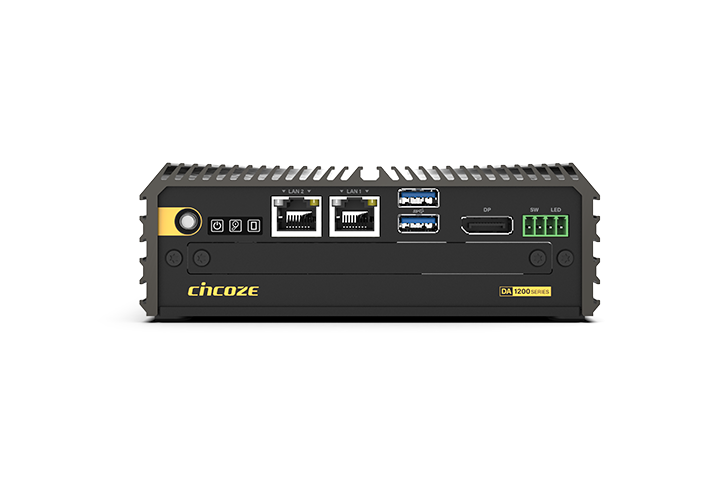

Power Efficient & Palm Size (DA Series)

DA-1000 series is an ultra-compact size fanless embedded computer powered by Intel® Atom™ or Celeron® Processor. This can bring economic advantages on budget and also fulfill the needs for industrial computing tasks. DA-1000 supports Combined Multiple I/O (CMI) interface and modules which are specially designed for flexible I/O expandability; it allows users to extend various I/Os according to their needs.

•  Onboard Intel® Atom™ or Celeron®​ Processor
•  Ultra Compact Size Design
•  Special Heat Dissipation
•  Support Dual Display
•  Completely Cable-Less Design
•  SupportAT/ATX Power Mode and 9~48VDC Input
•  Anti-Vibration and Industrial Components Selection
•  Wide Operating Temperature (Supports up to -25°C to 70°C)
•  CMI (Combined Multiple I/O) Interface for I/O Module Expandability
•  Various Mounting Options (VESA, DIN-Rail, Side/Wall Mounting)
