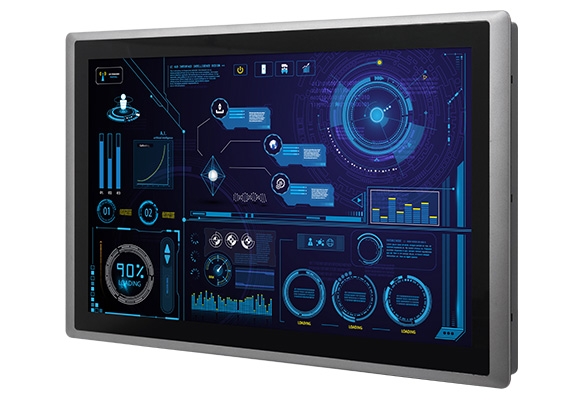

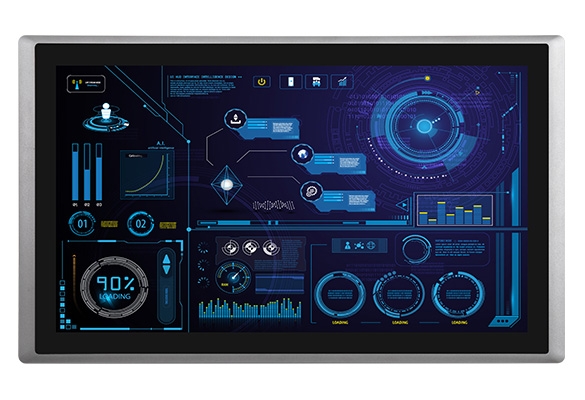

21.5" TFT Full HD 16:9 Display Module with Resistive 5-wire Touch / Projected Capacitive Touch
  • 21.5" TFT Full HD 16:9 LCD with Resistive 5-wire / Projected Capacitive Touch
  • 50,000 hrs LED Backlight Life
  • Resolution up to 1920 x 1080 (Full HD)
  • 300 nits Brightness
  • Designed with Aluminum Die-cast Front Frame
  • IP65 Compliant Front Panel
  • Convertible Display System (CDS) Supported
CV-W121 is 21.5" wide screen LCD display module with resistive 5-wire / projected capacitive touch screen. It offers resolution up to 1920 x 1080 (Full HD) and 300 nits brightness. CV-W121 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, CV-W121 allows you to configure, upgrade and maintain your Convertible Display System easily.
Model NameCV-W121
Model No.CV-W121RCV-W121C
DisplayLCD Size21.5" (16:9)
Max. Resolution1920 x 1080
Brightness (cd/m2)300
Contrast Ratio5000 : 1
LCD Color16.7M
Pixel Pitch (mm)0.24825 (H) x 0.24825 (V)
Viewing Angle (H-V)178 / 178
Backlight MTBF50,000 hrs (LED Backlight)
TouchResistive 5-wireV-
Projected Capacitive-V
EnvironmentOperating TemperatureAmbient with Air Flow: 0°C to 60°C (with Industrial Grade Peripherals)
Storage Temperature-20°C to 60°C
Relative Humidity80% RH @ 50°C (Non-Condensing)
IP LevelIP65 Compliant Front Panel
PhysicalDimension (WxHxD)550 x 330.5 x 63.2 mm
Weight5.56 kg
Construction Front PanelDie-cast Flat Surface
CertificationSafety Certifications• CE
• FCC Class A
Available Models
Model No.Product Description
CV-W121R-R1021.5" TFT Full HD 16:9 Display Module with Resistive 5-wire Touch
CV-W121C-R1021.5" TFT Full HD 16:9 Display Module with Projected Capacitive Touch
Package Checklist
√ CV-W121 Display Module x 1
√ Panel Mounting Kit x 1
