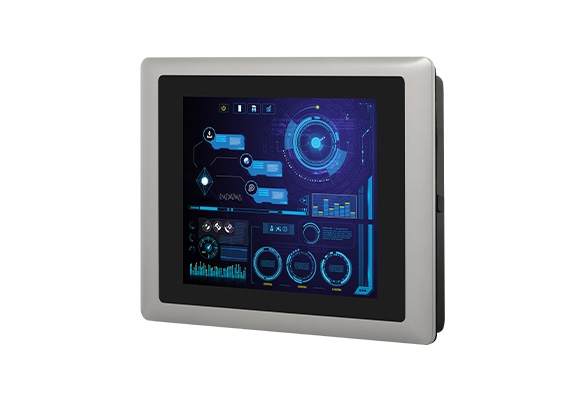

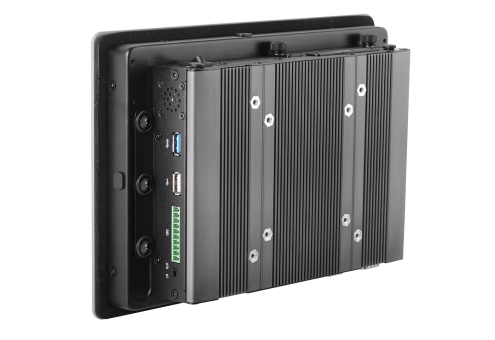

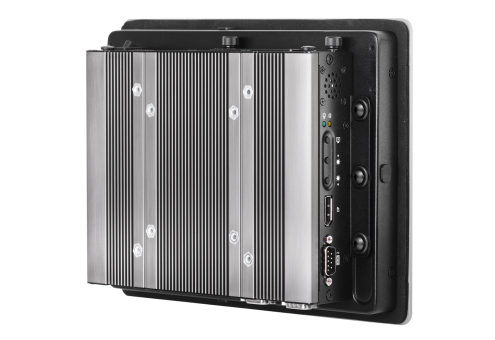

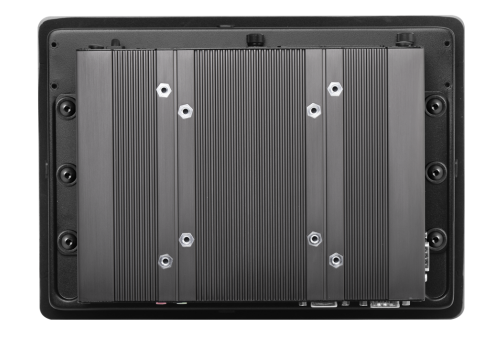

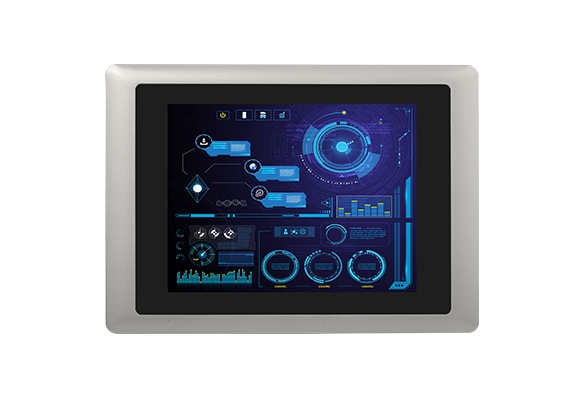

CV-108 / P1001

8.4" TFT SVGA 4:3 Panel PC with Resistive 5-wire Touch, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort
PRODUCTS FEATURES
  • 8.4" TFT SVGA 4:3 LCD with Resistive 5-wire Touch
  • Designed with Aluminum Die-Casting Front Frame
  • Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
  • 1x DDR3L SO-DIMM max. up to 8GB
  • 1x 2.5” SATA HDD Bay, 1x CFast Card and 1x SIM Card Socket
  • 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
  • 1x Mini-PCIe Expansion Socket
  • IP 65 Compliant Front Panel
  • Support Panel / Wall / VESA Mounting
  • Convertible Display System (CDS) Supported
  • Built-in Two 2W Internal Speakers
OVERVIEW
The 8.4" all-in-one panel PC offers LED backlight LCD with resolution up to 800x600 (SVGA) and 400 nits brightness. CV-108/P1001 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-casting front frame with rugged body structure that can be able to apply in industrial applications. CV-108/P1001 supports Convertible Display System (CDS) technology which makes it more flexible in system maintaining and upgrading. CV-108/P1001 carries single touch function with resistive 5-wire touch screen. By incorporating with Intel® Atom™ E3845 processor and DDR3L memory, CV-108/P1001 offers extensive I/O including 4x USB, 2x RS232/422/485, 1x VGA, 1x DisplayPort and 4 DI / 4DO.

CV-108/P1001 supports 3G and WLAN via 2x GbE and 1x Mini-PCIe slot. Furthermore, they are 3 types of storage devices including 2.5" SATA HDD,
CFast and SIM card. The accessible design of these storage devices allow quick data access and easy maintenance. Supporting wide range power DC input from 9 ~ 48VDC, CV-108/P1001 can be deployed and powered for various industrial applications.
SPECIFICATION
Model NameCV-108/P1001
DisplayLCD Size8.4" (4:3)
Max. Resolution800 x 600
Brightness (cd/m2)400
Contrast Ratio600 : 1
LCD Color262K
Pixel Pitch (mm)0.213 (H) x 0.213 (V)
Viewing Angle (H-V)150 / 130
Backlight MTBF30000 hrs (LED Backlignt)
TouchResistive 5-wireV
Projected Capacitive-
Processor SystemCPUIntel Atom E3845
Core Number4
Frequency1.91 GHz
Cache2 MB
Watts10W
MemoryTransfer RateDDR3L 1066/ 1333MHz (un-buffered and non-ECC)
Max. Capacity8 GB
Socket1x 204-Pin SODIMM
GraphicsChipsetIntel® HD Graphics
Dual DisplayVGA + DP
VGA + CDS
DP + CDS
AudioInterfaceRealtek ALC888-GR, High Definition Audio
I/O InterfaceVGA1x DB-15 connector, CH7517, Up to 1920x1080@60Hz
DP1x DP connector, Up to 1920x1080@60Hz
LAN2x 10/100/1000 Mbps, RJ45
GbE1: Intel I210AT
GbE2: Intel I210AT
Support Wake On Lan, Teaming, Jumbo frame, IEEE 1588v2, PXE"
POE+-
Serial Port2x RS-232/422/485, DB9
Support 5V/12V
USB 3.01x USB 3.0, Type-A
USB 2.03x USB 2.0, Type-A
DIO4 in/4 out
Line-Out1x Phone Jack 3.5mm
Mic-In1x Phone Jack 3.5mm
Power on/off switchV
Reset ButtonV
AT/ATX SwitchV
Remote Power On/Off Connector-
External FAN Connector-
StorageSSD/HDD1x Internal SATA port for 2.5” HDD/SSD
mSATA-
CFast1
ExpansionPCI-
PCIe-
CFM Interface
(Control Function Module)
-
Mini PCI Express1x Full-size Mini PCIe
Universal I/O Bracket-
SIM Socket1(internal)
Antenna Holes2
Other FunctionCDS FunctionV
OSD FunctionLCD On/Off, Brightness Up/Down
(With Display Module)
Power Ignition Sensing-
Internal SpeakerAMP 2W + 2W
Super Cap-
Instant RebootV
Watchdog TimerSoftware Programmable Supports 1~255 sec. System Reset
Power RequirementPower TypeAT/ATX
Power Input Voltage9~48VDC
Connector3-pin Terminal Block
Power AdaptorOptional AC/DC 12V/5A, 60W
PhysicalDimension (WxHxD)262 x 186.2 x 65 mm
Weight Information2.96 kg
Construction Front PanelDie-cast Flat Surface
MountingPanel/ Wall/Arm/ VESA Mounting
Fanless DesignV
Cable-less Design-
Jumper-less Design-
ProtectionReverse Power Input ProtectionV
Over Voltage ProtectionV
Over Current ProtectionV
ESD ProtectionV
Operating StystemWindowsWindows® 10
Windows® 8.1
Windows® 7
LinuxLinux® Kernel 3.X
EnvironmentOperating TemperatureAmbient with air flow: -20°C to 70°C
(with Industrial Grade Peripherals)
StorageTemperature-30°C to 80°C
Relative Humidity90% RH @ 60°C (Non-Condensing)
IP LevelIP 65 Compliant Front Panel
EMCCE/ FCC Class A
ORDERING INFORMATION
Available Models
Model No.Product Description
CV-108R/P10018.4" TFT SVGA 4:3 Panel PC with Resistive 5-wire Touch, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA and 1x DisplayPort

Package Checklist
CV-108/P1001
 √ CV-108/P1001 Panel PC x 1
 √ Panel Mounting Kit x 1
 √ Utility DVD Driver x 1
 √ DIO Terminal Block Connector x 1
 √ Power Terminal Block Connector x 1
 √ HDD Screw Pack x 1
 √ Mini PCIe Screw Pack x 1

Optional Accessories
Model No.Description
GSM60A12-CINAdapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M
QP026-SL3UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M
