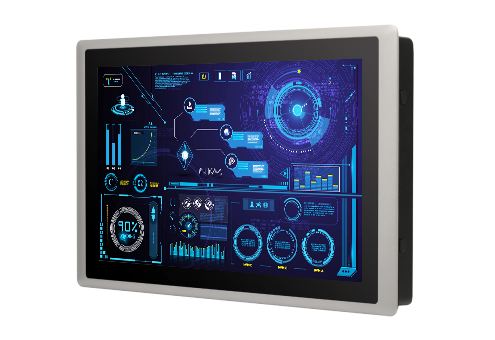

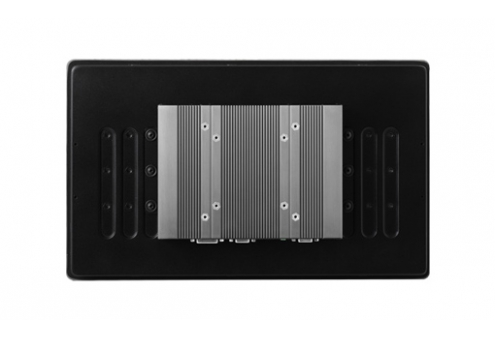

CV-W115 / M1001

15.6" TFT WXGA 16:9 Monitor with Touch (Projected Capacitive / Resistive 5-wire), 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort
  • 15.6" TFT WXGA 16:9 LCD with Resistive 5-wire / Projected Capacitive Touch
  • Designed with Aluminum Die-Casting Front Frame
  • 1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
  • IP 65 Compliant Front Panel
  • Support Panel / Wall / VESA Mounting
  • Convertible Display System (CDS) Supported
  • Built-in Two 5W Internal Speakers
The 15.6" (16:9) touch monitor with resistive 5-wire / projected capacitive touch screen offers resolution up to 1366x768 (WXGA) and 400 nits brightness. CV-W115/M1001 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. CV-W115/M1001 supports Convertible Display System (CDS) which allows to configure, upgrade and maintain your touch monitor easily.

CV-W115/M1001 supports both digital and analog signal input via three types of display interface: VGA, DVI-D and Display-Port. Touch screen can be connected with USB or COM port. It has OSD function for adjusting the viewing options of display.
With support to wide range power input from 9~48VDC, CV-W115/M1001 is designed as an ideal solution for industrial application.
Model NameCV-W115/M1001
Model No.CV-W115R/M1001CV-W115C/M1001
DisplayLCD Size15.6" (16:9)
Max. Resolution1366 X 768
Brightness (cd/m2)400
Contrast Ratio500 : 1
LCD Color16.2M
Pixel Pitch (mm)0.252 (H) x 0.252 (V)
Viewing Angle (H-V)170 / 160
Backlight MTBF50000 hrs (LED Backlignt)
TouchResistive 5-wireV-
Projected Capacitive-V
SystemA/D BoardNovatek NT68856UFG
VGA Input1
DVI-D Input1
DisplayPort Input1
USB 2.0 Input1
COM Port Input (Resistive Only)1-
Audio Input1
Power Switch1
Other FeaturesAudio AMP 5W + 5W (Internal Speaker)
OSD FunctionLCD On/Off, Auto, Menu, Up and Down
Multi-language OSD
PowerPower Requirement9~48VDC
Connector3-pin Terminal Block
Power AdaptorOptional AC/DC 12V/5A, 60W
PhysicalDimension (WxHxD)420 x 254 x 76 mm
Weight Information5.37 kg
Construction Front PanelDie-cast Flat Surface
MountingPanel/ Wall/ VESA Mounting
Fanless DesignV
Operating SystemWindowsWindows 10
Windows 8.1
Windows 7
LiunxKernel 3.x
EnvironmentOperating TemperatureAmbient with air flow: 0°C to 60°C
(with Industrial Grade Peripherals)
Storage Temperature-20°C to 60°C
Relative humidity80% RH @ 50°C (Non-Condensing)
IP LevelIP 65 Compliant Front Panel
Available Models
Model No.Product Description
CV-W115R/M100115" TFT WXGA 16:9 Monitor with Resistive 5-wire Touch, 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort
CV-W115C/M100112.1" TFT WXGA 16:9 Monitor with Projected Capacitive Touch, 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort
Package Checklist
√ CV-W115/M1001 Touch Monitor x 1
√ Panel Mounting Kit x 1
√ Utility DVD Driver x 1
√ Power Terminal Block Connector x 1
√ USB Cable x 1
√ VGA Cable x 1
√ Screw Pack x 1

Optional Accessories
Model No.Description
GSM60A12-CINAdapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, GSM60A12-P1J
DVI-D CableDVI-D male to DVI-D male Cable 1.8M
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
