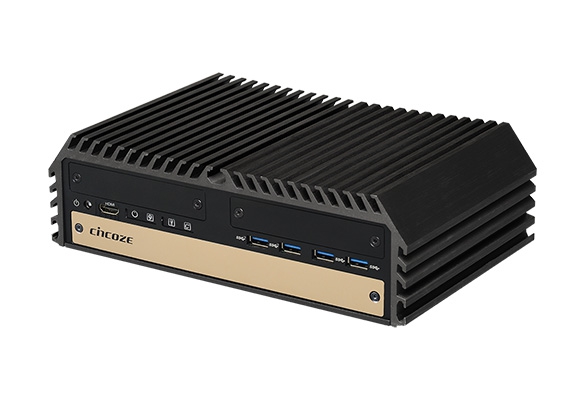

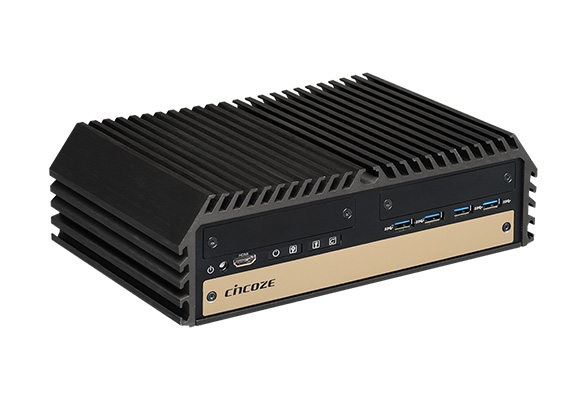

DX-1100

9/8th Generation Intel® Xeon® and Core™ Processors, Extreme Performance, Compact and Modular Rugged Workstation

PRODUCTS FEATURES
  • Supports 9/8th Gen Intel® Xeon® and Core™ Octa/Hexa-core Processor
  • Triple Independent Display with 4K/2K UHD Resolution (HDMI / DP / DVI-I)
  • 2x 2.5" Hot Swap SATA HDD/SSD Tray, 3x mSATA Socket
  • 2x USB 3.1 (10Gb/s) for Ultimate Data-transfer Speed
  • 1x M.2 E Key Socket (CNVi), 3x Full-size Mini-PCIe Socket, 1x SIM Card Socket
  • Supports CMI Interface for I/O Expandability
  • Supports PoE+ and Power Ignition Sensing (with optional CFM modules)
  • Wide Operating Temperature -40°C to 70°C
  • E-Mark (E13 No.10R-0515210), LVD EN62368-1, EN50121-3-2
OVERVIEW
The Cincoze DX-1100 is a rugged workstation specifically designed to satisfy demands for the high-performance computing platform. Based on LGA 1151 socket and Intel® C246 chipset, the system supports 9/8th generation Intel Xeon® and Core™ processors (formerly codenamed Coffee Lake S) with up to 8 cores and 64GB memory capacity.

Despite its remarkably compact size, the DX-1100 still delivers the maximum flexibility of modular I/O expansions and provides dual hot-swap 2.5" HDD/SSD tray with RAID function. Thanks to Cincoze’ exclusive CFM (Control Function Module) technologies, the DX-1100 can be configured instantly with Power over Ethernet and power ignition sensing functions to be applied in many industrial applications, such as machine vision, in-vehicle transportation, and mobile surveillance.

Featuring rugged construction, fanless/cable-less/jumper-less design, wide operating temperature (-40 to +70°C), wide range DC power input (9~48 VDC), high tolerance to vibration and shock (5/50 Grms), the DX-1100 is maintenance-free and ideal to be deployed in harsh environments.

Product Category >>>> Rugged Embedded Fanless PC
SPECIFICATION
Model NameDX-1100
SystemProcessor• 9th Generation Intel® Coffee Lake-R S Series CPU:
 - Intel® Xeon® E-2278GEL 8 Cores Up to 3.9 GHz, TDP 35W
 - Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W
 - Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W
 - Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W
 - Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W
 - Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W
 - Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W
• 8th Generation Intel® Coffee Lake S Series CPU:
 - Intel® Xeon® E-2176G 6 Cores Up to 4.7 GHz - 12M Cache, TDP 80W
 - Intel® Xeon® E-2124G 4 Cores Up to 4.5 GHz - 8M Cache, TDP 71W
 - Intel® Core™ i7-8700 6 Cores Up to 4.6 GHz - 12M Cache, TDP 65W
 - Intel® Core™ i5-8500 6 Cores Up to 4.1 GHz - 9M Cache, TDP 65W
 - Intel® Core™ i3-8100 4 Cores 3.6 GHz - 6M Cache, TDP 65W
 - Intel® Core™ i7-8700T 6 Cores Up to 4.0 GHz - 12M Cache, TDP 35W
 - Intel® Core™ i5-8500T 6 Cores Up to 3.5 GHz - 9M Cache, TDP 35W
 - Intel® Core™ i3-8100T 4 Cores 3.1 GHz - 6M Cache, TDP 35W
 - Intel® Pentium® G5400 2 Cores 3.7 GHz - 4M Cache, TDP 58W
 - Intel® Pentium® G5400T 2 Cores 3.1 GHz - 4M Cache, TDP 35W
 - Intel® Celeron® G4900 2 Cores 3.1 GHz - 2M Cache, TDP 54W
 - Intel® Celeron® G4900T 2 Cores 2.9 GHz - 2M Cache, TDP 35W
ChipsetIntel C246
Memory• 2x DDR4-2666/2400 MHz SO-DIMM Sockets
• Support up to 64 GB (Un-buffered and Non-ECC type)
* i3/Pentium/Celeron: DDR4 2400 MHz
Graphics• Integrated Intel® UHD Graphics
  (Xeon: UHD P630; i7/i5/i3: UHD 630; Pentium/Celeron: UHD 610)
• Supports Triple Independent Display (DVI-I/DisplayPort/HDMI)
AudioRealtek® ALC888, High Definition Audio
BIOSAMI 32 MB BIOS
I/O InterfaceDVI1x DVI-I Connector
(VGA: 1920 x1080 @ 60 Hz; DVI-D: 1920 x1200 @ 60 Hz)
DP1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications)
* Verified maximum resolution: 3840x2160
HDMI1x HDMI Connector (3840 x 2160 @30Hz)
LAN2x GbE LAN (Support WoL, Teaming, Jumbo Frame, IEEE 1588v2 and PXE), RJ45
   - GbE1: Intel® I219-LM
   - GbE2: Intel® I210
Optional Module
.4x 10/100/1000 Mbps, RJ45 Port
.4x 10/100/1000 Mbps, M12 Port
PoE+Optional Module
.4x PoE+, Individual port 25.5W (with CMI-LAN01,  RJ45 Port)
.4x PoE+, Individual port 25.5W, (with CMI-M12LAN01, M12 Port)
Serial Port4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
Optional Module
.2x RS-232/422/485, DB9 Connector
USB2x USB 3.2 Gen2 (Type-A)
6x USB 3.2 Gen1 (Type-A)
Optical Isolated DIOOptional Module
.16x Optical Isolated DIO(8DI, 8DO), 20 pin Terminal Block
Line-Out1x Line-Out, Phone Jack 3.5mm
Mic-In1x Mic-In, Phone Jack 3.5mm
Power Button1x ATX Power On/Off Button
AT/ATX Switch1x AT/ATX Mode Switch
Reset Button1x Reset Button
Clear CMOS Switch1x Clear CMOS Switch
Remote Power On/Off Connector1x Remote Power On/Off Connector, 2-pin Terminal Block
External FAN Connector1x External FAN Connector, 4-pin Terminal Block (support smart fan by BIOS)
StorageSSD/HDD2x 2.5" Front Accessable SATA HDD/SSD Bay (SATA 3.0)
mSATA3x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket)
RAIDSupports S/W RAID 0, 1, 5 & 10
ExpansionPCI/ PCIe-
CFM (Control Function Module) Interface1x CFM Interface for CFM Modules
CMI (Combine Multiple I/O) Interface3x CMI Interface for CMI Modules
Mini PCI Express3x Full-size Mini-PCIe Sockets
M.2 Socket1x M.2 2230 Socket (Key E)
SIM Socket1x SIM Socket
Antenna Holes3x Antenna Holes
OtherInstant RebootSupport 0.2sec
Power Ignition SensingOptional Module
.CFM with Delay Time Management and Selectable 12V/24V, Dip Switch
Super CapSuperCap Integrated for CMOS Battery Maintenance-free Operation
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
Power RequirementPower TypeAT/ATX
Power Input Voltage9~48VDC
Connector3-pin Terminal Block
Power AdapterOptional AC/DC Adapter
.AC/DC 24V/5A, 120W
.AC/DC 24V/9.2A, 220W
PhysicalDimension (WxDxH)242 x 174 x 77 mm
Weight Information3.6 kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / VESA / DIN Rail / Side
Unibody DesignYes
Fanless DesignYes
Jumper-less DesignYes
Cable-less DesignYes
ProtectionReverse Power Input ProtectionYes
Over Voltage ProtectionProtection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection15A
Operating SystemWindowsWindows® 10
LinuxSupport by project
EnvironmentOperating Temperature35W TDP Processor: -40°C to 70°C
54~65W TDP Processor: -40°C to 45°C
71~80W TDP Processor: -40°C to 40°C
* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
* Comply with EN50155 dry heat thermal test (85°C for 10 minutes)
Storage Temperature-40°C to 85°C
Relative Humidity95% RH @ 40°C (Non-condensing)
Shock1. IEC60068-2-27: Operating, 50 Grms, Half-sine 11 ms Duration, w/ SSD
2. IEC/EN61373: Operating, 50 Grms, Half-sine 30 ms Duration, w/ SSD
Vibration1. IEC60068-2-64: Operating, 5 Grms, 5-500 Hz, 3 Axes, w/ SSD
2. IEC/EN61373: Operating, 1 Grms, 5-150 Hz, 3 Axes, w/ SSD
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN 50155 (EN 50121-3-2 Only)
• E-mark
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyLVD IEC/EN 62368-1
MTBF407,391 Hours
- Database: Telcordia SR-332 Issue3, Method 1, Case 3
Fire ProtectionEN 45545-2
ORDERING INFORMATION
Available Models
Model No.Product Description
DX-1100-R109/8th Generation Intel® Xeon® and Core™ Processors,
Extreme Performance, Compact and Modular Rugged Workstation

Package Checklist
√ DX-1100 Rugged Workstation x1√ Power Terminal Block Connector x1
√ CPU Heatsink Pack x1√ Remote Power On/Off Terminal Block Connector x1
√ Screw Pack x1√ Fan Terminal Block Connector x1
√ Wall Mounting Kit x1√ DVI-I to VGA Adaptor x1

Optional Modules & Accessories
Model No.Description
CFM-PoE01CFM Module with PoE Control Function, Individual Port 25.5W
CFM-IGN01CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable
CMI-LAN01-R12/UB0912CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for DX Series
CMI-M12LAN01-R12/UB0910CMI Module with M12 Connector, 4x Intel GbE LAN / 1x Universal Bracket with 4x M12 Cutout for DX Series
CMI-XM12LAN01-R10/UB0930-R10CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports / Universal Bracket with 4x M12 X-Coded Cutout for DX Series
CMI-DIO01/UB0918CMI Module with 16DIO (8in 8out) / 1xUniversal Bracket with DIO Cutout for DX Series
CMI-COM01/UB0903CMI Module with 2x RS232/422/485 (Support 5V/12V) / 1x Universal Bracket with 2x DB9 Cutout for DX Series
MEC-COM-M212-TDB9/UB0903Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Thin DB9 Cable / 1x Universal Bracket with 2x DB9 Cutout for DX Series
MEC-COM-M334-TDB9/2xUB0903Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable / 2x Universal Bracket with 2x DB9 Cutout for DX Series
MEC-LAN-M102-30/UB0911Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout for DX Series
GST120A24-CINAdapter AC/DC 24V 5A 120W, with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI
GST220A24-CINAdapter AC/DC 24V 9.2A 220W, with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI
FAN-EX101External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support smart fan
SIDE-DXDX Series side mount kit
DIN01DIN-RAIL Mount Kit, KMRH-K175
