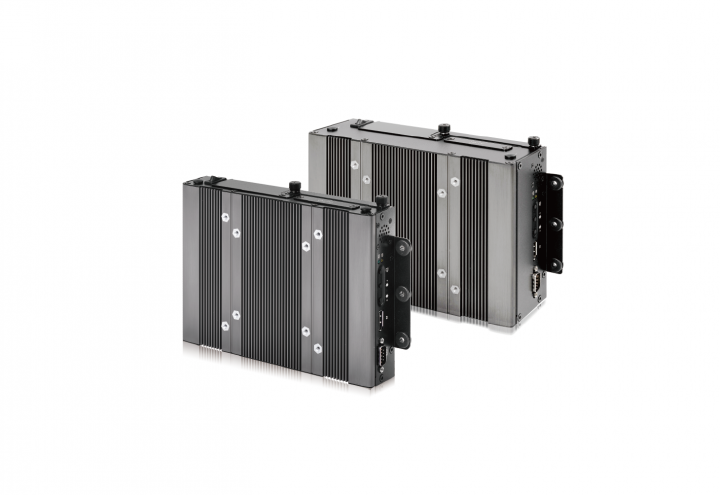

Entry Performance Computer Module (P1000 Series)
Powered by Intel® Atom® / Pentium® processor, P1000 series is a slim embedded computer supporting with Convertible Display System (CDS) technology and perfect for space-constrained environments. Not only robust, anti-shock, and anti-vibration, but the system is totally maintenance-free and well-suited for industrial applications, such as industrial automation, automated optical inspection, surveillance, and transportation.| Product | Model Name | CPU | Memory | I/O | Expansion |
|---|---|---|---|---|---|
 | P1301 | Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E | 1x DDR5 SO-DIMM Max. up to 16 GB | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 3x USB 3.2 Gen2x1 (10Gbps) 1x USB 2.0 (480Mbps) 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | P1201 | Intel® Atom® x6000E | 1x DDR4 SO-DIMM Max. up to 32 GB | 1x VGA 1x DisplayPort 2x 1GbE LAN 3x USB 3.2 Gen2x1 (10Gbps) 1x USB 2.0 (480Mbps) 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket 1x SIM Socket 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | P1101 | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x DDR3L SO-DIMM Max. up to 8 GB | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.2 Gen1x1 (5Gbps) 4x COM 8x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
 | P1001 Series | Intel® Atom™ E3845 | 1x DDR3L SO-DIMM Max. up to 8 GB | 1x VGA 1x DisplayPort 2x LAN 1x USB 3.2 Gen1x1 (5Gbps) 3x USB 2.0 (480Mbps) 2x COM 8x DIO | 1x Mini-PCIe socket |
