M1001

CDS Monitor Module with 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort
PRODUCTS FEATURES

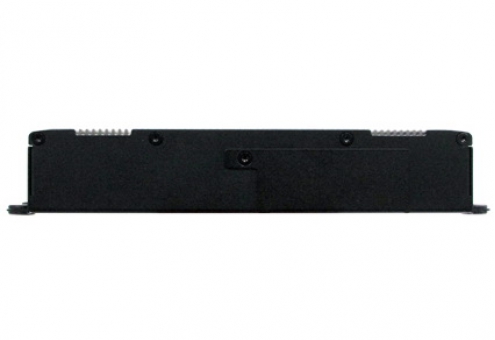

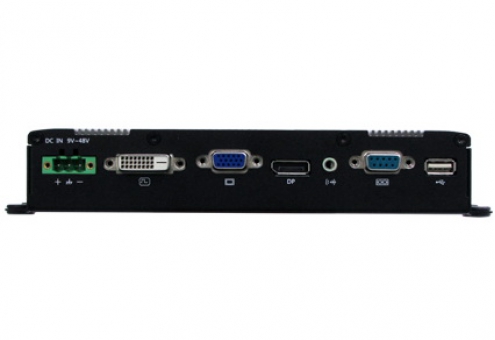

  • 1x VGA, 1x DVI-D, 1x DisplayPort Input Interface
  • 1x USB, 1x COM, 1x Audio Input

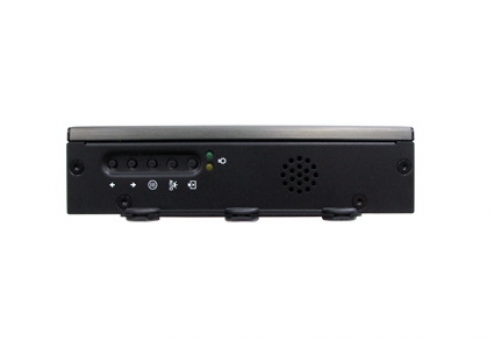

  • OSD Control Pad: LCD On/Off, Auto, Menu, Up and Down
  • Multi-language OSD Function
  • Wide Range Power Input 9~48VDC
  • Support Panel / Wall / VESA Mounting
  • Convertible Display System (CDS) Supported

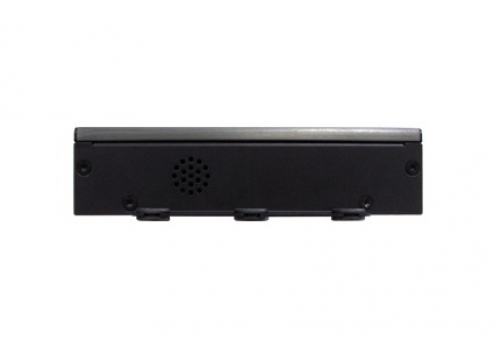

  • Built-in Two 5W Internal Speakers
OVERVIEW
M1001 is a monitor module which supports Convertible Display Systems (CDS) technology; it is compatible with Cincoze Display Modules for different display sizes and touchscreens. M1001 offers both digital and analog signal input via three types of display interface: VGA, DVI-D and DisplayPort.

In addition, it has OSD function for adjusting the viewing options of display and supports 1x USB and 1x COM ports for connecting with the touch screen.

Moreover, M1001 supports wide range power DC input from 9 to 48VDC and offers panel mount, wall mount and VESA mount. It can be powered and deployed for various applications.


SPECIFICATION
Model NameM1001
SystemVGA Input1
DVI-D Input1
DisplayPort Input1
USB 2.0 Input1
COM Port Input (Resistive Only)1
Audio Input1
Other FeaturesAudioAMP 5W + 5W (Internal Speaker)
OSD FunctionLCD On/Off, Auto, Menu, Up and Down
Multi-language OSD
PowerPower Requirement9~48VDC
Connector3-pin Terminal Block
Power AdaptorOptional AC/DC 12V/5A, 60W
EnvironmentOperating TemperatureAmbient with air flow: -5°C to 60°C (with Industrial Grade Peripherals)
Storage Temperature-20°C to 75°C
Relative Humidity10%~95% (non-condensing)
PhysicalDimension (WxDxH)204.5x149x38.5mm
Weight1.12 kg

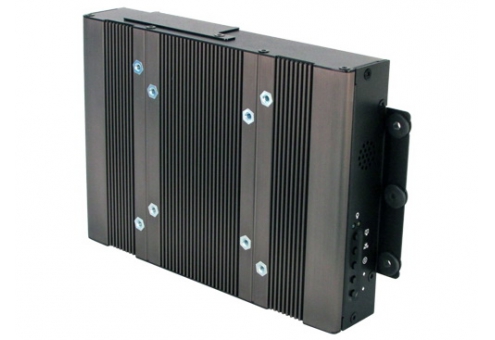

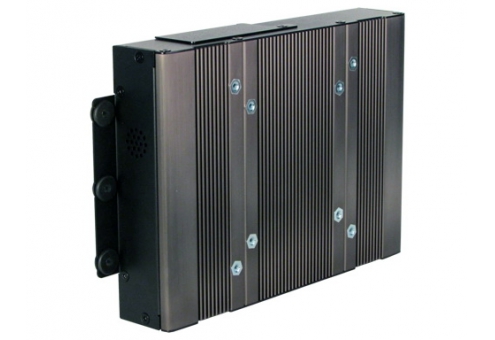

ConstructionExtruded Aluminum with Heavy Duty Metal
MountingPanel / Wall / VESA Mounting
CertificationSafety Certifications• CE
• FCC Class A
ORDERING INFORMATION
Available Models
Model No.Product Description
M1001Monitor Module with 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort

Package Checklist
M1001
√ M1001 Monitor Module x 1
√ Utility DVD Driver x 1
√ USB Cable x 1
√ VGA Cable x 1
√ Power Terminal Block Connector (Female) x 1
√ Screw Pack  x 1

Optional Accessories
Model No.Description
GSM60A12-CINAdapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, GSM60A12-P1J
DVI-D CableDVI-D male to DVI-D male Cable 1.8M
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3

DOWNLOADS
Datasheet
SubjectRelease DateDownload
M1001 Datasheet2016/01/07Download
Manual
SubjectRelease DateDownload
M1001 Manual2016/01/07Download
Driver
SubjectRelease DateDownload
M1001 Resistive Touch Driver (Windows Version)2016/01/07Download
