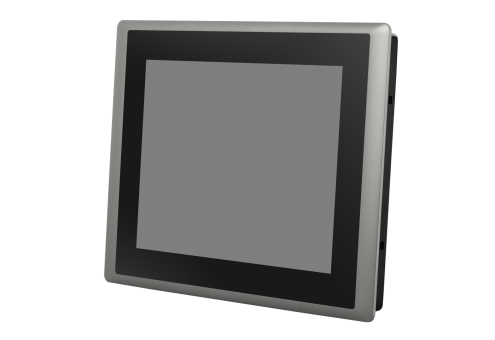

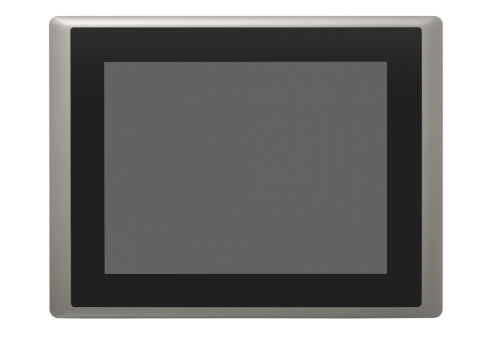

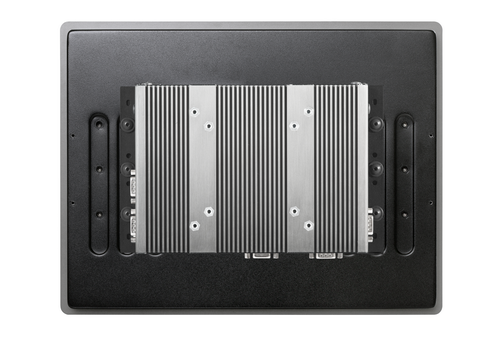

CV-112 / P1101

12.1" TFT-LCD Touch Panel PC with Intel® Atom® / Pentium® Processor

PRODUCTS FEATURES
  • 12.1" TFT-LCD SVGA with Resistive 5-wire or P-Cap Touchscreen
  • Onboard Intel® Atom® / Pentium® Processor
  • Triple Independent Displays (via VGA and DisplayPort outputs)
  • Rich I/O (2x GbE LAN, 4x USB 3.0, 4x COM, 8x Isolated DIO)
  • 2x Full Size Mini-PCIe, 1x 2.5” SATA Drive Bay, 1x mSATA Socket
  • Designed with Aluminum Die-casting Front Frame
  • True Flat IP65 Front Panel Protection
  • Supports CDS Technology, Ignition Sensing and Power over Ethernet
  • Supports Panel / VESA / Rack Mounting
OVERVIEW
CV-112/P1101 Series is a 12.1" TFT-LCD touch panel PC offering 450 nits high brightness and 800 x 600 (SVGA) resolution. The system is based on Intel® Atom® / Pentium® processor and supports triple independent displays (via VGA and DisplayPort outputs). CS-112/P1101 Series features extensive connectivity including 2x GbE, 4x USB 3.0, 4x COM, and 8x isolated DIO. It also offers 2x full size Mini-PCIe socket and 1x SIM socket for a variety of wireless data connections.

Through the ready-to-use CFM modules, users can easily add power ignition sensing and Power over Ethernet (PoE) functions for a variety of applications. CV-112/P1101 Series also supports Convertible Display System (CDS) technology. Comparing with regular standalone panel PCs, it is more flexible and reduces maintenance cost dramatically.

Featuring with rigorous industrial protections, wide range operating temperature, IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), CV-112/P1101 Series is appropriate for harsh environments and critical applications.
SPECIFICATION
Model SeriesCV-112/P1101
Model NameCV-112R/P1101CV-112C/P1101
DisplayLCD Size12.1" (4:3)
Max. Resolution800 x 600
Brightness (cd/m2)450
Contrast Ratio800 : 1
LCD Color262K
Pixel Pitch (mm)0.3075 (H) x 0.3075 (V)
Viewing Angle (H-V)160 / 140
Backlight MTBF50000 hrs (LED Backlight)
TouchResistive 5-wireV-
Projected Capacitive-V
SystemProcessor • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz
• Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz
Memory• 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket
• Supports up to 8GB (un-buffered and non-ECC)
Graphics• Integrated Intel® HD Graphics 505
• Supports Triple Independent Display (1x CDS, 1x VGA, 1x DisplayPort)
AudioRealtek ALC888-GR
I/O InterfaceVGA1x VGA (1920 x 1200 @60Hz)
DP1x DisplayPort (4K x 2K @60Hz)
LAN2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
- GbE1: Intel® I210IT
- GbE2: Intel® I210IT
Serial Port4x RS-232/422/485, DB9 with Auto Flow Control (Supports 5V/12V), DB9
USB 4x USB 3.0 (Type-A)
Isolated DIO8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block
Line-Out1x Phone Jack 3.5mm
Mic-In1x Phone Jack 3.5mm
Power Button1x ATX Power On/Off Button
Reset Button1x Rest Button
AT/ATX Switch1x AT/ATX Mode Switch
Clear CMOS Switch1x Clear CMOS Switch
Remote Power On/Off Connector1x Remote Power On/Off Connector, 2-pin Terminal Block
StorageSSD/HDD1x 2.5” HDD/SSD Drive Bay (SATA 3.0)
mSATA1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket)
ExpansionPCI / PCIe-
CFM (Control Function Module) Interface- Optional CFM IGN Module for Power Ignition Function
- Optional CFM PoE Module for Power over Ethernet Function
CDS (Convertible Display System) Technology1x CDS Interface for Convertible Display Module
Mini PCI Express2x Full-size Mini-PCIe Sockets
SIM Socket1x SIM Socket
Antenna Holes4x Antenna Holes
Other FunctionInstant RebootSupport 0.2sec
Super CapSuperCap Integrated for CMOS Battery Maintenance-free Operation
OSD FunctionLCD On/Off, Brightness Up, Brightness Down
Internal SpeakerAMP 2W + 2W
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
Power RequirementPower TypeAT/ATX
Power Input Voltage9~48VDC
Connector3-pin Terminal Block
Power AdaptorOptional AC/DC Adapter
.AC/DC 12V/5A, 60W
.AC/DC 24V/5A, 120W (Optional)
PhysicalDimension (WxHxD)345 x 265.3 x 69.85 mm
Weight Information4.65 kg
Front Panel ConstructionFlat Rugged Aluminum Die-casting Bezel
MountingPanel / VESA / *Rack Mounting (*with optional mounting kit)
Fanless DesignYes
ProtectionReverse Power Input ProtectionV
Over Voltage ProtectionProtection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection15A
ESD Protection+/-8kV (air), +/-4kV (contact)
Surge Protection3.84 kV (impedance  12 ohm  1.2/50us waveform)
Operating SystemWindowsWindows® 10
LinuxSupport by project
EnvironmentOperating Temperature-20°C to 70°C (with extended temperature peripherals; Ambient with air flow)
Storage Temperature -30°C to 80°C
Relative Humidity80% RH @ 40°C (Non-Condensing)
ShockOperating, 15 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
VibrationOperating, 1.5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
IP LevelIP 65 Compliant Front Panel
EMCCE/ FCC Class A
ORDERING INFORMATION
Available Models
Model No.Product Description
CV-112C-R10/P1101-E50-R1012.1" TFT-LCD SVGA 4:3 Modular Touch Panel PC with Intel® Atom® E3950 Quad Core Processor and P-Cap. Touch
CV-112R-R10/P1101-E50-R1012.1" TFT-LCD SVGA 4:3 Modular Touch Panel PC with Intel® Atom® E3950 Quad Core Processor and Resistive 5-wire Touch
CV-112C-R10/P1101-N42-R1012.1" TFT-LCD SVGA 4:3 Modular Touch Panel PC with Intel® Pentium® N4200 Quad Core Processor and P-Cap. Touch
CV-112R-R10/P1101-N42-R1012.1" TFT-LCD SVGA 4:3 Modular Touch Panel PC with Intel® Pentium® N4200 Quad Core Processor and
Resistive 5-wire Touch

Package Checklist
 √ Panel PC x 1√ Power Terminal Block Connector x 1
 √ Utility DVD Driver x 1√ Remote Power On/Off Terminal Block Connector x 1
 √ Screw Pack x 1√ DIO Terminal Block Connector x 1
 √ Panel Mounting Kit x 1√ Thermal Pad (for CPU Thermal Block) x 1

Optional Accessories
Model No.Description
CFM-IGN101CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm)
CFM-PoE02CFM Module with PoE Control Function, Individual Port 25.5W
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
GST120A24-CINAdapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
