Skalierbare Erweiterungsmodule
Die in das Scalable Expansion Deck (SED) eingesetzten Cincoze Scalable Expansion Module (SEMs) bieten ein umfassendes und vielfältiges Spektrum an I/O- und Funktionsoptionen. Die SEMs lassen sich je nach Anwendungsanforderung frei erweitern und konfigurieren.| Produkt | Modell Name | Beschreibung | Kompatibles Modell |
|---|---|---|---|

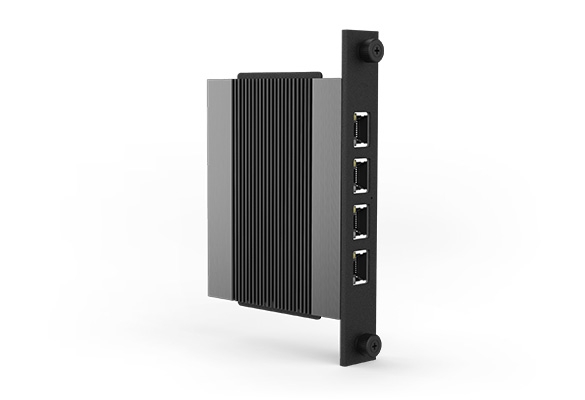

NEW  | SEM-LAN101-R10 | Scalable Expansion Module with 4x 1GbE LAN Ports, RJ45 Connector, 1 Deck | MD Series |
NEW  | SEM-MLAN101-R10 | Scalable Expansion Module with 4x 1GbE LAN Ports, M12 A-Coded Connector, 1 Deck | MD Series |

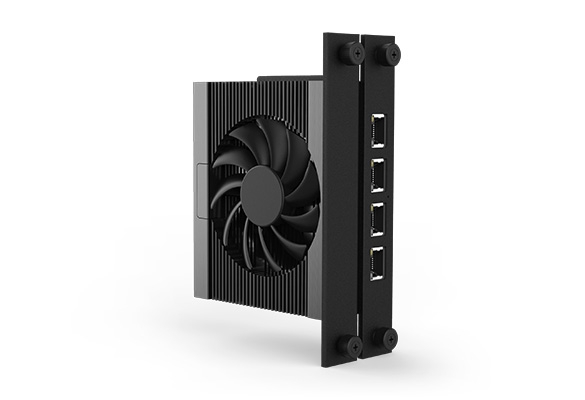

NEW  | SEM-POE201-R10 | Scalable Expansion Module with 4x 1GbE PoE Ports, RJ45 Connector, 2 Decks | MD Series |

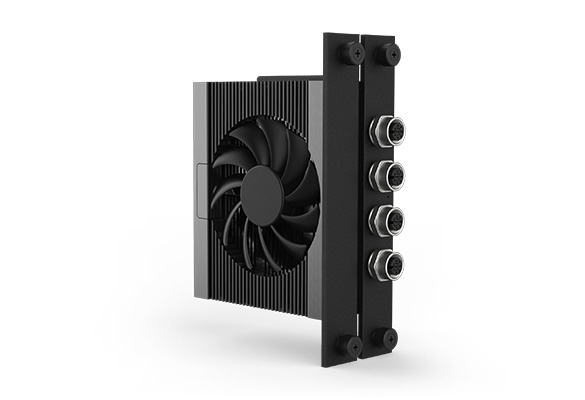

NEW  | SEM-MPOE201-R10 | Scalable Expansion Module with 4x 1GbE PoE Ports, M12 A-Coded Connector, 2 Decks | MD Series |

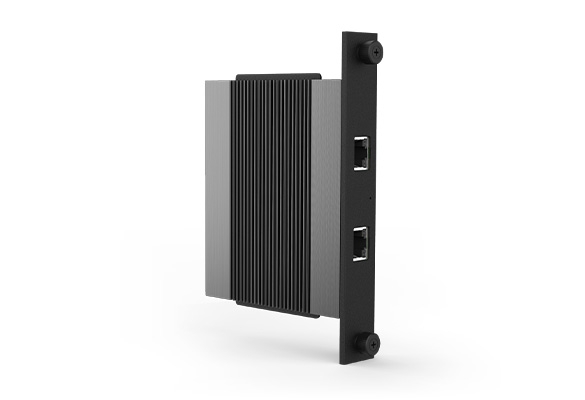

NEW  | SEM-10GLAN101-R10 | Scalable Expansion Module with 2x 10GbE LAN Ports, RJ45 Connector, 1 Deck | MD Series |

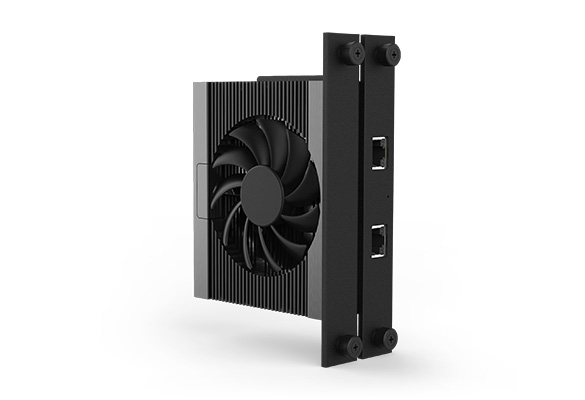

NEW  | SEM-10GPOE201-R10 | Scalable Expansion Module with 2x 10GbE PoE Ports, RJ45 Connector, 2 Decks | MD Series |
NEW  | SEM-USB101-R10 | Scalable Expansion Module with 4x USB3.2 Gen1 (5Gbps), Type A, 1 Deck | MD Series |

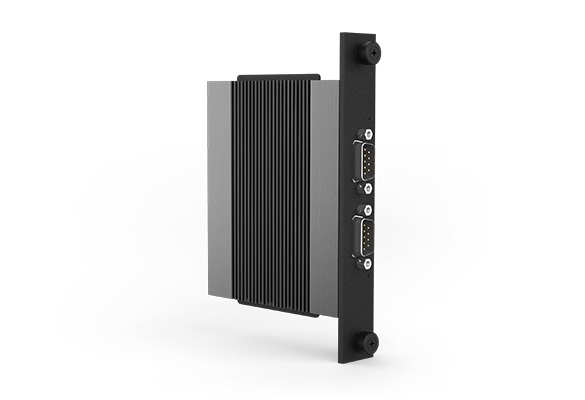

NEW  | SEM-COM101-R10 | Scalable Expansion Module with 2x RS-232/422/485, (Supports 5V/12V), DB9, 1 Deck | MD Series |
NEW  | SEM-ICOM101-R10 | Scalable Expansion Module with 2x Isolated RS-232/422/485, (Supports 5V/12V), DB9, 1 Deck | MD Series |
NEW  | SEM-DIO101-R10 | Scalable Expansion Module with 16x Isolated DIO (8-in/8-out), 20-pin Terminal Block, 1 Deck | MD Series |

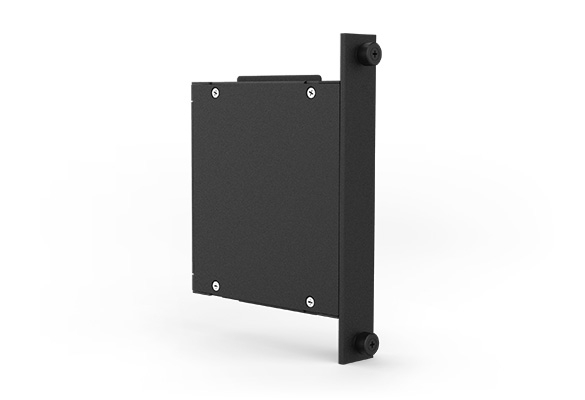

NEW  | SEM-SAT101-R10 | Scalable Expansion Module with 1x 2.5” HDD/SSD SATA Drive Bay, 1 Deck | MD Series |

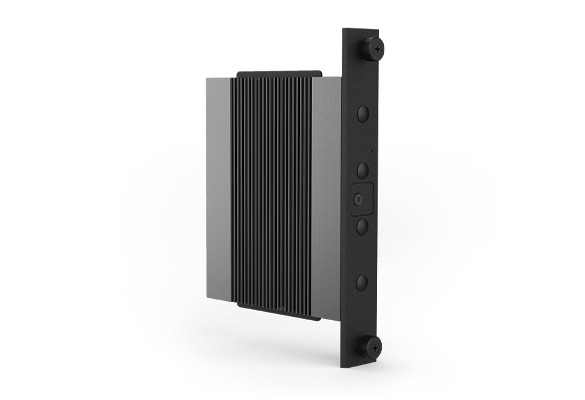

NEW  | SEM-M2B101-R10 | Scalable Expansion Module with 1x M.2 Key B Socket Type 2242/3052/2260/2280 Socket (PCIe & USB 2.0), with 2x Internal SIM Socket and 1x Universal Bracket with 4x Antenna Hole, 1 Deck | MD Series |
NEW  | SEM-M2E101-R10 | Scalable Expansion Module with 1x M.2 Key E Socket Type 2230 Socket, Support WI-FI (PCIe & USB 2.0), with 1x Universal Bracket with 4x Antenna Hole, 1 Deck | MD Series |
